TP-LINK S485PI 8Mp Outdoo IR Panoramic Turret Network Cam Vigi Insight

Image 1
Image 2
Image 3
Image 4
Hurry! 2 items left!
$406

Collect 406 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

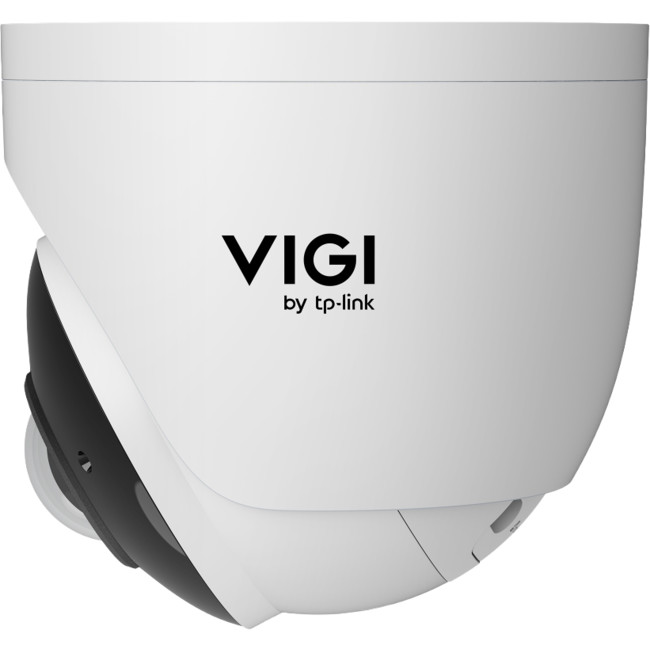

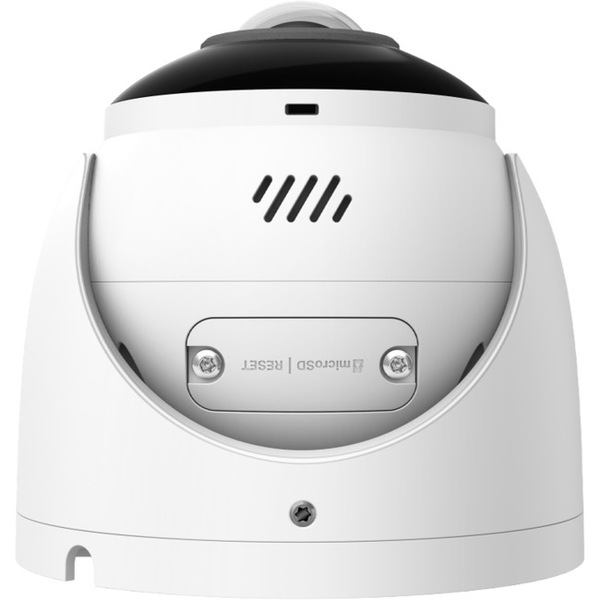

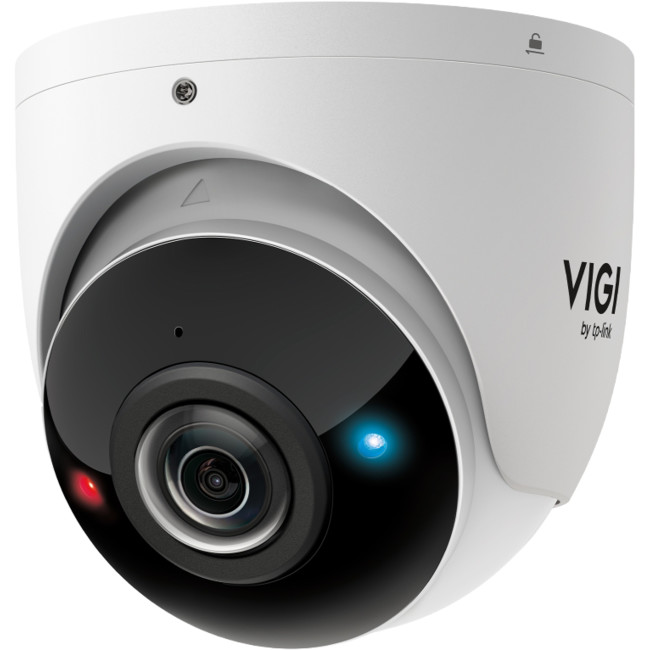

VIGI 8MP IR Panoramic Turret Network Camera
  • 180° Panorama View with Huge Vision
  • 4K (8MP) Ultra HDandIR Range Up to 65.62 ft (20 m)*1
  • Red-Blue Warning Lights with Stronger Deterrence
  • People & Vehicle Analytics*2
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Audio and Alarm Interface Available
  • IP67 Weatherproofand IK10 Vandal Proof
  • H.265+ Compression Technology
CAMERA
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 1.65 mm
Aperture F2.0
FOV 1.65mm:
• Horizontal FOV: 180°
• Vertical FOV: 86°
• Diagonal FOV: 180°
Lens Mount M12
DORI Distance 1.65mm
• Detect: 144.36 ft (44 m)
• Observe: 60.15 ft (18.33 m)
• Recognize: 28.87 ft (8.8 m)
• Identify: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
ILLUMINATOR
IR LED Quantity: 4
Range: 65.62 ft (20 m)
Wavelength: 850 nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 3840x2160
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720

Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 8 Mbps
Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 4 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Built-in Microphone
Audio In Interface
Audio Output Built-in Speaker
Audio Out Interface
Audio Compression Yes
Audio Sampling Rate 8 KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device
Alarm Linkage • Memory Card Video Recording
• Upload to FTP Server
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm 1 Alarm In, 1 Alarm Out
Red-Blue Warning Lights
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio 1 Audio In, 1 Audio Out


Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.
GENERAL
Operating Temperature -30 to 60 °C
Storage Temperature -40 °C to 60 °C
Operating Humidity 95% or Less (Non-condensing)
Storage Humidity 95% or Less (Non-condensing)

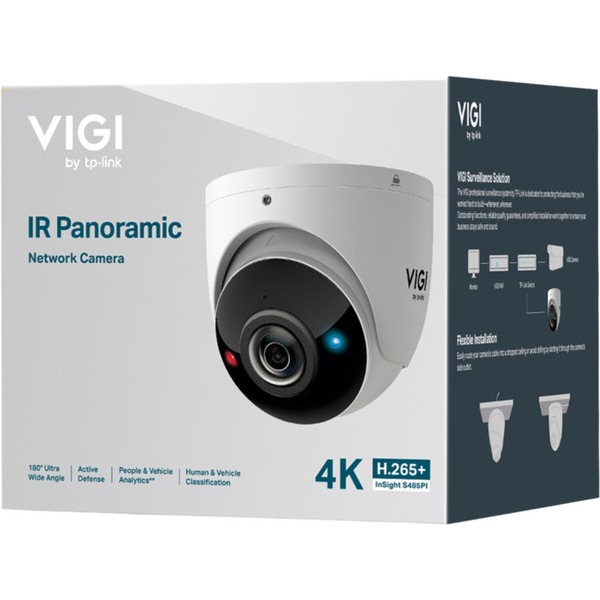

Package Content VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Metal
Net Weight 0.76 Kg
Power Supply • 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3at, class 4, Max. 21 W
Protection IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H) 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)

GTIN: 4718201794425
