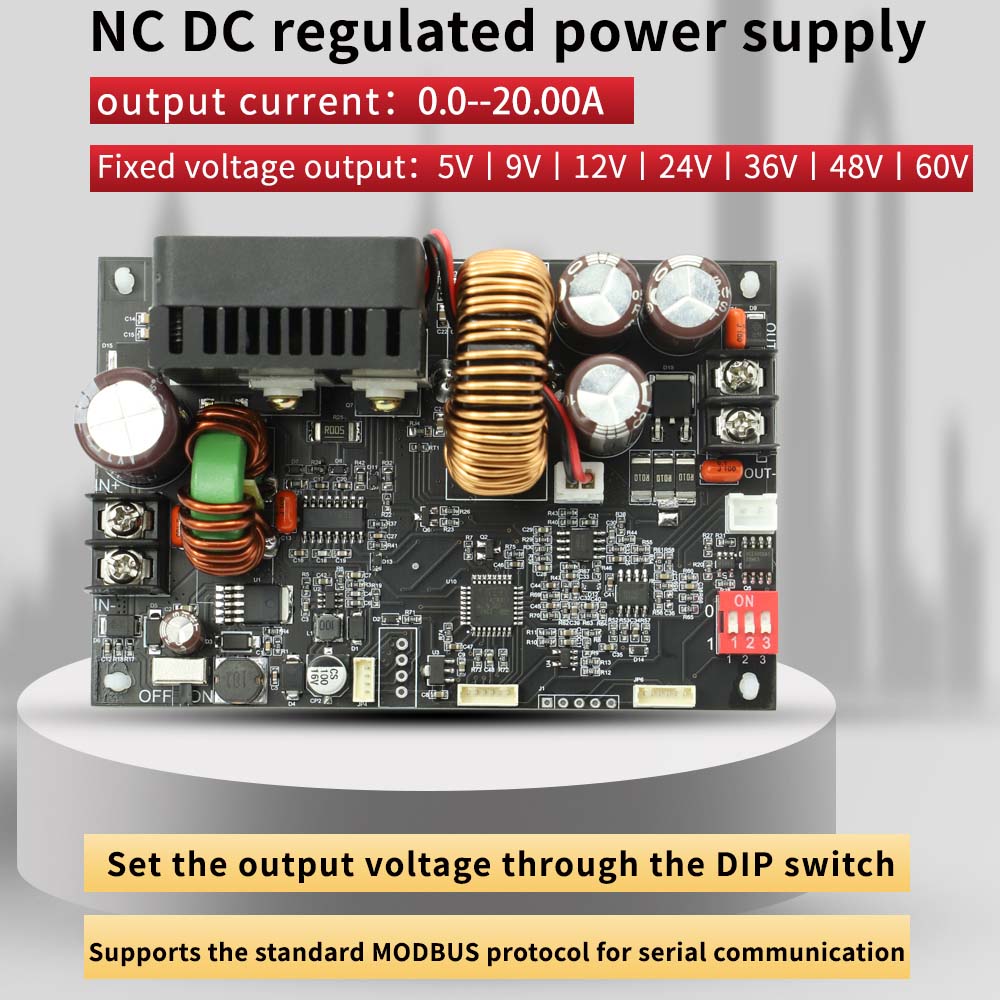

Voltage Stabilizer:
CNC direct t voltage regulator, which is constant voltage and t design, with the output voltage of 0.0-60.00V, output t of 0.0-20.00A, and output power of 1200W.
Full-view special power supplys LCD large screen display, complete data display, simple operation, can provide stable working performance.
In the operation interface, short press the encoder button, the power (W), ty (Ah), energy (Wh), time (h) will be displayed in turn in the downstream; short press the SW button, into the input and output voltage display; long press the encoder button for 2 seconds to lock the set voltage and t to prevents misoperation.

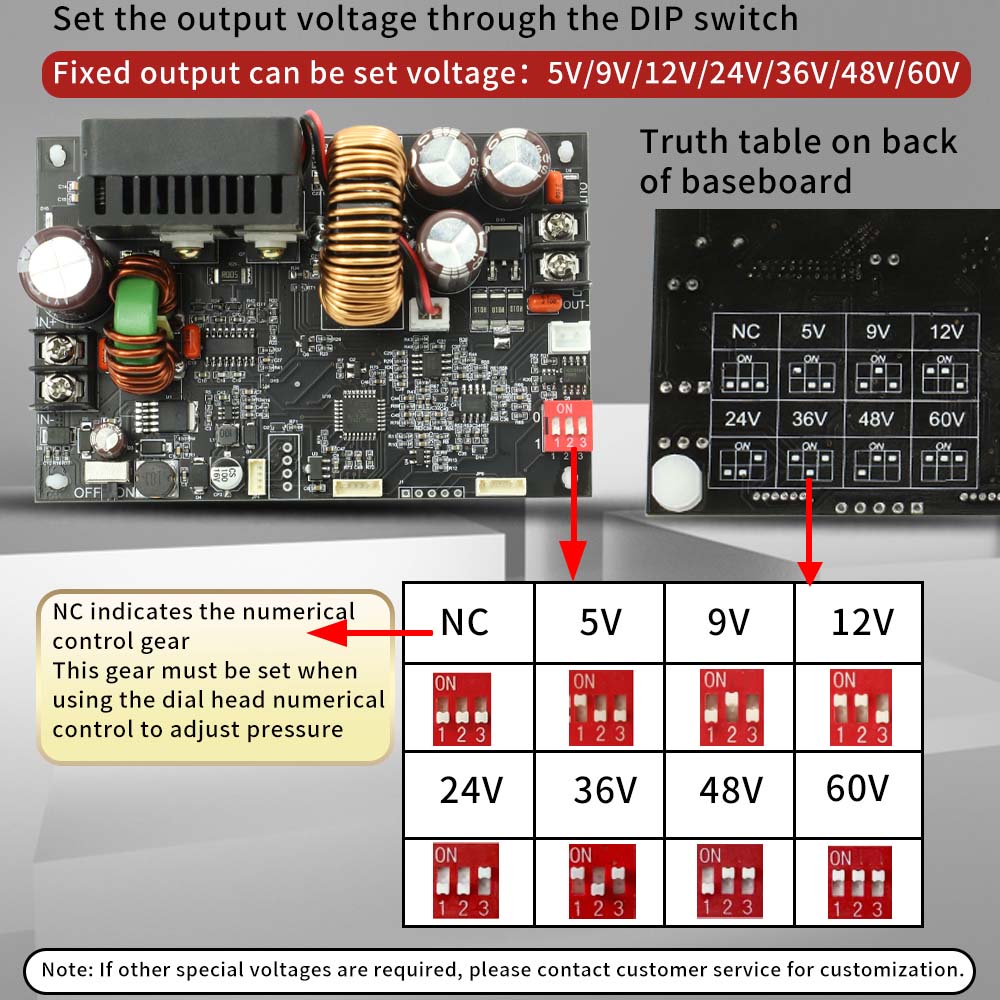

10 groups of storage function, there are 10 groups of data from CD0 to CD9 (CD8=12 V; CD=24 V is not adjustable), the data is saved to CD0 by default.

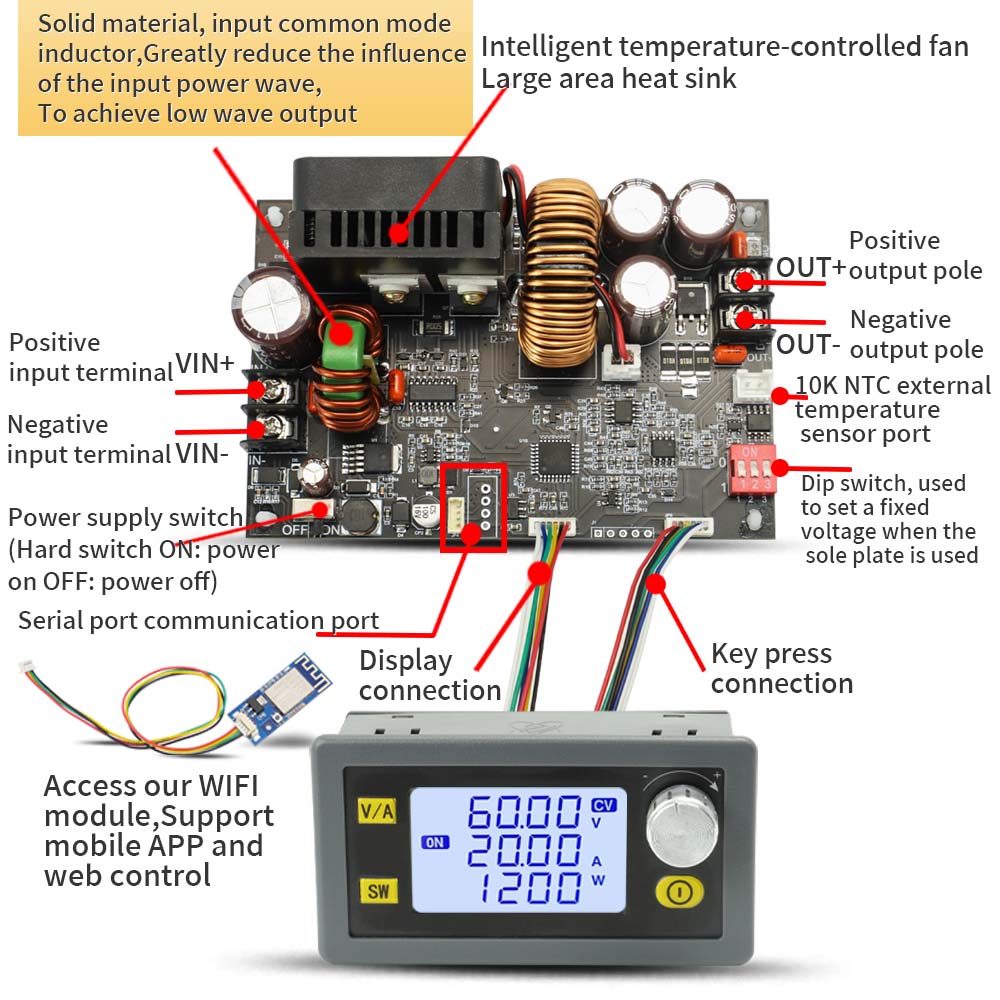

WIFI function: access to the wifi module to support mobile phone APP and web control.
Through a TTL to 485 module or WIFI module, you can achieve multi-machine remote joint control, a separate baseboard can achieve communication control low-cost solution.

Specifications:
Type: Standard board/Standard board +Wifi (optional)
Output voltage: 0.0-60V
Output t: 0-20.00A
Output ripple typical value: 100mv VPP
Output power: 0-1200W
Maximum output voltage: (input voltage ÷ 1.1)-2
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
t setting: 0.01A
Input voltage measurement resolution measurement accuracy: ±1% + 5 words
Output voltage setting: ±0.4% + 1 word
Output t setting and measurement accuracy and measurement accuracy: ±0.5% + 3 words
Cooling fan on: t>2A, power>50W, temperature>50��
Cooling fan on and then off: t <1.5A; power <45W, temperature <45��

Protection Mechanism:
External temperature protections: 0-110 �� default off
Input overvoltage protections: 71V default
Input under-voltage protections: 4.8-71V adjustable, default 4.8V
Output over-voltage protections: 65V, default 65V
Output overt protections: 0-22A, default 22A
Output over power protections: 1250W, default 1250W
Over temperature protections: 60-110��, default 95��
Timeout protections: 0-100H adjustable, default off
Over ty protections: 0-9999AH adjustable, default off
Super energy protections: 0-9999WH adjustable, default off

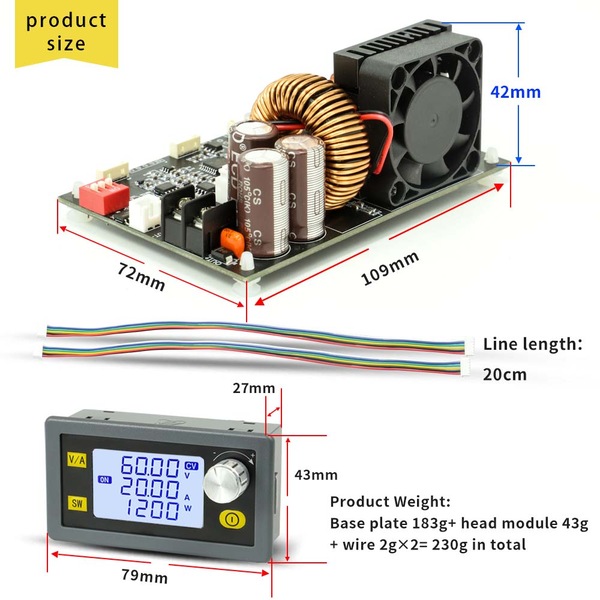

Item size:
XY-6020L size: 79 * 43 * 27mm / 3.11 * 1.69 * 1.06in

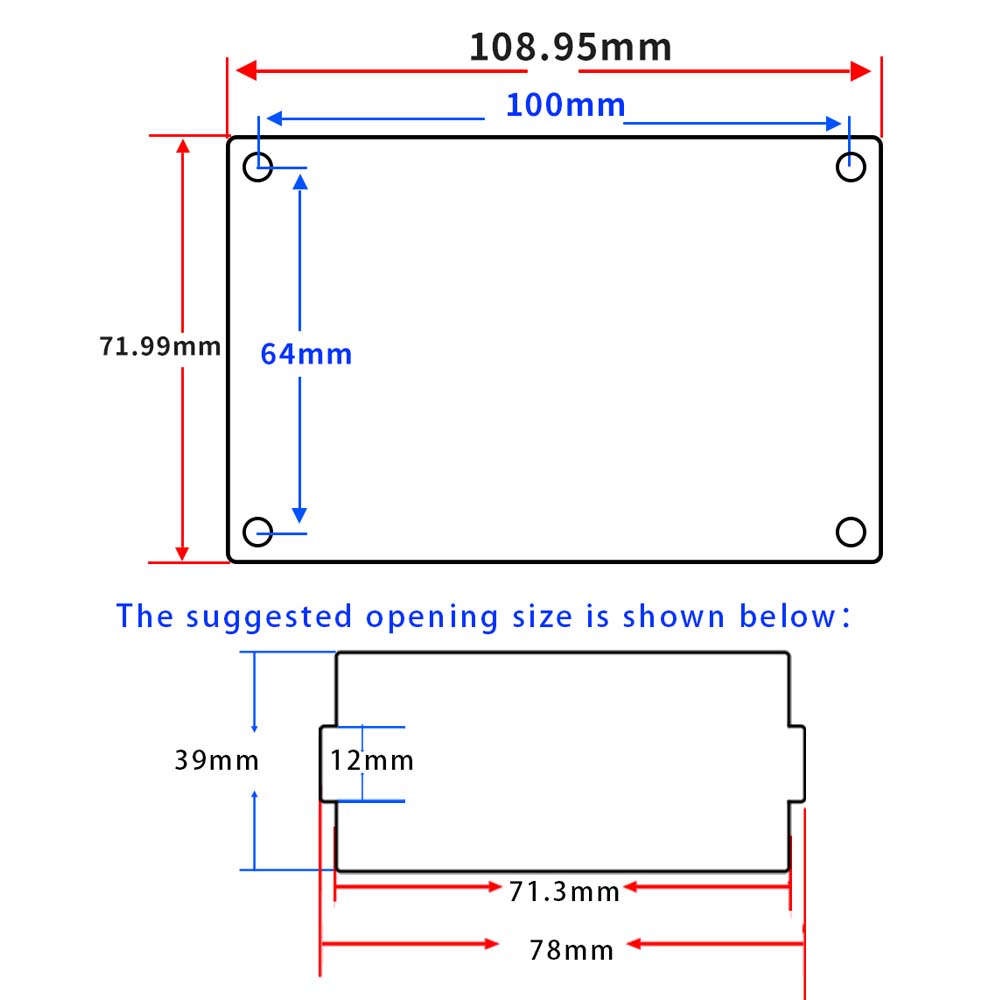

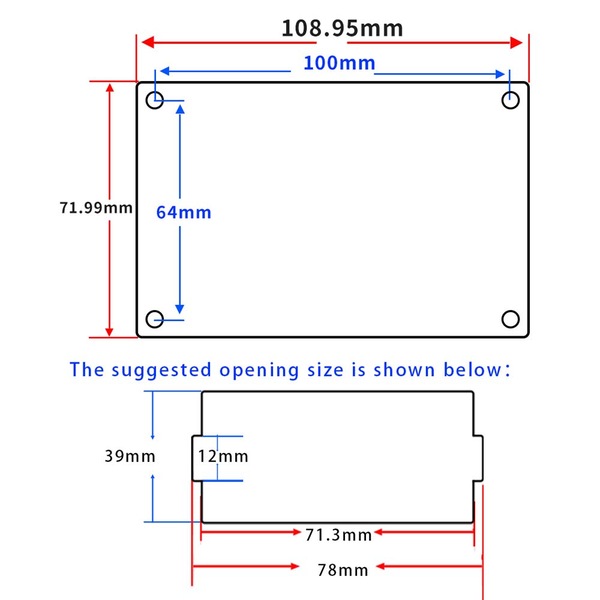

XY-6020L base plate: 72 * 109 * 42mm / 2.83 * 4.29 * 1.65in
Item weight:
XY-6020L size: 180g / 6.35ounce
XY-6020L base plate: 230g / 8.11ounce
Package size: 150 * 130 * 80mm / 5.91 * 5.12 * 3.15in

Package weight:
XY-6020L size: 190g / 6.70ounce
XY-6020L base plate: 240g / 8.47ounce

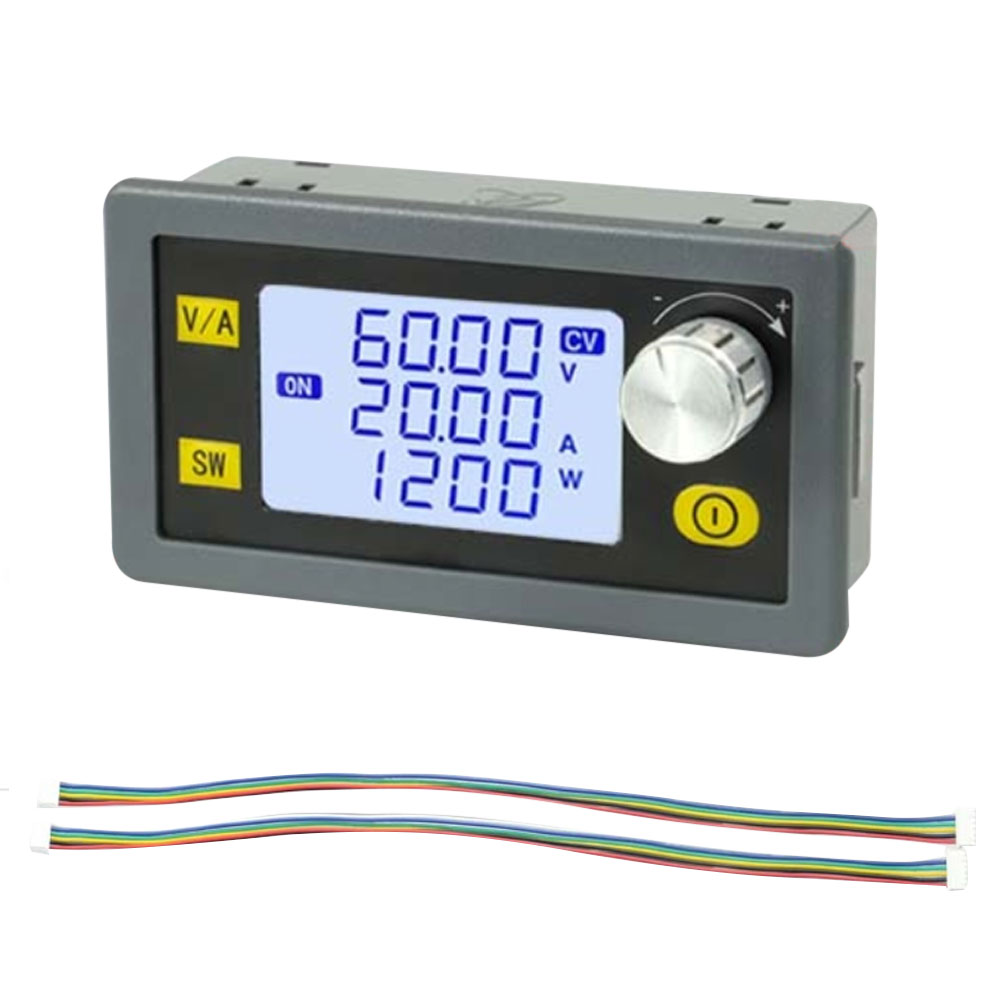

Packing List (6020L display + Cable)
1 x XY-6020L display
2 x Cable
