Adventure Kings 160W Semi-Flexible Solar Panel PET construction + PWM Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products
Super thin, semi-flexible and light weight; Can be DIY installed on canopies, hard-shell RTT’s, caravan roofs & more. Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces.

• Easy to clean polished PET coating; Produces Up to 13.33A of charge at 12V. perfect choice for a permanent 12V set up on your vehicle! They're low profile, durable and efficient. The Adventure Kings 160W semi-flexible solar panel is great for permanent, low profile surface mounting, enhancing the sun's power all day, every day. There’s nothing better than sitting back and relaxing while your solar does all the work and the 160W panel is the perfect cost-effective choice for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats!

• They’re constructed with tough and durable PET (Polyethylene Terephthalate) which is polished smooth so it’s easy to clean. Adventure Kings Semi-Flexible Solar Panels also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.

• If you have a solar panel without it's own regulator, add this PWM Controller to your setup to safely and effectively charge your battery. Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup.

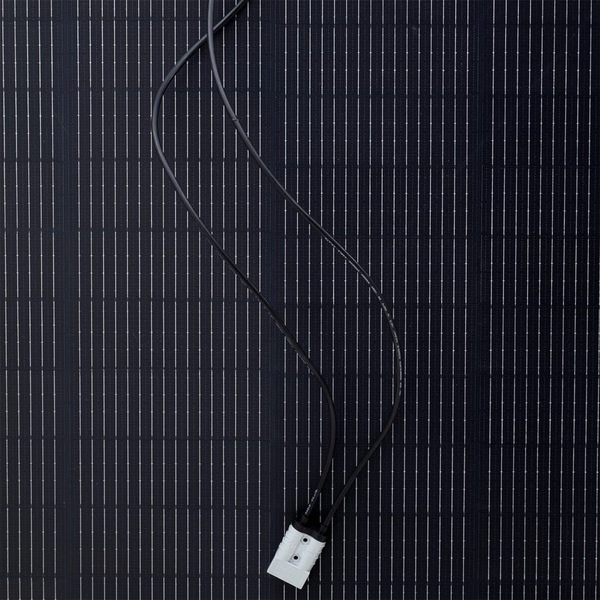

KINGS 160W SEMI-FLEXIBLE SOLAR PANEL


Up to 13.33A of charge at 12V| Grade A PET coated solar cells


The 160W semi-flexible solar panel is great for permanent, low profile surface mounting. Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces.


They also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.



Output 160 Watts
VMP (Maximum Power Voltage) 19.5 Volts
IMP (Maximum Power Current) 8.21 Amps
ISC (Short Circuit Current) 8.98 Amps
VOC (Open Circuit Voltage) 23.4 Volts
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect Anderson Style Plug
Dimensions (Open) 120 x 78 x 0.25cm
Weight 2.8 kg





Adventure Kings 15A PWM Solar Regulator Controller 12V battery voltage output





• Regulates Solar Output to Charge & Maintain 12v Batteries


• Simple Circuitry for Trouble Free Operation


• 3 Stage Charging – Boost, Equalise & Float


• PWM Technology


• Easy To Connect / DIY


• Lcd Display + USB Ports


• Built In Protections


• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable


• USB Output: 5V / 2A


• Weight: 154g

MPN: SC-CO-FL160W-PWNREG

Reference ID: 13954183
