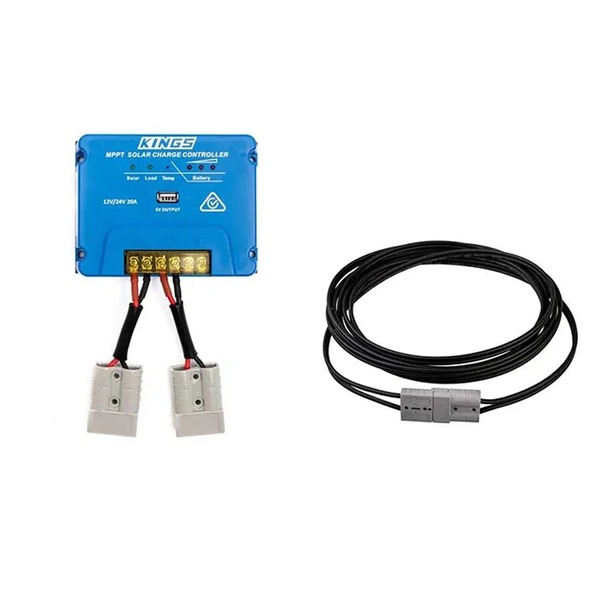

Adventure Kings MPPT Regulator 20A Charging + 6m Lead For Solar Panel Extension

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$54.90

Collect 54 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

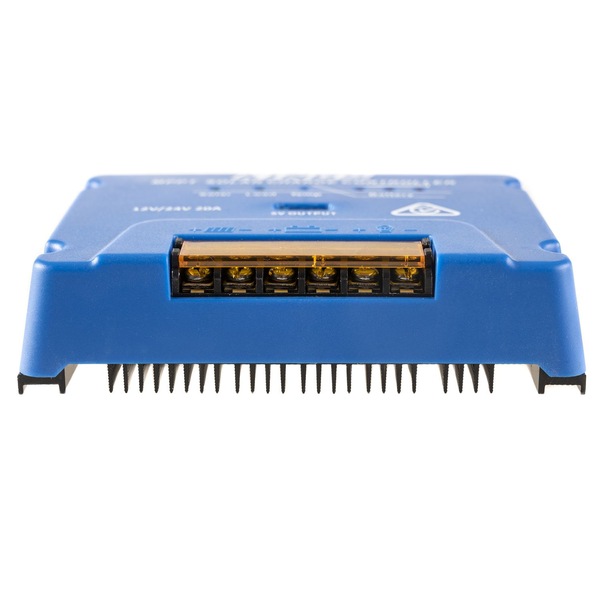

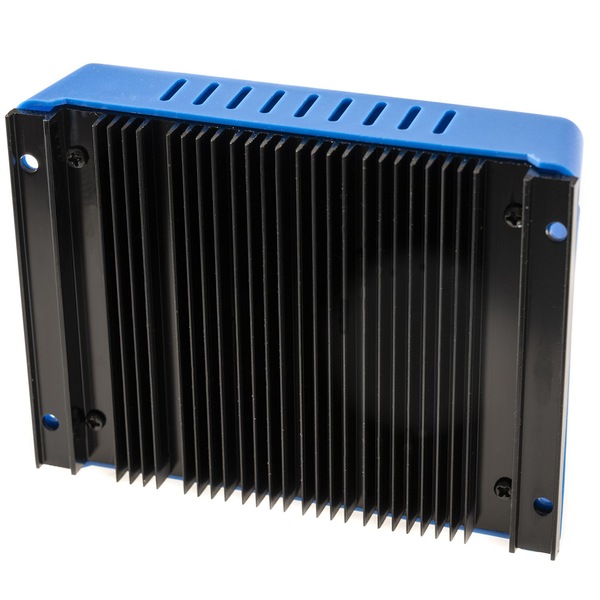

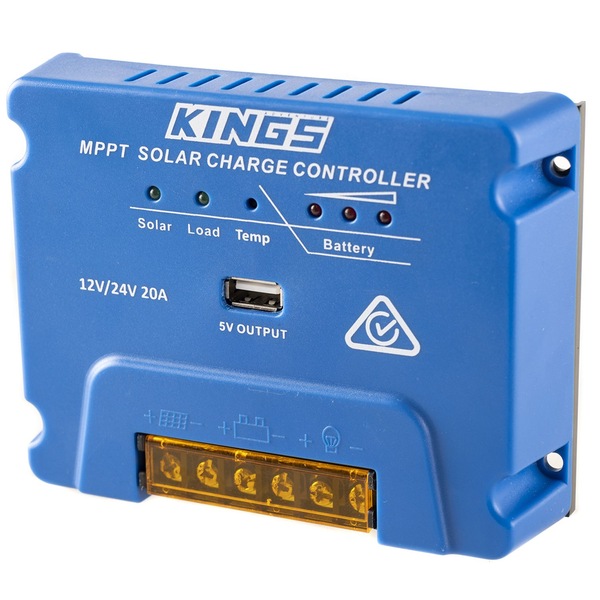

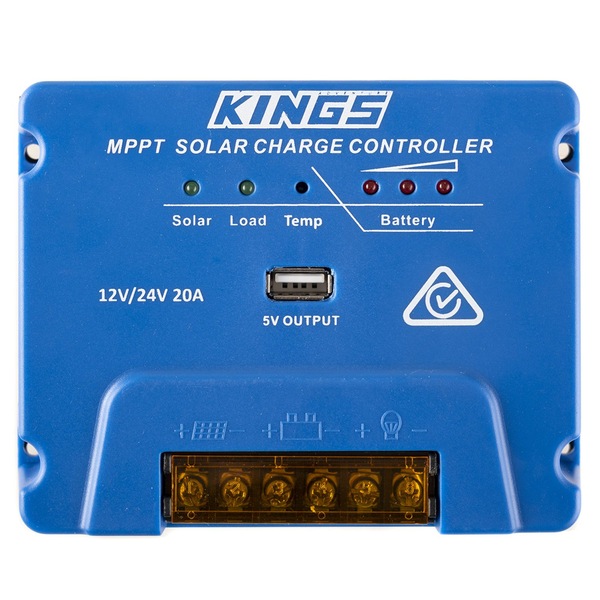

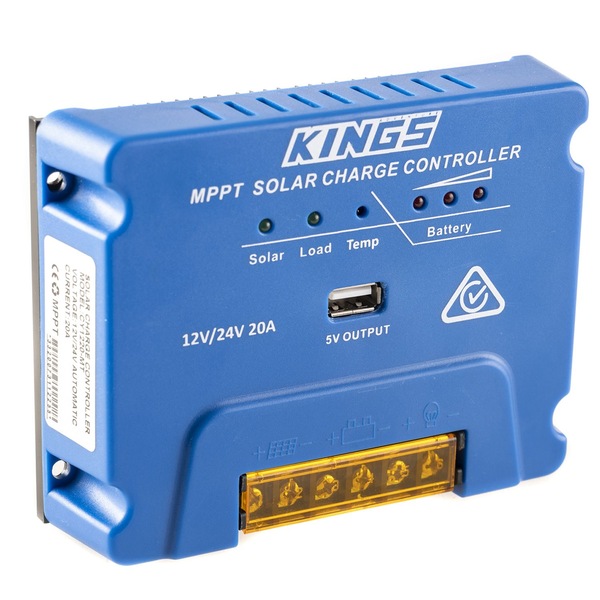

Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it’s suitable for both 12 and 24V systems. A Maximum Power Point Tracking (MPPT) Controller applies a sophisticated charging algorithm that can constantly track the amount of power that the solar panel is generating from the sun and make the most of it in any conditions - as the conditions and solar panel output change, the MPPT tracks and follows the maximum power point for higher charging output and efficiency.

• A Solar Controller (also known as a Solar Regulator) is a must for safeguarding your battery from the high voltage output of solar panels. It does this by reducing the voltage to the level that the battery requires, for a safe and efficient charge. MPPT stands for Maximum Power Point Tracking - the unit maximises the output of the solar panel and can offer up to 30% more power from the same panel compared to a PWM regulator.

• A Maximum Power Point Tracking (MPPT) Controller applies a sophisticated charging algorithm that can constantly track the amount of power that the solar panel is generating from the sun and make the most of it in any conditions - as the conditions and solar panel output change, the MPPT tracks and follows the maximum power point for higher charging output and efficiency.

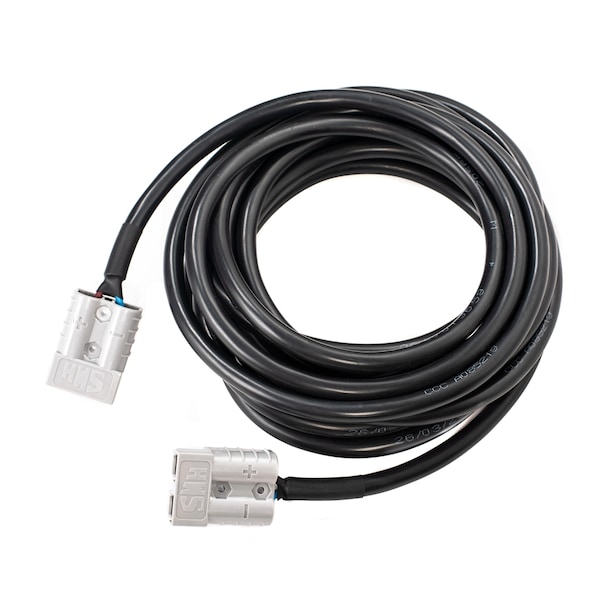

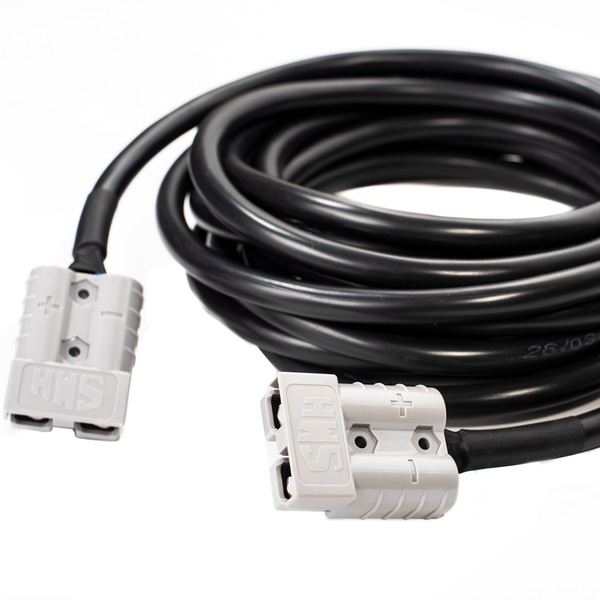

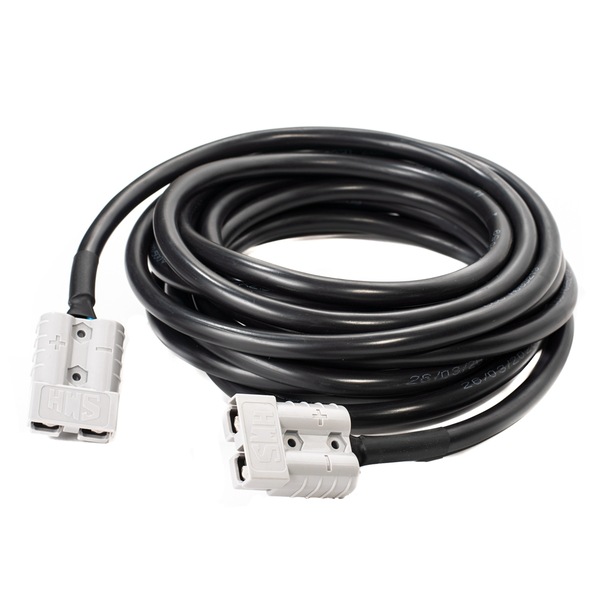

• The Adventure Kings 6m Solar Extension Lead is the perfect partner for your portable solar blankets or panels. The 6 metre length and simple quick-connect plugs make it easy to make the most of your solar – allowing you to camp in the cool shade and still set up your solar in full sun.

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!
Kings MPPT Solar Regulator | 20A Charging | Highly efficient for more power



Specifications:





• Regulator Type: Maximum Power Point Tracking

• Dimensions: 131×99.5×29.5(mm)(L×W×H)

• Regulator current rating: 20A charge / discharge

• Regulator Voltage: Suitable for 12V or 24V systems (automatic)

• Maximum Regulator Voltage input: 50V

• No-load current (standby current): <10mA

• Safety: Overload & short circuit protection ≥1.5x rated current

• USB output: 5V 1A


Kings 6m Solar Panel Blanket Extension Lead 2.5mm High Quality Copper Heavy Duty



Specifications:





• Length: 6m

• Conductor Material: Multi-Strand Copper 51x0.25

• Conductor Cross-Sectional Area (each wire): 2.5mm2

• Insulation Material: 0.8mm PVC

• Outer Sheath Material: 1mm PVC

• Outer Diameter: 9.3mm

• Recommended Maximum Current: 20A

• Operating Temperature Range: -5°C~+70°

• Plug Type: Anderson-style Quick Connect

• Plug Rating: 50A

• Plug Material: UL94-V0 Flame Resistant Thermoplastic

• Connector Material: Copper

• Maximum Rated Voltage: 300V

MPN: SC-CO-MPPTREG-6MLEAD
