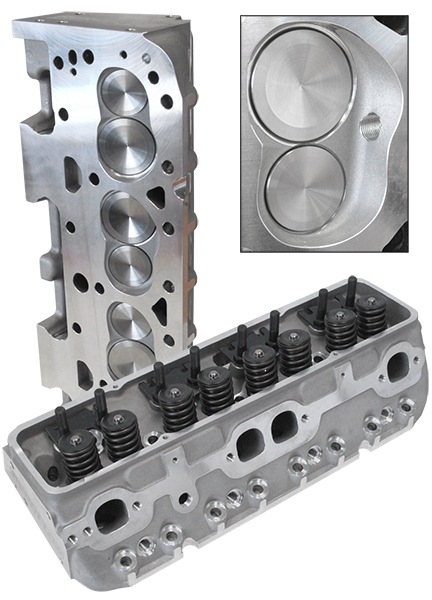

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
Aeroflow's Small block Chevy cylinder heads are designed for entry-level street performance engines and ideal for operating in the idle to 6500 rpm range. Made from A356 aluminium castings. These complete heads include larger-than-stock 1.43" (36.3mm) diameter dual valve spring to handle up to 0.575" (14.61mm) maximum valve lift. Recommended spark plugs are 14mm x 3/4" reach with flat gasket seat. Includes valves, valve springs, retainers & locks, guide plates and 7/16" rocker studs.
Head Specs:| .100" | .200" | .300" | .400" | .500" | .600" | |
| 2.020 Intake | N/A | 125 | 183 | 231 | 254 | 262 |
| 1.600 Exhaust | N/A | 103 | 145 | 165 | 172 | 177 |
Head Specs:
Chamber Volume: 64cc Chamber
Intake port volume: 200cc
Intake valve size: 2.02"
Exhaust valve size: 1.60"
Valve spring diameter: 1.430" (36.3mm)
Spring installed height: 1.85" @ 100lbs
Maximum valve lift: 0.575" (14.61mm) @ 300lbs
Rocker stud diameter: 7/16"
Pushrod diameter: 5/16" (width of slot in guide plate)
Spark plug style: Straight
