Aeroflow XPRO High Torque Starter SB for Ford 289 302 351 Windsor & 351 Clevelan

1 Review

Image 1
Image 2
Hurry! 1 items left!
$329.50

Collect 329 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Speed Parts
Secure ways to pay at checkout

Aeroflow has become synonymous with premium quality performance products. Aeroflow's objective has been to incorporate state-of-the-art manufacturing, aerospace quality materials and rigid quality controls to produce quality performance products at extraordinary value. Aeroflow has taken its forward thinking knowledge to the street, manufacturing a wide range of race quality products to improve street performance and dependability.

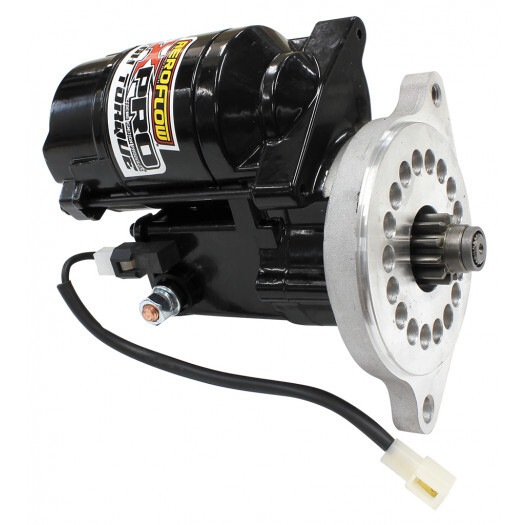

Aeroflow high torque starter motors are serviceable and manufactured from high quality aluminium with a CNC machined multi-angle mounting block that allows different mounting positions to clear multiple header and oil pan configurations. This 1.4kw / 1.9hp starter is recommended for engines all the way up to a monster 400cu and 14:1 compression ratio and utilizes a 4.44:1 gear reduction.  Aeroflow starter motors have high heat resistance helping to eliminate hot start problems and are powder coated black for extra corrosion protection. Aeroflow also have a full range of starter motor service parts ensuring the longevity and serviceability of your new starter motor for many years to come!


Specifications:

Brand: Aeroflow
Part Number: AF4250-5055
Starter Style: Mini Denso style
Starter Finish: Powder coated black for extra corrosion protection
High heat resistance to help eliminate hot start problems
4.44:1 gear reduction for maximum torque
Starter Rotation: Standard
CNC machined adjustable mounting block for maximum clearance
Power point in between block and starter, instead of between starter and headers as many other brands do, to allow for tight clearances, and heat protection to wiring
Heavy duty bearing holds drive assembly for long life and accurate pinion alignment
Maximum Recommended Compression Ratio is a huge 14:1
Voltage: 12 Volts
Power Rating: 1.9 HP / 1.4 KW

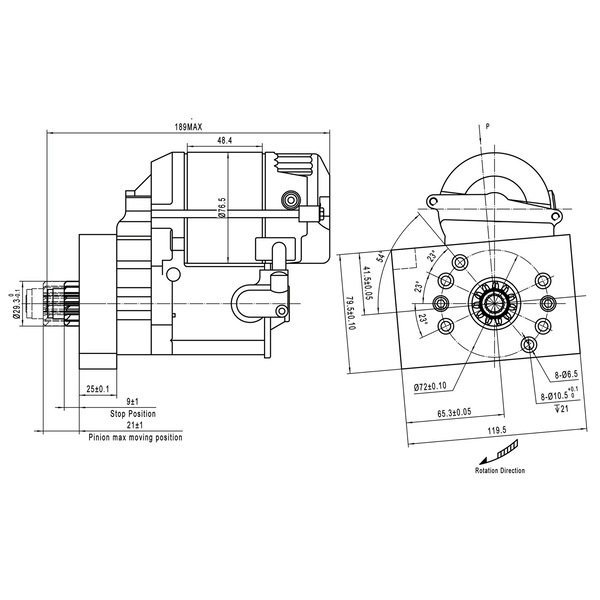

Mounting holes centre to centre: 133mm
Overall Length: 198mm
Overall Height: 140mm
Overall Width: 93mm
1 year warranty


Fitment notes:

Starter has a 3/4 in. offset and fits applications with automatic transmissions using a 157 or 164 tooth ring gear or manual transmissions using a 157 tooth ring gear (Normally 5-speeds). This replaces OEM starters with a 'nose' that extends 2-3/8 in. past the mounting surface.
Mounting holes are not threaded, which most factory starters are not. But in some instances the factory starter motor mounting holes are threaded, which means you will need to purchase appropriate nuts/bolts for mounting, which can be purchased from any good fastener/bolt store.
Adjustable mounting block allows fitment to multiple configurations of oil pan and extractors, but please use the above measurements and information to compare to your original starter motor, to ensure correct fitment for your vehicle.
Suitable for models fitted with existing 3/4 offset starter.
Suitable for models fitted with 3 speed auto transmission.

GTIN: 9337206108492
