Have you been shopping around for a CCTV system but couldnot make a decision amongst all the available, confusing options?

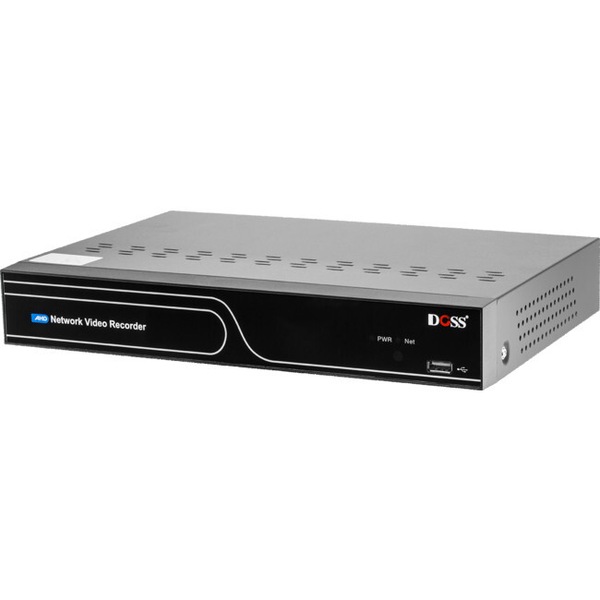

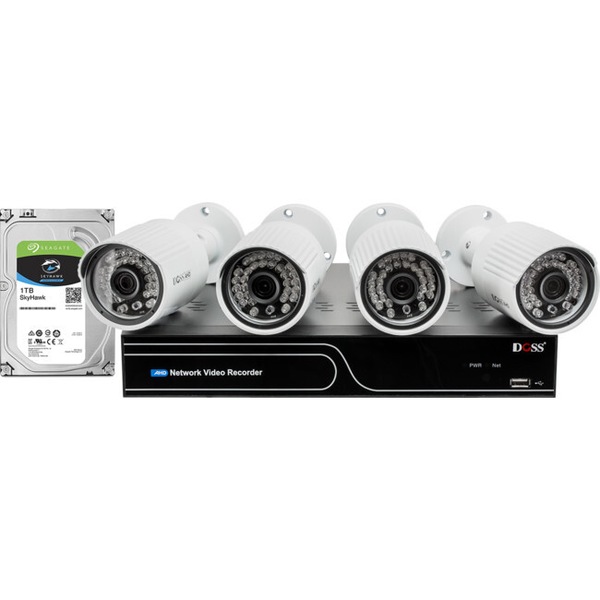

This Doss AHD 4 channel Hybrid DVR bundle kit includes everything you need for your home CCTV system.
No more frustration about too many products and options. This bundle kit takes your headache away and make your CCTV shopping experience more pleasant.
The kit comes with:
Need help troubleshooting? to access our help centre and view our FAQ solutions.
VIDEO | |
Video input |
|
Video compression | H.264 |
Video output | VGA/HDMI sync output |
1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600 pixels | |
Video resolution | 1920×1080, 1280×960, 1280×720, 960×576 pixels |
Video bit rate | 64-8000Kbps |
Image display | 1/4/6/8/9 |
Snapshot | Support (BMP) |
Motion detection | 396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable |
AUDIO | |
Audio compression | G.711A |
Audio input | 4CH, RCA port |
Audio output | 1CH, RCA port |
VIDEO RECORDING AND PLAYBACK | |
Video frame rate |
|
Record mode | Manual/Alarm/Motion Detection/Regular |
Local playback | 1CH/4CH sync playback |
Search method | Time, calendar, event, channel |
Video playback | Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback |
STORAGE AND BACKUP | |
Interface | 1 SATA |
HDD capacity | Supports up to 6TB (1TB HDD installed with Kit) |
Record saving | Local HDD, network |
Backup method | Network backup,USB storage device,USB recorder |
FUNCTION | |
Network protocol | TCP/IP, HTTP, DDNS, SMTP(SSL) for Email, DHCP, PPPOE, UPNP, NTP, P2P, ONVIF |
Interface protocol | ONVIF, RTSP |
Mobile surveillance | FSEYE for |
Web Access |
|
Intelligence Features | Motion detection, video loss, privacy mask |

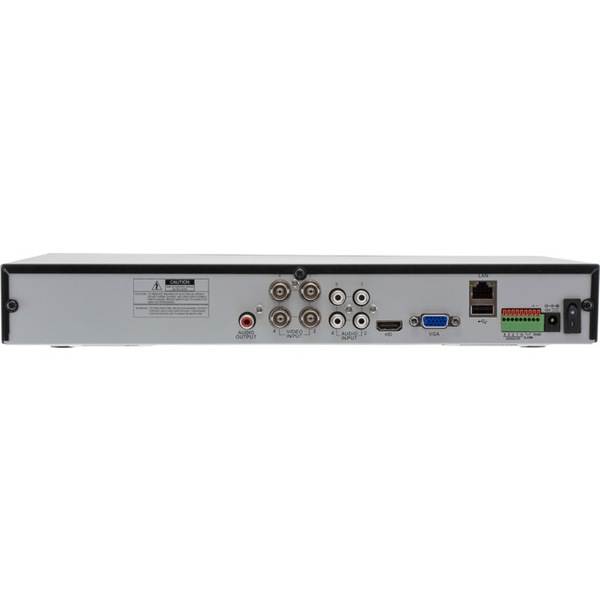

EXT INTERFACE | |
Video output | 4CH BNC interface (1.0Vp-p, 75) |
Interface protocol | RJ45 10M/100M/1000M Ethernet port adaptive |
Alarm input | 4CH |
Alarm output | 1CH |
USB port | 2x USB2.0 |
GENERAL | |
Operation temp./ humidity | -10°C ~ 55°C/10%-90% |
Power supply | DC12V/3A (Power plug can be selected) |
Power consumption | <10W (Without HDD) |
Dimension(mm) | 300 (L) * 209 (W ) * 48.5(H ) mm |
Weight/PCS(g) | 1 kg |

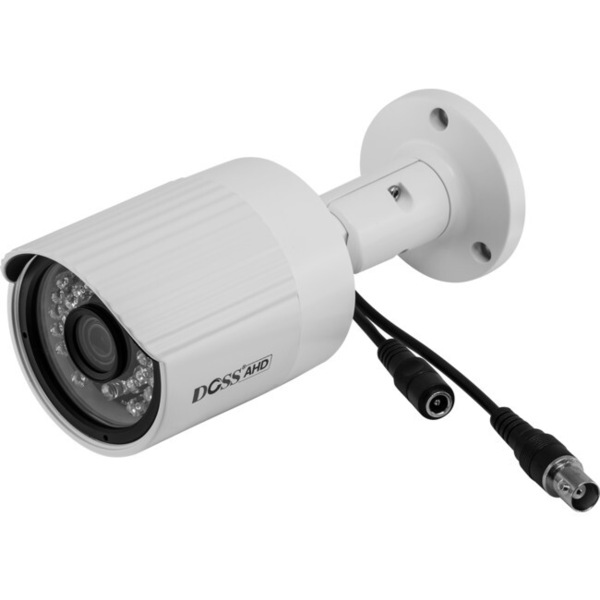

CAMERA | _ |
Sensor | 1/2.9" SONY 2 Mega pixels CMOS |
Effective pixels | 1920(H) × 1080(V) |
Video frame rate | 1080P@25/30fps |
Resolution | 1280H (CVBS output) |
Min. Illumination | 0 Lux (IR ON) |
Sync System | Internal |
Lens | 3.6mm M12 Lens, standard ICR module ; |
Electronic Shutter | Auto/ Manual (X30~1/50000) / FLK |
S/N Rate | ≥50db(AGC OFF) |
Video output | 1.0Vp-p complex video output, 75 |
Output model | PAL/NTSC adjustable |
OSD menu | |
White balance | ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB |
NR | 2DNR/3DNR, OFF |
Image adjustable | Brightness, sharpness, AGC |
DWDR | AUTO/ON/ OFF |
Sens-up | OFF/ Auto (X30, X25, X20, X15, X10, X8, X6, X4, X2) |
BLC | BLC/ HSBLC/ OFF |
AGC | 0~15 |
Day&night switch | Auto, EXT, B/W, Colour |
Privacy mask | OFF/ ON (4 zone) |
Motion detection | OFF/ ON (4 zone) |
Mirror | Horizontal/ vertical/ rotation |
Lens shading compensation | OFF/ON |
DPC | Auto, OFF/ON |
Defog | OFF/ Auto |
OSD menu | 12 Languages including English and Chinese |
Four in one output | AHD 1080.P, THD 1080P, CHD1080P, Analogue 1280H |
GENERAL | _ |
Transmission distance | 75-3/300m,75-5/500m |
IR distance | 20-30m(30xΦ5 IR) |
Protection grade | IP66 |
Power supply | DC12V± 10% |
Power consumption | <5W (IR LEDs power consumption+main board power consumption: 0.96W) |
Operating temperature | -20°C ~ 55°C/ 0%-90% |
Dimensions(mm) | 66(W)*66(H)*166(L)mm |
Weight/PCS(g) | About400g |
