AIHT652 HD SET TOP BOX WITH USB

AIHT652 HD SET TOP BOX WITH USB

$99

Collect 99 Everyday Rewards points

Free Shipping

Sold & shipped by MAD Electronics Australia

Secure ways to pay at checkout

(0)

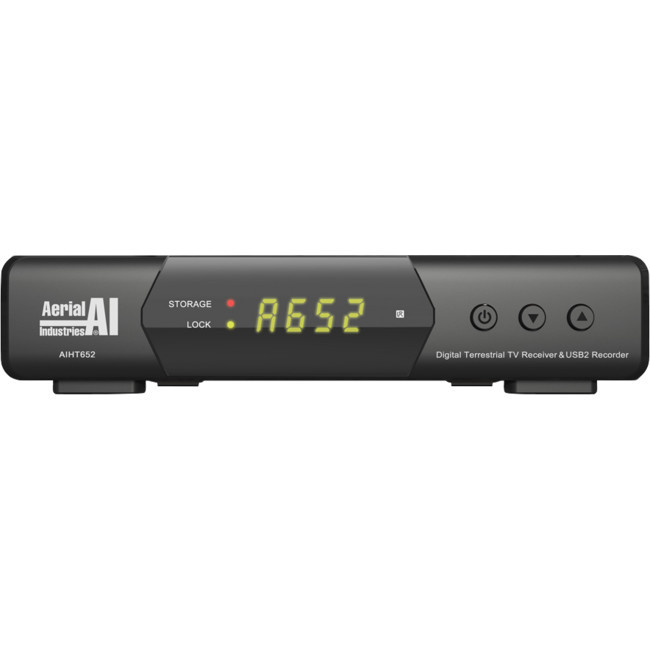

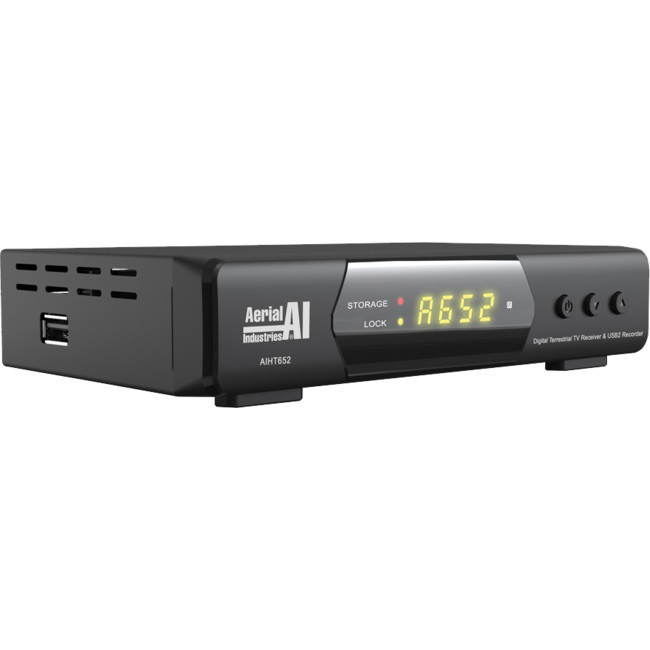

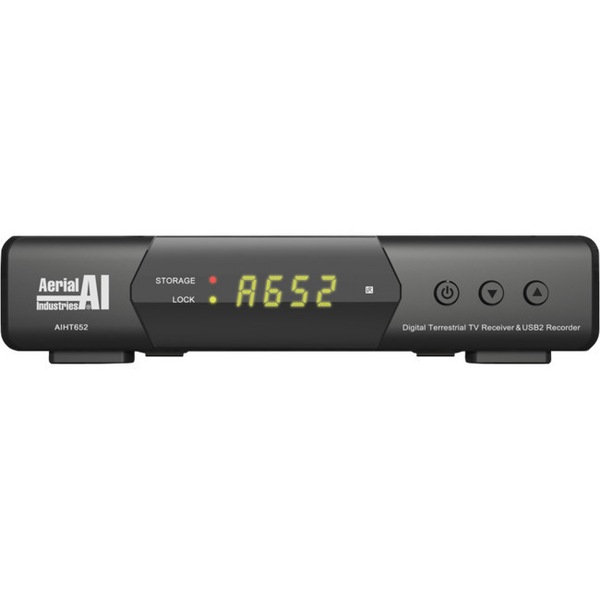

AIHT652 HD SET TOP BOX WITH USB REC / PLAY

Perfect for DVB-T & Ready for DVB-T2, Features TimeShift or Record Live TV & Programmable Remote.

Features:

Programmable remote control

Small Steel Case easier to conceal

Standby Power Consumption <0.5W

Parental Lock Program Control Option

7-Day Electronic Program Guide (EPG)

Internet Radio via optional WiFi Modem

Audio Description (AD) Function included

Front Panel LED Clock with adjustable brightness

Signal Level & Quality bars included in Info Display

Media Player Function from USB Flash or HDD Storage

Jump moves instantly through recordings in user defined steps

DVB-T Receiver ready for DVB-T2 & HEVC H.265 Compression

Digital Audio: Coaxial S/PDIF with Dolby Digital (where Broadcast)

Video Outputs: HDMI & Composite CVBS are Active Simultaneously

External Mains Power Supply enables use from Mains or DC Power 12 to 15V

Extension RCU Command Receiver (optional) enables Total Receiver Concealment

TUNER

FREQUENCY RANGE: 174 MHz to 820MHz
DVB T2 SIGNAL LEVEL: >28dBuV typical
ANTENNA POWER: 5V, I Max. = 300mA
INPUT VOLTAGE: Input DC 12V @<1A
POWER CONSUMPTION: <7.5W Max. (Standby <0.5W)
PROTECTION: Separate Internal Fuse
OPERATING TEMPERATURE: 0oC to 40oC
STORAGE TEMPERATURE: -40oC to 65oC
DIMENSIONS: 150(W) x 91(D) x 30(H)mm

VIDEO

TRANSPORT STREAM: MPEG2, MPEG4 (H.264), HEVC (H.265)
PROFILE LEVEL: Single-chip HEVC, H.264, H.263, MPEG4, MPEG-2, AVS, AVS , VC1
ASPECT RATIO: 16:9 or 4:3
VIDEO RESOLUTION: 1080p/1080i/720p/575p/576i/480p/480i
VIDEO MEDIA FILES: AVI, FLV, MKV, MOV, MP4, MPG, MT2S, TS, VOB, 3GP
PICTURE MEDIA FILES: BMP, GIF, JPG, JPEG, PNG

AUDIO

AUDIO DECODING: MPEG-1/2 layer I/II/III, Dolby AC3 (AC3 option), DRA 2 CH/5.1 CH (optional)
AUDIO MODES: Stereo, Joint Stereo, Dual Channel, Single Channel
AUDIO/MUSIC FILES: AAC, MP2, MP3

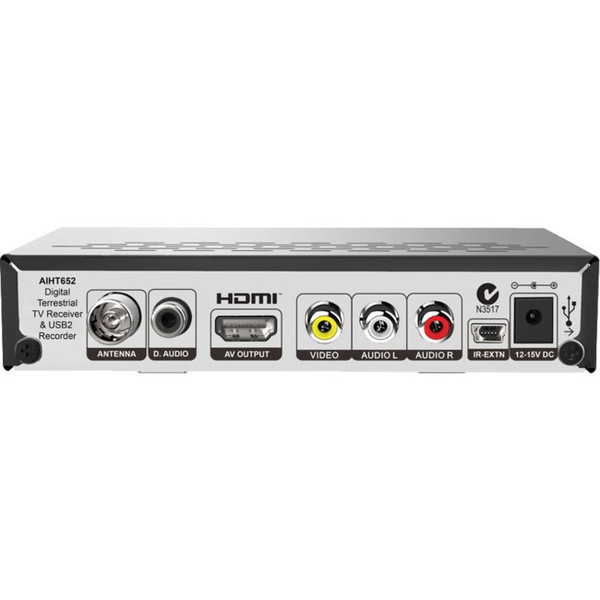

INPUTS & OUTPUTS

ANTENNA: Coaxial Cable TV Signal Input, IEC/PAL 9.5mm type.
DIGITAL AUDIO: Digital Audio Output for HiFi Amplifier or Decoder etc.
DIGITAL AV: High Definition AV Cable Output to TV or Display.
VIDEO/AUDIO L&R: Composite Video and Analogue Audio RCA Cable Outputs.
IR EXTENSION: External IR Receiver Input (optional) to Receive RCU Commands.
USB2: Host Port for Flash SSD or HDD Storage, tested to 3TB.Compatible WiFi Modem <500mA. Port side located.

OPTIONAL PRODUCTS

AIHTEXT: Remote Control Receiver/Target Extension
AIHTRRMOTE: Extra Remote Controls with Learning Keys
AIHWFM: WiFi Modem for Internet Remote

1 x Digital TV Receiver & USB2 Recorder
1 x Remote Control x2 AA Batteries
1 x 12V/1A DC Power Adapter
1 x HDMI Cable
1 x User Manual
