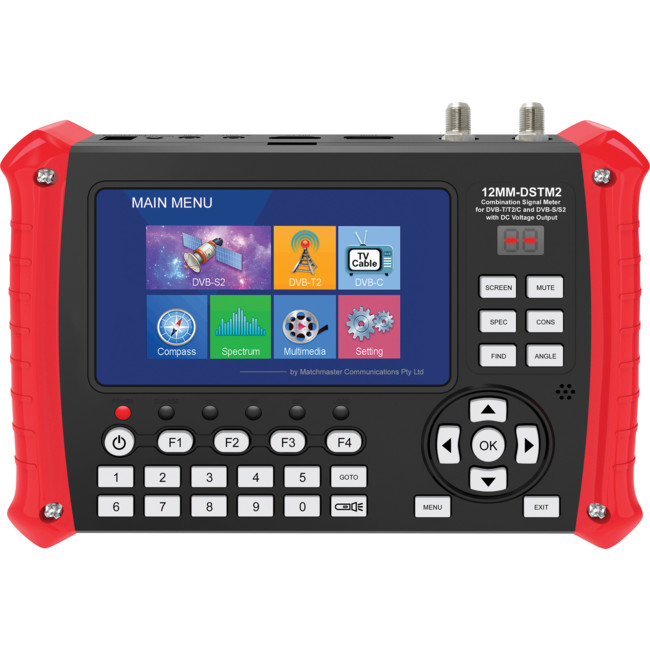

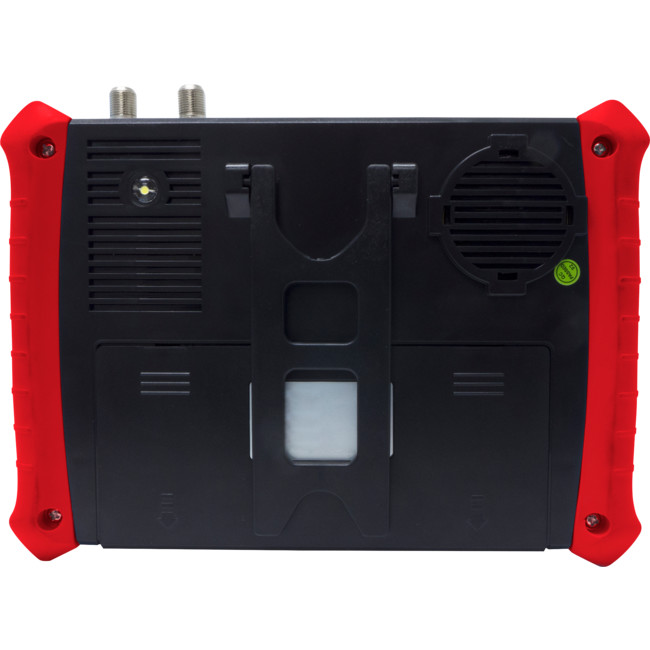

MATCHMASTER 12MM-DSTM2 Combination Signal Meter Dvb-T/T2/C and Dvb-S/S2 Simple and Easy To Use TV

Image 1
Image 2
Hurry! 1 items left!
$1107

Collect 1107 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview
12MM-DSTM2 COMBINATION SATELITE AND FTA SIGNAL METER

The DSTM2 is a tablet-style handheld digital signal meter for DVB-T/T2, DVB-C and DVB-S/S2 with a built-in HD tuner to view clear content. It is a cost-effective solution for testing and installing both satellite dishes and terrestrial antennas.

Supports AV input and output, which can test video sources such as CCTV cameras. Includes voltage output on the terrestrial port for powering of masthead amplifiers.

  • DVB-T/T2, DVB-C and DVB-S/S2 measurements.
  • AV input and output suitable for testing and aligning CCTV cameras.
  • Built-in DC voltage insertion for powering masthead amplifiers.
  • HD 5″ TFT LCD screen with MPEG2/4 digital tuner built-in with HDMI output of content.
  • USB 2.0 for software updates and media playback.
  • The large lithium battery has a capacity of 4000mAh.
Specifications
Specifications

System ResourcesMain Processor600MHz based CPU
Flash Memory 64M Bits
DDR SDRAM 1024M Bits
Tuner/Front-End
DVB-S/DVB-S2
Input Connector F-type, Connector, Male
Frequency Range 950MHz~2150MHz
Signal Level 25-108dBµV
Impedance 75
LNB Power & Polarisation
  • Vertical: +13V
  • Horizontal: +18V
  • Current: Max.500mA
  • Overload Protection
DiSEqC Control Version 1.0/1.1/1.2/1.3,USALS Available
22KHz Tone Frequency: 2231KHz
Demodulation QPSK, 8PSK
Symbol Rate 2~45Msps
DVB-T/DVB-T2 DVB-C Input Connector IEC-type, Connector, Male
Input Frequency
  • UHF: 470-866MHz
  • VHF: 170-230MHz
Signal Level 30~109dBµV
Impedance 75
DVB-T Power Output (V DC) 5V (Maximum 150mA), 12V and 24V (Maximum 350mA)
Demodulation QPSK, 16-QAM, 64-QAM, 256-QAM
Bandwidth 6, 7, 8MHz
Power Supply Input Voltage Adapter 100-240V AC, 50/60Hz
Power Consumption 11W Max.
Power Charger Output 14V DC 3.0A
Battery 12.6V/4000mAh
Battery Charging Time 3~6H
Battery Standard Discharging Time >5H
A/V Data Input/OutputA/V IN/OUT
  • CVBS (Remark: AHD/TVI/CVI/CVBS is optional) input / CVBS output
  • Audio L Input / L/R output
Audio Output Built-in Loudspeaker
HD TV Out Up to 1080p
HD TV In Up to 1080p
USB 1 × USB 2.0 Slot Compatible for Host
Transport Stream MPEG-2/4, H.264, H.265
Supported Audio Codecs* AAC, MP3, WMA, WAV
PhysicalLCD Display 5″
Size (W×H×D) 210mm × 150mm × 52mm
Net Weight 0.93kg
Operating Temperature 0°C~+45°C
Storage Temperature −10°C~+70°C
Storage Humidity 5%~95% RH (Non-Condensing)
