AIYIMA DAC A1 Bluetooth DAC Headphone Amplifier

Image 1
Image 2
Image 3
Image 4
Hurry! 10 items left!
$119

Collect 119 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Pay in 4 interest-free payments of $29.75 with Learn More
AIYIMA DAC-A1 HiFi Bluetooth DAC & Headphone Amplifier

Features:

  • High-resolution ESS ES9018K2M DAC chip for superior audio quality
  • Bluetooth 5.0 with support for AAC, SBC, aptX, aptX-LL, and aptX-HD codecs
  • Multiple input options: USB, optical, coaxial, and Bluetooth
  • Supports PCM audio up to 24-bit/192kHz
  • Built-in headphone amplifier with 120mW output at 32Ω
  • Treble and bass adjustment range of ±10dB for sound customization
  • OLED display for clear input and EQ mode visualization
  • Remote control included for convenient operation
  • Compact and durable aluminum alloy housing




  • Model: AIYIMA DAC-A1
  • DAC Chipset: SA9123L + ES9018K2M + NJW1194 + MAX97220 + NE5532
  • Bluetooth Module: Qualcomm QCC3034
  • Bluetooth Version: 5.0
  • Supported Bluetooth Codecs: AAC, SBC, aptX, aptX-LL, aptX-HD
  • USB Sampling Rate: 24-bit/192kHz
  • Optical/Coaxial Sampling Rate: 24-bit/192kHz
  • Signal-to-Noise Ratio (SNR): RCA Output ≥103dB; Headphone Output ≥100dB
  • Total Harmonic Distortion (THD+N): 0.0032%
  • Frequency Response: 20Hz–20kHz (±1dB)
  • Headphone Output Power: 120mW @ 32Ω
  • Headphone Impedance Support: 16–200Ω
  • RCA Output Level: 2.3V
  • Treble and Bass Adjustment: ±10dB
  • Audio Inputs: Bluetooth, USB, Optical, Coaxial
  • Audio Outputs: 3.5mm Headphone Jack, RCA
  • Power Supply: DC 5V

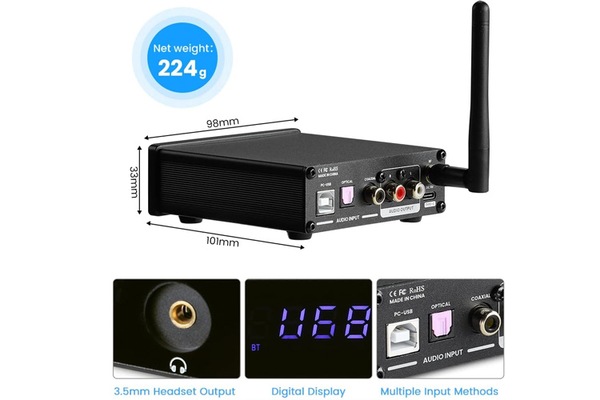

  • Dimensions: 101 x 98 x 33 mm
  • Supported Operating Systems: Windows XP/7/8/10, Mac OS, Linux


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 7331898818105
