AIYIMA DAC A5 Max Bluetooth DAC Headphone Amplifier

Image 1
Image 2
Image 3
Image 4
Hurry! 10 items left!
$239

Collect 239 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout

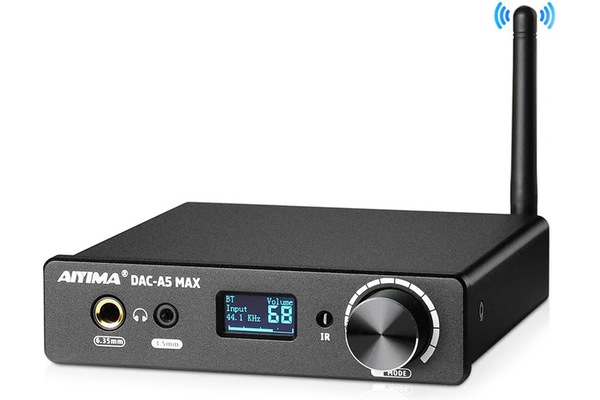

DAC A5 Max Bluetooth DAC Headphone Amplifier

The AIYIMA DAC-A5 MAX is a high-performance desktop digital-to-analog converter and headphone amplifier designed for audiophiles seeking superior sound quality. Featuring the ESS ES9018K2M DAC chip and TPA6120 headphone amplifier, it supports multiple input options including USB, optical, coaxial, and Bluetooth 5.1, delivering up to 32-bit/384kHz PCM and DSD256 audio. With dual headphone outputs, RCA line-out, and a compact aluminum chassis, it offers versatile connectivity and exceptional audio fidelity

Features:
  • High-performance ESS ES9018K2M DAC chip for superior audio quality
  • TPA6120 headphone amplifier with NE5532 op-amp for powerful output
  • Bluetooth 5.1 with support for SBC, AAC, aptX, aptX-LL, aptX-HD, and LDAC codecs

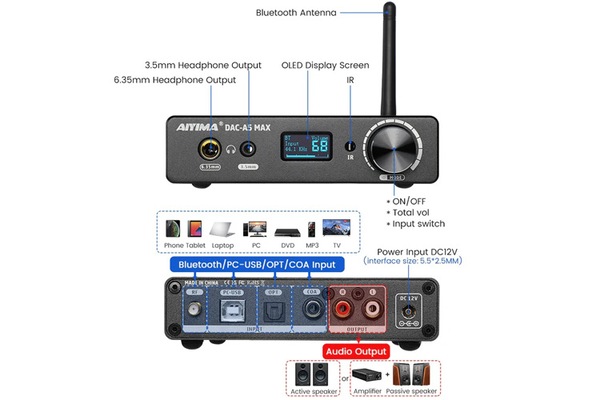

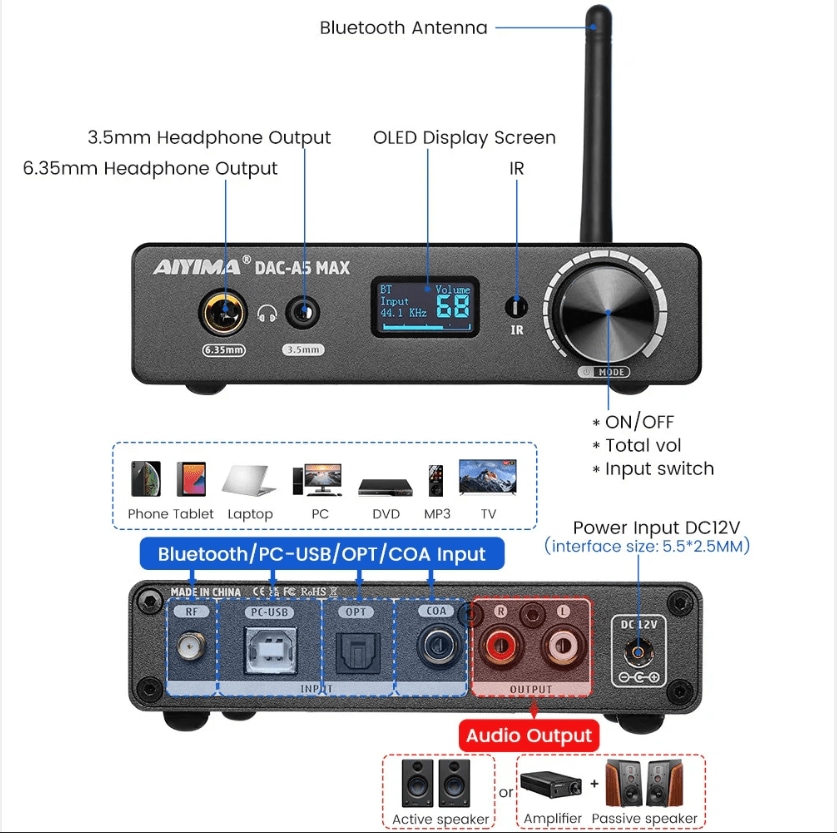

  • Multiple input options: USB, optical, coaxial, and Bluetooth
  • Supports PCM audio up to 32-bit/384kHz and DSD256
  • Dual headphone outputs: 3.5mm and 6.35mm
  • RCA line-out for connecting to external amplifiers or speakers
  • Replaceable dual op-amp chips (OPA2134 and OPA1656)
  • Compact and durable aluminum alloy housing




  • Model: AIYIMA DAC-A5 MAX
  • DAC Chipset: ESS ES9018K2M
  • Headphone Amplifier: TPA6120 with NE5532 op-amp
  • Bluetooth Chipset: Qualcomm QCC5125
  • Bluetooth Version: 5.1
  • Supported Bluetooth Codecs: SBC, AAC, aptX, aptX-LL, aptX-HD, LDAC
  • PC-USB Sampling Rate: Up to 32-bit/384kHz PCM, DSD256 supported
  • Signal-to-Noise Ratio (SNR): >118dB
  • Total Harmonic Distortion (THD): 0.005%
  • Headphone Output Power: 500mW @ 32Ω
  • Headphone Impedance Support: 16–600Ω
  • Audio Inputs: USB, Optical, Coaxial, Bluetooth
  • Audio Outputs: 3.5mm and 6.35mm headphone jacks, RCA line-out
  • Power Supply: DC 12V

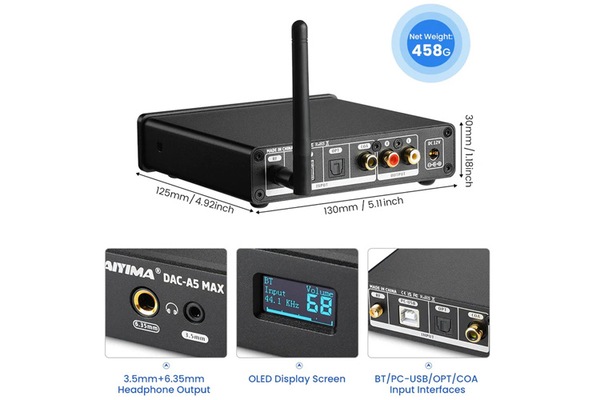

  • Dimensions: 125 x 133 x 33 mm
  • Weight: 458 g
  • What's in the Box:
    • 1 × AIYIMA DAC-A5 MAX Headphone Amplifier
    • 1 × 12V Power Adapter
    • 1 × Bluetooth Antenna
    • 1 × USB Cable
    • 1 × Optical Cable
    • 1 × User Manual


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 7331898818143

Estimated Delivery Time Frame:2-10 business days
