AKUVOX C313W-2 2-Wire Sip Indoor Monitor

AKUVOX C313W-2 2-Wire Sip Indoor Monitor

Be the first to review this product

Hurry! 3 items left!

Price	$277.60
	Collect 277 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

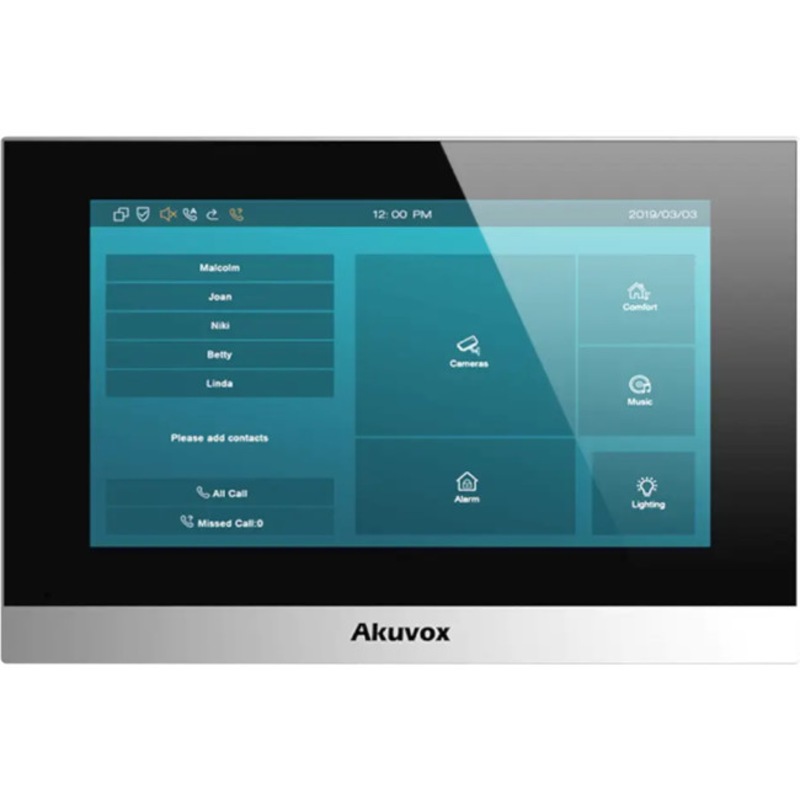

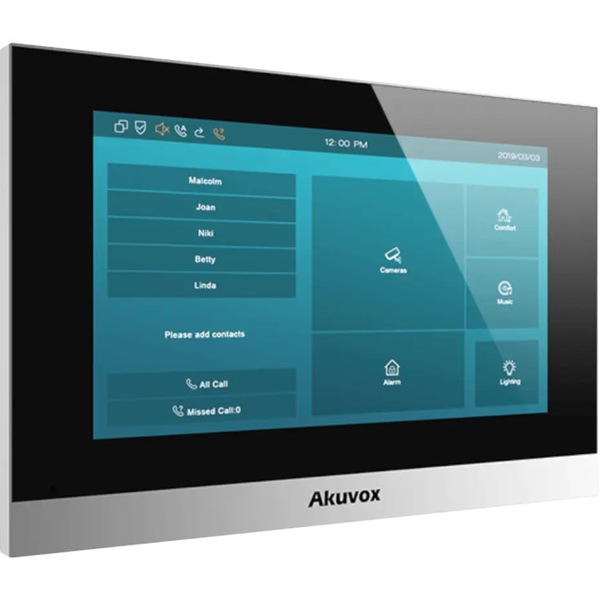

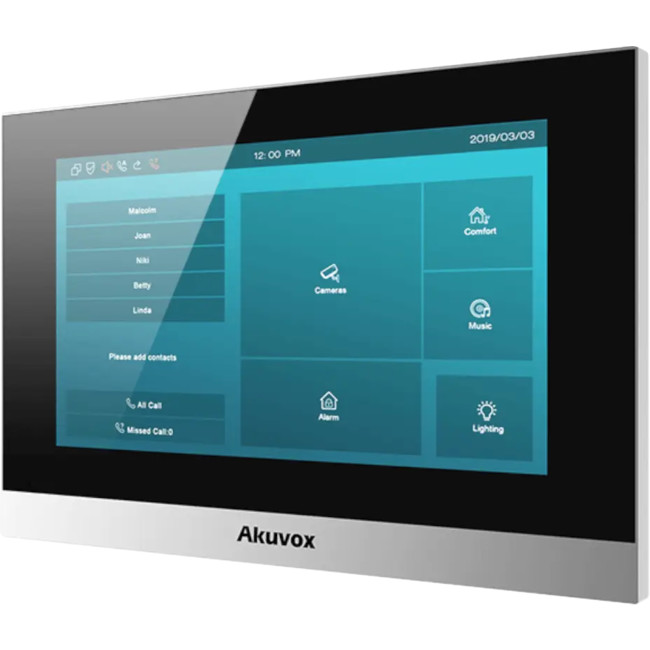

Akuvox C313W-2, 2 Wire touch screen monitor

Akuvox C313W-2, 2 Wire touch screen monitor is a multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitiv.

Akuvox C313W-2, 2 Wire touch screen monitor is ideally suited for applications where old legacy cabling exists and there is no possibility of having an ethernet cable. It can be paired with Akuvox R20A-2 2 wire door intercom to receive visitor calls.

Akuvox C313W-2 also supports integration withMobile Video Service to enable receiving video intercom calls on mobiles / touch screen monitors.

Features

Ultra-clear, stylish appearance
Thin profile and small footprint
7-inch capacitive touch screen with energy saving mode
Two-way audio communication with other units in the 2-wire IP network
Powered by NS-2 or external source
Super long transmission distance via 2-wire cable
Support US or European electrical wall box mounting

Specifications

Physical & Power

Front panel: Aluminum alloy

Camera: 2M pixels, automatic lighting

Button: 1 call button

Light sensor: Support

Infrared sensor: Support

Wiegand port: Support

RS485 port: Support

RF card reader: 13.56MHz (with NFC) & 125kHz

Relays out: 1

Inputs: 1

Microphone: 1

Speaker: 1

Power Interface:1

Power supply:48VDC / 24VDC

Water-proof & Dust-proof: IP65

Installation: Flush-mounted or Wall-mounted

Flush-mounted DIM: 189x120x56.5mm

Wall-mounted DIM: 145x85x27.5mm

Working Humidity: 10~90%

Working Temperature: -30°C ~ +60°C

Storage Temperature: -40°C ~ +70°C

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711µ

Wideband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Video

Sensor: 1/2.7", CMOS

Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

Video codec: H.264

Video resolution: up to 1920x1080

Max. image transfer rate: 1080p - 25fps

Viewing angle: 110°(H) / 58°(V)

High intensity IR LEDs for picture lighting during dark hours with internal light sensor

Compatible to 3rd-Party-Video components, e.g. NVRs

Door Entry Feature

Relays controlled individually by DTMF tones

Camera permanently operational

Auto-night mode with LED illumination

White balance: auto

Minimum illumination: 0.1LUX

Networking & Protocol

Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Entry log export

Access table export / import

Firmware upgrade

System logs (include door access logs)

Application Scenario

Office door phone with on-site or hosted IP-PBX

Remote site entry over Internet

Apartment/flat intercom with door access control

Weight: 0.548
