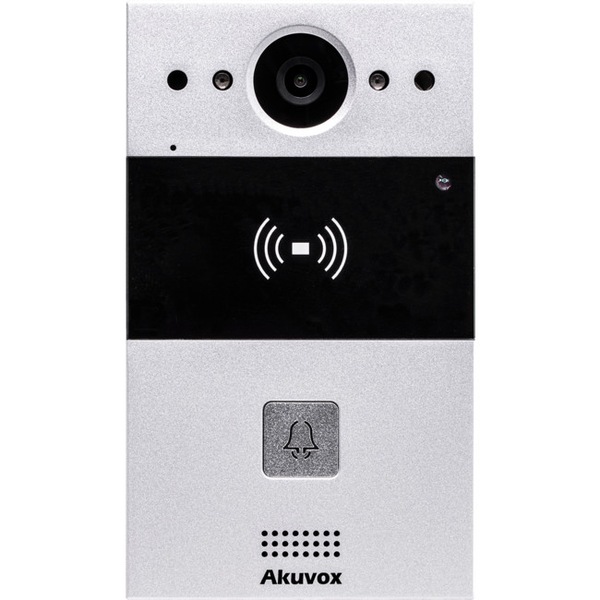

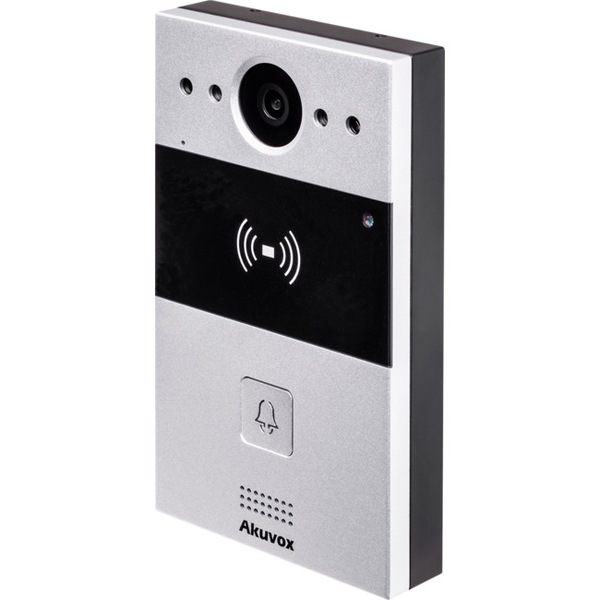

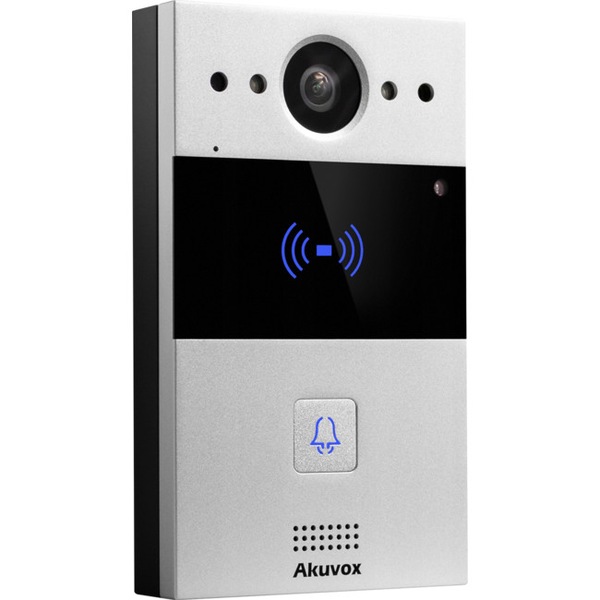

AKUVOX R20A Sip Video Intercom With One Button Door Station

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 1 items left!
$476

Collect 476 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Palm-Size Doorphone Almost the size of an iPhone XR, Akuvox R20A is a SIP video doorphone specially designed for narrow space.
At a Glance
  • Vandal resistant body, with a flush button
  • Wide-angle camera: 120° (H), 64° (V)
  • PoE (IEEE802.3af, Power-over-Ethernet)
  • Two-way audio communication over IP networks with Echo Cancel feature
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Complies with ONVIF standard for easy integration with any network surveillance system
Physical & Power
  • Front panel: Aluminum alloy
  • Camera: 3M pixels, automatic lighting
  • Button: 1 call button
  • Light sensor: Support
  • Infrared sensor: Support
  • Wiegand port: Support

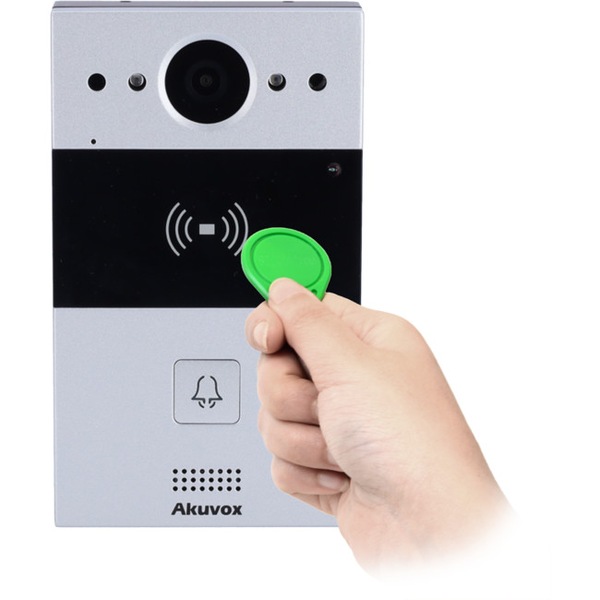

  • RF card reader: 13.56MHz & 125kHz
  • Relays out: 2
  • Inputs: 2
  • Microphone: -40dB
  • Speaker: 4 / 3W
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Water-proof & Dust-proof: IP65
  • Installation: Flush-mounted or Wall-mounted
  • Flush-mounted DIM: 189x120x56.5mm
  • Wall-mounted DIM: 145x85x27.5mm
  • Working Humidity: 10~90%
  • Working Temperature: -20°C ~ +65°C
  • Storage Temperature: -40°C ~ +70°C
Audio
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711µ, G.729
  • Broadband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
Video
  • Sensor: 1/3", CMOS
  • Pixels: CIF, QCIF, VGA, 4CIF, 720p
  • Video codec: H.264
  • Video resolution: up to 1280x720p
  • Max. image transfer rate: 720p - 30fps
  • Viewing angle: 120°(H) / 64°(V)
  • High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  • Compatible to 3rd-Party-Video components, e.g. NVRs
Door Entry Feature
  • Relays controlled individually by DTMF tones
  • Camera permanently operational
  • Auto-night mode with LED illumination
  • White balance: auto
  • Minimum illumination: 0.1LUX
Networking & Protocol
  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Entry log export
  • Access table export / import
  • Firmware upgrade
  • System logs (include door access logs)
Application Scenario
  • Office door phone with on-site or hosted IP-PBX
  • Remote site entry over Internet
  • Apartment/flat intercom with door access control

_


Weight: 0.51
