380LPD / 100GPD PREMIUM BENCH TOP REVERSE OSMOSIS WATER PURIFIER HOUSED IN CASING WITH 1.5L* BUFFER TANK*+/- 1.5L water on demand depending on local water pressure. THIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISES. Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price. All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines. Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 97% on average. Our systems are effective in removing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

• Barium: 98%
• Potassium: 100%
• Bicarbonate: 100%
• Radium: 98%
• Cadmium: 98%
• Selenium: 98%
• Calcium: 99.9%
• Silicate: 99%
• Chromate: 96%
• Silver: 99%
• Copper: 98%
• Sodium: 98%
• Detergents: 98%
• Strontium: 97%
• Fluoride: 100%
• Sulphate: 100%
• Lead: 99%
• PCB’s: 97%
• Magnesium: 100%
• Insecticides: 97%
• Nickel: 99%
• Herbicides: 97%

• Minimum feed pressure: 40psi / 275kpa
• Recommended feed pressure: 40-80psi / 275-550kpa
• Minimum operating temperature: 5°C / 40°F
• Maximum operating temperature: 45°C / 110°F
• Minimum feed water pH: pH 3
• Maximum feed water pH: pH 11
• Maximum feed water TDS: 500ppm
• Production rate: 100GPD / 380LPD

Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 500ppm we recommend that you consult us before you purchase. Generally, these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water, we recommend testing the feed pressure and water quality first. **LPD = litres per 24 hours.

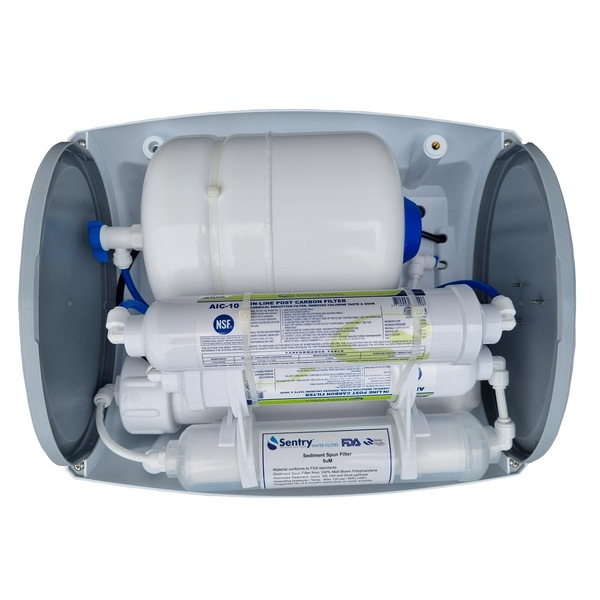

• Multi-stage reverse osmosis unit

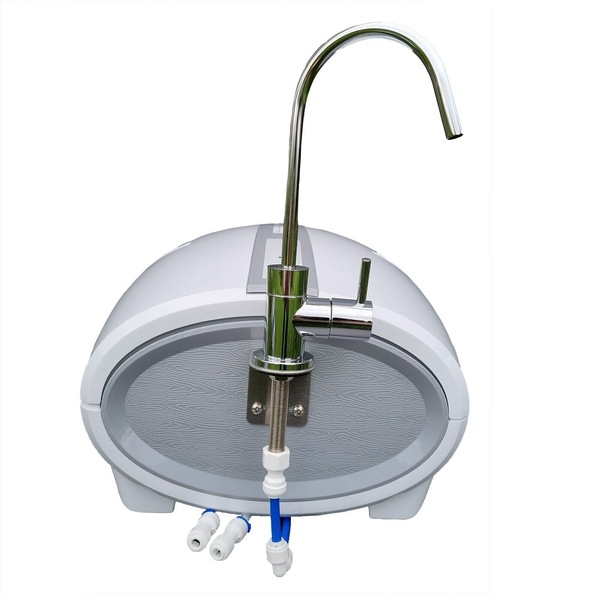

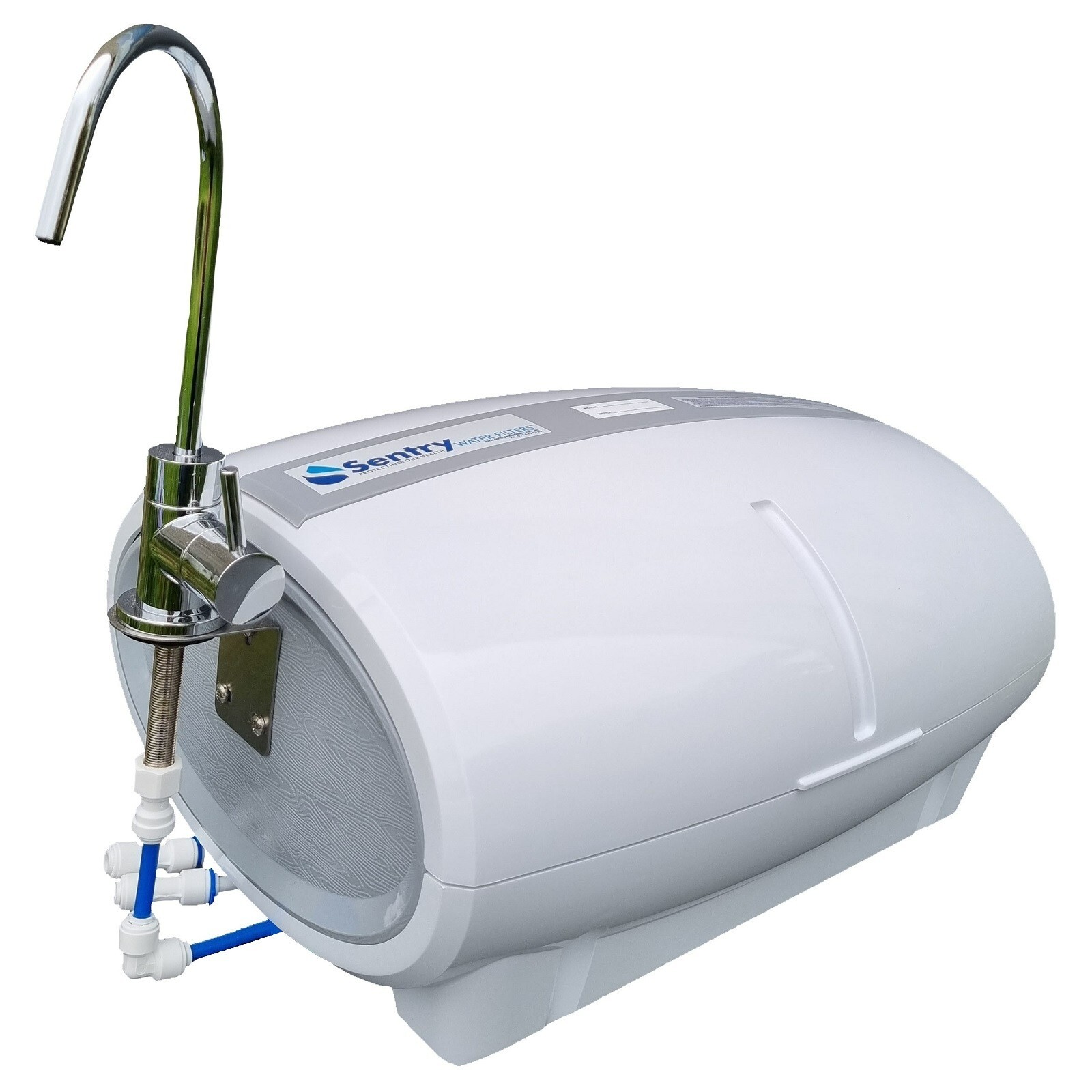

• Stylish casing as pictured with mounted modern faucet
• One in line 10"x2.0" granular activated carbon filter

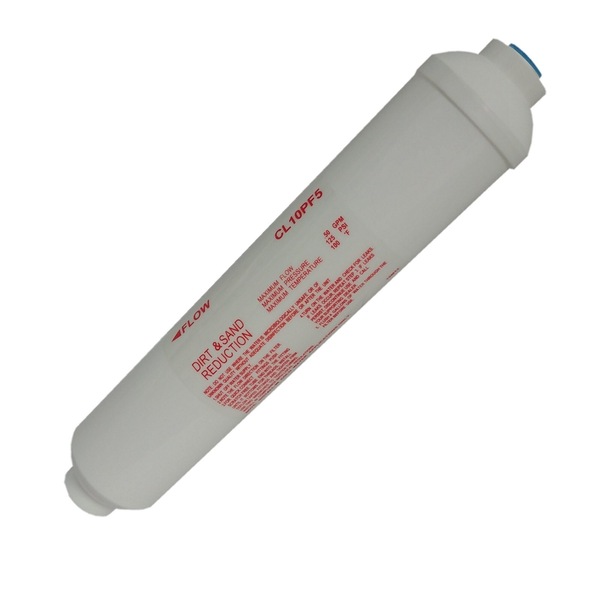

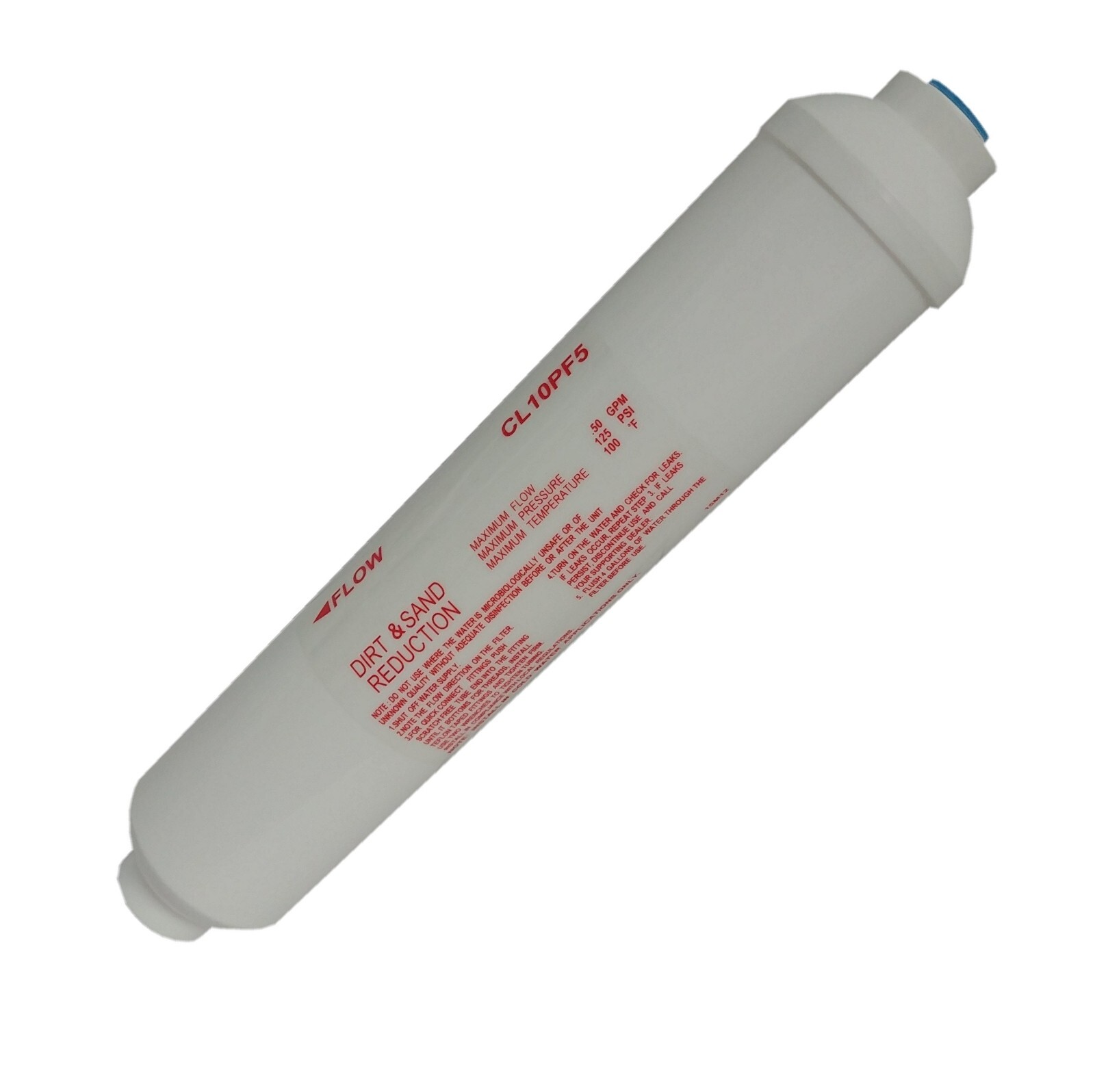

• One in line 10"x2.0" poly spun sediment water filter

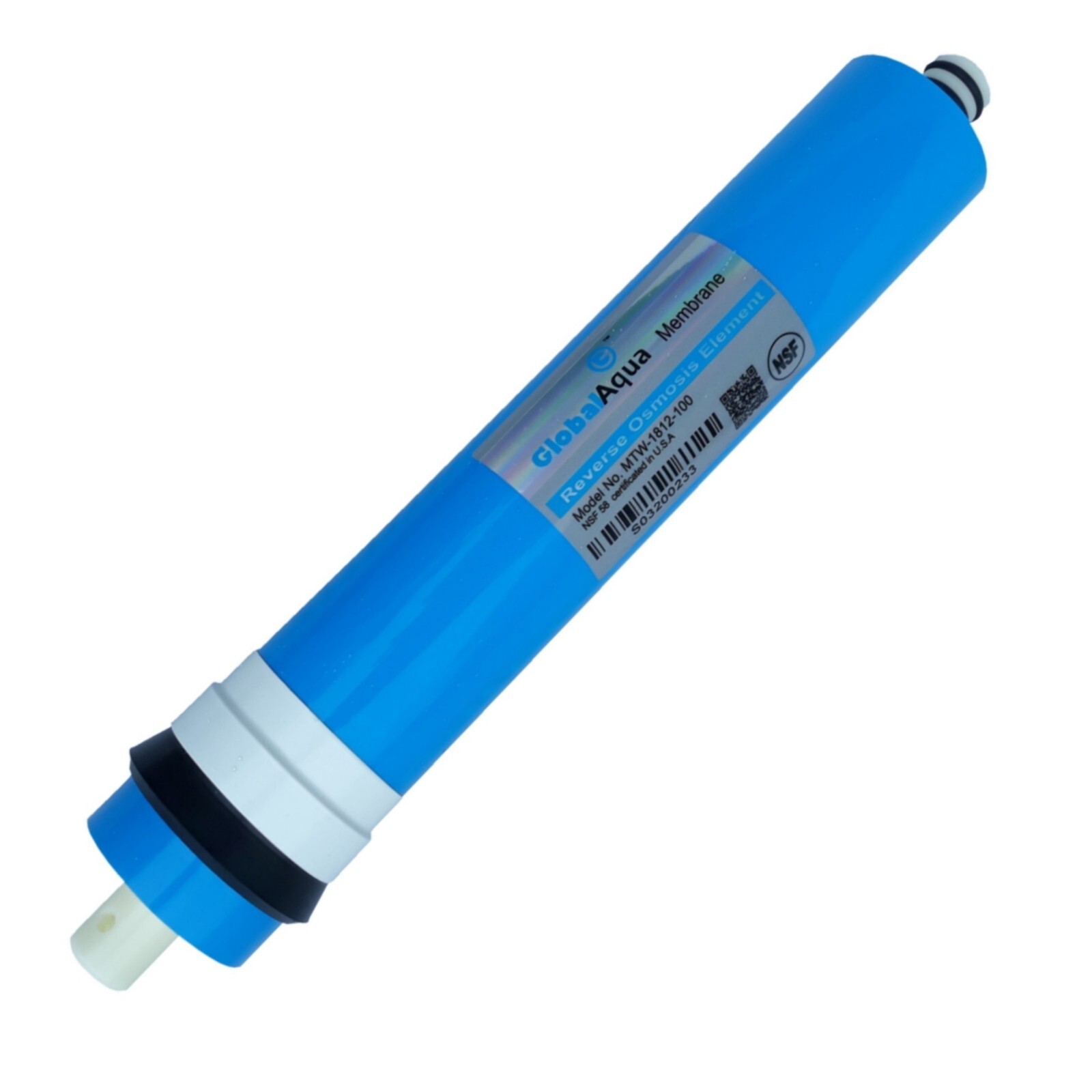

• One Sentry / Global Aqua 100GPD RO membrane

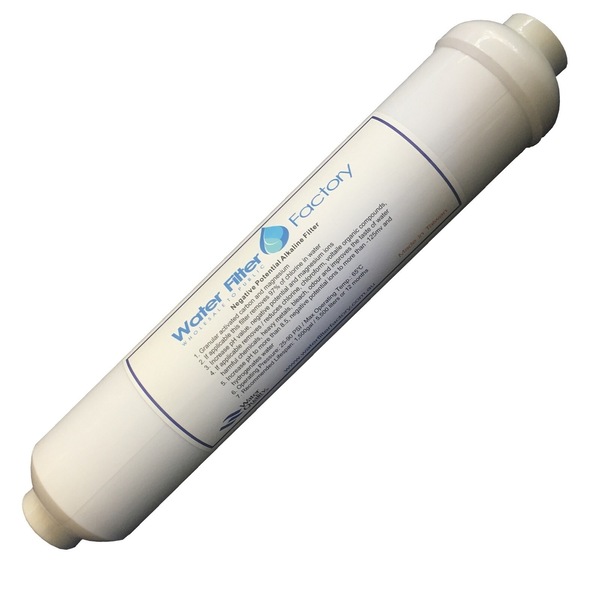

• One in line 10"x2.0" magnesium + GAC alkalising filter
• +/- 1.5 litre buffer tank assembled inside casing
• Standard* sink mixer diverter valve [inlet and waste] per image 8
• Inside to outside thread converter to fit standard* sink mixer taps
• Old style tap adapter to fit some non standard sink mixer taps
• 1/2" insert + ball valve to share line with cold water hose to mixer tap
• Small modern faucet tap mounted on side of unit for dispensing water

* Standard mixer taps refer to a mixer tap where you can unscrew the aerator on the end of the tap and will be left with either a 20mm female thread or a 23mm male thread. If you have the 20mm female thread you`ll need to use the inside to outside thread converter [in the 9th picture and supplied with this item] to connect but if you have a 23mm male thread after removing the aerator you won`t need to use the thread converter.
