Buy Alphacool Core 100 Aurora Reservoir Acetal/Acrylic With Apex Pump - 131mm Height [15380]

Alphacool Core 100 Aurora Reservoir Acetal/Acrylic With Apex Pump - 131mm Height

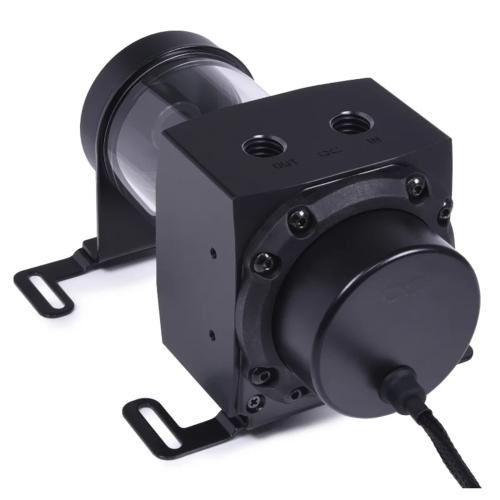

The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and is supplied with a VPP Apex pump. The reservoir tube is made of acrylic, the D5/VPP pump top and the lid are made of acetal. The combination of these two materials gives the reservoir a subtle appearance. 12 digitally addressable RGB LEDs in the pump top and the light tower water effect inside the acrylic tube provide the wow effect.
Extensive assembly options
Mounting option 1:

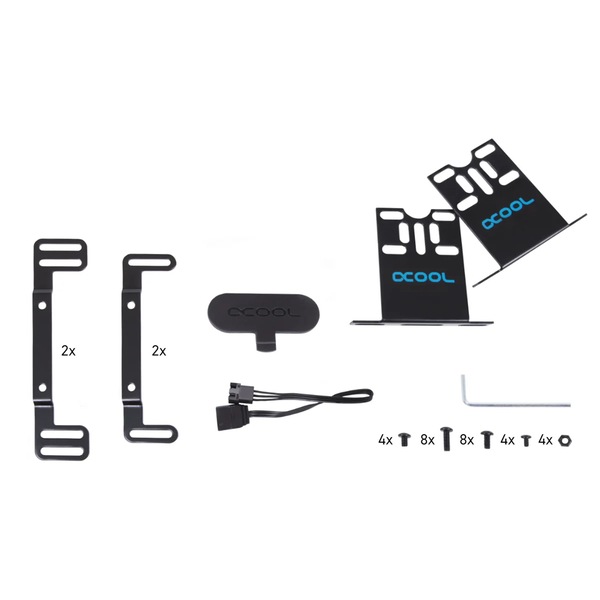

The scope of delivery includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.
Mounting option 2:

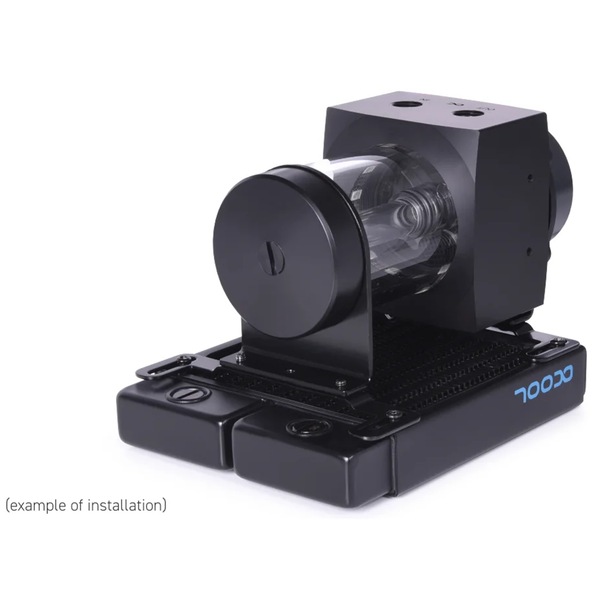

The scope of delivery includes 120mm/140mm mounting frames with which the Core expansion tank can be attached to free fan slots, radiators or to the fans on radiators.
Digitally addressable RGB lighting

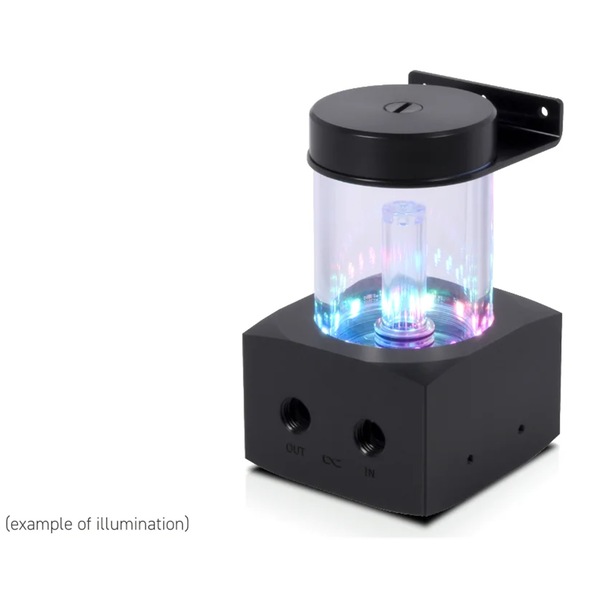

12 digitally addressable RGB LEDs illuminate the acrylic tube of the expansion tank. They are arranged in a ring at the lower end of the tube in the transition to the pump top and ensure brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (eg Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.
Lighttower water effect

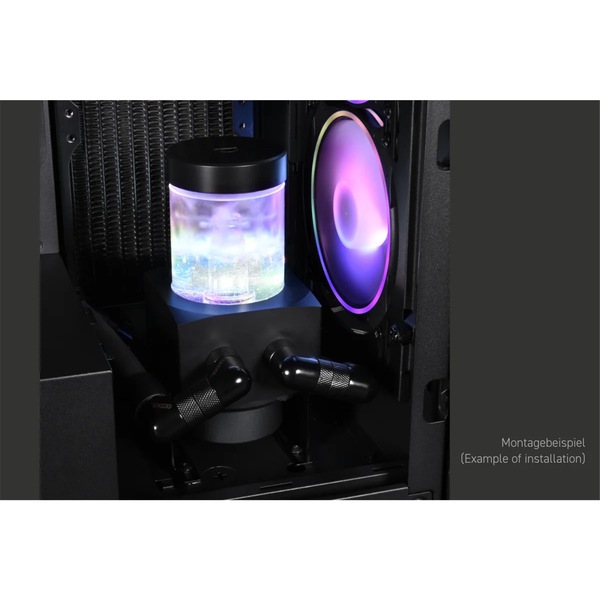

A special water effect is created in the core reservoir via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.
Pump compatibility
The Alphacool Core reservoir has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the delivery.
pump

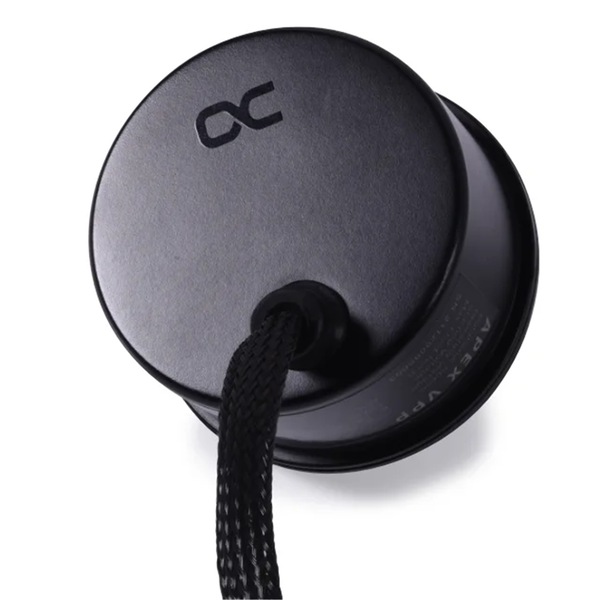

The VPP Apex pump does not have a spherical bearing and uses a ceramic axle. The motor coils have been moved from the inside to the outside. The changes mean that the pump is fundamentally more stable and runs more smoothly and vibrations have been significantly reduced. Another positive side effect is that power consumption has been almost halved. In comparison to Alphacool's ice pumps, the power supply is not via a 4-pin Molex connection. Instead, the Apex VPP pump is connected to the power supply using a SATA connection. The Apex VPP pump has a 4-pin fan connection that is connected to the mainboard or to an external controller. This allows the speed range of the pump to be controlled and read via PWM.

Dimension (L x W x H)
131x76.5x76.5mm
Pump compatibility
D5
volume
200ml
Material pump top & lid
Acetal
Material tube
Acrylic
Connections
3x G1/4“ internal thread
Maximum working temperature
60°C
Pressure tested
0.8 bars
Number of digital aRGB LEDs
12
Voltage digital aRGB LEDs
5V
Power connection digital aRGB LEDs
3-Pin JST (male & female switch)
Weight
504g
Color
black
Technical data VPP Apex
Dimensions (L x W x H)
65x65x41mm
Material pump
plastic
Material pump cover
aluminum
Material Axle
Ceramics
Power connection
4-pin PWM SATA
Control range
2500 - 4500 RPM
Cable lengths
4-Pin PWM - 48cm SATA - 48cm
Operating voltage
8-13V DC / 14W IP32
Starting voltage
12V DC
Maximum discharge head
4.25m
Maximum flow
340 l/h
Maximum working temperature
60°C
Net weight
276g
Color
black
- MPN: 15380
