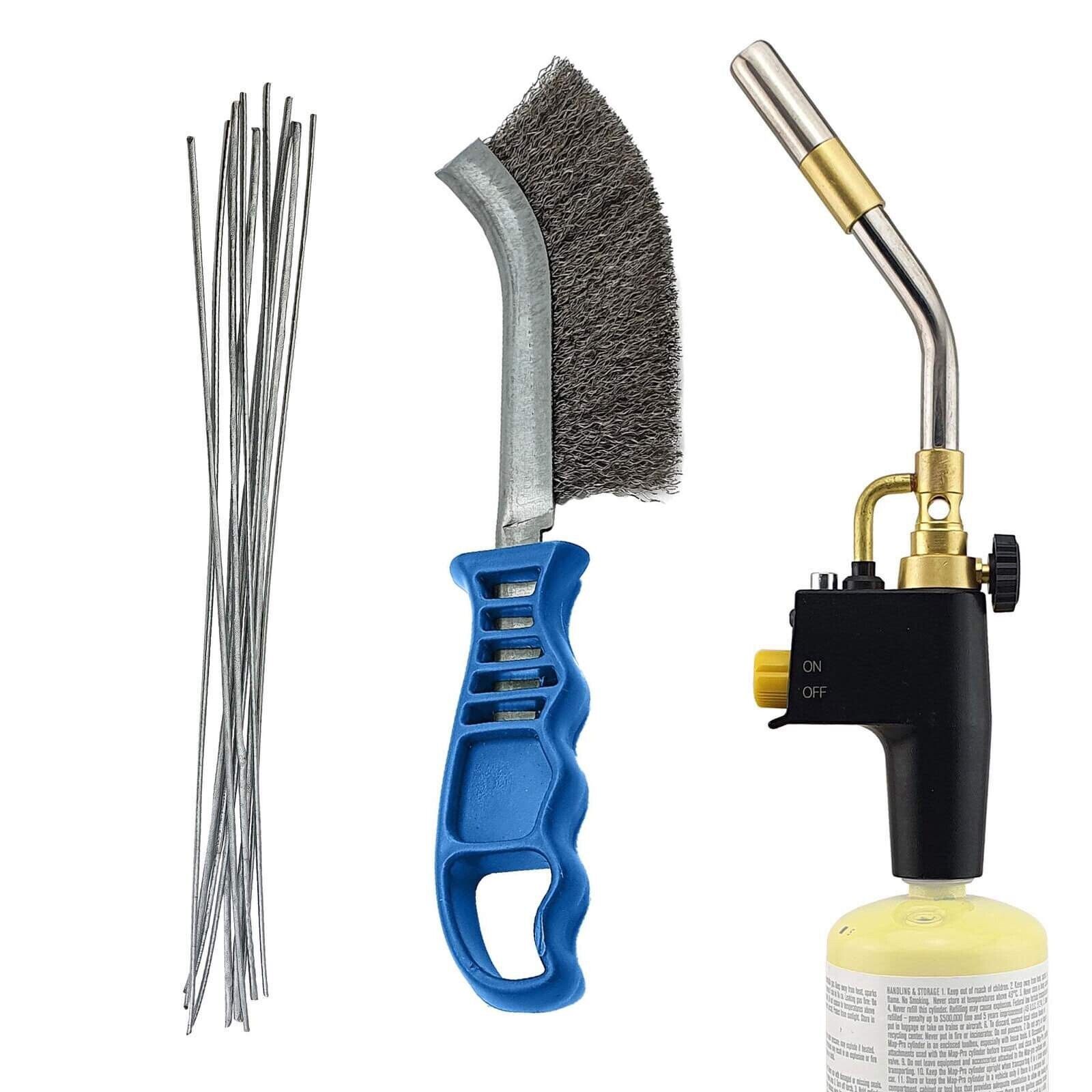

This Aluminium Brazing Kit contains everything needed for aluminium brazing with high-quality Ultra Bond aluminium brazing rods. Included in this kit:

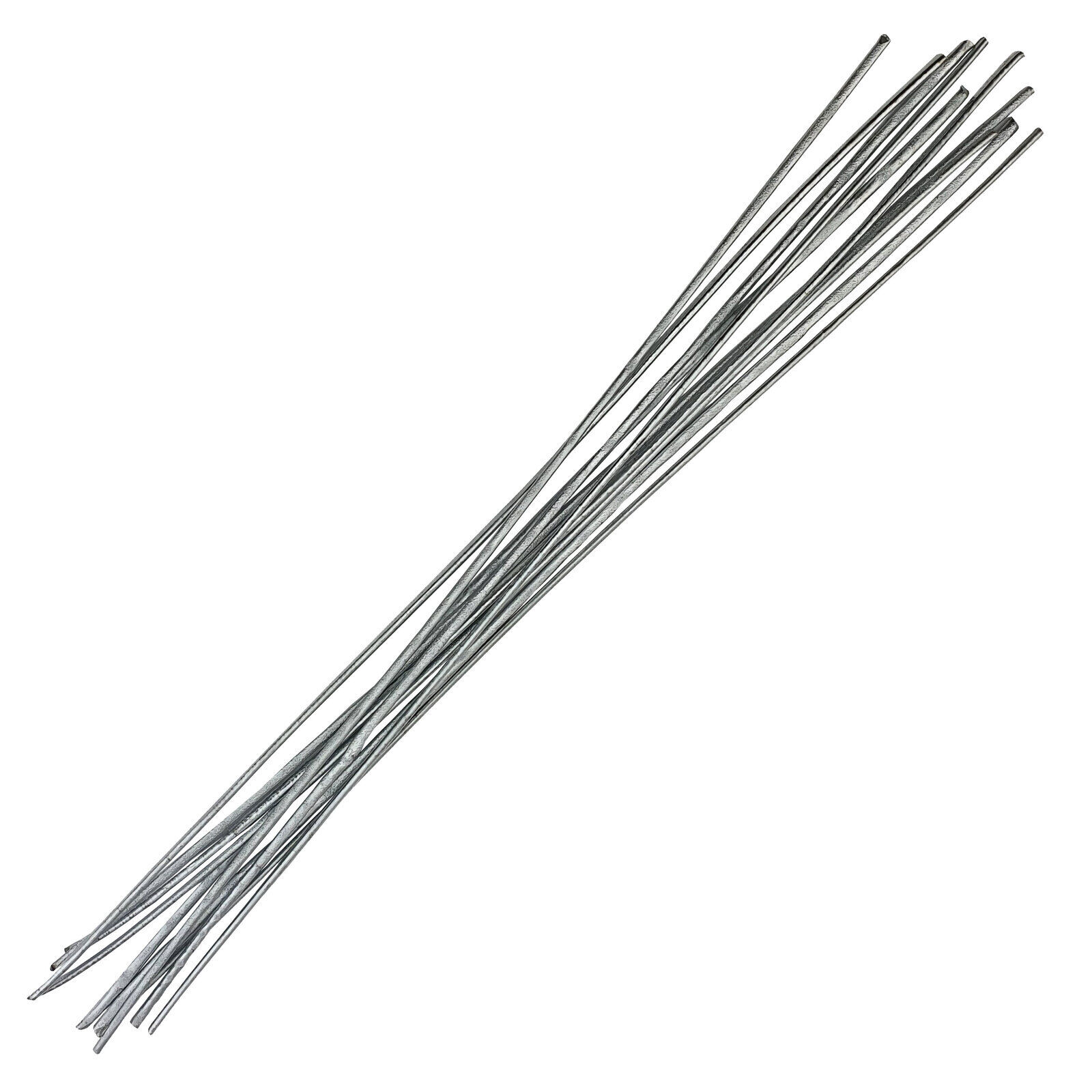

• 10 x 3.2mm Aluminium Brazing Rods (Diameter may vary due to the flux coating process but does not affect performance)

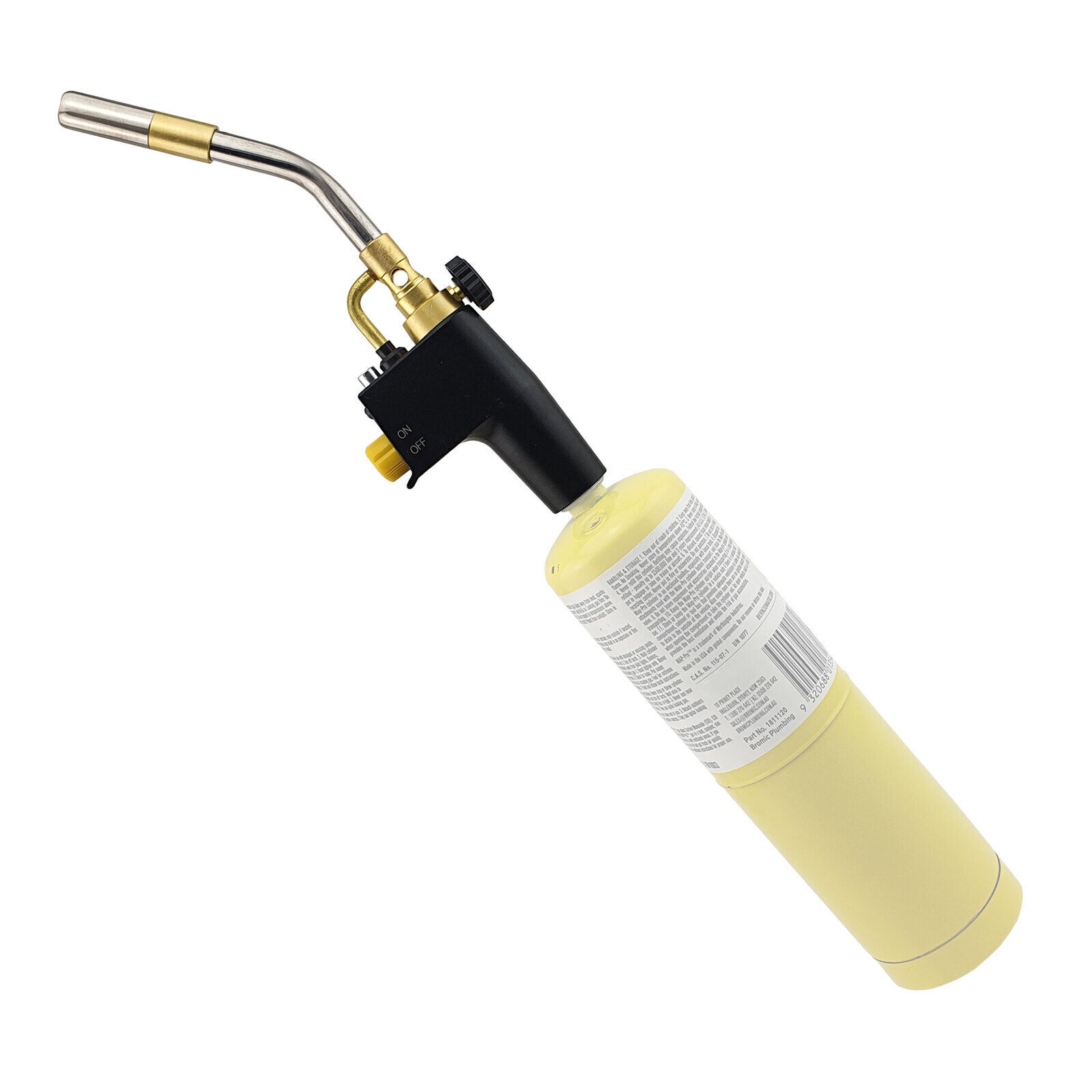

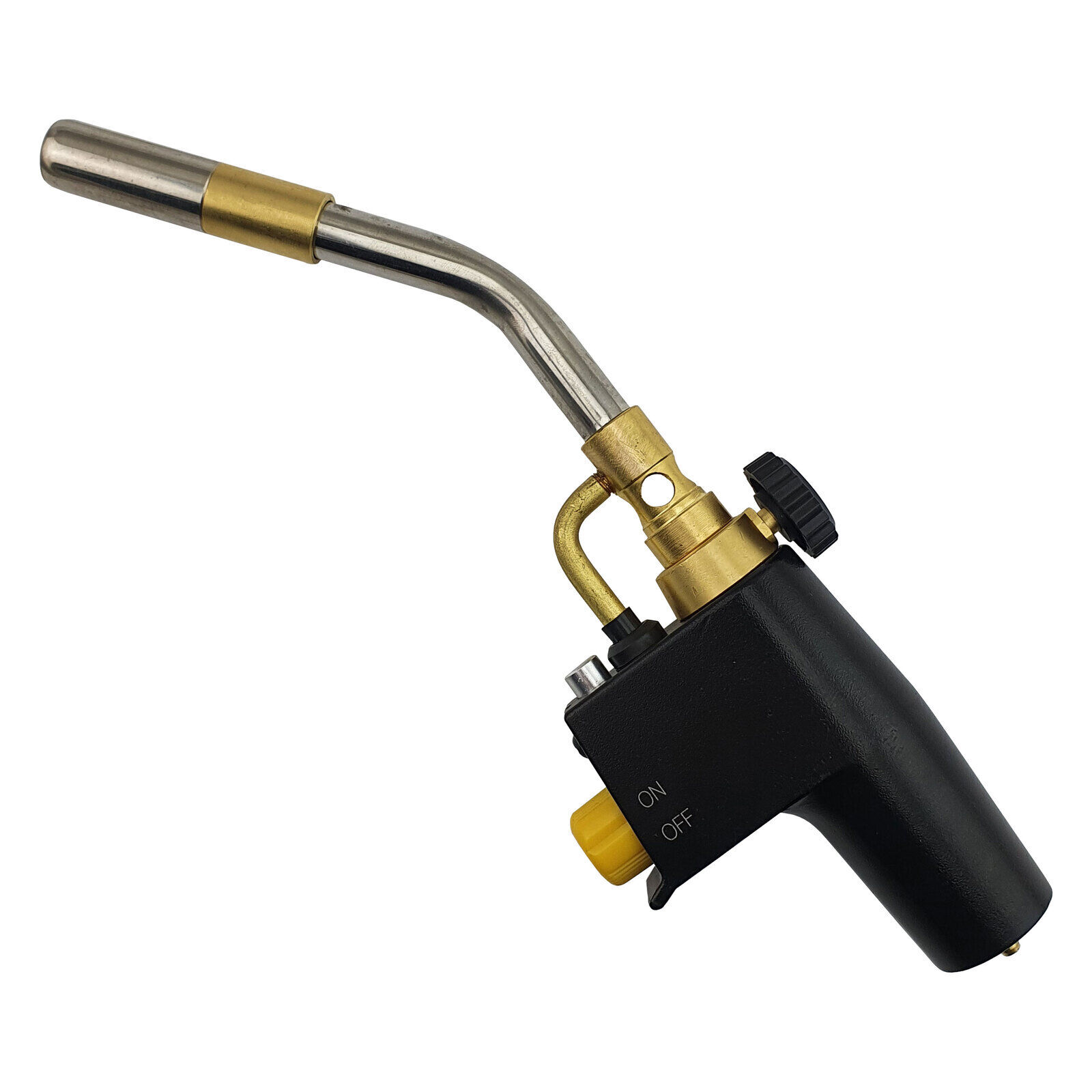

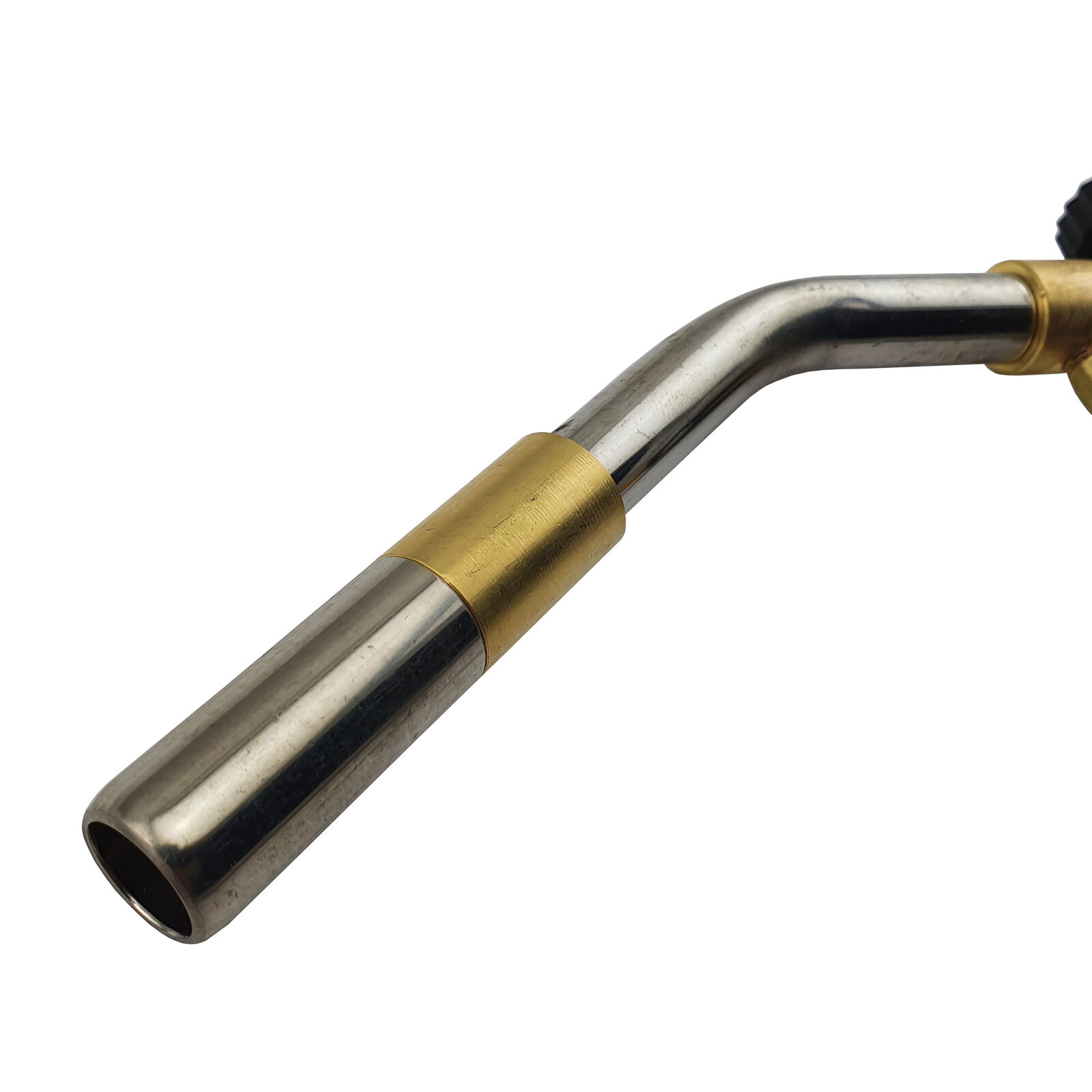

• 1 x TS8000 Style Mapp Torch

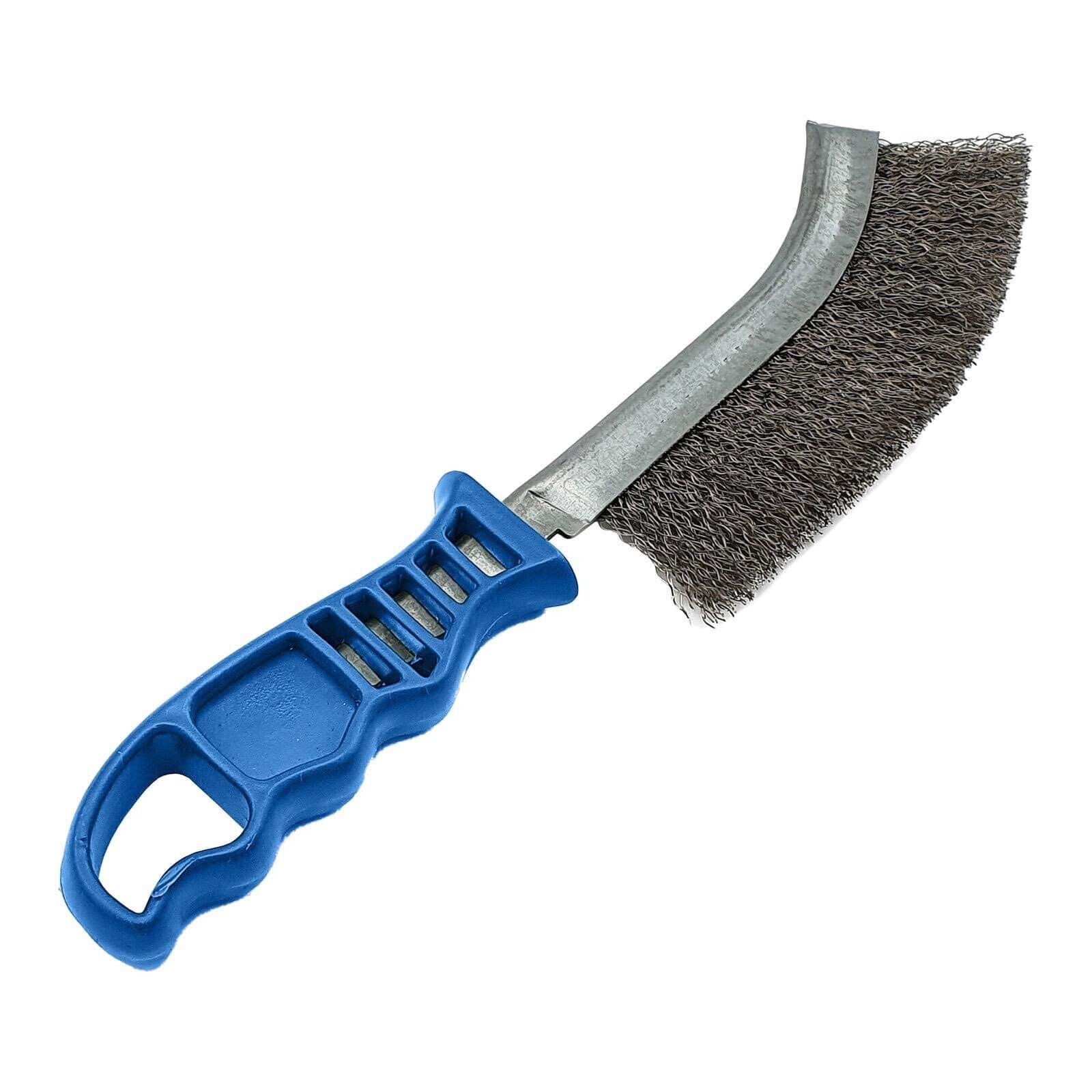

• 1 x Stainless Steel 4 Row Wire Brush
• MAPP GAS BOTTLE NOT INCLUDED

The stainless wire brush helps to clean the surface of the parent material for ease of brazing, while the mapp torch offers adjustable heat output and portability for aluminium brazing.

• Industrial repair and maintenance applications
• Light Aluminium fabrication
• Home repairs and maintenance
• Aluminium extrusions
• Mapp bottle connection of CGA600
• Torch can also be used with Mapp pro Cylinders
• Equivalent to Durafix brazing rods

Die Cast: These directions apply to pot metal, white metal, and pewter. The puddling technique is used. Clean the base metal thoroughly and clamp the piece securely. File or grind the area to be repaired, then clean with a stainless or brass brush. Heat the metal and rod together and blend. Use a backing when possible to protect your piece. Since Ultra Bond and the base metal melt at similar temperatures, you will be welding the rod and the base metal at the same time. If you have not worked with die cast before, practice on a scrap piece before you begin.

Galvanised Steel and Zincalum: Follow the cleaning, thinning, and welding steps described earlier. You are not welding steel, but rather the coating. This will not work on rusted metal.

MAG Alloys: Weld similar to aluminium. Heat base metal, tin Ultra Bond, and weld. If Ultra Bond foams on base metal, the magnesium content is too high and will not weld. Keep heat low. Use a neutral burning flame on all mag alloys.
