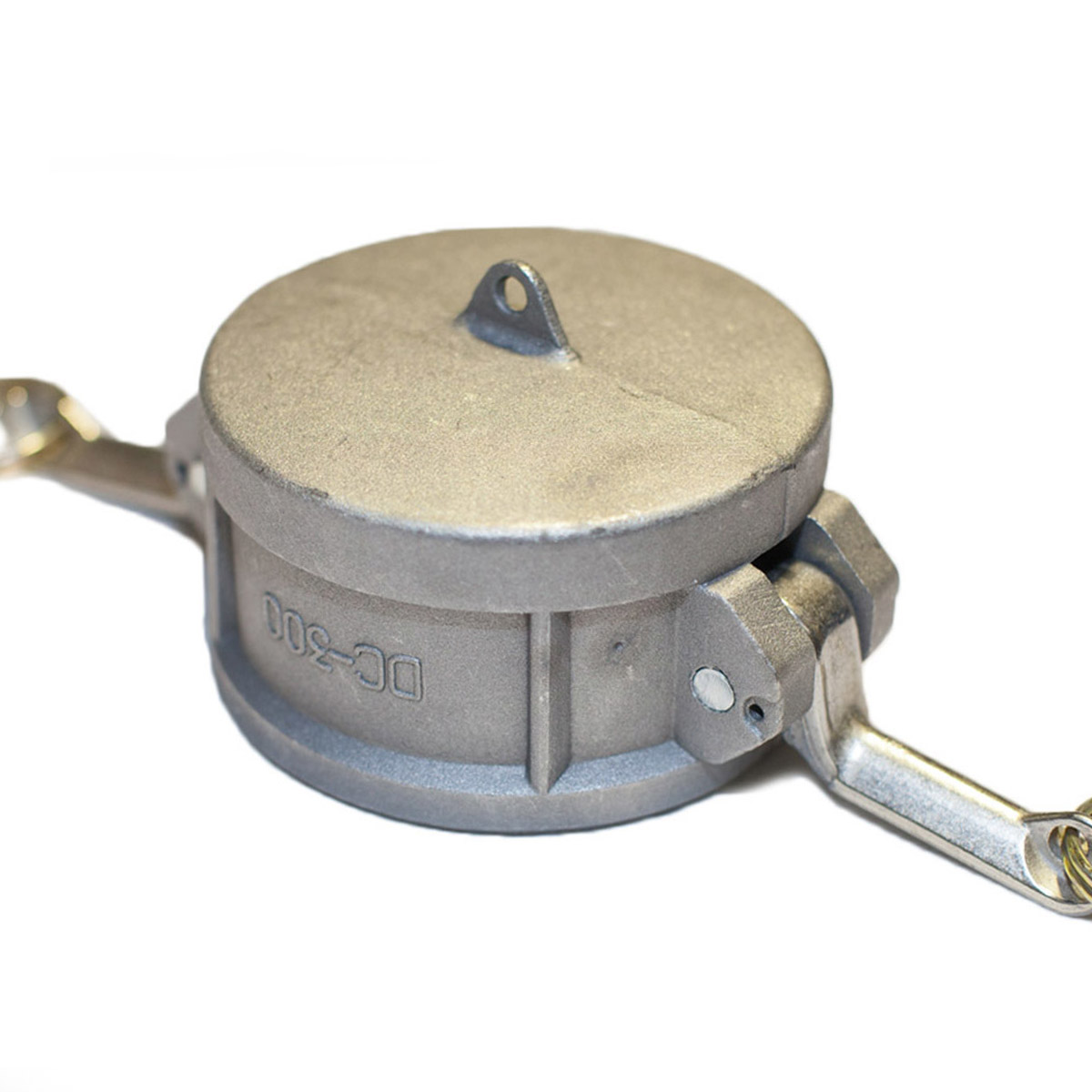

Aluminium Camlock Dust Cap (DC)
Camlock fittings, also known as cam and groove couplings, are sturdy connectors that are used to join pipes or hoses. These connectors stand out for their ease of use. Camlock fittings, unlike many high-performance couplings, attach quickly and without the use of tools. This advantage stems from their distinct design, which aligns the external locking arms with the internal gasket for easy and quick sealing. Aluminium Camlock Dust Cap is a female coupler with a cap used on the end of male camlocks to keep dust, dirt, and small animals out of the system.
Key Features of Camlock Dust Cap
| CAMLOCK FITTINGS TYPES | |
| TYPE | DESCRIPTION |
| Type A | Male Adaptor - Female BSP |
| Type B | Female Coupler - Male BSP |
| Type C | Female Coupler - Hose Tail |
| Type D | Female Coupler - Female BSP |
| Type DC | Dust Cap Female End Coupler |
| Type DP | Dust Plug Male End Adaptor |
| Type E | Male Adaptor - Hose Tail |
| Type F | Male Adaptor - Male BSP |
| Aluminium Camlock Dust Cap |
||||||
| Part Number | Coupling Size (In) | Coupling Size (mm) | B (mm) | E (mm) | G (mm) | WEIGHT (kg) |
| 6201.07.15 | 1/2" | 13 | 37 | 32 | 53 | 0.07 |
| 6201.07.20 | 3/4" | 19 | 45 | 32 | 53 | 0.10 |
| 6201.07.25 | 1" | 25 | 57 | 40 | 60 | 0.17 |
| 6201.07.32 | 1. 1/4" | 32 | 65 | 48 | 78 | 0.19 |
| 6201.07.40 | 1. 1/2" | 38 | 65 | 49 | 85 | 0.22 |
| 6201.07.50 | 2" | 51 | 70 | 54 | 96 | 0.26 |
| 6201.07.65 | 2. 1/2" | 63 | 74 | 59 | 110 | 0.41 |
| 6201.07.80 | 3" | 76 | 80 | 60 | 127 | 0.57 |
| 6201.07.94 | 4" | 102 | 80 | 62 | 156 | 0.88 |
| 6201.07.96 | 6" | 152 | 90 | 62 | 240 | 1.60 |
