Aluminium Camlock Fittings (Type C) - Hose Tail
,gravity=Center,allowExpansion)
Collect 5 Everyday Rewards points
Collect 5 Everyday Rewards points

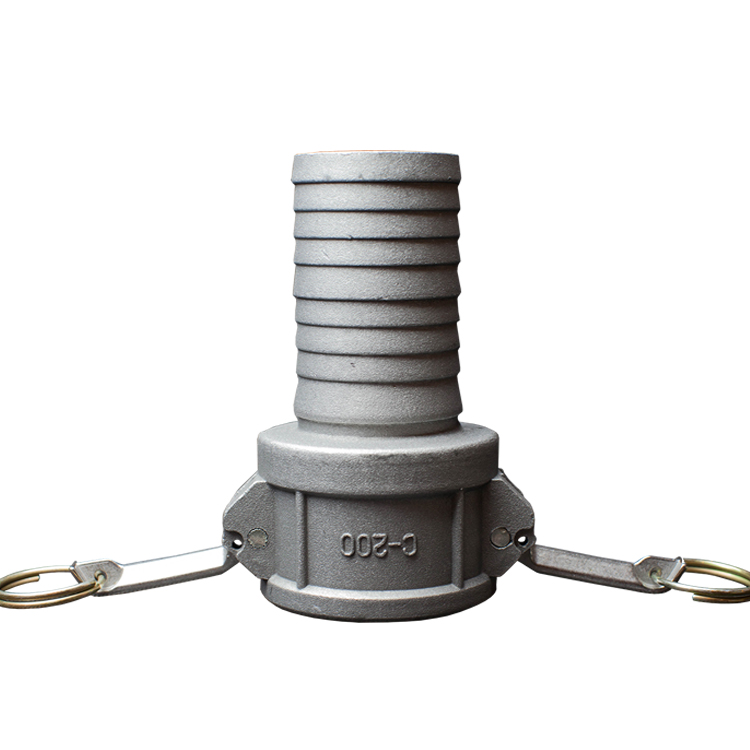

Aluminium Camlock Hose Tail Type C
Camlock hose tail has a female coupler on one end and a hose tail on the other. The hose tail is inserted into any hose of the appropriate size and secured with one of our heavy duty T-bolt clamps. These camlock hose tail stand out for being simple to use. Camlock hose tail attach quickly and without the use of tools, in contrast to many high-performance couplings. This benefit results from their distinctive design, which lines up the external locking arms with the internal gasket for simple and quick sealing.
Key Features of Camlock Hose Tail Fittings
CAMLOCK FITTINGS TYPES | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |
Camlock Fittings Hose Tail Type C - Specifications | ||||||||
Part Number | Coupling Size (In) | Coupling Size (mm) | A (mm) | B (mm) | D (mm) | E (mm) | G (mm) | WEIGHT (kg) |
6201.03.15 | 1/2" | 13 | 14 | 71 | 20 | 32 | 53 | 0.08 |
6201.03.20 | 3/4" | 19 | 14 | 84 | 20 | 32 | 53 | 0.12 |
6201.03.25 | 1" | 25 | 20 | 98 | 26 | 40 | 60 | 0.19 |
6201.03.32 | 1. 1/4" | 32 | 25 | 103 | 33 | 48 | 78 | 0.28 |
6201.03.40 | 1. 1/2" | 38 | 31 | 121 | 39 | 49 | 85 | 0.30 |
6201.03.50 | 2" | 51 | 43 | 138 | 52 | 54 | 96 | 0.45 |
6201.03.65 | 2. 1/2" | 63 | 55 | 149 | 65 | 59 | 110 | 0.53 |
6201.03.80 | 3" | 76 | 67 | 160 | 77 | 60 | 127 | 0.72 |
6201.03.94 | 4" | 102 | 92 | 170 | 103 | 62 | 156 | 1.01 |
6201.03.96 | 6" | 152 | 140 | 230 | 150 | 62 | 240 | 2.03 |
