Aluminium Camlock Fittings (Type A) - BSPP Thread

Aluminium Camlock Fittings (Type A) - BSPP Thread

Hurry! 10 items left!

Price	From $1.92
	Collect 1 Everyday Rewards points Log in to MyDeal to link your card
Size	Please select an option
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

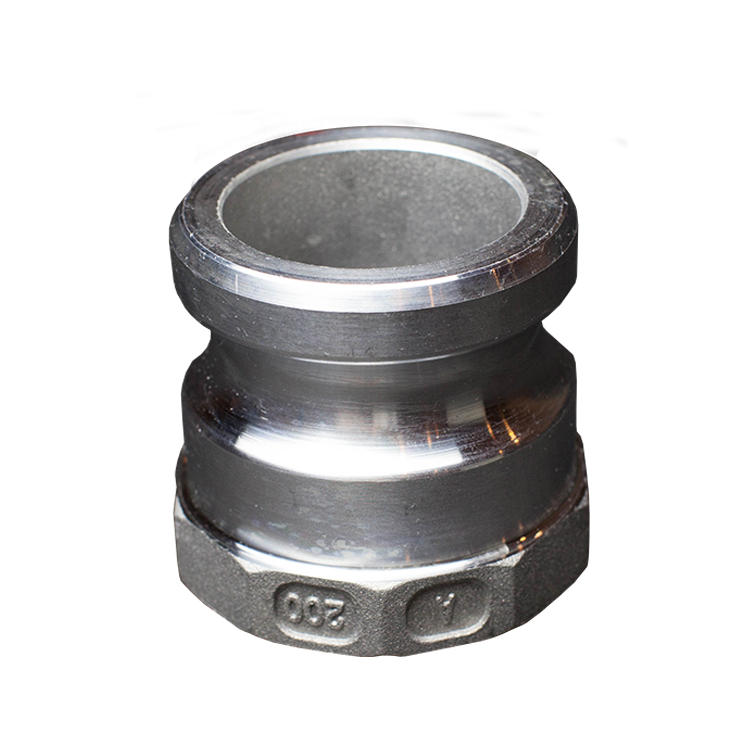

Aluminium Camlock Fitting Type A

Camlock fittings, which are also known as cam and groove couplings, are strong connectors used to connect pipes or hoses. These connectors stand out for being simple to use. Camlock fittings attach quickly and without the use of tools, in contrast to many high-performance couplings. This benefit results from their distinctive design, which lines up the external locking arms with the internal gasket for simple and quick sealing.

Key Features of Camlock Fittings

The coupling fittings are connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2" (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)
Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
Standard Buna-N seal installed
Aluminium alloy material

CAMLOCK FITTINGS TYPES
TYPE	DESCRIPTION
Type A	Male Adaptor - Female BSP
Type B	Female Coupler - Male BSP
Type C	Female Coupler - Hose Tail
Type D	Female Coupler - Female BSP
Type DC	Dust Cap Female End Coupler
Type DP	Dust Plug Male End Adaptor
Type E	Male Adaptor - Hose Tail
Type F	Male Adaptor - Male BSP

Camlock Fittings Type A Specifications - Male Adaptor X Female BSPP - Aluminium
Part Number	Coupling Size (In)	Coupling Size (mm)	A (mm)	B (mm)	C (mm)	Thread Type	WEIGHT (kg)
6201.01.15	1/2"	13	13	41	25	BSPP	0.02
6201.01.20	3/4"	19	21	41	32	BSPP	0.04
6201.01.25	1"	25	24	52	40	BSPP	0.06
6201.01.32	1. 1/4"	32	28.5	54	48	BSPP	0.09
6201.01.40	1. 1/2"	38	36	57	56	BSPP	0.12
6201.01.50	2"	51	45	62	67	BSPP	0.14
6201.01.65	2. 1/2"	63	56.5	71	83	BSPP	0.21
6201.01.80	3"	76	73	71	96	BSPP	0.26
6201.01.94	4"	102	98	82	127	BSPP	0.58
6201.01.96	6"	152	150	79	183	BSPP	0.90
