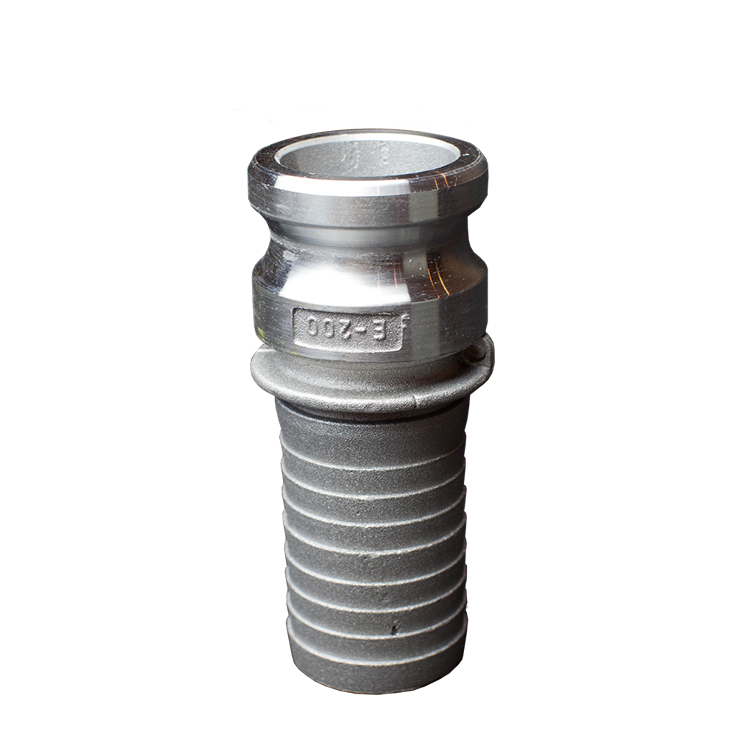

Aluminium Camlock Hose Tail Type E
Camlock fittings are quick connect/disconnect couplings used in a variety of applications. They are widely used in the chemical, food, and beverage industries due to their ease of use and versatility. Camlock hose tail type are available in a variety of materials including stainless steel, brass, and aluminum. Aluminium camlock hose tail is mainly used to join the inlet or discharge hose to the pump.
Key Features of Aluminium Camlock Hose Tail Type E
CAMLOCK FITTINGS TYPES | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |
Camlock Fittings Type E Specifications | ||||||||
Part Number | Coupling Size (In) | Coupling Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | WEIGHT (kg) |
6201.05.15 | 1/2" | 13 | 14 | 72 | 34 | 20 | 40 | 0.03 |
6201.05.20 | 3/4" | 19 | 19 | 88 | 34 | 20 | 40 | 0.06 |
6201.05.25 | 1" | 25 | 24 | 102 | 38 | 26 | 46 | 0.09 |
6201.05.32 | 1. 1/4" | 32 | 28 | 108 | 48 | 33 | 53 | 0.14 |
6201.05.40 | 1. 1/2" | 38 | 35 | 129 | 56 | 39 | 56 | 0.20 |
6201.05.50 | 2" | 51 | 48 | 136 | 66 | 52 | 61 | 0.25 |
6201.05.65 | 2. 1/2" | 63 | 58 | 159 | 80 | 65 | 65 | 0.43 |
6201.05.80 | 3" | 76 | 72 | 166 | 102 | 77 | 66 | 0.50 |
6201.05.94 | 4" | 102 | 98 | 177 | 132 | 103 | 70 | 0.82 |
6201.05.96 | 6" | 152 | 140 | 250 | 175 | 150 | 75 | 2.28 |
