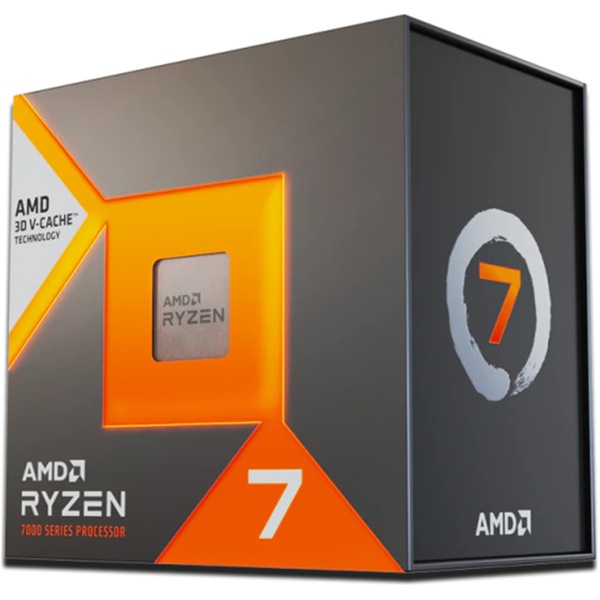

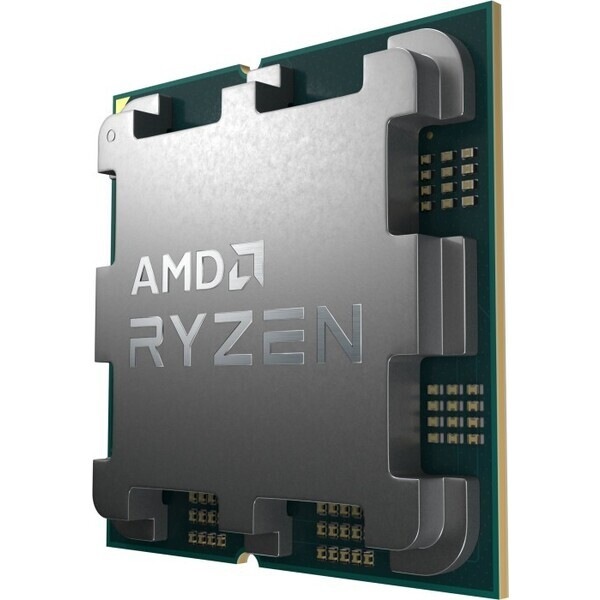

AMD Ryzen 7 7800X 3D, without cooler (AM5) (Ryzen7000) (AMDCPU)

AMD Ryzen 7 7800X 3D, without cooler (AM5) (Ryzen7000) (AMDCPU)

FEATURES:

Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies

SPECIFICATIONS:

Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename "Raphael AM5"
Architecture "Zen 4"
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 5.0GHz
Base Clock 4.2GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 96MB
Default TD 120W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 2
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E X670 B650E B650
CPU Boost Technology
Precision Boost 2
Instruction Set x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)
Not included
Max. Operating Temperature (Tjmax)
89°C
Launch Date
4/6/2023
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
1
Native SATA Ports
0
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28/24
Additional Usable PCIe Lanes from Motherboard
AMD X670E
12x Gen4

AMD X670
12x Gen4

AMD B650E
8x Gen4

AMD B650
8x Gen4

NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIM
