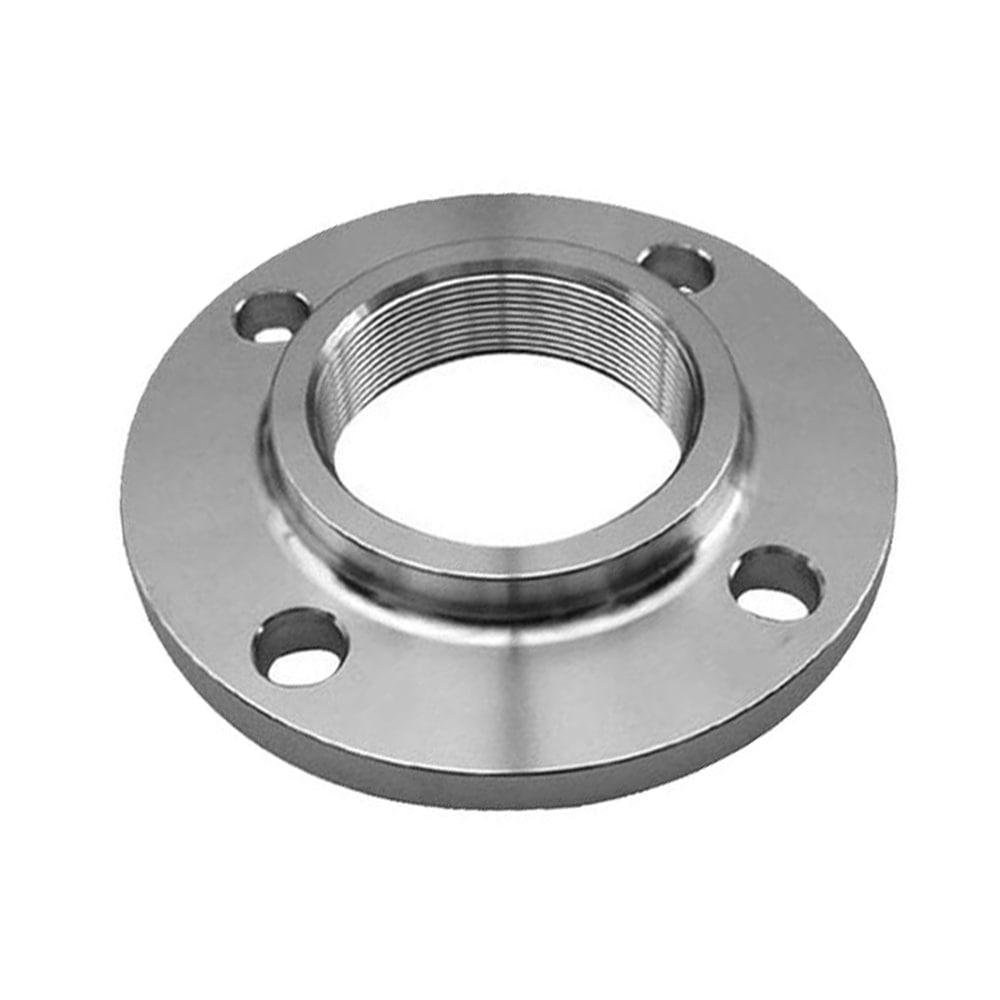

ANSI 150 Threaded NPT Flange - Forged Carbon Steel (ASME B16.5)

Image 1
Hurry! 9 items left!
From$7.46

Collect 7 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

ANSI 150 Raised Face NPT Threaded Forged Carbon Steel ASME B16.5


Features:



  • Material: Forged Carbon Steel

  • Pressure Rating: PN20 & PN50

  • Dimensional: ASME B16.5





























































































































































ANSI B16.5 C150 NPT Threaded Flange
ITEM CODE IMPERIAL SIZE A B D E F H J BOLT SIZE RAISED FACE THICK. NUMBER OF HOLES APPROX. KG/PC
7601.05.15 1/2" 89 60.3 35 15.9 11.1 16 30.2 1/2 1.6 4 0.5
7601.05.20 3/4" 98.5 69.8 42.9 15.9 12.8 16 38.2 1/2 1.6 4 0.9
7601.05.25 1" 108 79.3 50.9 17.5 14.3 16 49.2 1/2 1.6 4 0.9
7601.05.32 1. 1/4" 117.5 88.9 63.6 20.7 15.9 16 58.8 1/2 1.6 4 1.4
7601.05.40 1. 1/2" 127.1 98.4 73.1 22.3 17.5 16 65.1 1/2 1.6 4 1.4
7601.05.50 2" 152.5 120.6 92 25.5 19.1 20 77.8 5/8 1.6 4 2.3
7601.05.65 2. 1/2" 177.9 139.7 104.8 28.6 22.3 20 90.5 5/8 1.6 4 3.2
7601.05.80 3" 190.6 152.4 127.1 30.2 23.8 20 108 5/8 1.6 4 3.6
7601.05.94 4" 228.7 190.5 157.2 33.4 23.8 20 135 5/8 1.6 8 5.9

Estimated Delivery Time Frame:2-7 business days
