BLACKHAWK ANT-BH-OM-C Indoor Dome Ceiling Antenna

Image 1
Image 2
Image 3
Hurry! 7 items left!
$128

Collect 128 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

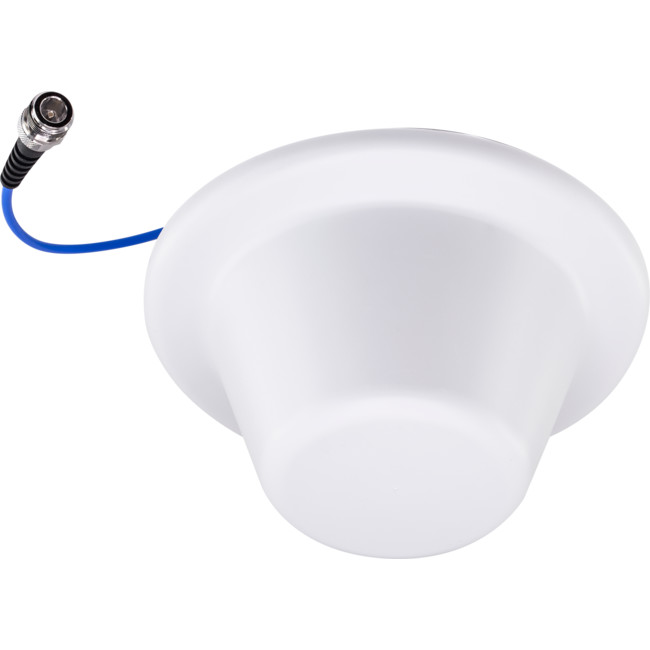

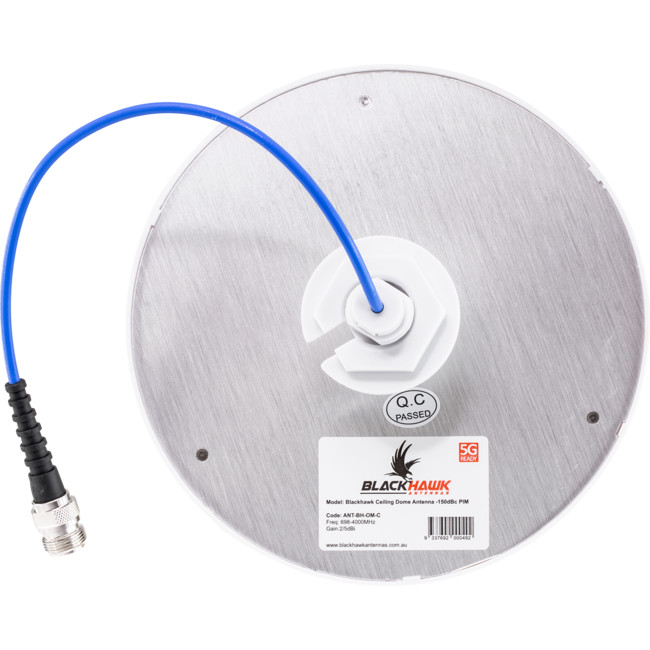

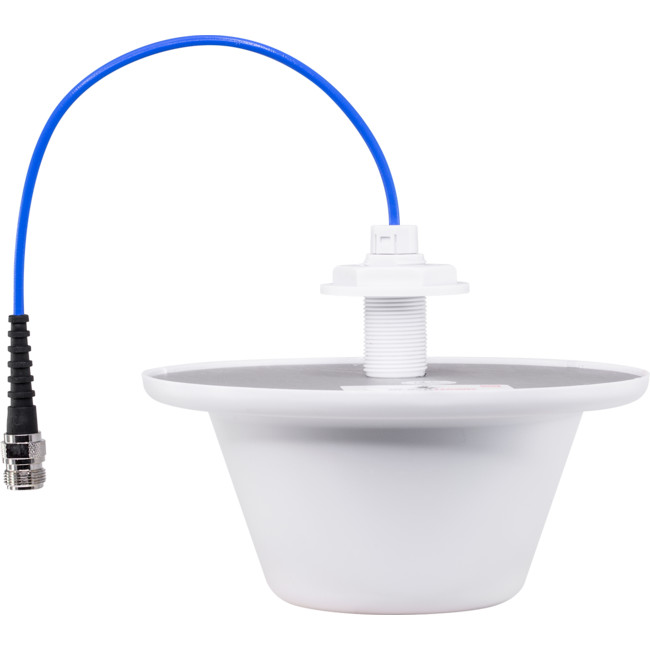

ANT-BH-OM-C - BLACKHAWK INDOOR DOME CEILING ANTENNA
FEATURES
  • 2.5 dBi gain across lower bands 698-960 MHz
  • 3.5 dBi gain across upper bands 1710-2700 MHz
  • ABS plastic and aluminium construction
  • Threaded bulkhead mount for ceiling installation
  • Short cable tail with N female connector
  • Ideal for Cel-Fi GO repeater applications for marine and caravan

Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.

Operating on all 3G and 4G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.

This is the ideal indoor antenna for Cel-Fi repeater systems.

Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributedmobile phone service from your Cel-Fi repeater/booster.

The antenna is compact with a visually unobtrusive designsimilar to a smoke alarm.

The Blackhawk Omni Ceiling Antenna will provide the perfect solution for voice and data applications.

Perfect for repeater applications that require a 360° beamwidth for complete internal coverage.

_


Main Technical Specifications:

  • Model
ANT-BH-OM-C
  • Frequency Range
698-960 MHz / 1710-2700 MH
  • VSWR
≤2.0:1 /≤1.8:1
  • Input Impedance
50
  • Gain
2.5 / 3.5 dBi
  • Polarization type
Vertical Linear
  • Horizontal beamwidth
360° (omnidirectional)
  • Vertical beamwidth
90 / 55°
  • F/B Ratio
≥23dB
  • Max Power
50W
  • Lightning protection
DC ground
  • Connector Type
N Female
  • RG58/U cable
Short tail cable
  • Weight
0.25kg
  • Dimensions
210mm×180mm×44mm
  • Radome material
ABS plastic - White
  • Radiator Material
Brass and aluminium
  • Working temperature
-40°C~+65°C

_

Weight: 0.334
