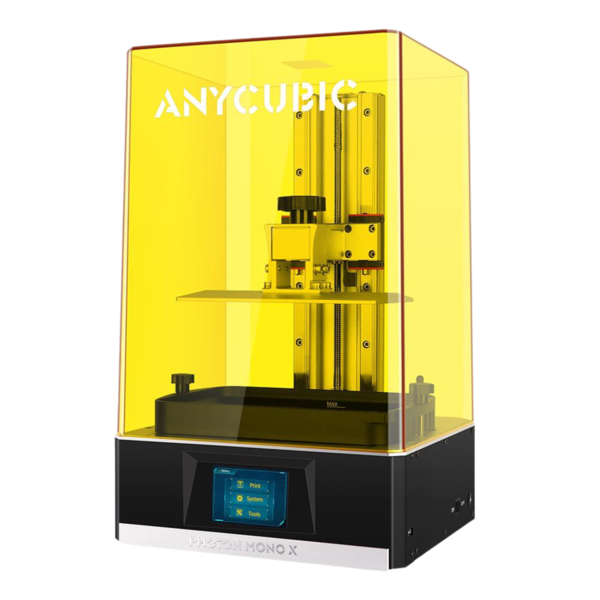

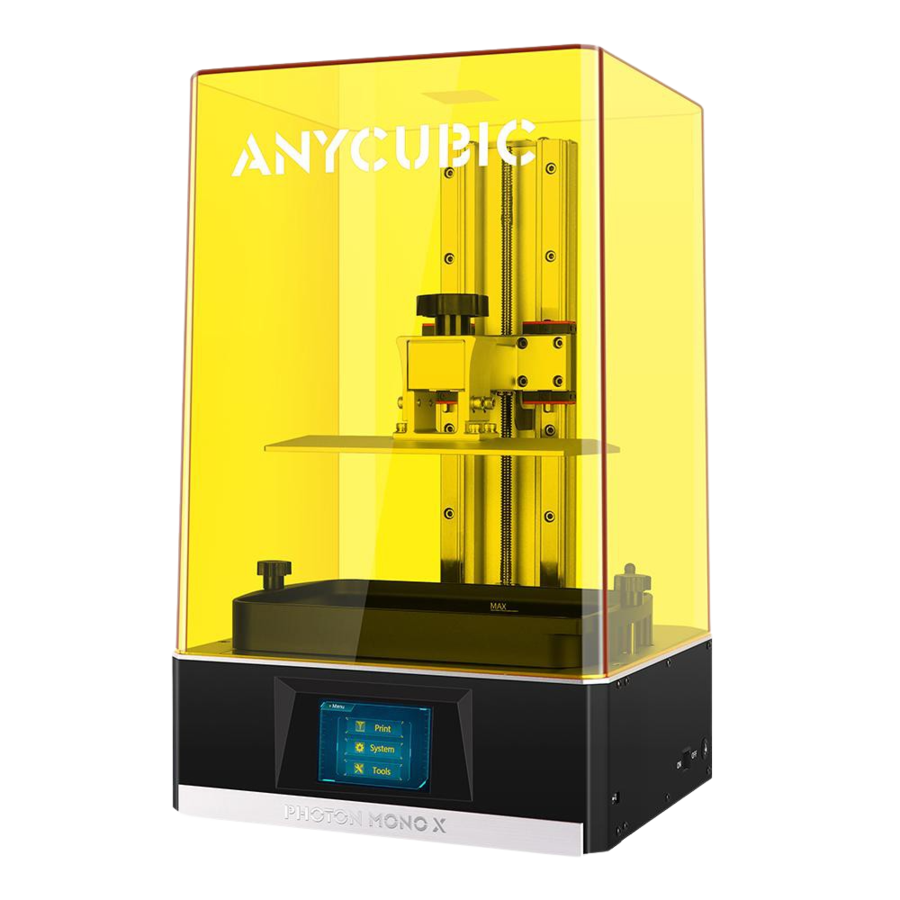

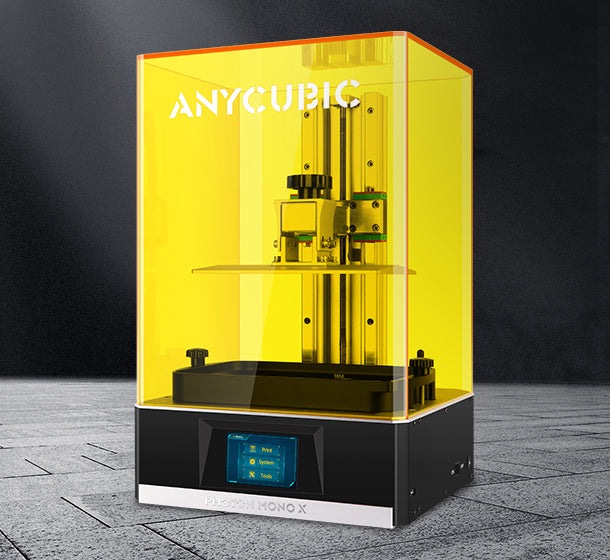

Anycubic Photon Mono X 3D Printer

Anycubic Photon Mono X 3D Printer

Be the first to review this product

SOLD OUT

Enter your email to receive a notification when this item is back in stock

8.9" 4K Monochrome LCD
Large Build Volume
Fast Printing Speed
Anycubic APP Remote Control

About Anycubic Photon Mono X

8.9" 4K Monochrome LCD
Large Build Volume
Fast Printing Speed
Anycubic APP Remote Control

8.9" 4K Monochrome LCD: Allows larger prints, more detail and accuracy.

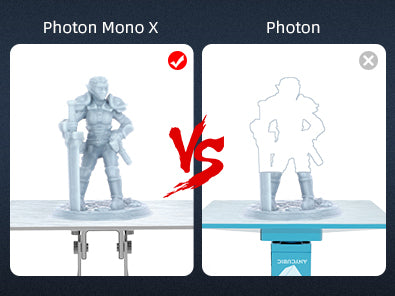

Fast Printing Speed: Making printing speed 3X faster than the Photon.

Large Build Volume: A large build area for your 3D-printed creations

APP Remote Control: Remote control of print operations

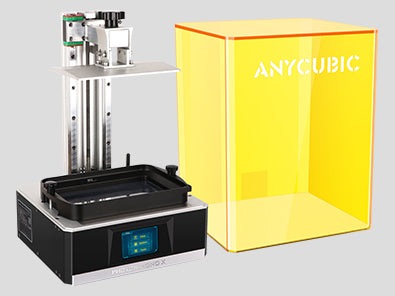

Safe Design: Printer will be immediately shut off if the top cover has been removed. This feature is turned off by default

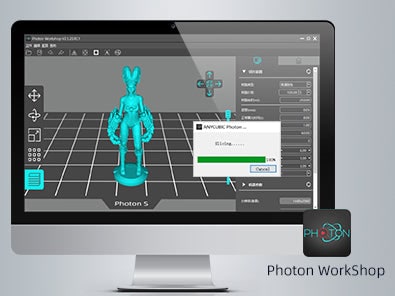

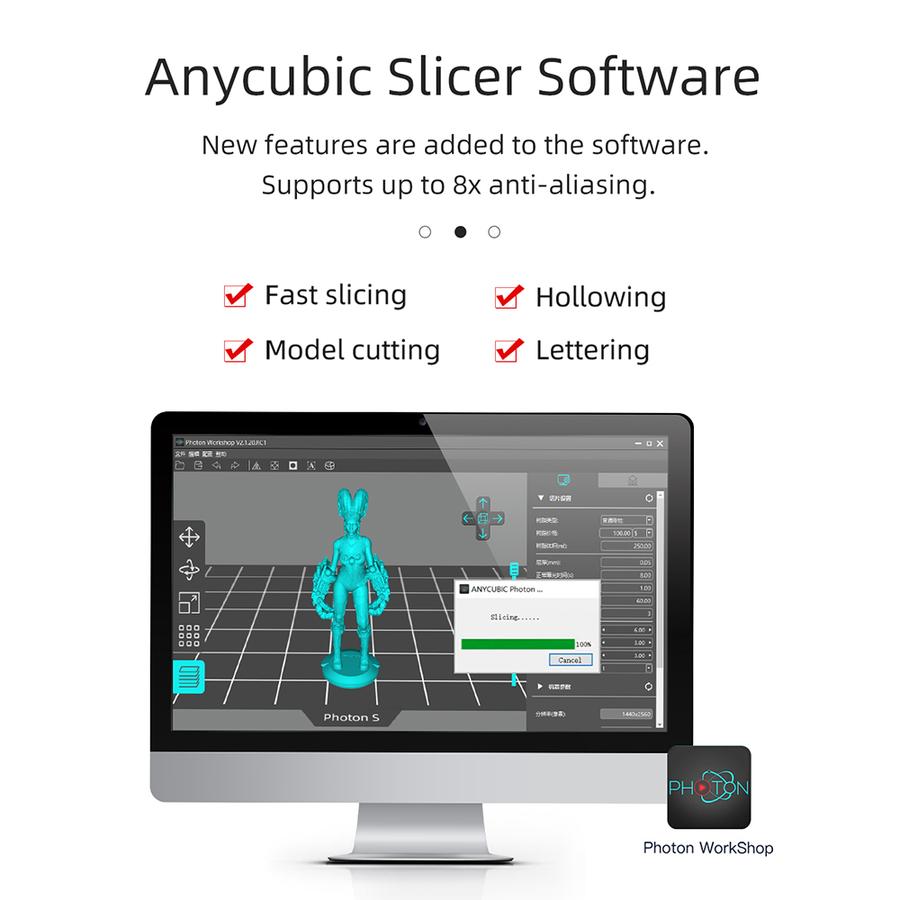

Anycubic Slicer Software: New features are added to the software. Supports up to 8x anti-aliasing: Fast slicing, Hollowing, Split Model, Text Paste

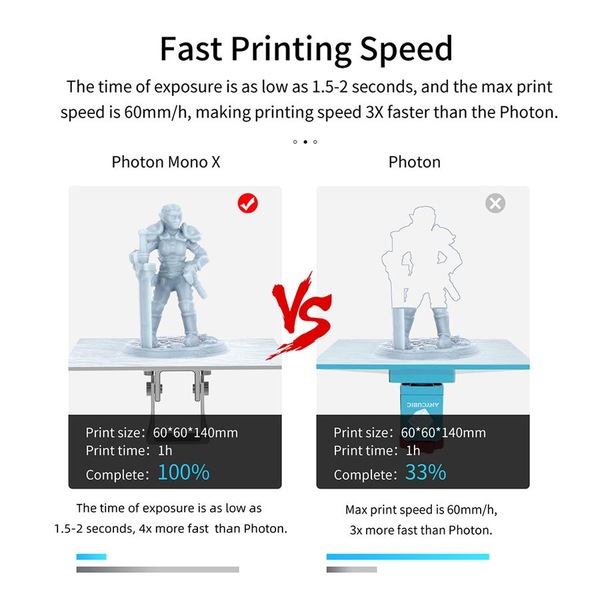

Fast Printing Speed: The time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon.

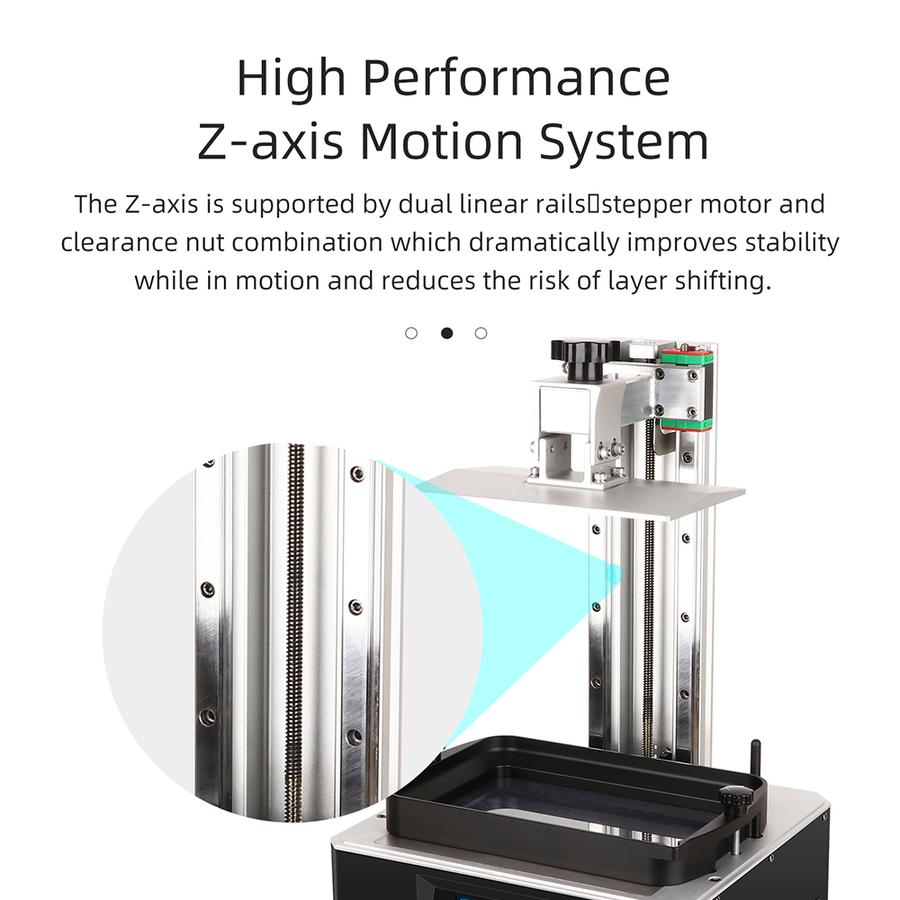

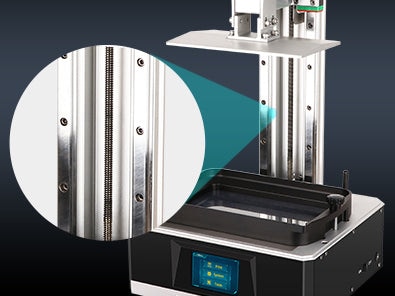

High Performance Z-axis: The Z-axis is supported by dual linear rails，stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting.

New Matrix UV Light Source: High quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints

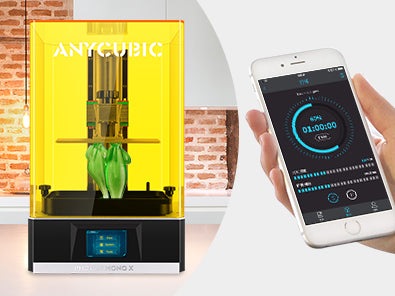

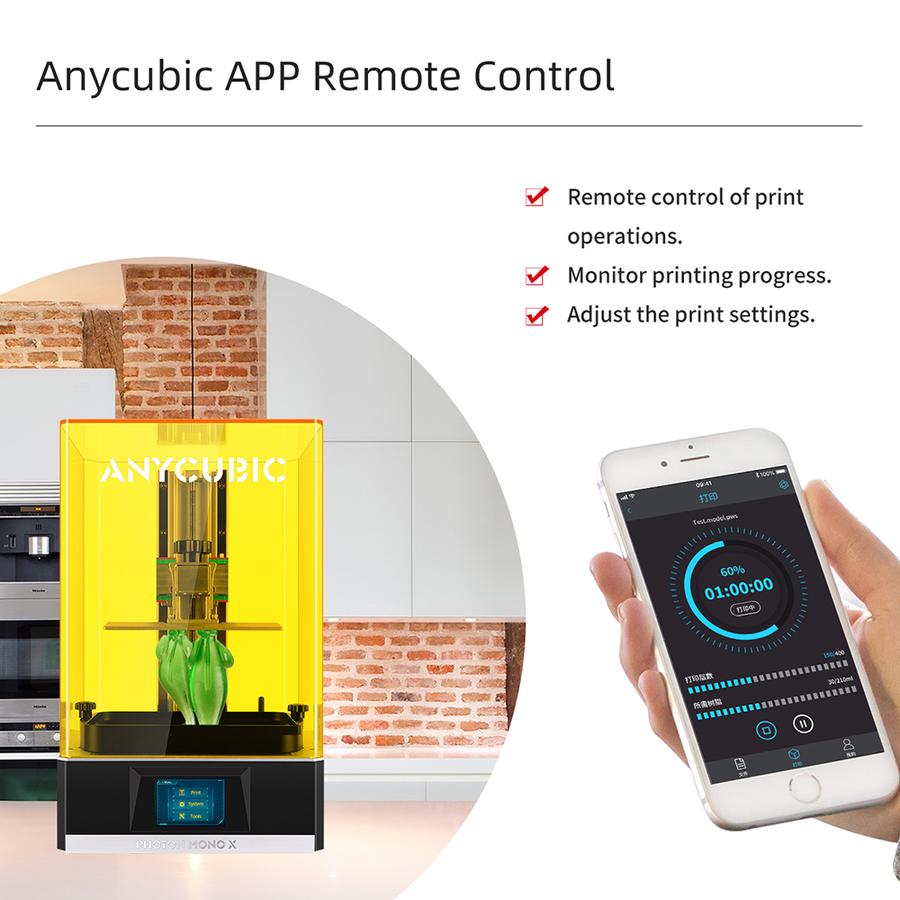

Anycubic APP Remote Control: Remote control of print operations，monitor printing progress，adjust the print settings

UV Cooling System: Cooling device for stable printing performance and longer service life.

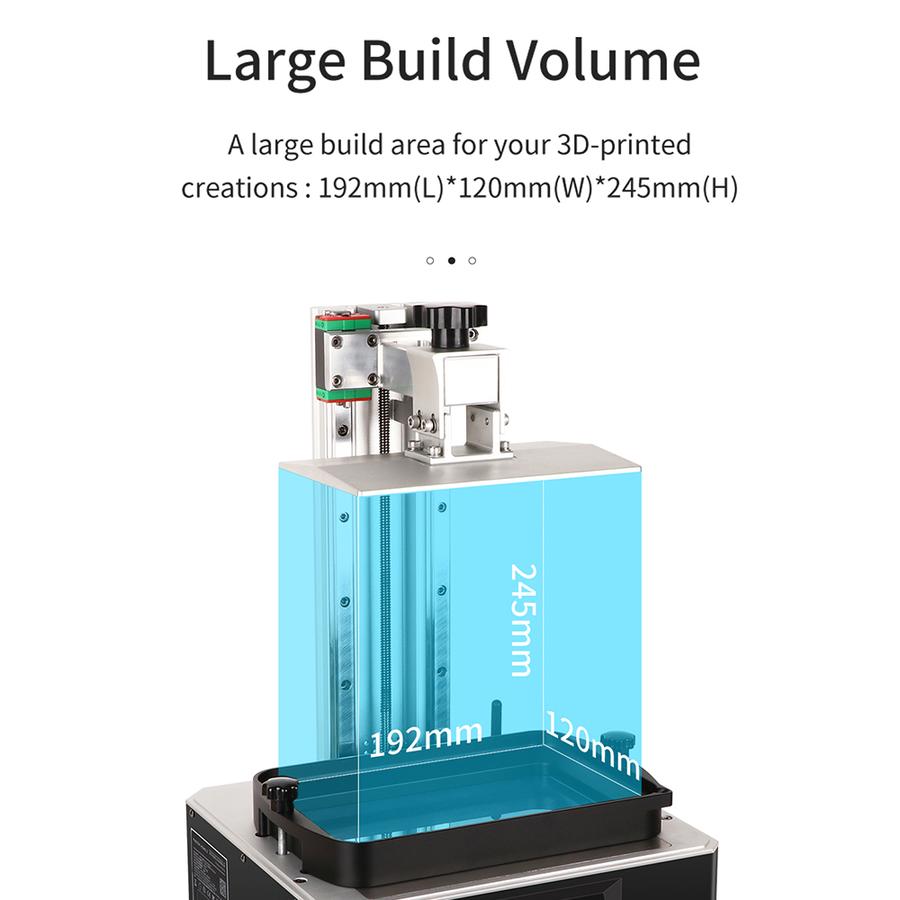

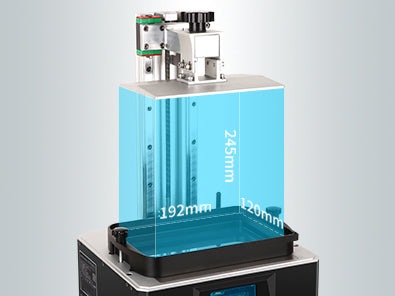

Large Build Volume: A large build area for your 3D-printed creations :192mm(L）*120mm(W）*245mm（H）

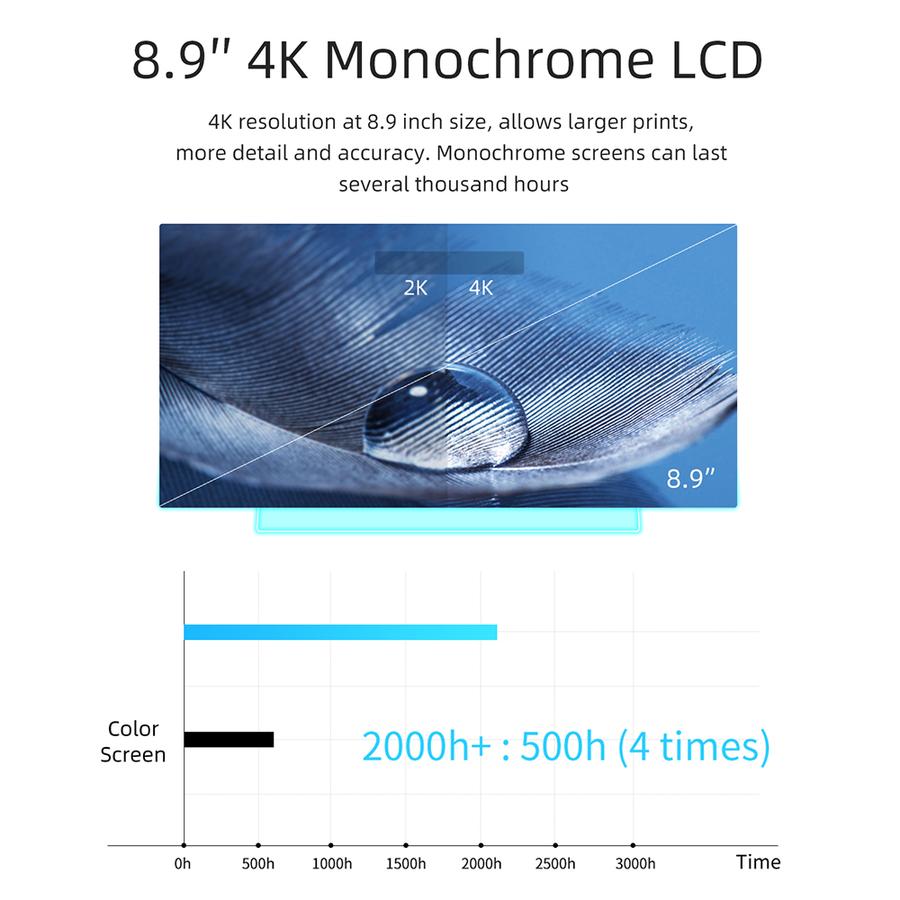

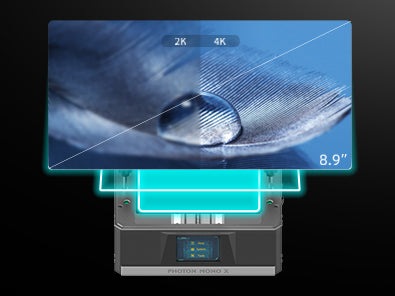

8.9″ 4K Monochrome LCD: Monochrome screens can last several thousand hours. Monochrome screens allow for very short layer exposure times for faster print times.

Technical specifications

System	ANYCUBIC Photon Mono X
Operation	3.5 inch Touch Screen
Software	ANYCUBIC Photon workshop
Connectivity	USB
Technique	LCD-based SLA
Light source	high-quality filament（wavelength 405nm）
XY resolution	0.050mm 3840*2400（4K）
Z axis accuracy	0.01mm
Layer thickness	0.01-0.15mm
Print speed	MAX 60mm/h
Rated power	120W
Dimension	270mm(L)290mm(W)475mm(H)
Build volume	192mm(L）120mm(W）245mm（H）
Material	405nm UV resin
Net weight	~10.75kg

Parts List

User Manual

SD-Card

Tool set

SD-Card Reader

Scraper

Resin Vat

Platform

Power Cord

Wifi Antenna

Glove

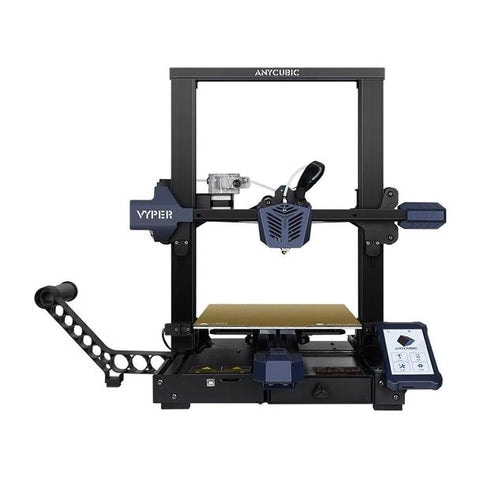

	Mono X	Photon S	Vyper
Printing Technology	LCD-based SLA Printing	LCD-based SLA Printing	FDM (Fused Deposition Modeling)
Build Area	192x120x245mm	115x65x165mm	245x245x260mm
Print Materials	405nm UV Resin	405nm UV Resin	PLA, ABS, PETG, Wood and TPU
Illuminant	high-quality filament	Matrix	None
Axis Z	Double	Double	Single

GTIN: 715235125281
