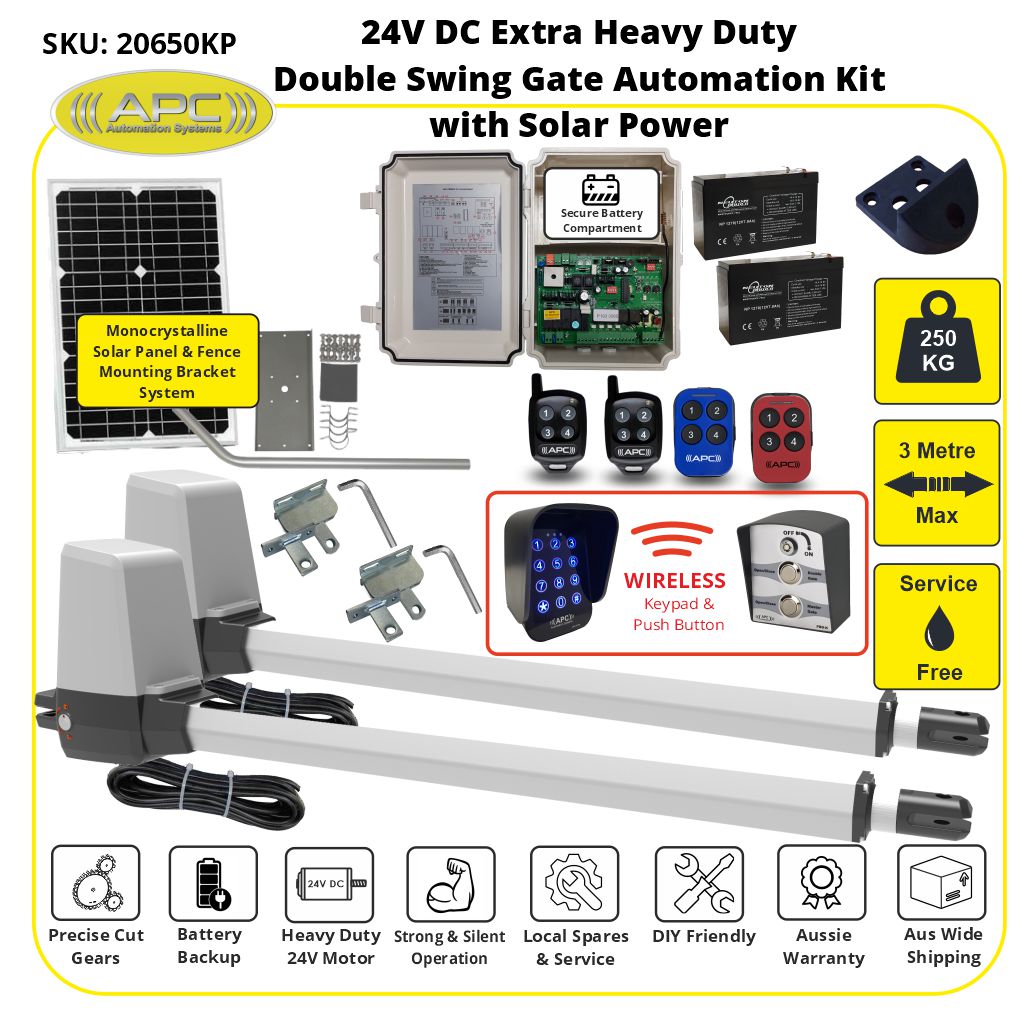

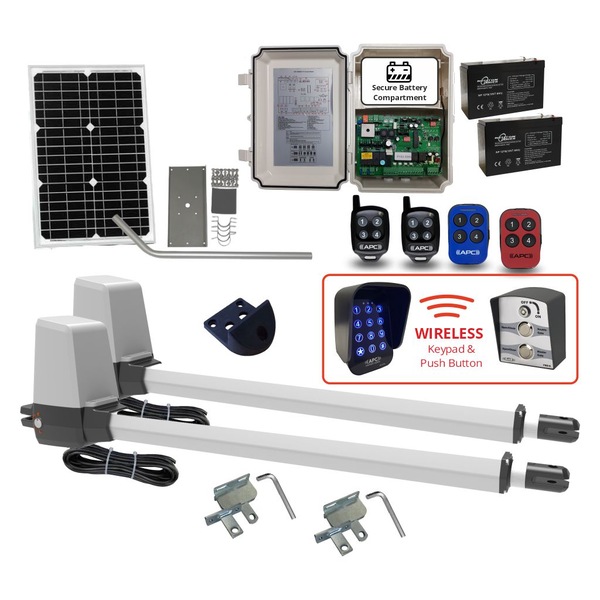

Gate Opener Kit Includes

• APC-T550 Actuator Kit Gate Automation Electric Motor (QTY: 2)
• APC Weatherproof Control Box with Built in Battery Compartment (QTY: 1)
• APC Four Button Keyring Remote (QTY: 2)
• APC Sun Visor Remote (QTY: 2)
• 7aH Capacity Battery (QTY: 2)
• APC Two Channel Wireless Keypad (QTY: 1)
• APC Wireless Double Push Button Switch with Key Issolation (QTY: 1)
• 24v 20 Watts Solar Panel (QTY: 1)
• Solar Panel Fence Post Bracket for APC 20 Watt Solar Panels (QTY: 1)
• 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)

Product Information

Heavy Duty Quick Operation Aluminum Telescopic Linear Actuator

Engineered to be Fast, Powerful, and Quiet. The Heavy Duty 24V actuator is comprised of an aluminum piston housing and a stainless steel piston with an elegant light grey powder coat for a neutral non-obtrusive feel.

Universal left and Right Side installation.

Simple 2 wire low voltage system making this motor a breeze to install for all skill levels.

The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.

Engineered to last

Perfect gear cuts allow for almost silent operation with no movement in the gear system.

Sealed bearings at each end of the gear set for a 100% smoothness and consistency every single cycle.

Ribbed casing for extreme rigidity and the ultimate holding strength with no flex whatsoever.

Emergency Clutch Override

The simplest of override systems simply slot in the key and turn towards the unlock icon to operate the gates manually. Once finished just turn back to the locked icon.

Specifications

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security

System Features

Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes

Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output

Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

24V 7aH Battery System

Supplied with the automation kit the 24V 7aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 9aH, 17aH and 33aH battery systems.

Specifications

APC-KP2W Wireless Keypad Features

• Up to 11 pin codes can be programmed

• Low Power Consumption only 18uA in standby.

• Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.

• High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.

• Blue Backlight illumination upon touch with an automatic timeout to return to standby.

• Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)

• IP53 Weatherproof rated and suited for outdoor and indoor environments.

• Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.

• Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.

Wireless Push Button with Isolation Key

The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.
