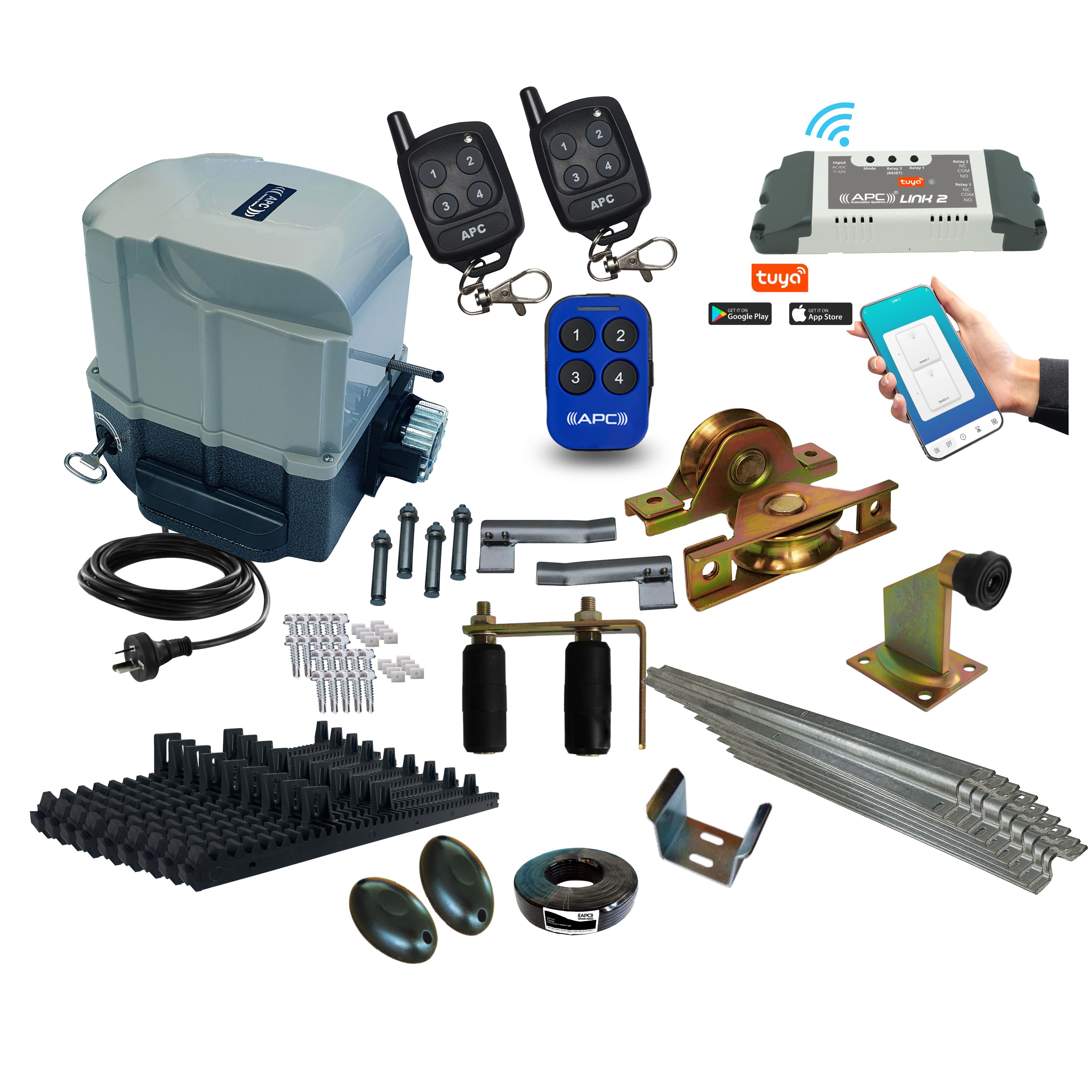

Gate Opener Kit Includes

• APC Typhoon All in One Sliding Gate Motor with built-in Control Board(QTY: 1)
• Motor Mounting Base plate Expansion Bolts(QTY: 1)
• APC 4 Button Key Ring Remote Controls(QTY: 2)
• APC 4 Button Sunvisor Remote Controls(QTY: 1)
• APC Link 2 WiFi Switch Controller(QTY: 1)
• Steel Reinforced Nylon Coated Gear Rack(QTY: 8)
• 1m Fully Galvanized Heavy-Duty Floor Track.(QTY: 8)
• Self Drilling Metal Screws with Square Washers(QTY: 30)
• Photo Electric Safety Sensor with 10m Cable(QTY: 1)
• Manual Override Keys(QTY: 1)
• Metal Gate Stop with Rubber Bumper(QTY: 1)
• 78mm Recess mount heavy-duty wheels with dual bearings(QTY: 2)
• Set of upper roller system including 2 x 100mm rollers and mounting bracket.(QTY: 1)
• 55mm U Guide gatekeeper.(QTY: 1)
• Set of Limit Strikers(QTY: 1)
• Easy to Follow ENGLISH Installation Manual(QTY: 1)

Product Information

AC Sliding Gate Automation System with Soft Start Soft Stop Feature

Strong Durable

With its Soft Start/Soft Stop feature the APC Typhoon brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.

The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.

Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.

All In One Motor Design

Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway

With separate open and close inputs as well as an shared open/close input the APC Typhoon will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.

Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.

Manual Override System

Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.

Metal Pinion Cast Casing

Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one piece solid steel pinion gear no corners have been cut.

Suitability

• Sliding gate not exceeding 800kg maximum (Telescopic Gates Supported up to 200KG PER gate)
• Sliding gate not exceeding 6m width maximum (Telescopic Gates Supported up to 2m PER gate)
• A power point is required at the gate (or can be hardwired by an electrician)
• Level ground installations or minor gradients

Specifications

FAQ

APC-PE2000 Photoelectric Safety Sensor Set

The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively, a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

• Up to 15 Metres, Infrared beam operating distance

• Only powers on when the command is given to close the gates

• Alignment led to assist in the installation process

• Weather sealed with the supplied cover seals

• Easy screw down wiring termination
