DESCRIPTION

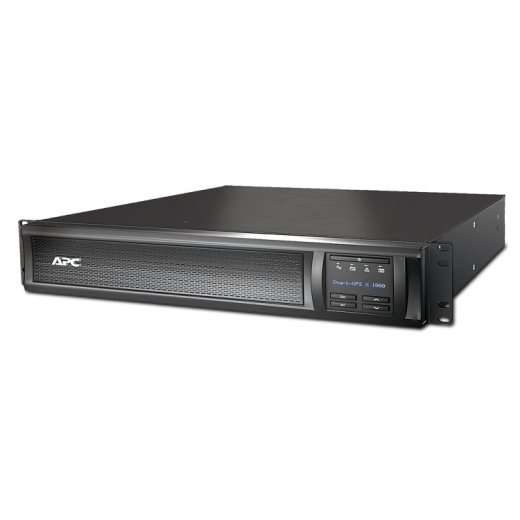

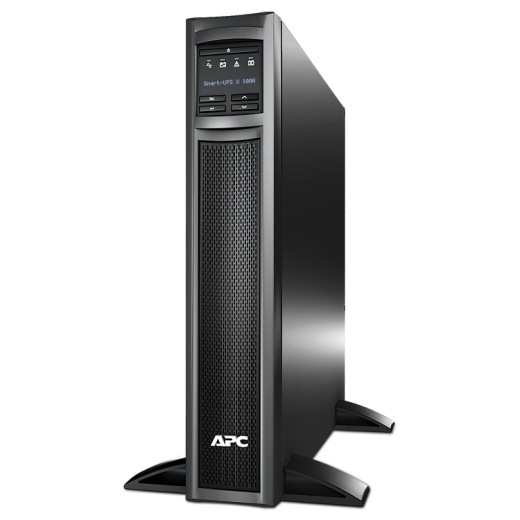

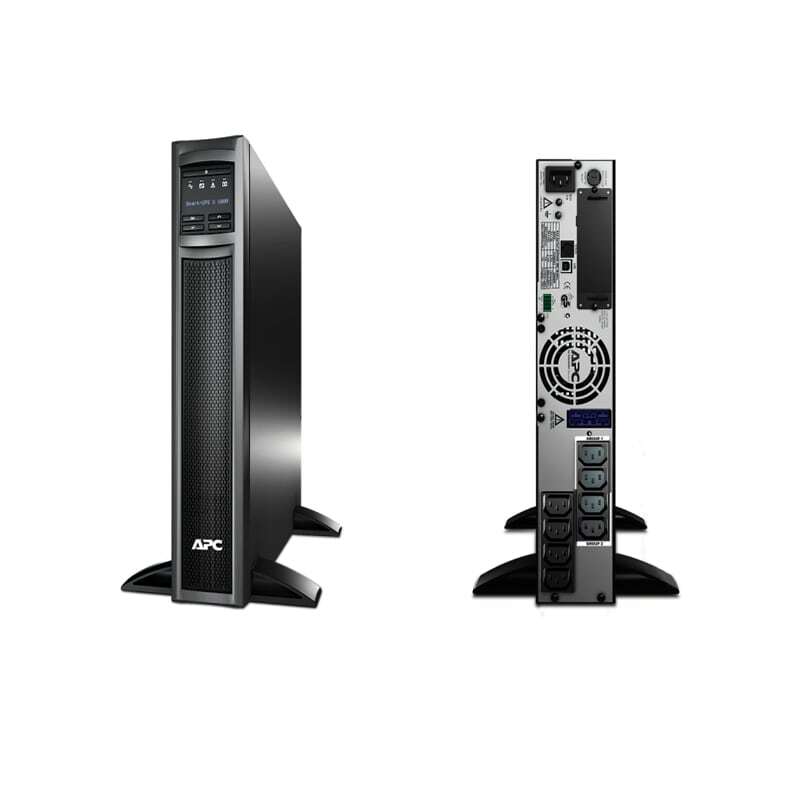

APC Smart-UPS XSMX1000I

A reliable line-interactive UPS that provides pure sine wave and scalable runtime for critical applications.

Smart-UPS X is an intelligent, long run time UPS for IT and telecom professionals who need their critical servers and communication systems to ride through power outages that could last hours. More efficient than on-line UPS’s and easier to deploy than generators, the Smart-UPS X has the ability to accept external batteries at any time to increase availability and because it is a Smart-UPS, you know it is reliable.

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1000VA/800W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.

• 800 Watts Output Power Capacity
• 8 IEC C13 Power Sockets.

  Why Do You Need a UPS?

  Because Life Always Needs to be On.
  Provide an emergency power supply for your electrical equipment to protect your investment from unexpected power disruption, including spikes, surges and voltage dips.

  How does a UPS protect my uptime?

  Keep your Equipment and Data Safe

  Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

SPECIFICATIONS

• Main Input Voltage 230 V
• Main Output Voltage 230 V
• Rated power in W 800 W
• Rated power in VA 1000 VA
• Input Connection Type IEC 320 C14

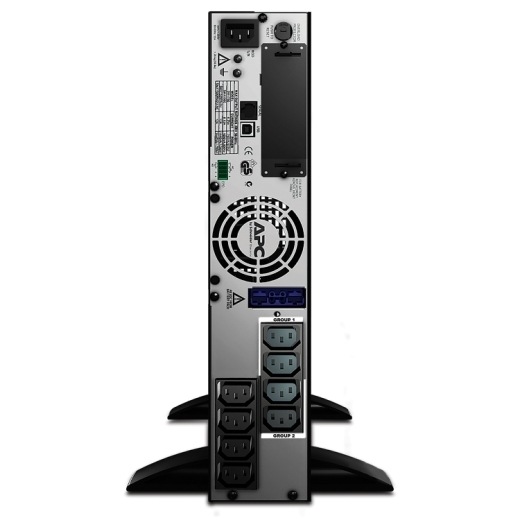

• Output connection type 8 IEC 320 C13, 2 IEC Jumpers
• Number of rack unit 2U
• Cable length 1.83 m
• Number of cables 1
• Battery type Lead-acid battery
• Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable
• Input voltage limits 151...302 V adjustable, 160...286 V
• Network frequency 50/60 Hz +/- 3 Hz auto-sensing
• Acoustic level 40 dBA
• Heat dissipation 82 Btu/h
• Operating altitude 0...10000 ft
• Ambient air temperature for operation 0…45 °C
• Ambient air temperature for storage -15…45 °C
• Storage altitude 0.00…15240.00 m
• Relative humidity 0…95 %
• Storage Relative Humidity 0…95 %
• Mounting mode- Rack mounted with kit
• Replacement Battery -APCRBC116
• Compatible Service bypass panels-SBP16KRMI4U, SBP3000RMI, SBP5000RMI2U, SBP6KRMI2U, SBP1500RMI
• Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
• Compatible Racks- ACF127, AP5717, AP5719, AP5808, AP5816
• Compatible Sensors- AP9335T, AP9335TH
• Compatible NMC -AP9613, AP9620, AP9640, AP9641, AP9643
• Compatible Mounting- NBAC0302
