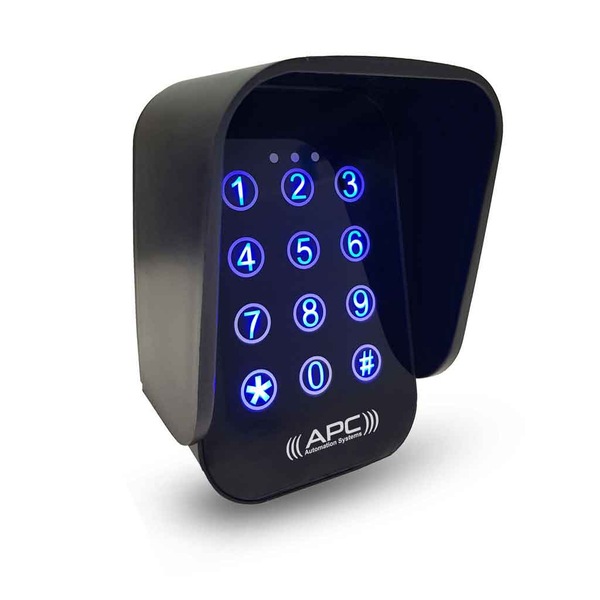

APC Two Channel Wireless Keypad

Product Information

Two Channel Wireless Keypad

Please Note: This wireless keypad will only work on the APC range of gate, garage and boom gate opening systems, Click Here for the wireless keypad including a receiver that will work on most makes and models

APC-KP2W Wireless Keypad Features

• Low Power Consumption only 18uA in standby.
• Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.
• High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.
• Blue Backlight illumination upon touch with an automatic timeout to return to standby.
• Two-Channel operation allowing the user to control two different items or functions using separate pin codes.

Channel 1 supports up to 8 Pin Numbers Channel 2 supports up to 3 Pin Numbers

• Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
• IP53 Weatherproof rated and suited for outdoor and indoor environments.
• Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
• Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.

Compatibility:

• APC sliding gate systems
• APC Swing gate systems
• APC Boom gate systems
• APC Receivers

Dimensions:

• 88mm (W) x122mm (H) x80mm (D)

Specifications:

• Touch-sensitive buttons
• Tempered glass faceplate
• 6V DC supply (4x AA Batteries)
• Consumption 18uA Standby, 6mA Active, 28mA Working
• Two-channel output (CH1=8 Pins, CH2=3 Pins)
• LED Indicators + Backlight
• Anti-tamper + Pin code scramble
• IP53 Rated

Available Option for the Above Keypad

Heavy Duty Pedestal, Keypad Stand Intercom Stand

Why get out of the car?,
the gooseneck pedestal makes it easy to reach the opening device for your automatic gate.

Ideally used at the entry or exit point of a property to mount the following:
- Intercoms door stations
- Keypads
- Push Button Switches
- Key Switches

Easy to install

• 3 Pcs design (see below sketch)
• Supplied with mounting dyna bolts

Example usage for the Pedestal It can be used for most of the opening /closing controllers Keypad, Switches and Intercoms door stations See the dimensions below

WARNING:

• Please note this product is for use with the APC gate automation systems.
• Warranty is only valid when used in conjunction with the APC equipment.
• No guarantee is given when used for another brand other than the APC brand.
