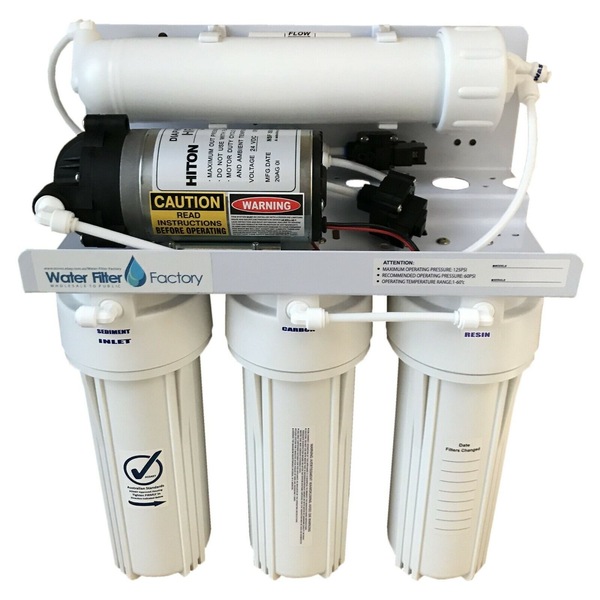

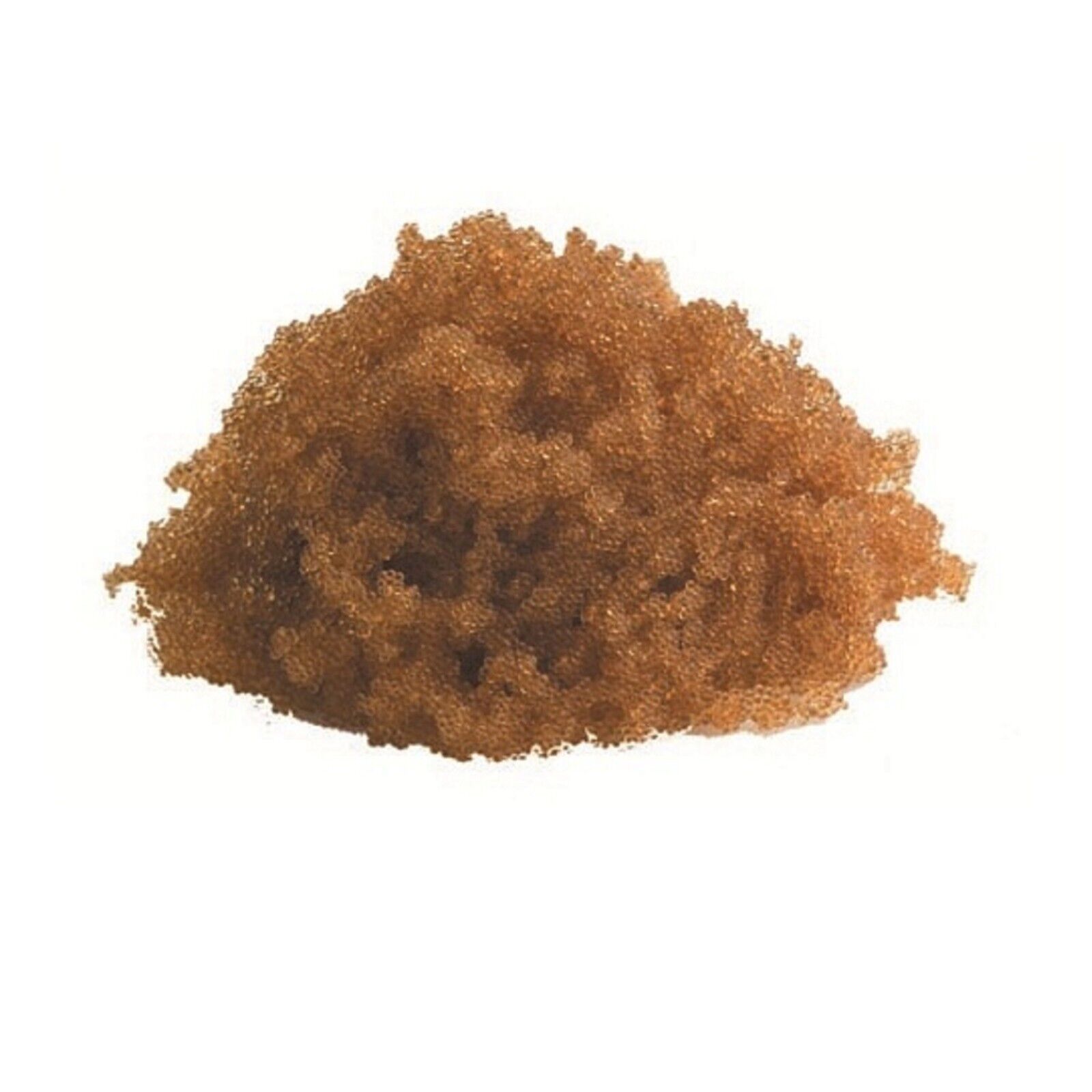

4-STAGE 150GPD DEIONISING RO PURIFIERPRODUCT CODE: ROP4-DJDOMESTIC RO DI SYSTEM WITH FINAL STAGE MIXED RESIN DEIONISING FILTER, BOOSTER PUMP AND INSTALL KIT FOR USE ON NON-POTABLE WATER WHERE INLET WATER PRESSURE IS TOO LOW TO WORK WITH REVERSE OSMOSIS WITHOUT A PRESSURE BOOSTER PUHIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISESFinal stage DI filter is used as a final polishing stage to remove the last of the contaminant from your water. DI resin will reduce the TDS (total dissolved solids) reading of the RO product water to between 0-1ppm. This type of system would suit use with marine fish tanks or for non-consuion, this system is not suitable for drinking water due to the extreme purity.This purification process is commonly considered to be the most effective method of purification available to the public and will consistently produce the lowest level of contaminant.This system will produce +/- 570 litres per day [depending on the purity required and the quality of feed water this can vary by up to +/-10%]Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price. All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines.Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average and with the post membrane 10"x2.5" deionising mixed resin filter this will increase to 99.99%-100%.Our systems are effective in removing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

CONTAMINANT REDUCTION CONTAMINANT REDUCTION Barium 99.99% Potassium 100% Bicarbonate 100% Radium 99.99% Cadmium 99.99% Selenium 99.99% Calcium (Hardness) 100% Silicate 99.99% Chromate 99.99% Silver 100% Copper 100% Sodium 100% Detergents 100% Strontium 99.99% Fluoride 100% Sulphate 100% Lead 100% PCB’s 100% Magnesium 100% Insecticides 100% Nickel 100% Herbicides 100% All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we source are of the highest quality and meet the required quality standards.

SYSTEM SPECIFICATIONS: Minimum feed pressure 15psi / 100kpa Recommended feed pressure 15-80psi / 100-550kpa Minimum operating temperature 5°C / 40°F Maximum operating temperature 45°C / 110°F Minimum feed water pH pH 3 Maximum feed water pH pH 11 Maximum feed water TDS 1000ppm* Production rate 100GPD / 380LPD*Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

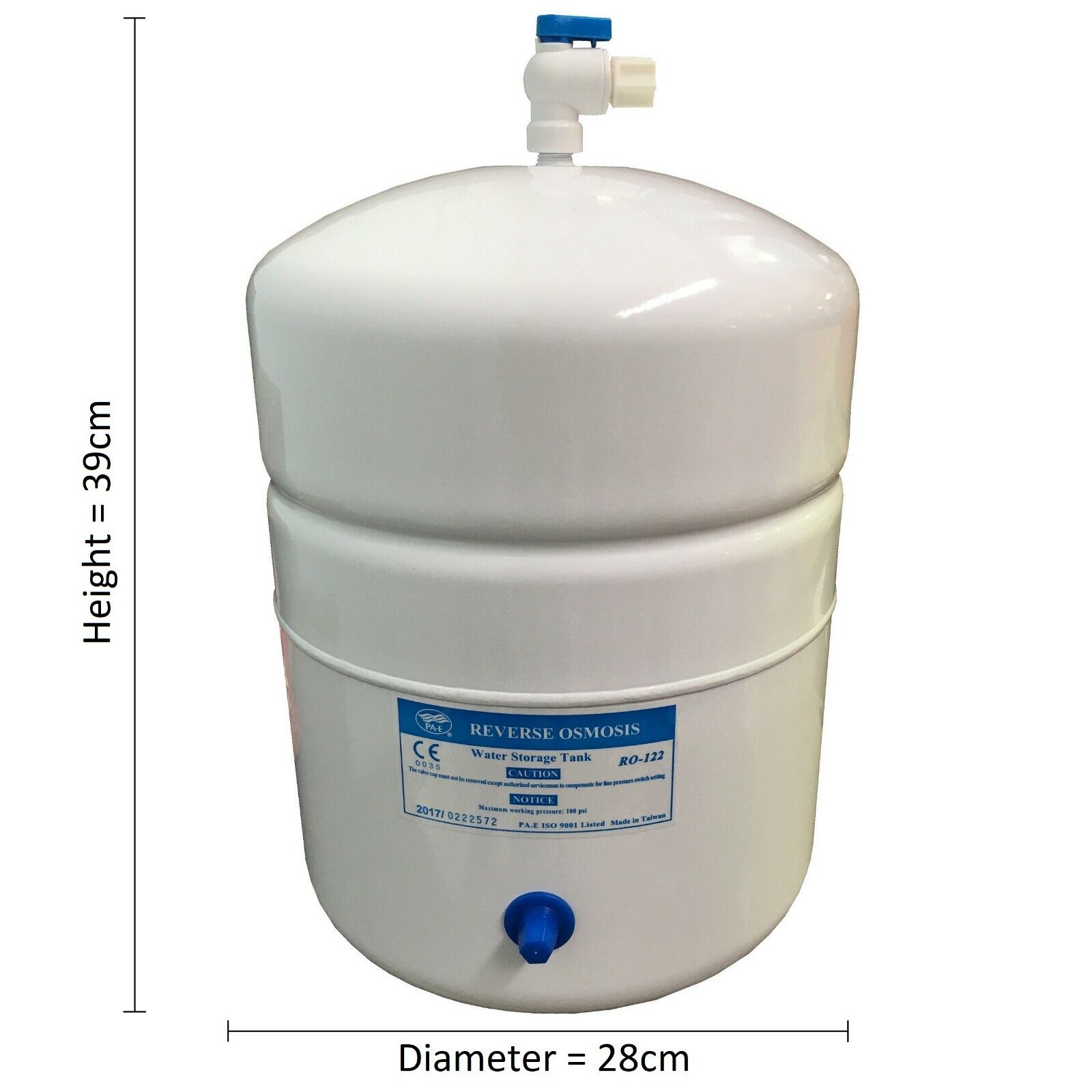

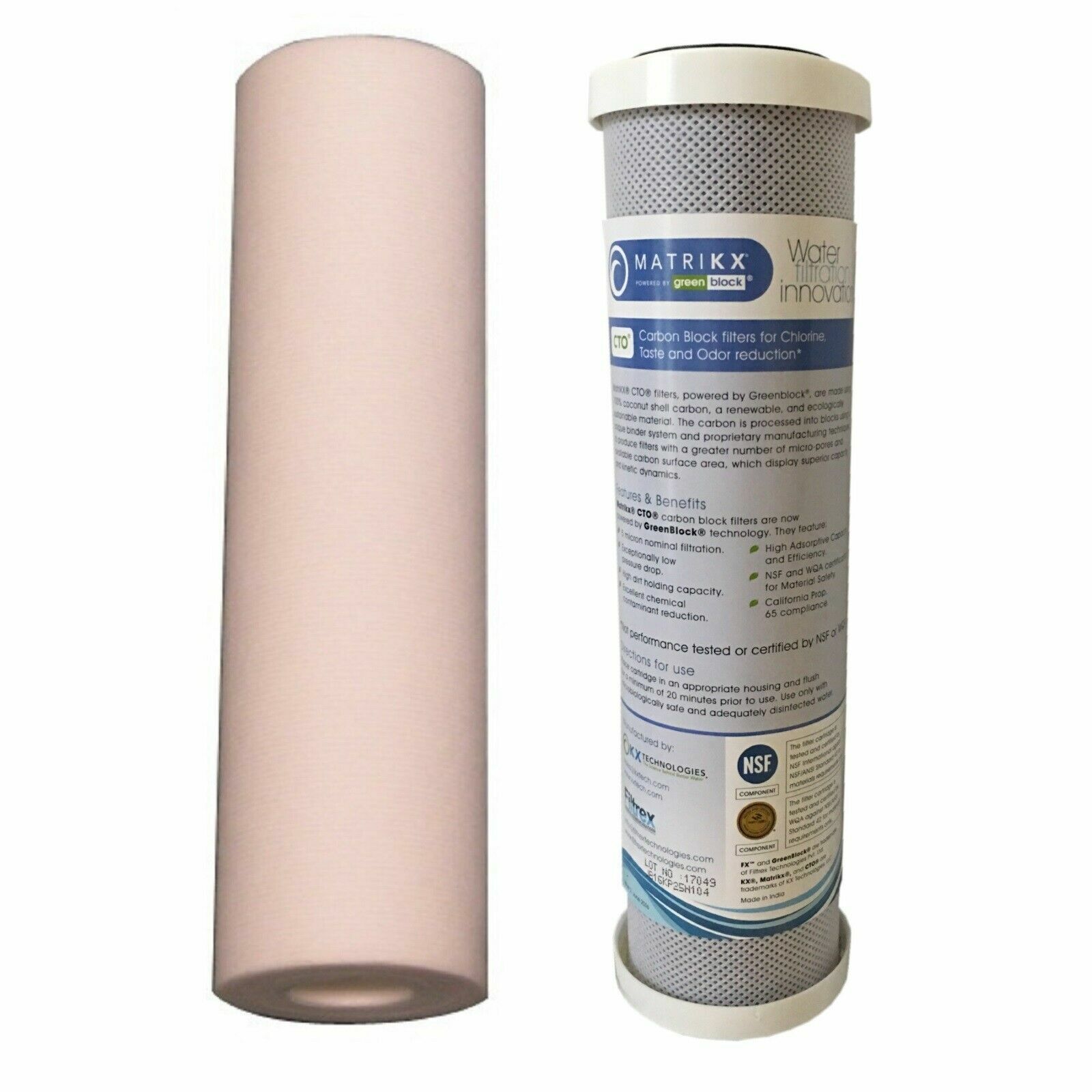

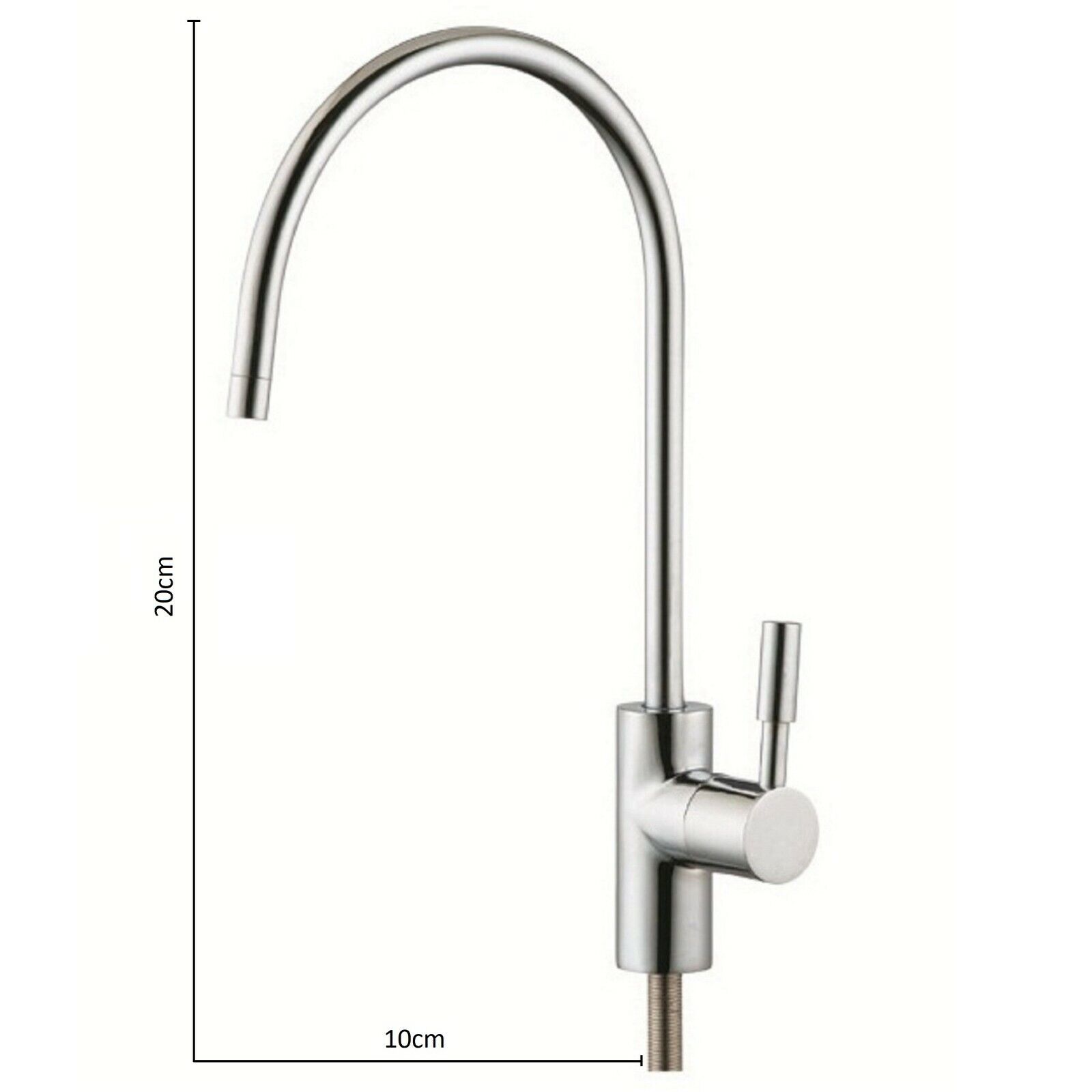

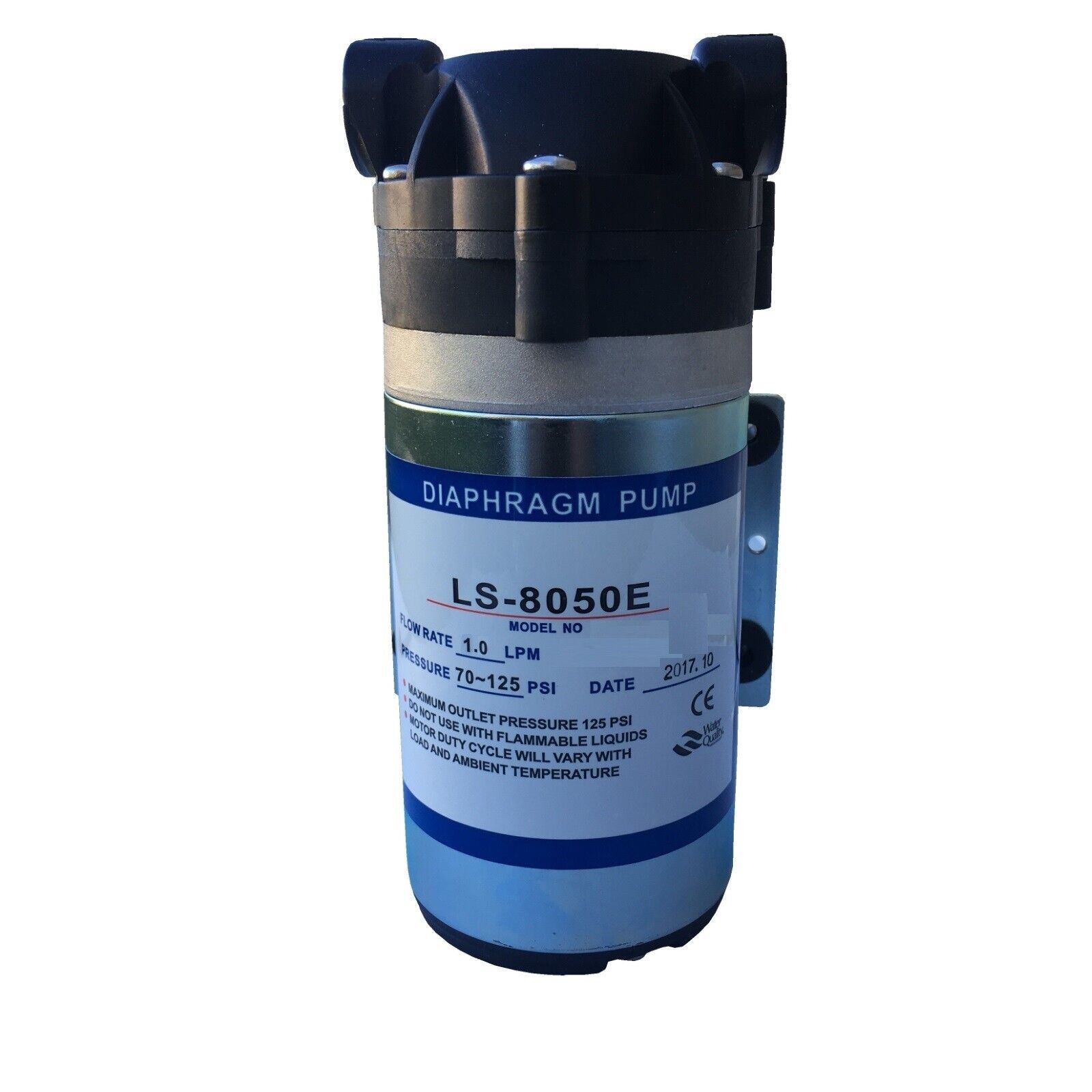

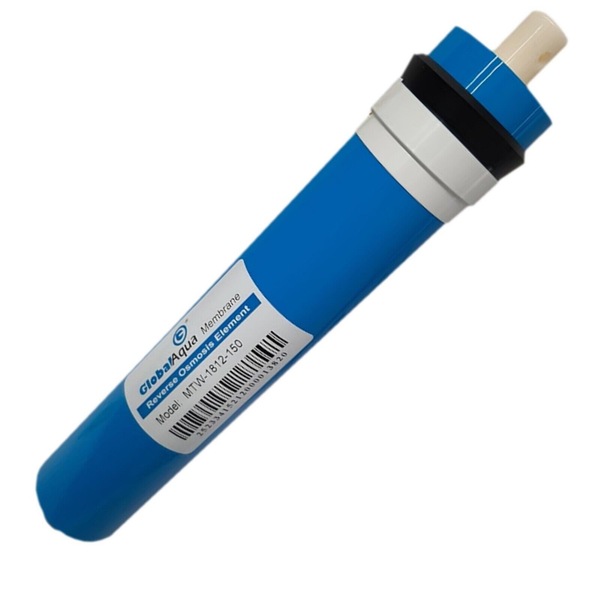

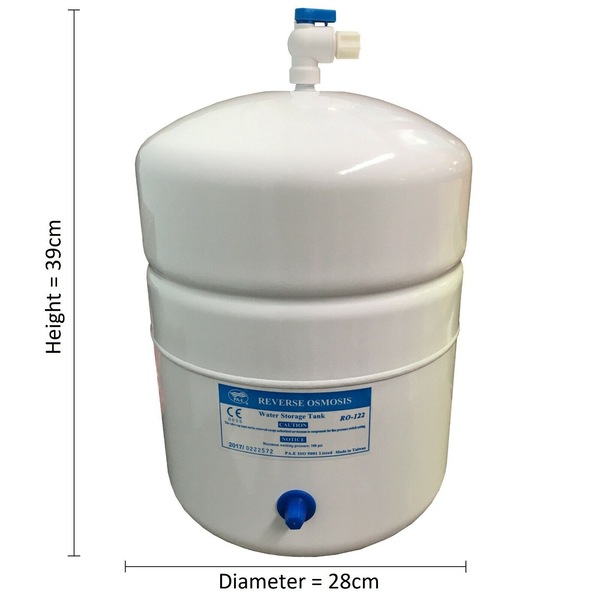

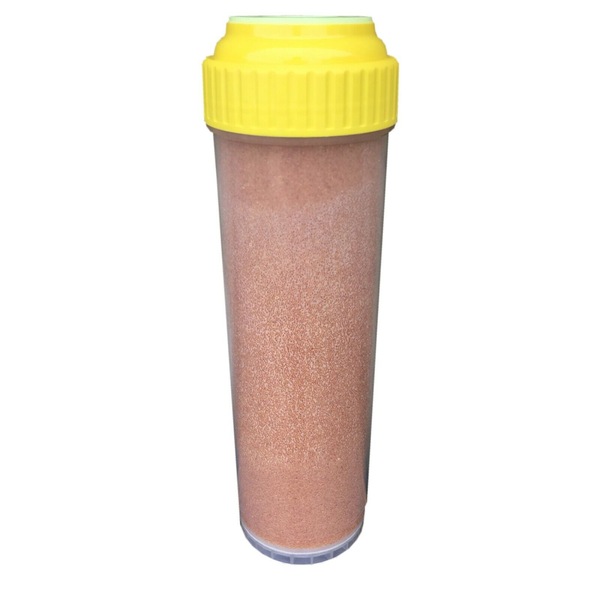

KIT INCLUDES: Multi stage reverse osmosis unit: AS3497 tested and compliant 10"x2.5" pre-filter housings. Built on a white powder coated mild steel folded wall-mountable bracket. One 10"x2.5" poly spun sediment pre-filter. One 10"x2.5" high volume carbon pre-filter. 1x 12v* or 24v* diaphragm booster pump [including Australian approved transformer]. One 150GPD TFC membrane made using materials sourced from the USA. One 10"x2.5" highest quality food grade mixed bed deionising resin. Your choice of one of the following accumulator tanks: 5 Litre* - (33cm height, 20cm diameter). 8 Litre* - (39cm height, 22cm diameter). Your choice of one of the following feed/inlet fittings: 1/2" insert* - Shares normal cold-water line to most mixer taps. 3/4" insert* - Shares normal cold-water line to most dishwasher. Your choice of one of the following waste drain clamp fittings: 40mm* solid clamp. 50mm* adjustable clamp. An all chrome modern style faucet as pictured in the listing images. An approved 350kpa pressure reducing valve as required by Australian standards. A housing spanner to open and close water filter housings. An installation kit including a roll of tubing, a roll of thread tape, spare fittings. An installation and maintenance guide.
