The AW1000 5G Home Modem is a powerful and reliable high-speed 5G internet connectivity solution. This modem is designed for easy setup and ensures a seamless experience with 5G speeds, Wi-Fi 6 technology, and excellent network capabilities. Perfect for households with multiple devices and users, the AW1000 offers stable and fast internet access with support for 5G and dual-band Wi-Fi. With a sleek, compact design and powerful features, it’s the ideal home router to support modern high-speed internet needs.

With Wi-Fi 6 support, you get faster speeds and improved capacity, allowing multiple devices to connect without compromising performance. It is unlocked and compatible with various network providers, making it a flexible and future-proof option for your internet needs.

• Unlocked 5G Connectivity: Fully unlocked modem supporting 5G NR (Non-Standalone and Standalone) and 4G LTE bands, offering high-speed internet anywhere you get 5G coverage.
• Wi-Fi 6 Support: Take advantage of faster and more efficient Wi-Fi 6 (802.11ax) for seamless browsing, streaming, and gaming.
• Gigabit Ethernet Ports: Equipped with 4 Gigabit LAN ports for high-speed wired connections and a 2.5GB WAN/LAN port for even faster network speeds.
• Sim Card Slot: Insert your SIM card for easy access to mobile data, ideal for those who want to use mobile internet in areas with strong 5G signals.
• Dual-Band Wi-Fi: Support for both 2.4GHz and 5GHz bands, allowing for faster speeds on the 5GHz band while still providing excellent coverage with the 2.4GHz band.
• USB 3.0 Port: Connect USB devices like external drives for media sharing across your network.

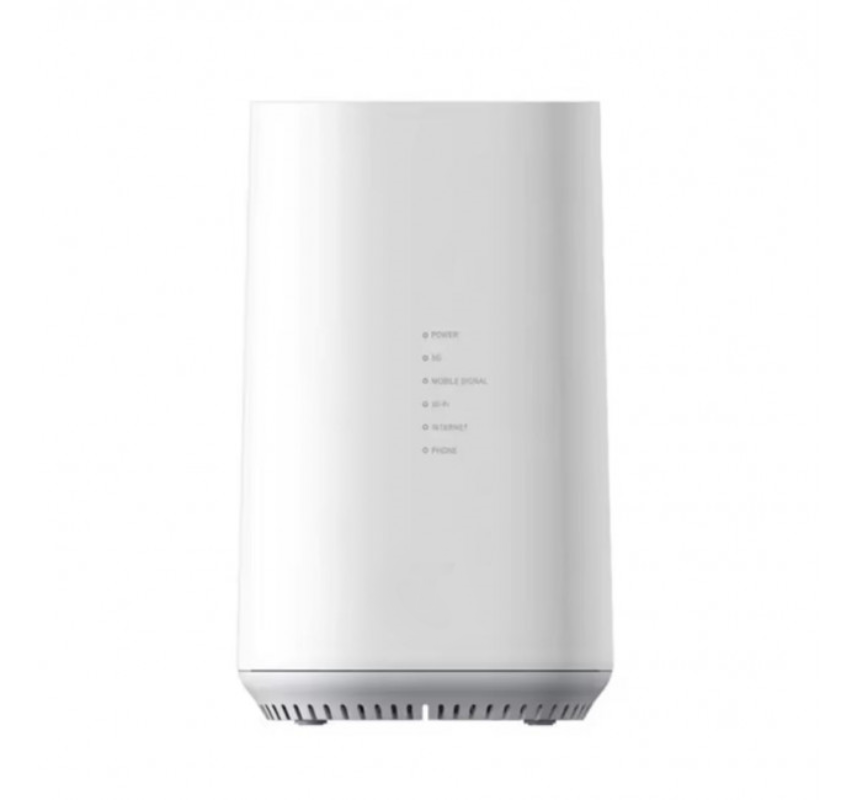

• Easy Setup: Quick and simple installation with an intuitive LED light system for signal strength indication.
• WPS Push Button: Easily connect devices to the modem via Wi-Fi Protected Setup (WPS).
• Sturdy Build: Mains-powered, tall design with a clean matte finish, making it ideal for placement in your home.

• Model: Telstra 5G Home Modem AW1000
• Network Type:
  • 5G NR NSA (Non-Standalone): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79
  • 5G NR SA (Standalone): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79
  • LTE-FDD: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32
  • LTE-TDD: B34, B38, B39, B40, B41, B42, B43
• Wi-Fi Version: Wi-Fi 6 (802.11ax)
  • Frequency Bands: 2.4GHz & 5GHz

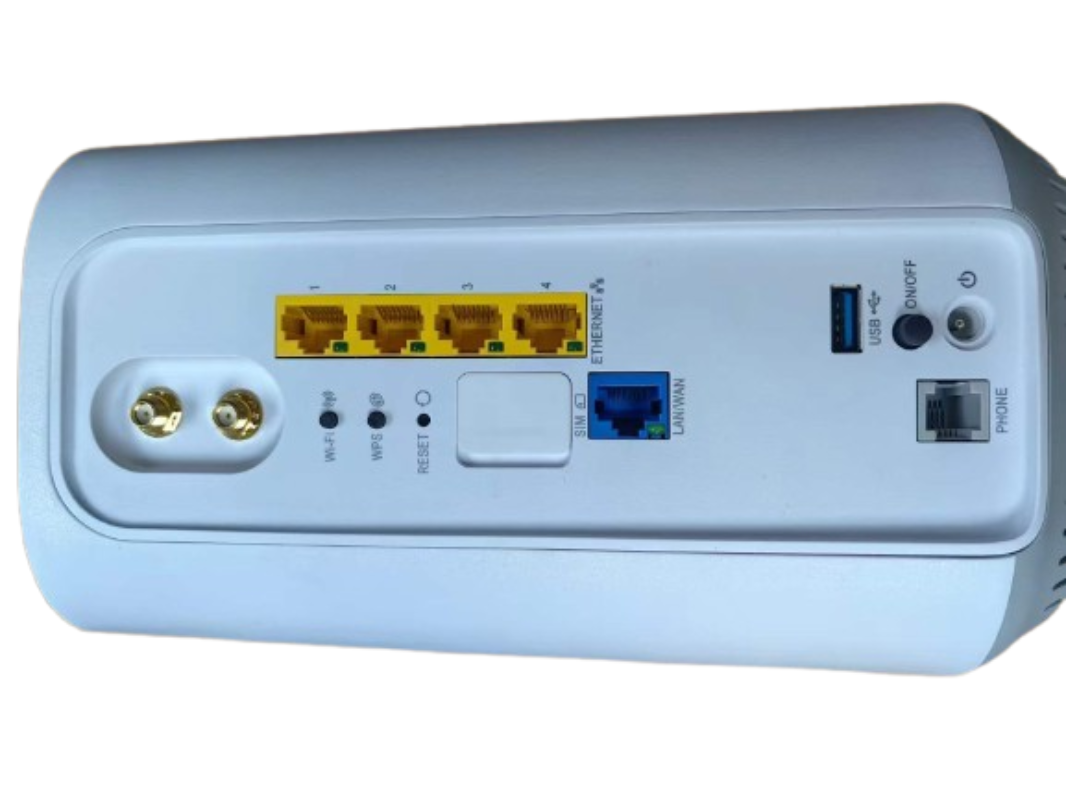

• Ethernet Ports:
  • 4 x Gigabit LAN Ports (10/100/1000 Mbps)
  • 1 x 2.5GB WAN/LAN Port
  • 1 x Phone Port
• USB Ports: 1 x USB 3.0 Port
• Sim Card Slot: Yes (Supports 5G and LTE SIM cards)
• Antennas: 2 x External Antenna Ports for outdoor 5G Antennas only
• Dimensions: 150mm x 74mm x 18.9mm
• Weight: 241g
• Operating Temperature: -10°C to 55°C
• Security Features:
  • WPA3 encryption
  • NAT Firewall
  • VPN Passthrough support
  • MAC address filtering
• Power Supply: Mains-powered

Sometimes the device correctly detects the carrier name from the SIM card, but the APN (Access Point Name) is not automatically configured. In this case, please manually set the APN to match your SIM provider—for example, ALDI, BELONG, or WOOLWORTHS SIM CARD. The correct APN should be: Telstra.internet.

If you need detailed instructions on how to configure the APN settings, feel free to contact us, and we’ll provide the guide.
