Uno CNC Shield Arduino Project Kit

Build a CNC Router or Milling Machine

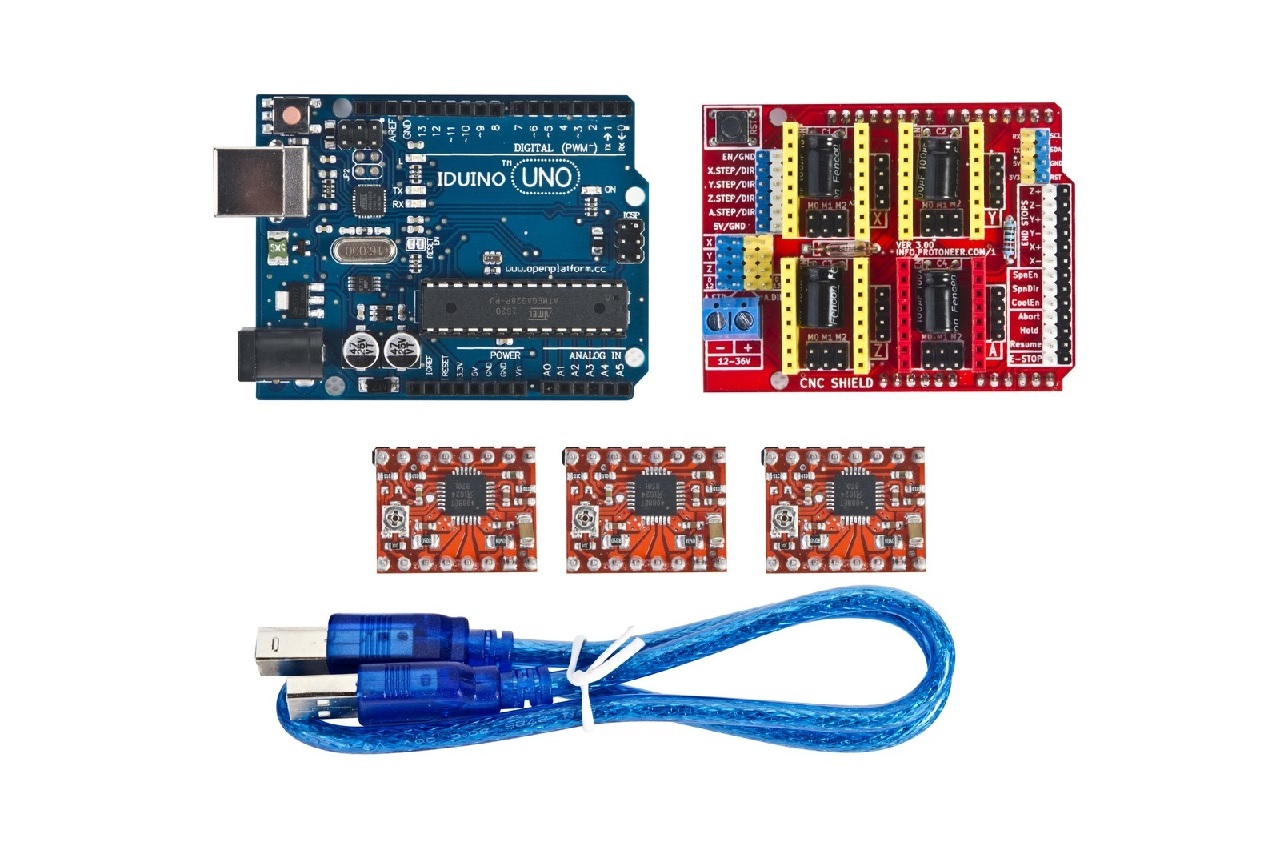

This Arduino Uno based kit allows you to build a CNC Router or a CNC Milling Machine.

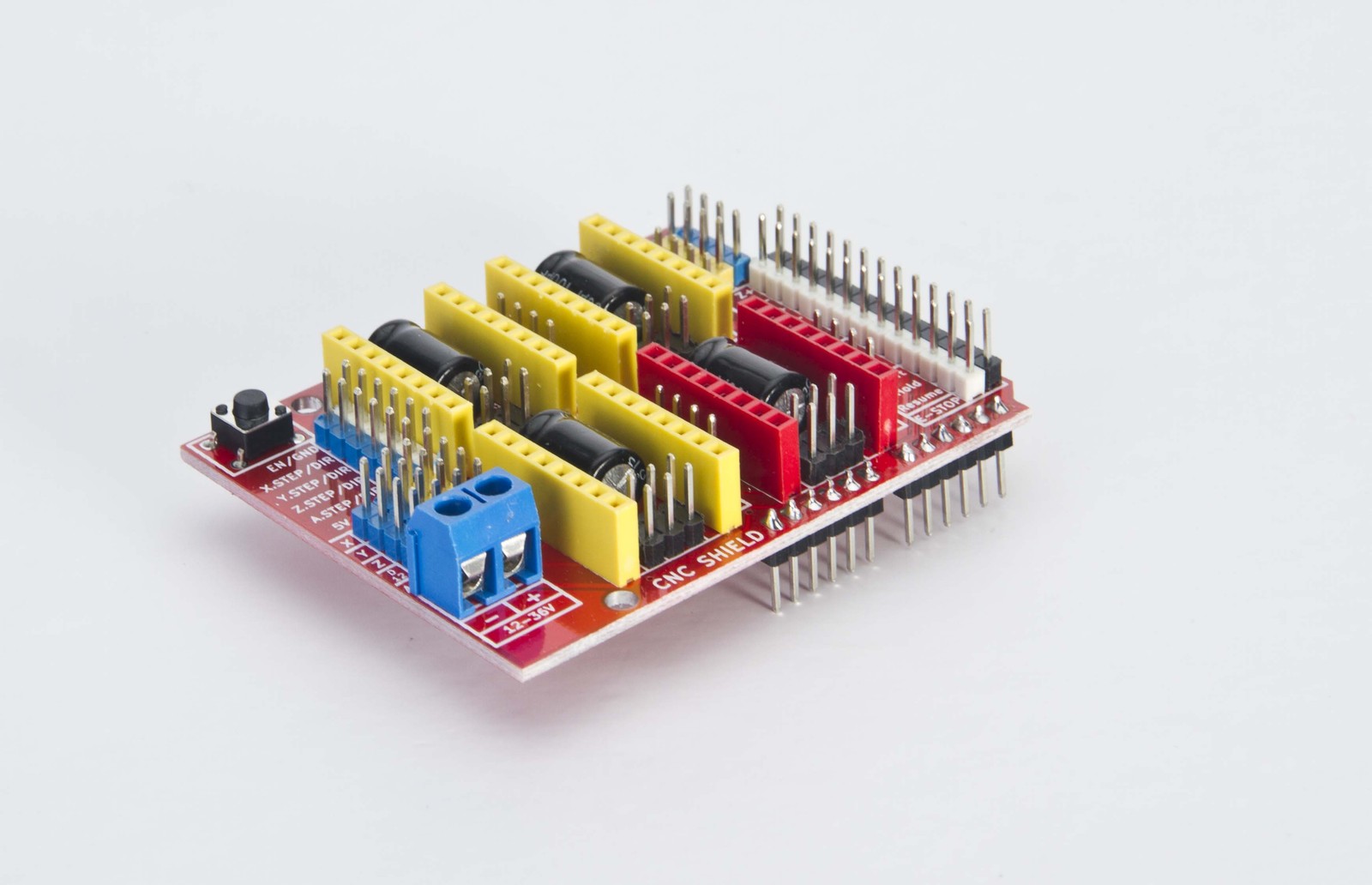

CNC Shield Board:

Latest Arduino CNC Shield Version 3.0
GRBL 0.8 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
PWM Spindle and direction pins
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
Coolant enable
Uses removable A4988 or DRV8825 compatible stepper drivers
Compact design.
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Please note that this is an unassembled kit and Basic soldering skills are needed

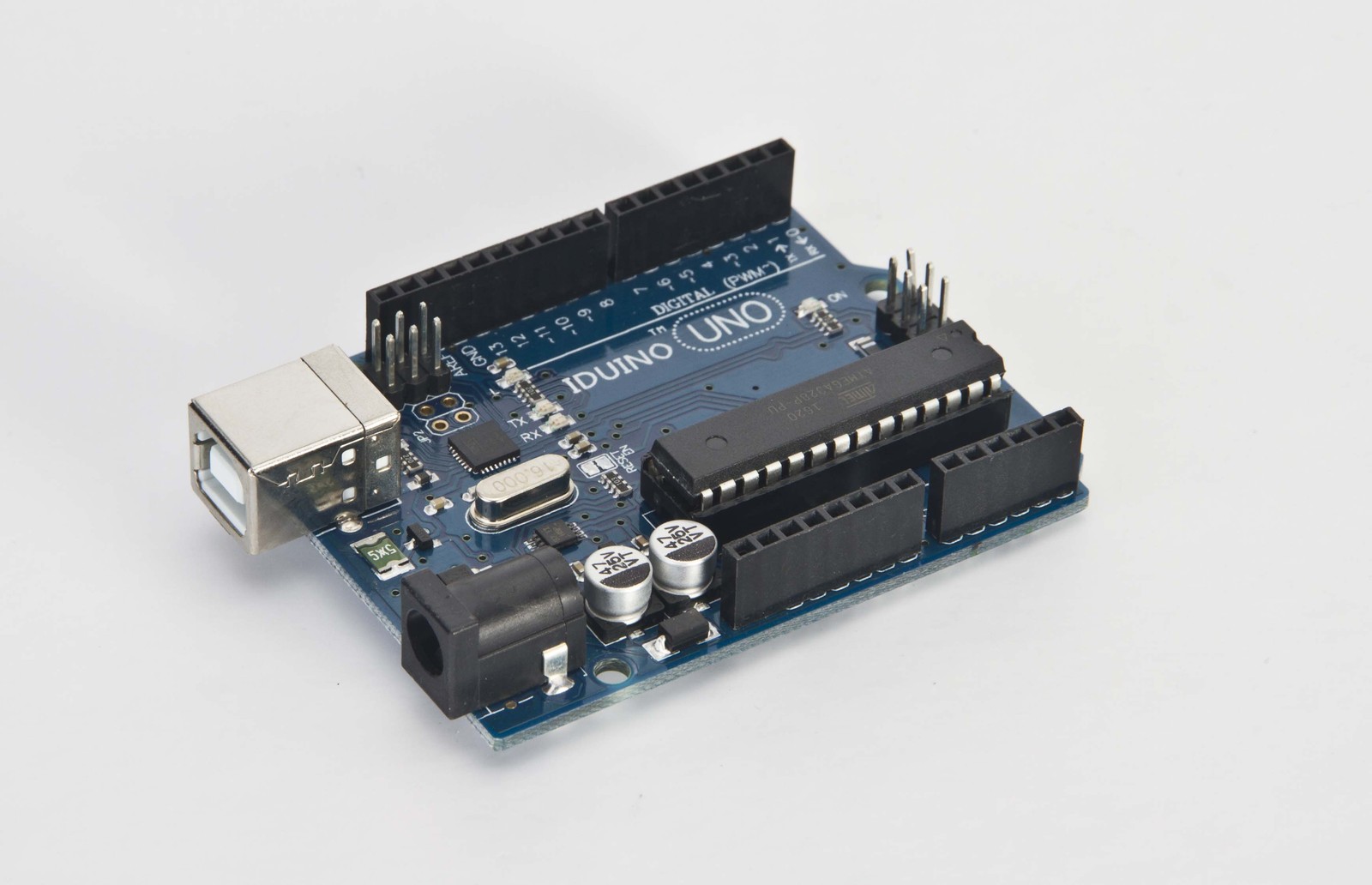

Arduino UNO R3 Board:

MCU: ATmega328
USB interface: ATmega16U2
Operating voltage: 5V
Digital I/O pins: 14 (including 6 with PWM capability)
Analog input pins: 6
I-I/O pin output current: 40mA max
3.3V output current: 150mA max
Flash memory: 32 kB (0.5kB used by bootloader - included)
Static RAM (SRAM): 2 kB
EEPROM: 1 kB
Clock speed: 16MHz

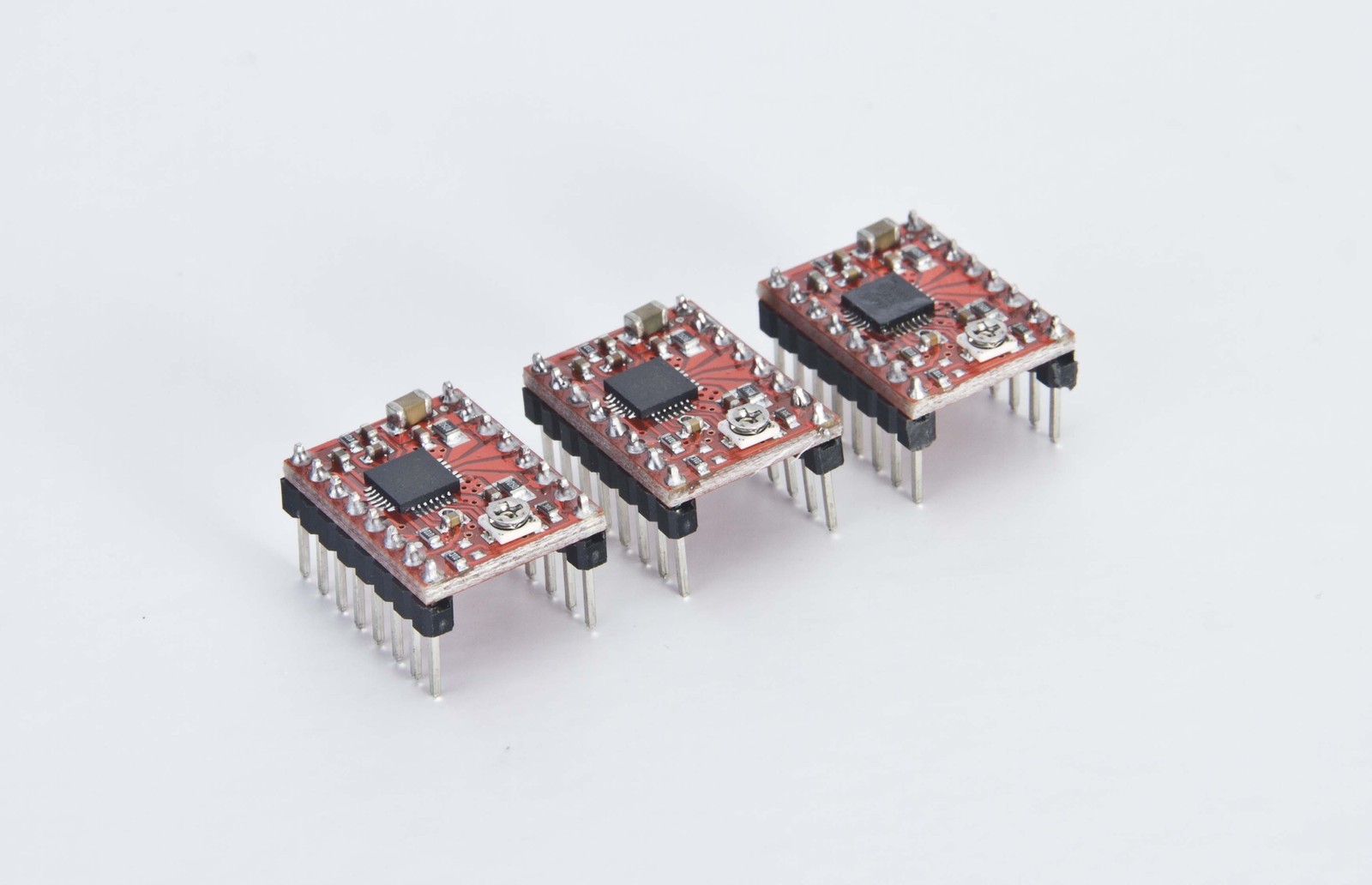

A4988 Stepper Motor Driver:

A4988 Stepper Motor Driver Board is a breakout board for Allegro’s A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.
Low RDS (On) Output
Automatic current decay mode detection / selection
Mix with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Crossover-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground fault protection
Load short-circuit protection
Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16
