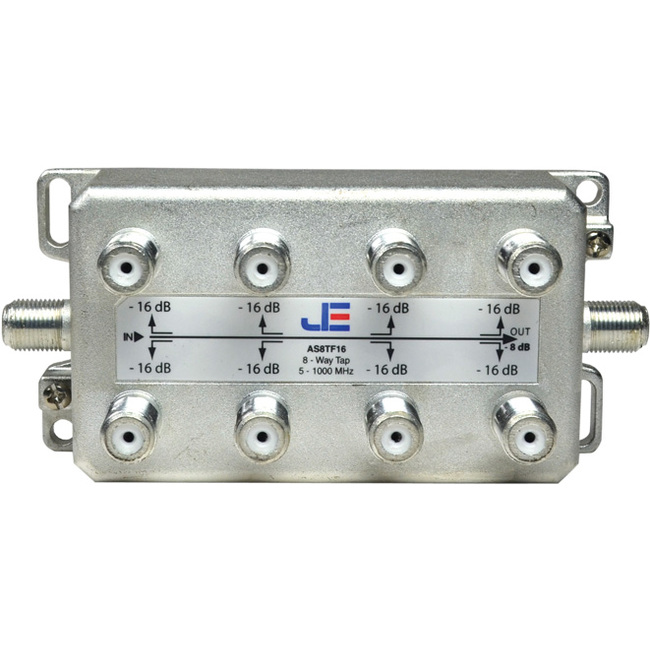

PCT AS8TF16/II 8 Way Tap F-Type 16Db Foxtel App F30740 Coupler High Tap To Tap Isolation 8 WAY TAP

Image 1
Hurry! 17 items left!
$34.95

Collect 34 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Pay in 4 interest-free payments of $8.74 with Learn More
AS8TF16 8 WAY F TYPE TAP 16DB 5 - 1000MHz FOXTEL APPROVED F30740
Features:
  • High tap to tap isolaton
  • Suitable for CATV & SMATV
  • Zinc Die Cast, Bright Tin Finish and Solder Shield Bottom Plate.
  • Screening factor: Class A
  • Input power pass: 30VDC 1A
  • All pors F connector 75 ohm
Specs:
Frequency
Insertion Loss (IN-OUT) dB
Tap Loss (IN-TAP) dB
Isolation (TAP-TAP) dB
Isolation (OUT-TAP) dB
Return Loss(OUT) dB
5 - 40 MHz
=9.0
16’€1.5
=38.0
=26.0
=16.0
40 - 470 MHz
=9.5
16’€1.5
=40.0
=25.0
=16.0
470 - 862 MHz
=10.0
16’€2.0
=38.0
=23.0
=16.0
862 - 1000 MHz
=11.0
16’€2.0
=34.0
=21.0
=16.0

Mechanical Specifications
Impedance In/Out, Ohm
75
CE Compliance
Class A
Temperature Range
Operating: -20°C to +60°C, Storage: -40°C to +70°C
In/Out Connector
F Female
Dust & Water Ingress Protection Rating
IP20 Minimum
Housing
Zinc Die Cast, Bright Tin Finish and Solder Shield Bottom Plate.
Grounding Screws
’€PM 3“ù6 A3 nickel-plated 2 pieces
Wall Mounting Screws
’€PA 4“ù18 A3 nickel-plated 2 pieces
Grounding Terminal Connection
Yes

Weight: 0.126
