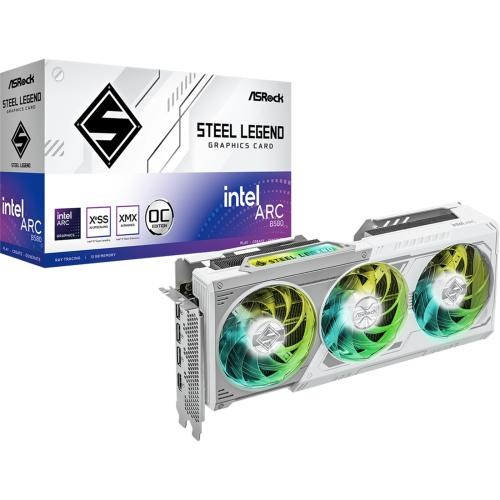

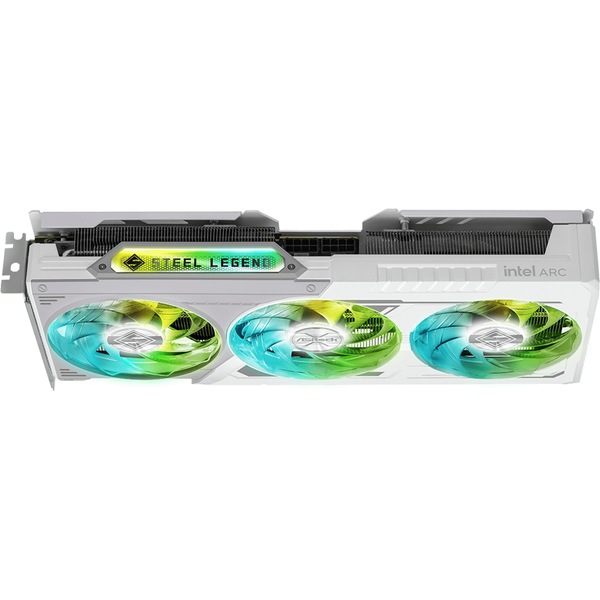

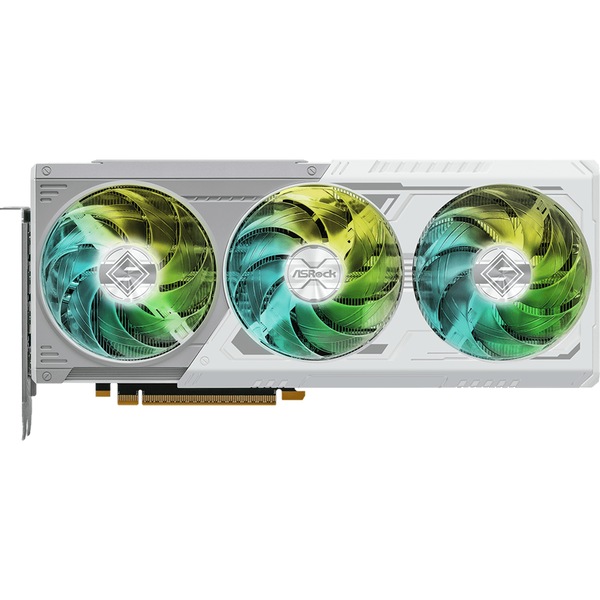

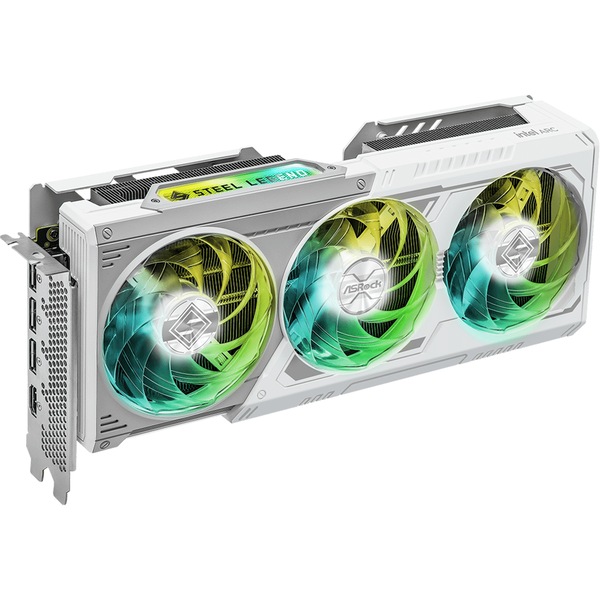

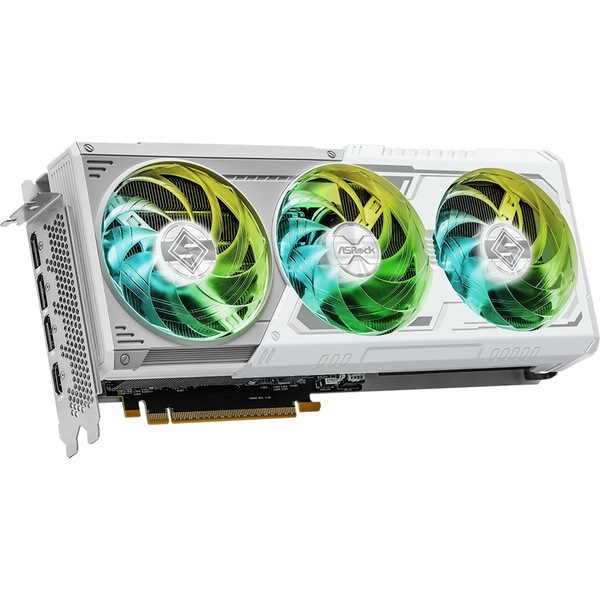

ASRock Intel Arc B580 Steel Legend 12GB OC GDDR6 Graphics Card 2.5 Slot - 2x 8 Pin Power - Minimum 650W PSU [B580 SL 12GO]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Hurry! 6 items left!
$586.74

Collect 586 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Pay in 4 interest-free payments of $146.69 with Learn More
ASRock Intel Arc B580 Steel Legend 12GB OC GDDR6 Graphics Card 2.5 Slot - 2x 8 Pin Power - Minimum 650W PSU

Intel Arc B580 Steel Legend 12GB OC
Clock: GPU / Memory
- GPU Clock: 2800 MHz
- Memory Clock: 19 Gbps
Key Specification
- Intel® Arc™ B580 Graphics
- 12GB 192-bit GDDR6
- Intel® Xe2-HPG Architecture
- Intel® Xe Super Sampling 2 (Intel® XeSS 2)
- Intel® Xe Matrix eXtentions (Intel® XMX)
- Microsoft® DirectX® 12 Ultimate
- 2x 8-pin Power Connectors
- 3x DisplayPort™ 2.1, 1x HDMI™ 2.1a
Key Features
- Polychrome SYNC
- Triple Fan Design
- Striped Ring Fan
- Stylish Metal Backplate
- Ultra-fit Heatpipe
- Air Deflecting Fin
- 0dB Silent Cooling
- Super Alloy Graphics Card
Polychrome SYNC - Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.


LED Switch - Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.


ARGB Header - More ARGB, More Fancy.
With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.


Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.


Striped Ring Fan - Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.


0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

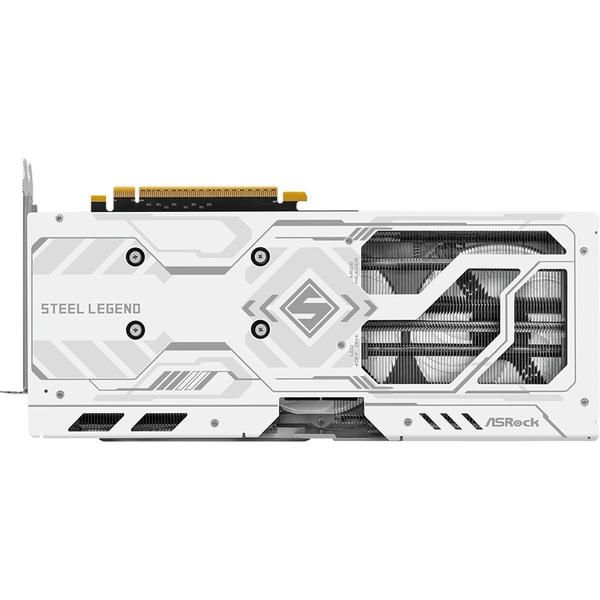

Stylish Metal Backplate - Solid, Refined, Cool.
Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.


Air Deflecting Fin - Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.


Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.


Nickel-plated Copper Base - Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.


High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.


SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.


Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.


Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.


2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.


Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.


High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.


Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.


Premium Thermal Pad - Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.


Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.




Game ready, feature packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve.
Game-changing, modern tech
Increase performance, responsiveness, and more with Intel® Arc™ gaming technologies.
Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel® Xe Super Sampling (XeSS) technology.
Make your games play smoother and more responsive with Intel® XeSS Frame Generation and Intel® Xe Low Latency technologies from Intel.
Up-to-date, software releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.
A versatile creator toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode.Create content with support for the most popular media formats including cutting-edge AV1.
The powerful Xe media engine enables you to create and edit content quickly in high-res.
Built to explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground, a free and private app, brings AI capabilities together into an easy-to-use experience.
Enjoy enhanced gaming, speed through creating, and more with specialized AI Engines built into Intel® Arc™ Graphics called Xe Matrix eXtensions (XMX).

Graphics Engine

Intel® Arc™ B580 Graphics

Bus Standard

PCI® Express4.0 x8

DirectX

12 Ultimate

OpenGL

4.6

Memory

12GB GDDR6

Engine Clock

2800 MHz

Intel® XMX Engines

160

Memory Clock

19 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution: 7680 x 4320

Interface

1 x DisplayPort 2.1 (Primary, up to UHBR13.5)
2 x DisplayPort 2.1 (Up to UHBR10)
1 x HDMI 2.1a
HDCP

Yes

Multi-view

4

Recommended PSU

650W

Power Connector

2x 8-pin

Accessories

1x Quick Installation Guide

Dimensions

298 x 131 x 51 mm, 2.6-slot

Net Weight

959 g
- MPN: B580 SL 12GO

GTIN: 4711581490024
