ASRock Jupiter B660/TPM Mini PC Barebone Support Intel 12th/13th GEN CPU up to 65W , HDMI / 2XDisplayPort.2 X DDR4 SODIMM,2 X M.2, 7 X USB 3.1, 2 X USB TypeC,1 X Serial Port, Gigabit Lan, VESA Mount , Wireless AX + Bluetooth, TPM

Tiny but Awesome
Jupiter 600 series features the flexibility and expandability in a compact size suited to a wide range of applications such as office, retail, healthcare, transportation and industry. With support for 13th Gen Intel® Core™ processors up to 65 watts, dual DDR4 3200MHz memory, and comprehensive connectivity, Jupiter 600 series provides powerful performance to meet user’s needs.


Jupiter 600 Series Platform
- Intel® LGA1700 Socket CPU: Supports 13th Gen & 12th Gen Intel® Core™ Processors, up to 65W
- High Speed DDR4 Memory: Dual DDR4-3200MHz, up to 64GB
- Proprietary Thermal Solution: Copper based heatsink, High efficiency blower


Three-storage Design
Three-storage design for fast data transfer speed and high storage capacity.*
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Hyper M.2 (2280) – PCIe Gen4 x4
- 1 x Ultra M.2 (2280) –PCIe Gen3 x4

*JPT 600 series could not support 2.5” HDD and 2 x M.2 SSD at the same time. If you want to install 2 x M.2 SSD, please remove HDD bracket and use fanless Heatsink (optional accessory).

Optional Wi-Fi Module
Jupiter H610 supports optional Intel® M.2 Wi-Fi & Bluetooth Module:
- Intel® AX-210
- Intel® AC-3168


Rich Connectivity
Comprehensive connectivity with nine USB ports including a USB 3.2 Gen1 Type-C on each front and rear panel, three displays and a COM port means Jupiter 600 series is ideal for use to business, POS and digital signage.
Front Side:
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
Rear Side:
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A


Enhanced Productivity
With support for two DisplayPort and one HDMI connectors at the same time, Jupiter 600 series lets you increase your productivity at work.
3 Video Outputs:
- HDMI 4K @60Hz
- DisplayPort 1.2(DP2)* 4K @60Hz
- DisplayPort 1.4(DP1) 8K @60Hz

*DisplayPort 1.2 co-lay D-Sub

Security Solutions
- DASH LAN: Provides secure out-of-band and remote management of desktop via intranet/internet.
- TPM 2.0: Jupiter series supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.
- Chassis Intrusion: Get alert if Jupiter’s chassis has been opened.
- Kensington Lock Slot: Protect Jupiter from theft.


Space-saving Design
- VESA Mount: Let you mount Jupiter behind the monitor easily.
- STAND (Optional): Jupiter can stand vertically to save desk space.

*The availability of accessories may vary by region.

Ready for Various Scenario

CPU
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (Max. TDP 65W)
Cooler
- Integrated Cooling Solution
Memory
- Supports 2 x DDR4-3200MHz SO-DIMM Slots, Max. 64GB (non-ECC)
Chipset
- Intel® B660 Chipset
Graphics Output
- 1 x DisplayPort 1.4 (DP1)
- 1 x DisplayPort 1.2 (DP2)*
- 1 x HDMI
*DP2 co-lay D-Sub
Audio
- Realtek ALC269
- 1 x Head Phone with Mic Jack
- 1 x Mic-In
- 1 x 2W Speaker
Storage
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
*Supports NVMe SSD as boot disks
LAN
- 1 x RJ45 Gigabit LAN
- Giga PHY Intel® I219V
WLAN
- Intel® AC3168/AX210 Wi-Fi Module

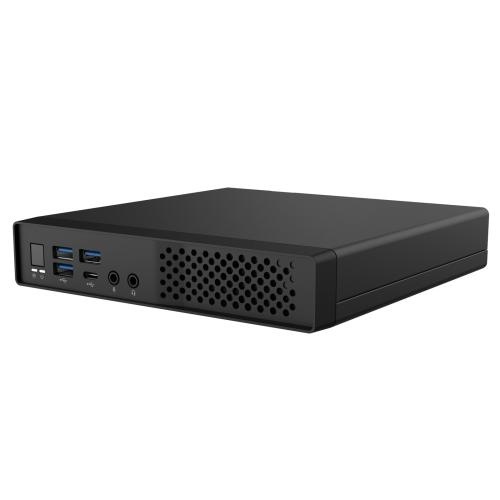

Front I/O
- 1 x Power Button
- 1 x Headphone/Headset Jack
- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 1 x Microphone Input Jack

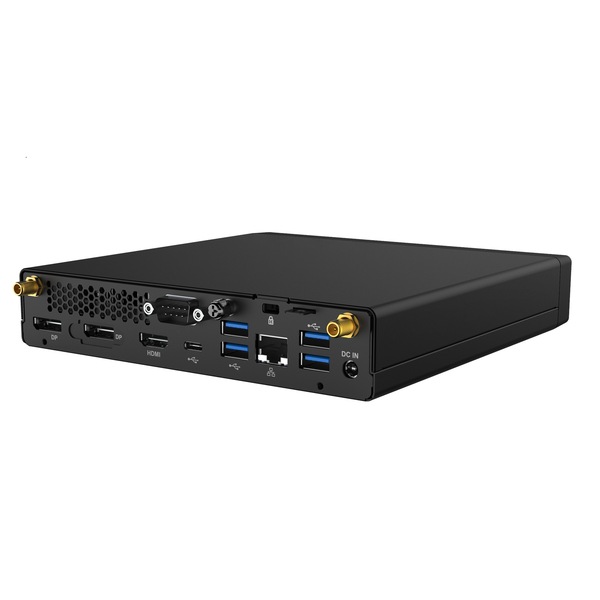

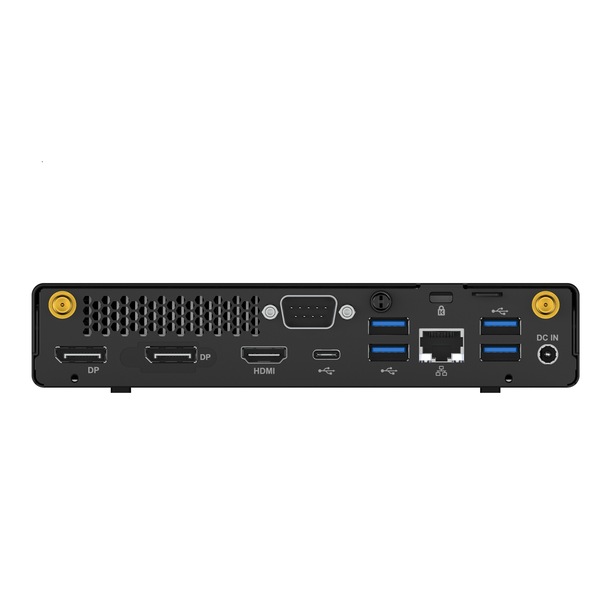

Rear I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x HDMI Port
- 2 x DisplayPort
- 1 x COM Port
- 4 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 1 x RJ-45 LAN Port with LED
Connectors
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x Mono-Out Header
Power Unit
- 120W/19V Adapter
Accessory
- 1 x Quick Installation Guide
- 1 x SATA Data with Power Cable
- 1 x Screws Pack
- 1 x Stand
- 1 x VESA Mount
- 2 x Antennas
Dimension
- Motherboard: 170 x 172 (Proprietary)
- Barebones: 179 x 178 x 34 mm (1.1L)
Security
- TPM 2.0 IC
- Kensington lock
OS
- Microsoft® Windows® 10/11 64-bit compliant
- MPN: Jupiter B660/TPM
GTIN: 4710483942617
