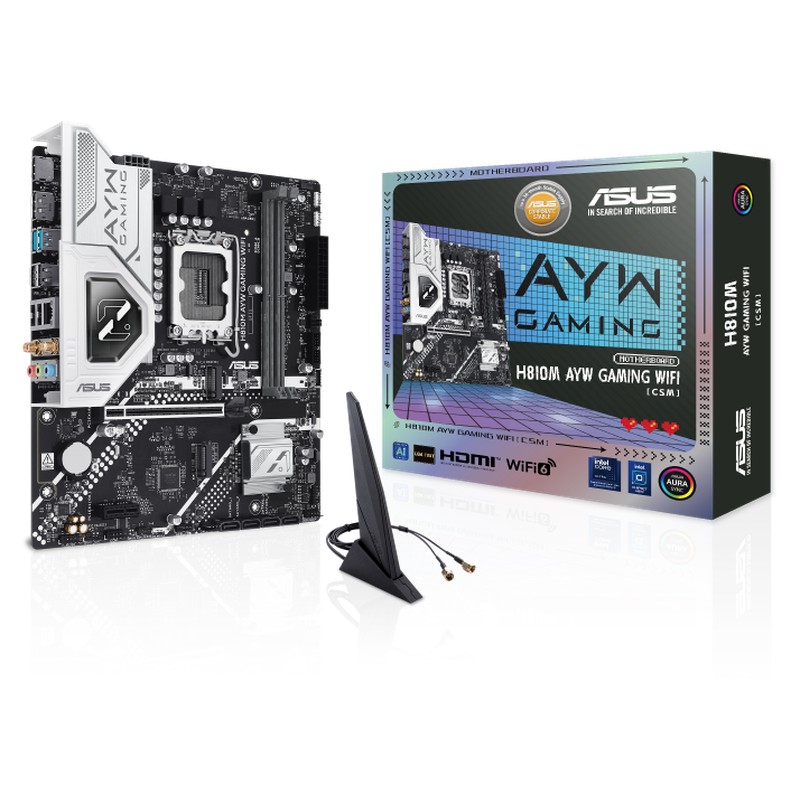

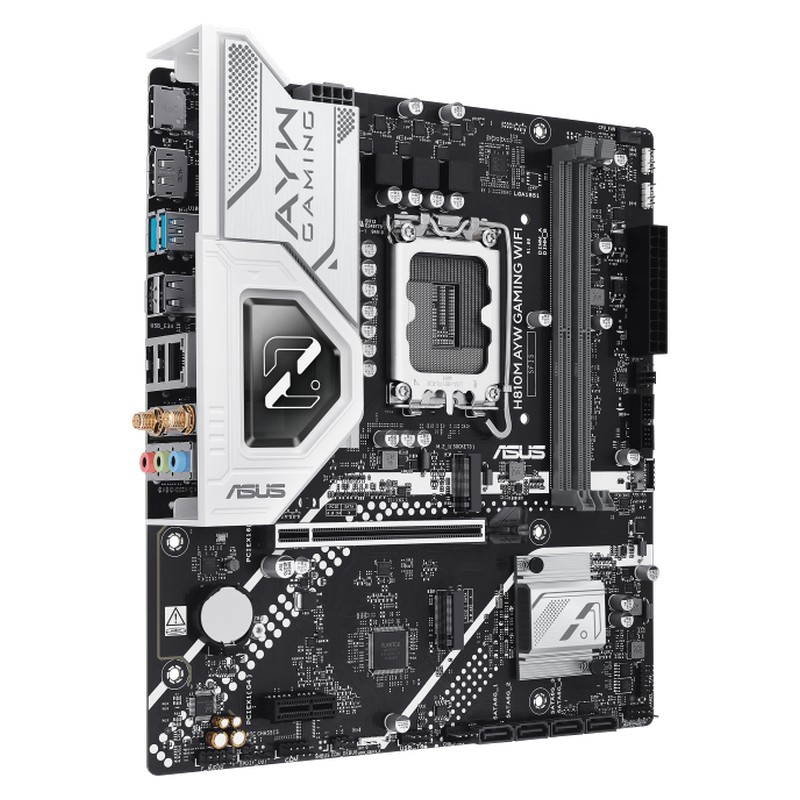

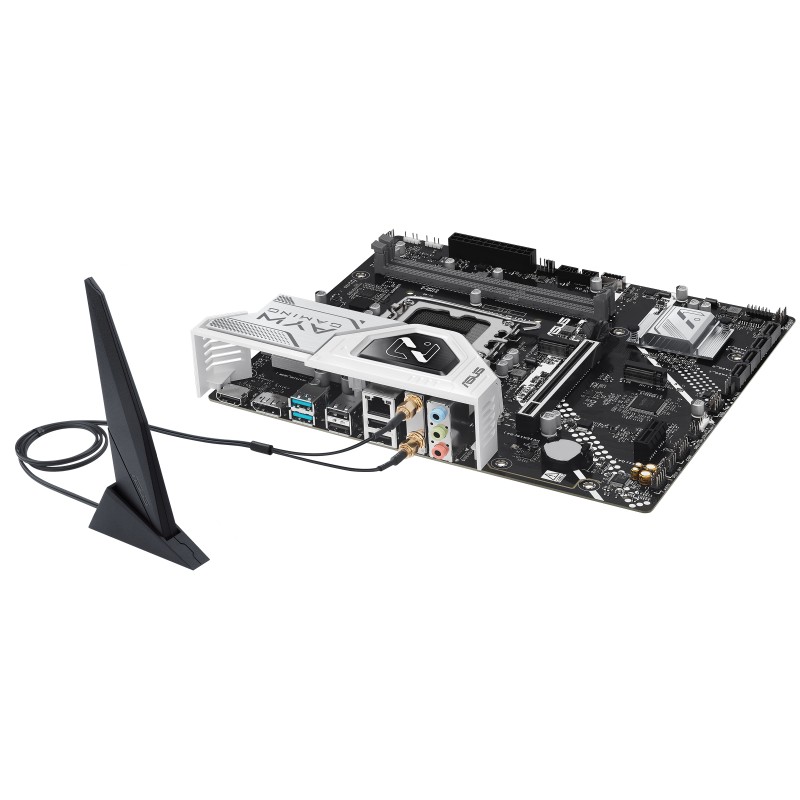

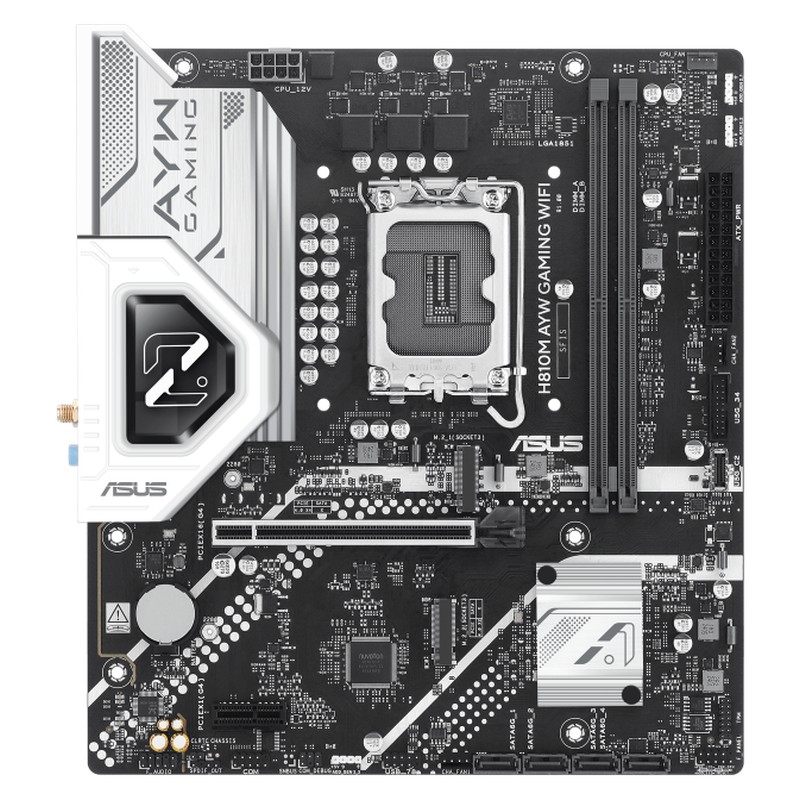

Asus H810M AYW GAMING WIFI CSM Intel Micro-ATX Motherboard

ASUS H810 series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). The H810M AYW GAMING WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:
  • 6+1+1+1:phase digital power design
  • DIMM Fit / DIMM Fit Pro:for enhanced DDR5 performance
  • PCIe 4.0 slots:for graphics card and storage
  • WiFi 6:for stable WiFi connection and lower latency
  • USB 10Gbps Type-A:for rapid data transmission
  • 1Gb Ethernet:for faster data transfers
  • USB 5Gbps Type-C:for rapid data transmission
  • EZ PC DIY:for easier build customization
  • Aura Sync:for full RGB lighting control
Specifications:
  • Model :H810M AYW GAMING WIFI-CSM
  • CPU :Support Intel Core Ultra Processors (Series 2) , LGA1851
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
    * Refer to Official Asus Website for CPU support list.
    ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset :Intel H810 Chipset
  • Memory :2 x DIMM slots, max. 128GB, DDR5
    Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
    Dual channel memory architecture
    DIMM Fit
    Supports Intel Extreme Memory Profile (XMP) memory module
    ASUS Enhanced Memory Profile II (AEMP II)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Official Asus Website . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x DisplayPort**
    1 x HDMI port***
    * Graphics specifications may vary between CPU types. Please refer to Official Intel Website for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    **** VGA resolution support depends on processors' or graphic cards' resolution.
  • Expansion Slots :Intel Core Ultra Processors (Series 2)
    1 x PCIe 4.0 x16 slot
    Intel H810 Chipset
    1 x PCIe 4.0 x1 slot
    - To ensure compatibility of the device installed, please refer to Official Asus Website for the list of supported peripherals.
  • Storage :Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel H810 Chipset
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
    4 x SATA 6Gb/s ports
  • Ethernet :1 x Intel 1Gb Ethernet port*
    ASUS LANGuard
    *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
  • Wireless & Bluetooth :Wi-Fi 6
    1x1 Wi-Fi 6 (802.11ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.3*
    * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 6 ports)
    2 x USB 10Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 5 ports)
    1 x USB 5Gbps connector (supports USB Type-C)*
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    1 x USB 2.0 header supports 2 additional USB 2.0 ports
    * USB Type-C power delivery output: max. 5V/3A
    ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

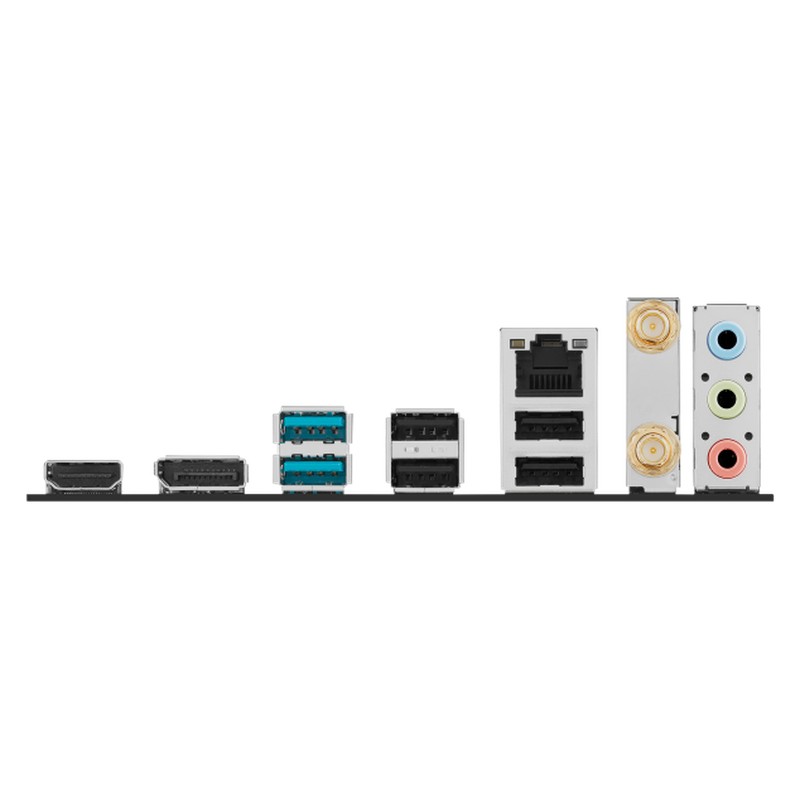

  • Back Panel I/O Ports :2 x USB 10Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi module
    1 x Intel 1Gb Ethernet port
    3 x Audio jacks
  • Internal I/O Connectors :Fan and Cooling Related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power Related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V CPU Power connector
    Storage Related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    1 x USB 2.0 header supports 2 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin Front Panel System header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage protection
    - SafeSlot Core+
    - Stainless-steel back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-Dashboard
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    Aura Sync
    - Addressable Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    ASUS DriverHub
    ASUS GlideX
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
  • BIOS :256 (128+128) Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE
  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antenna
    1 x I/O shield
    1 x Screw package for M.2 SSD
    Documentation
    1 x ACC Express activation key card
    1 x Quick start guide
  • Operating System :Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
  • Form Factor :micro-ATX Form Factor
    9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

GTIN: 4711387870327
