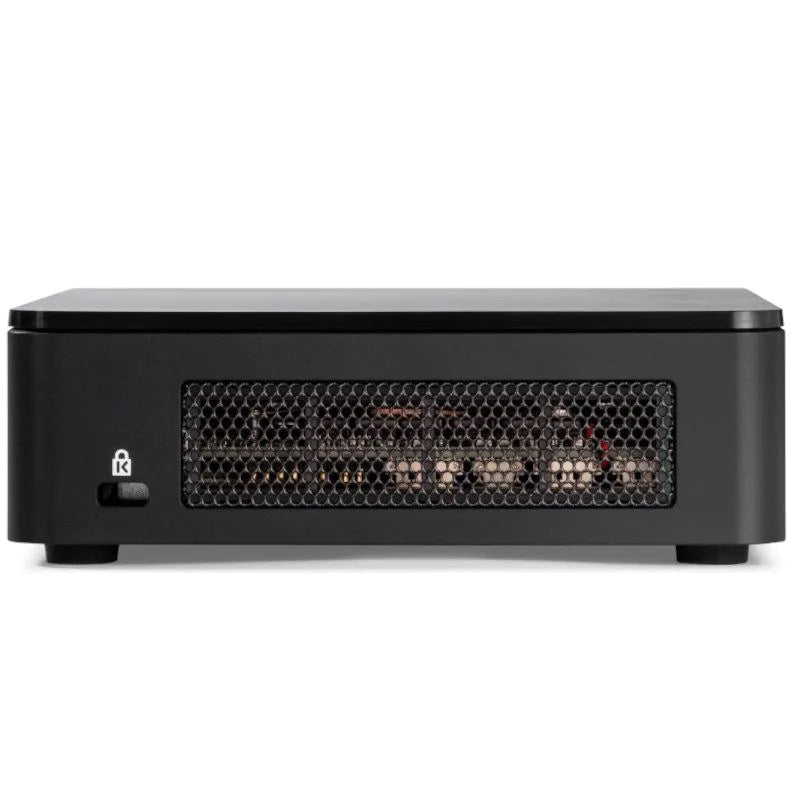

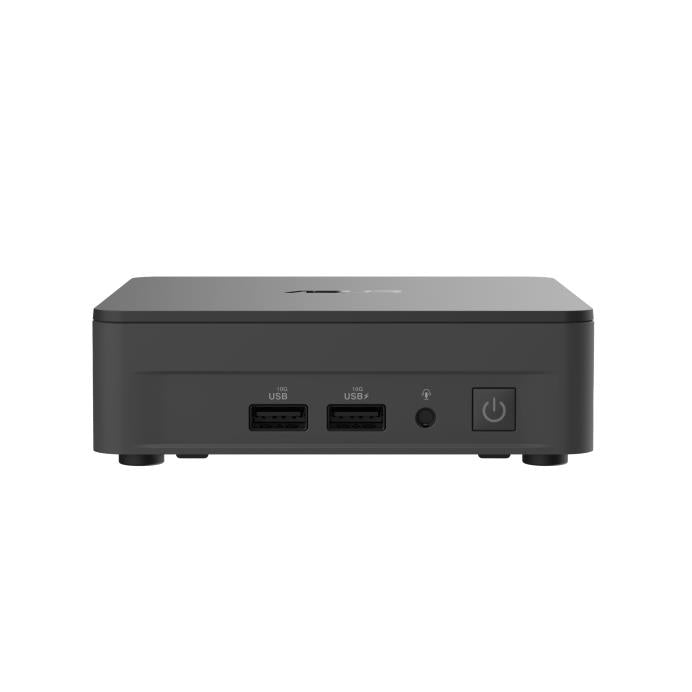

ASUS NUC 12 PRO, Wall Street Canyon/ ADL P28 i5-1240P/ Slim Kit(L6) - No Cord, requires AC06C05AU
Model: 90AR00D1-M00040 / RNUC12WSKI500000I
Overview:
- NUC 12 PRO Kit, Wall Street Canyon/ ADL P28 i5-1240P/ Kit(L6) - No Cord
- 2th Generation Intel(R) Core i5-1240P
- Intel(R) Iris(R) Xe Graphics
- 12 Processor Cores (4P+8E), 16 threads, 12MB Smart Cache, 35W TDP
- (P-Cores: Up to 4.4GHz Turbo; E-Cores: Up to 3.3GHz Turbo)
Specifications:
- Card Reader: -
- Dimensions: 37mm x 117mm x 112mm
- Drive Bay: -
- Expansion Slot: M.2 22x42 key B slot for PCIe x1 Gen3, USB 3.2 Gen2 and SATA SSD expandability

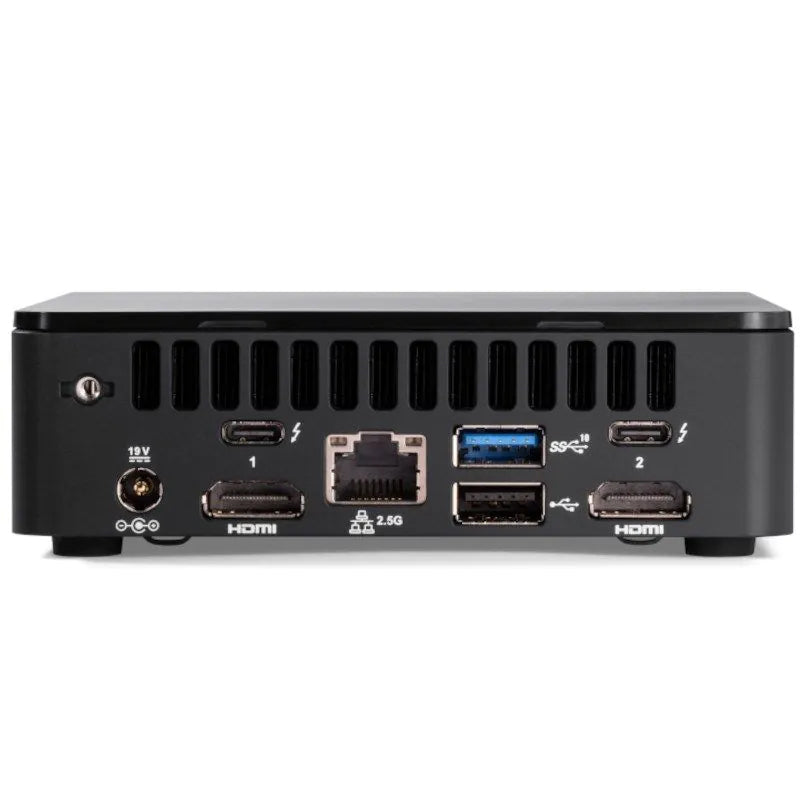

- Front/Rear Ports: 2x front and 1x rear USB 3.2 Gen2 type A ports, 1x rear type A and 2x internal USB 2.0 headers, All USB ports with individual USB power control, 3.5mm front stereo headset jack, Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports (select SKUs only)
- Graphics: Intel(R) Iris(R) Xe Graphics
- LAN: Intel(R) i225 2.5 Gb Ethernet (i225-LM on vPro SKUs; i225-V on non-vPro SKUs) port
- Memory: Dual-channel DDR4-3200 SODIMM slots, 1.2V, 64GB max.
- Operating System: Supports Microsoft Windows 11(logo'd), Windows 10 (logo'd), Windows 10 IOT Enterprise
- Power Supply: 12 - 20VDC 5% DC input on rear jack, internal 2x2 power connector, with OVP/UVP
- Processor: ADL P28 i5-1240P
- Product Family: NUC
- Product Type: -
- Storage Capacity: M.2 22x80 key M slot for PCIe x4 Gen4 NVMe SSD
- Storage Type: M.2 22x42 key B slot for PCIe x1 Gen3, USB 3.2 Gen2 and SATA SSD expandability
- Warranty: 3YR WARRANTY
- Weight: 0.8KG
- Wireless & Bluetooth: -
- Form Factor: NUC 12 PRO Kit
- Optical Drive: NA
- Wireless: Intel(R) Wi-Fi 6E AX211
