ASUS IoT PE100A Linux,media player 4G RAM, 16G eMMC, LTE, gateway, NXP i.MX 8M ARM A53 core, 1*M.2 E Key slot, 1*Mini-PCIe, 1*Micro SD Card, 3*USB, Dual LAN, 145(w)X78(L)X55.5(H)mm [90AE0020-M0U030]

ASUS IoT PE100A Linux,media player 4G RAM, 16G eMMC, LTE, gateway, NXP i.MX 8M ARM A53 core, 1*M.2 E Key slot, 1*Mini-PCIe, 1*Micro SD Card, 3*USB, Dual LAN, 145(w)X78(L)X55.5(H)mm [90AE0020-M0U030]


ASUS IoT PE100A Linux,media player 4G RAM, 16G eMMC, LTE, gateway, NXP i.MX 8M ARM A53 core, 1*M.2 E Key slot, 1*Mini-PCIe, 1*Micro SD Card, 3*USB, Dual LAN, 145(w)X78(L)X55.5(H)mm

Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- 16G on board eMMC and Micro-SD card for storage capacity
- Support Windows 10 IoT Core and Linux Yocto OS
- Wide Temperature Range: -20~60°C
PE100A is an edge computer based on a Pico-ITX motherboard that's optimized for TCO, supported by a secondary I/O board for extra functionality. It's powered by an NXP® i.MX 8M system-on-a-chip (SoC) processor that's based on the Arm® Cortex-A53 architecture with up to 1.3 GHz and delivers efficient performance with low power consumption. PE100A also features 4 GB LPDDR4 onboard memory and 16GB onboard eMMC, and includes two Ethernet ports, three USB ports and one HDMI on the front side. Two COM ports, with RS232/RS485/CAN bus, and one digital DI/DO are also available as optional interfaces at the rear. Inside, PE100A's mainboard also supports an M.2 E-key connector and micro SD card connector, while the I/O board offers Mini PCIe®/mSATA and a Nano-SIM socket interface.
The new computer is also engineered with a wide range of power inputs (12~24V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.

Processor System
CPU NXP® i.MX 8M ARM Cortex-A53 core 1.3 GHz 1MB L2 Cache
Chipset
Integrated
Memory Technology
4GB on board memory LPDDR4 (4GB Max)
Display
HDMI 1
Supports HDMI 2.0 up to 3840 x 2160 @ 60 Hz
Expansion Slot
1x Mini PCIe (support mSATA)
1x M.2 2230 E Key for BT/WiFi module (cooperate with Google Edge TPU Module)
1x SIM Full/Half Length Mini PCIe slot with an on-board Nano-SIM socket
1x Micro-SD Card connector
Ethernet
10/100/1000Mbps Controller
1 x Realtek® RTL8211, 1 x Intel I211-AT
2 x RJ-45
Storage
eMMC 1 x 16GB onboard eMMC

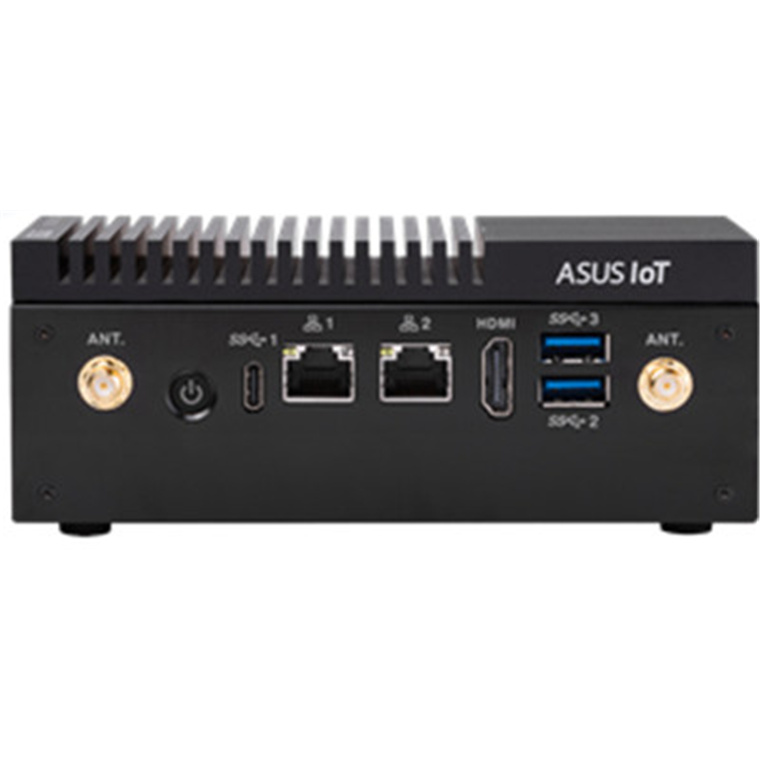

Front I/O
1x HDMI 1
2x USB3.2 Gen 1 type A, 5V/2A
1x USB3.2 Gen 1 type C OTG, 5V/1.5A
2x Ethernet 2
Rear I/O
Terminal Block 1 x COM terminal (Support 2 x COM headers; 1 x RS-232/422/485, 1 x RS-232/CANBus)
1 x DIO terminal (4*DI, 4*DO)
Power Connector DC Power input
Watchdog Timer
S/W Setup by software
Security
TPM Module TPM 2.0 power by Nuvoton NCPT 750 (Optional)
Crypto Module Cloud security power by Microchip ATECC608A/NXP SE050 (Optional)
Manageability
WOL
Power Type
DC power input
12-24V DC input
Operating System
Microsoft Windows Windows 10 IoT Core
Linux Linux Yocto
Environment
Operating Temperature -20~60°C
Non-Operating Temperature -40~85°C
Relative Humidity 10 ~ 95%
Dimension
145(w)x78(L)x55.5(H)mm
Weight
0.775 KG
- MPN: 90AE0020-M0U030
GTIN: 192876863596
