Asus PRIME B550M K ARGB AMD Micro-ATX Motherboard [PRIME B550M-K ARGB]

2 Reviews

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$149.15

Collect 149 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

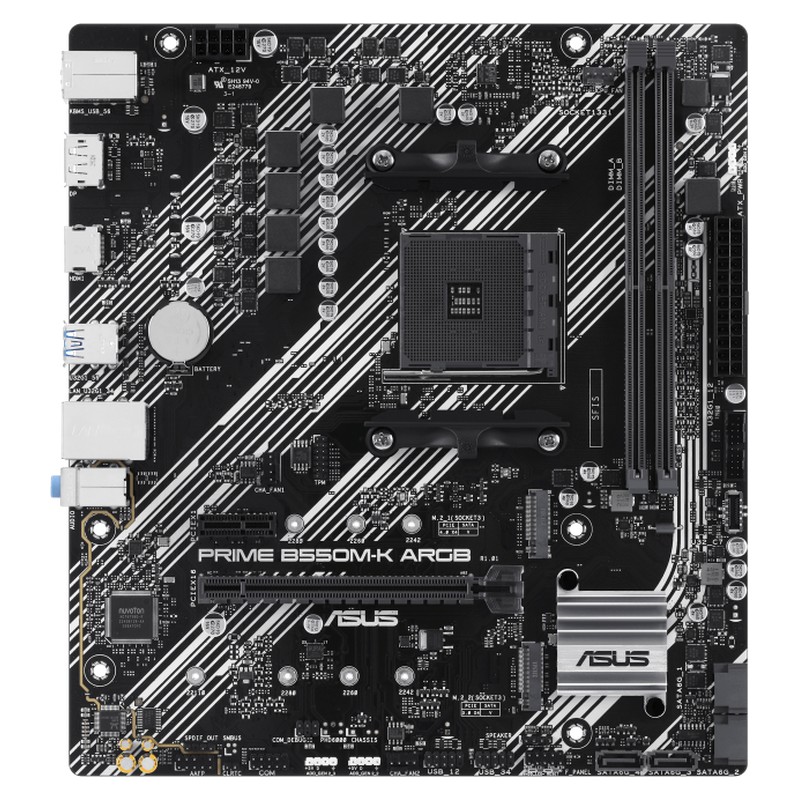

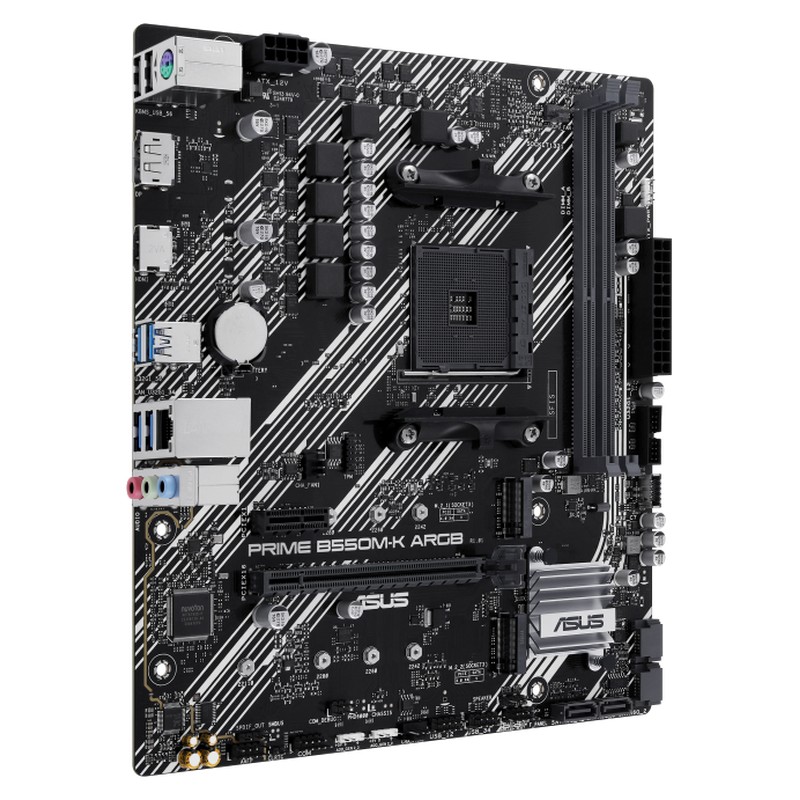

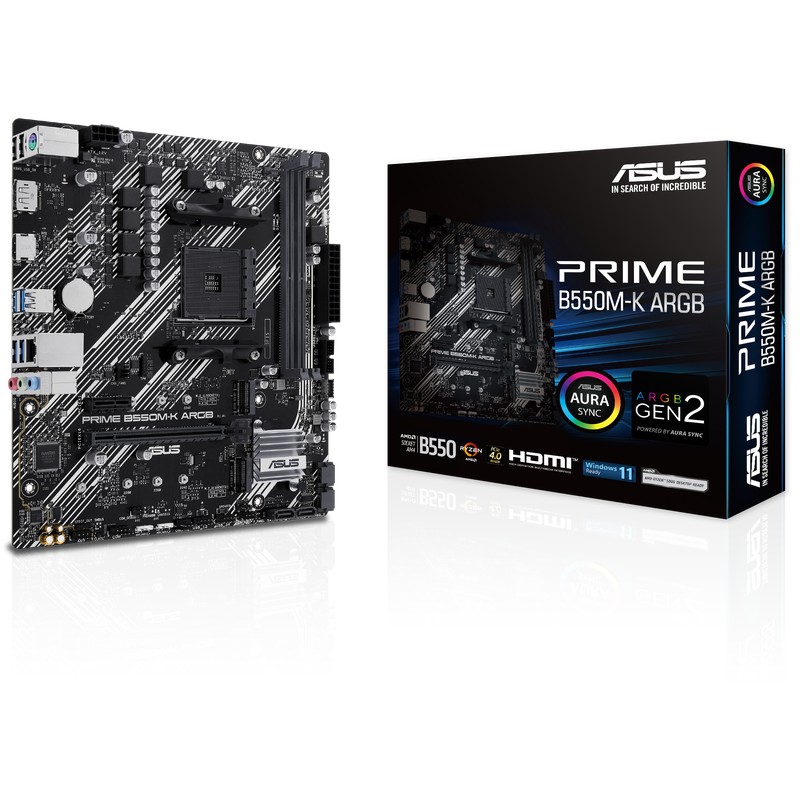

Asus PRIME B550M K ARGB AMD Micro-ATX Motherboard

Asus PRIME B550M-K ARGB - PRIME B550M-K ARGB is equipped with outstanding features, including PCIe 4.0 support, Dual M.2 slots, Realtek 1Gb Ethernet, Rear USB 3.2 Gen 1 ports, Front USB 3.2 Gen 1 Type-C, DisplayPort /HDMI, Addressable Gen 2 headers, Aura Sync, Q-LED Core, Fan Xpert 2+, Armoury Crate, ASUS 5X PROTECTION III and SafeSlot Core.

Features:
  • Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM4 Socket:Ready for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Ultrafast Connectivity:PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 ports and front USB 3.2 Gen 1 Type-C
  • Comprehensive Cooling:PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications:
  • Model :PRIME B550M-K ARGB
  • CPU :AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors*
    * Refer toAsus websitefor CPU support list.
  • Chipset :AMD B550 Chipset
  • Memory :2 x DIMM slots, Max. 64GB, DDR4 5100 to 2133, Un-buffered Memory*
    Dual Channel Memory Architecture
    * ECC memory (ECC mode) support varies by CPU.
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visithttps:// Official Asus Website /.
  • Graphics :1 x DisplayPort**
    1 x HDMI port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots :AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
    1 x PCIe 3.0 x16 slot (supports x16 mode)
    AMD B550 Chipset
    1 x PCIe 3.0 x1 slot
    * Please check the PCIe bifurcation table on the support site .
    - To ensure compatibility of the device installed, please refer tohttps:// Official Asus Website /for the list of supported peripherals.
  • Storage :Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    AMD B550 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  • Ethernet :1 x Realtek 1Gb Ethernet
  • USB :Rear USB (Total 6 ports)
    4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

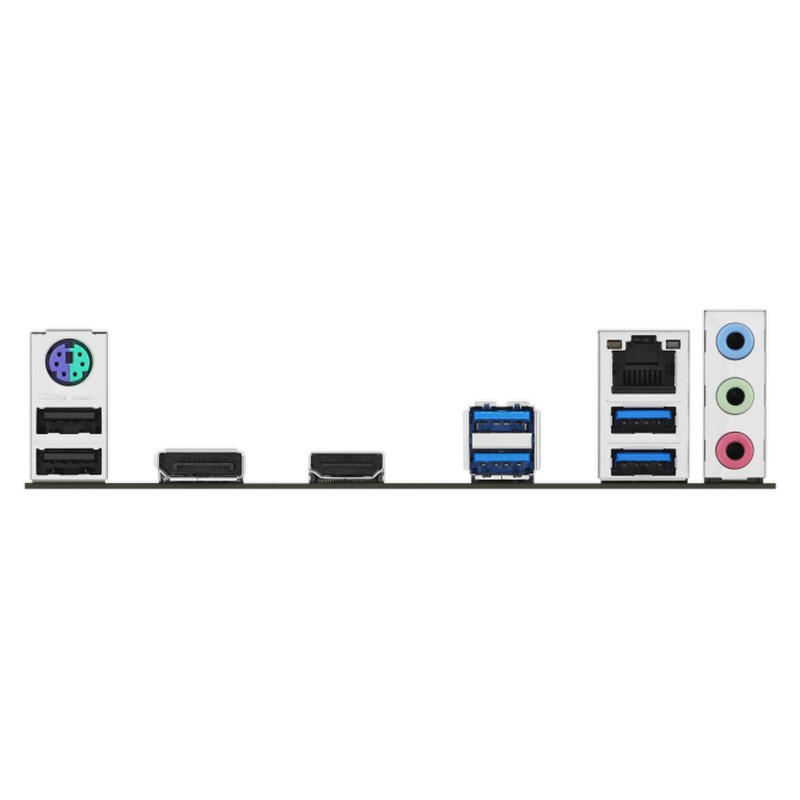

  • Back Panel I/O Ports :4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Realtek 1Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
  • Internal I/O Connectors :Fan and Cooling related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin System Panel header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    Aura Sync
    - Addressable Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    Fan Xpert 2+
    - EZ update
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • BIOS :128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE
  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous

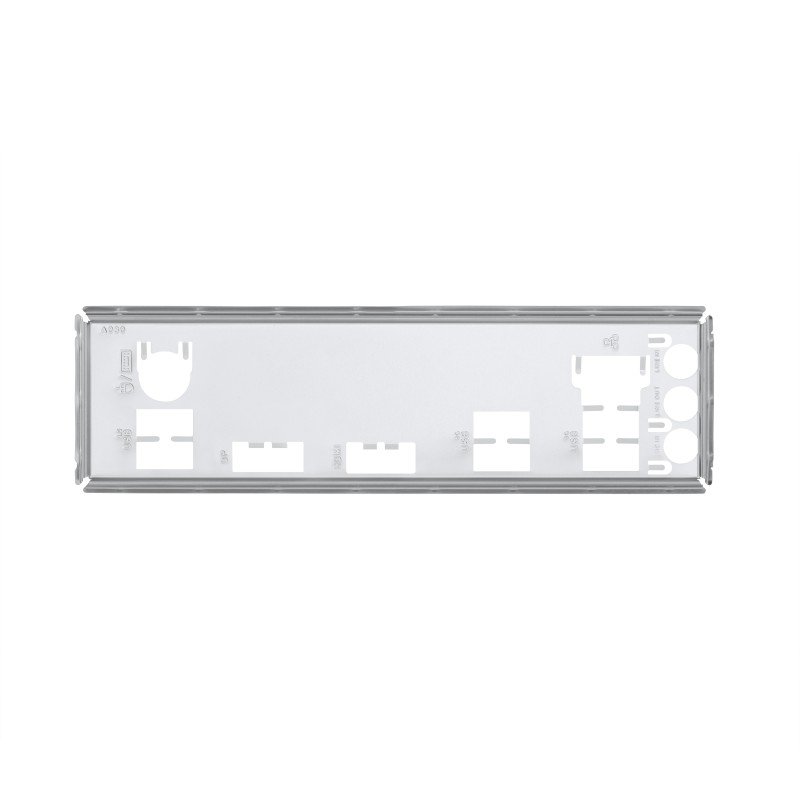

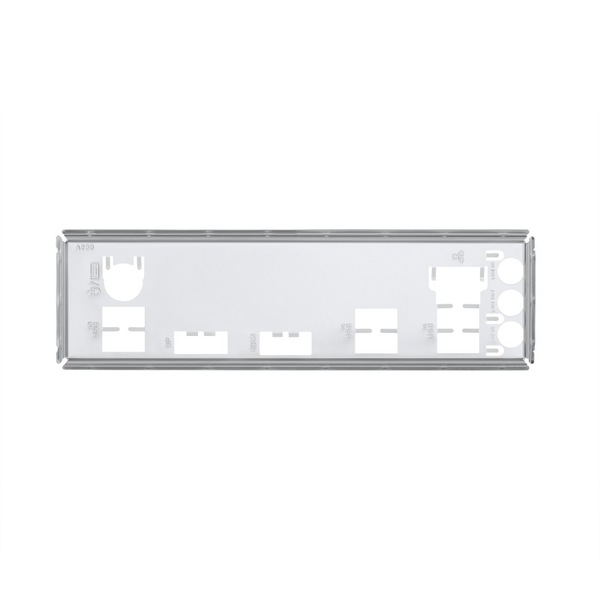

    1 x I/O Shield
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
  • Operating System :Windows 11, Windows 10 64-bit
  • Form Factor :micro-ATX Form Factor
    9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )

GTIN: 4711387316047
