Asus ROG STRIX B860 A GAMING WIFI Intel ATX Motherboard [ROG STRIX B860-A GAMING WIFI]

1 Review

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$518.80

Collect 518 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
Asus ROG STRIX B860 A GAMING WIFI Intel ATX Motherboard

With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4 (20Gbps) port, PCIe 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

Features:
  • ROBUST POWER SOLUTION:14 + 1 + 2 + 1 power solution rated for up to 80A per stage
  • AI Networking II
  • WIFI 7
  • USB4 (20Gbps) PORT
  • GEN 5 SUPPORT:X1 Onboard M.2 Slot
  • DDR5:9066+ MT/s, MAX. 256GB, DIMM FIT, AEMP III
  • DIY-FRIENDLY DESIGN
Specifications:
  • CPU :Support IntelCore Ultra Processors (Series 2)*
    Supports IntelTurbo Boost Technology 2.0 and IntelTurbo Boost Max Technology 3.0**
    * Refer to Official Asus Website for CPU support list.
    ** IntelTurbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset :IntelB860 Chipset
  • Memory :4 x DIMM slots, max. 256GB, DDR5
    Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
    Dual channel memory architecture
    DIMM Fit
    Supports IntelExtreme Memory Profile (XMP) memory module
    ASUS Enhanced Memory Profile III(AEMPIII)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Official Asus Website .
    ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x DisplayPort**
    1 x HDMI port***
    1 x USB4(20Gbps) ports support USB
    Type-Cdisplay outputs****
    * Graphics specifications may vary between CPU types. Please refer to Official Intel Website for any updates.
    ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    **** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
    **** In USB4mode, supports up to 4K@60Hz,
    maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10.
    ***** VGA resolution support depends on processors' or graphic cards' resolution.
    ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
  • Expansion Slots :IntelCore Ultra Processors (Series 2)
    1 x PCIe 5.0 x16 slot
    IntelB860 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)*
    * M.2_4 slot shares bandwidth with
    PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
    - To ensure compatibility of the device
    installed, please refer to Official Asus Website for
    the list of supported peripherals.
  • Storage :Total supports 4 x M.2 slots and 4 x SATA
    6Gb/s ports*
    IntelCore Ultra Processors (Series 2)
    M.2_1 slot (Key M), type 2242/2260/2280
    (supports PCIe 5.0 x4 mode)
    IntelB860 Chipset
    M.2_2 slot (Key M), type 2280 (supports
    PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2280/22110
    (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2280 (supports
    PCIe 4.0 x4 mode)**
    4 x SATA 6Gb/s ports
    * IntelRapid Storage Technology supports
    SATA RAID 0/1/5/10.
    ** M.2_4 slot shares bandwidth with
    PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
  • Ethernet :1 x Intel2.5Gb Ethernet
    ASUS LANGuard
  • Wireless & Bluetooth :Wi-Fi 7*
    2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band**
    Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
    Bluetoothv5.4***
    *Wi-Fi features may vary depending on the operating system
    For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
    For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
    ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    *** The Bluetoothversion may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 10 ports)
    1 x USB4(20Gbps) port (1 x USB Type-C)
    3 x USB 10Gbps ports (2 x Type-A + 1 x USB
    Type-C)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 5 ports)
    1 x USB 10Gbps connector (supports USB
    1 x USB 5Gbps header supports 2 additional
    USB 5Gbps ports
    1 x USB 2.0 header supports 2 additional
    USB 2.0 ports
    * USB Type-Cpower delivery output: max.
    5V/3A
  • Audio :Realtek ALC1220P 7.1 Surround Sound
    High Definition Audio CODEC*
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Supports up to 32-Bit/192 kHz
    playback*
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover
    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

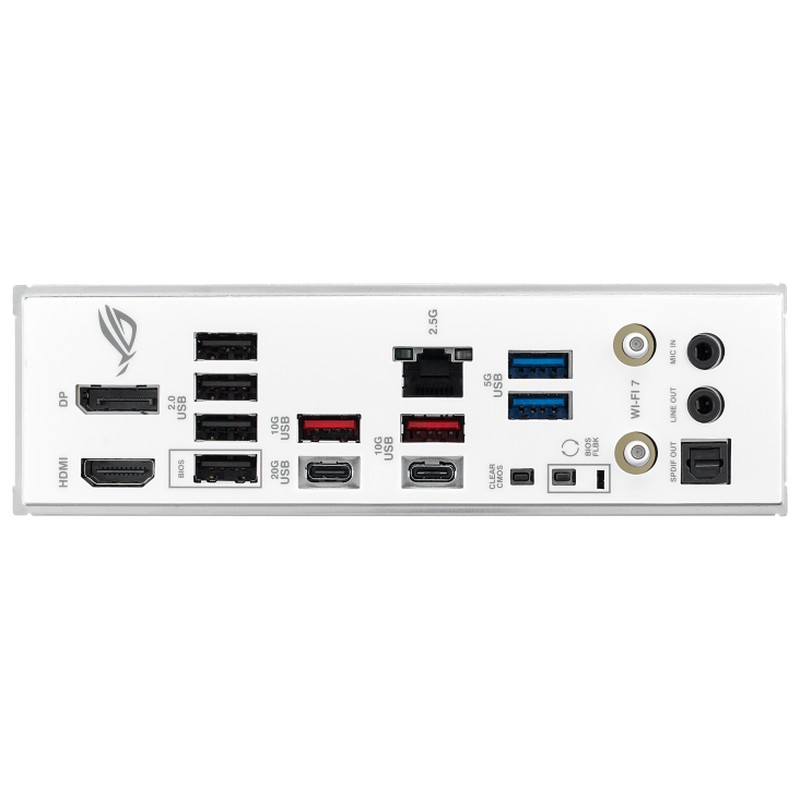

  • Back Panel I/O Ports :1 x USB4(20Gbps) port (1 x USB Type-C)
    3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi module
    1 x Intel2.5Gb Ethernet port
    2 x Audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack button
    1 x Clear CMOS button
  • Internal I/O Connectors :Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers

    Power Related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connector
    Storage Related
    4 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 10Gbps connector (supports USB Type-C)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    1 x USB 2.0 header supports 2 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen2 header(s)
    1 x Front Panel Audio header (F_AUDIO)
    1 x 10-1 pin Front System Panel header
    1 x Thermal Sensor header
    1 x Thunderbolt (USB4) header
  • Special Features :Extreme Engine Digi+
    - 5K Black metallic capacitors
    ASUS Q-Design
    - M.2 Q-Latch
    - M.2 Q-Release
    - M.2 Q-Slide
    - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    - Q-Antenna
    - Q-Dashboard
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA
    [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink backplate
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    - Clear CMOS button
    - CPU Socket lever protector
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Addressable Gen2 headers
  • Software Features :ROG Exclusive Software
    - ROG CPU-Z
    - Dolby Atmos
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4
    - GameFirst
    - Power Saving
    AIDA64 Extreme (60 days free trial)
    HWiNFO
    ASUS AI Advisor
    ASUS DriverHub
    ASUS GlideX
    TurboV Core
    Adobe Creative Cloud 30 Days Free Trial)
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
    NPU Boost
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, UEFI PXE

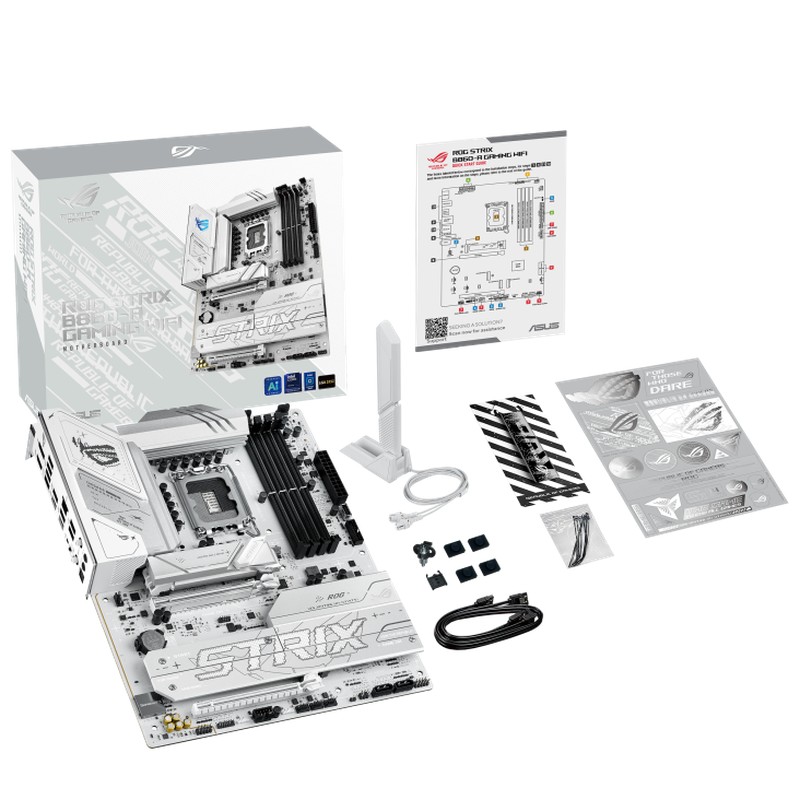

  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x Cable ties package
    1 x M.2 Q-Latch
    1 x M.2 Q-Slide
    1 x ROG key chain
    1 x ROG Strix stickers
    4 x M.2 rubbers

    Documentation
    1 x Quick start guide
  • Operating System :Windows 11 (22H2 & later)
  • Form Factor :ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

GTIN: 4711387788431
