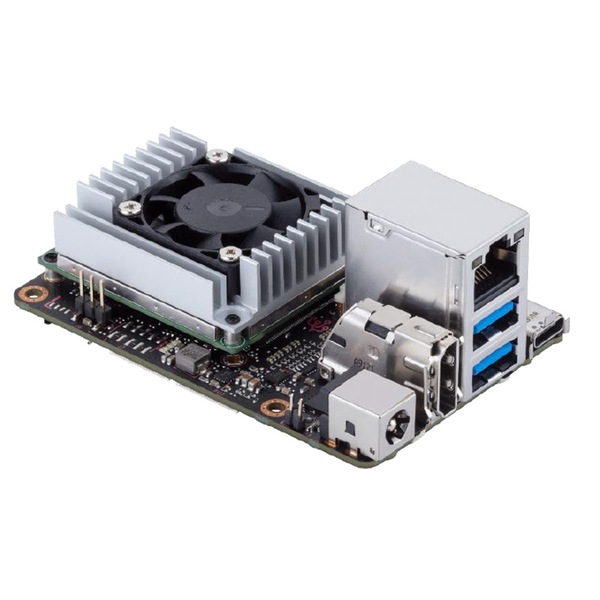

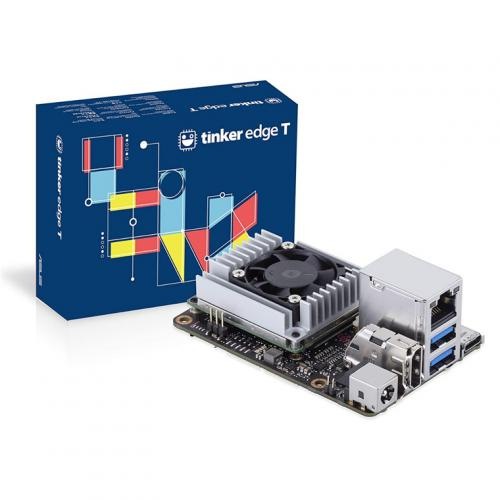

Buy ASUS Google Coral Tinker Edge T Development Board SBC, NXP i.MX 8M, 1.5GHz ARM Cortex-A53 Quad - Core SoC, Google Coral Edge TPU, 1GB RAM 8Gb eMMC HDMI, MIPI-DSI, MIPI-CSI, 12 - 19V DC in

ASUS Google Coral Tinker Edge T Development Board SBC, NXP i.MX 8M, 1.5GHz ARM Cortex-A53 Quad - Core SoC, Google Coral Edge TPU, 1GB RAM 8Gb eMMC HDMI, MIPI-DSI, MIPI-CSI, 12 - 19V DC in

Features

- ML Capability with google Edge TPU
- 2x MIPI-CSI / MIPIDSI / HDMI
- 40-pin GPIOs for multiple purposes
- 12V~19V DC-in offers stable power delivery

AI accelerator (Edge TPU)

Tinker Edge T is a single-board computer (SBC) specially designed for AI applications. It features the Google Edge TPU, a machine learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this onboard ML accelerator, Tinker Edge T is capable of performing four tera-operations per second (TOPS) using only 0.5 watts per unit of computation. It is also optimized for TensorFlow Lite models, making it easy to compile and run common ML models.

NXP i.MX 8M processor

With its powerful and modern quad-core ARM-based NXP i.MX 8M processor, Tinker Edge T offers a powerful solution for graphics, machine vision, video, audio, voice and safety-critical applications. Tinker Edge T features 1 GB of LPDDR4 dual-channel memory, the 4th generation of low-power DDR DRAM technology, offering faster speeds and even lower power consumption for improved system performance and efficiency. Tinker Edge T also comes equipped with an onboard 8 GB eMMC and SD 3.0 interface that offers significantly faster read and write speeds for the OS, applications and file storage.

Advanced power design

Most SBC motherboards only offer a 15 watt (5V 3A) power design, which can cause device and system instability when there are multiple connected devices. Other SBCs have power designs that lower the performance of their I/O ports. Tinker Edge T has a special power design that, together with a DC head power supply, delivers up to 45 watts of power, enabling stable system operation and full I/O performance, even with multiple connected devices. Additionally, an exclusive power-protection design activates automatically if the supplied current and voltage change significantly, effectively protecting the board and all connected devices.

More connectivity options for makers

Tinker Edge T features a rich I/O interface, including one MIPI-DSI connection for displays and touch screens, and two MIPI-CSI connections for compatible cameras to enable computer vision for applications such as depth measurement, smart vending machine QR code payment systems and interactive advertising.
Tinker Edge T has a maker-friendly design that offers many carefully considered features to provide a superior experience for first-time builders and seasoned hobbyists alike. Programmable LEDs let makers develop custom lighting behaviors, such as system notifications and status indicators, and the color-coded GPIO header makes it easy to recognize respective pin headers.

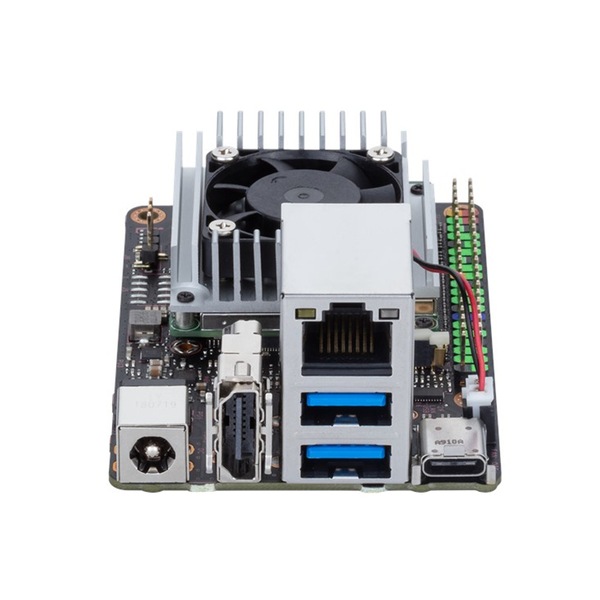

Tinker Edge T also features a full-size HDMI port, USB Type-A, USB Type-C, gigabit LAN and integrated Wi-Fi and Bluetooth for internet and network connectivity.

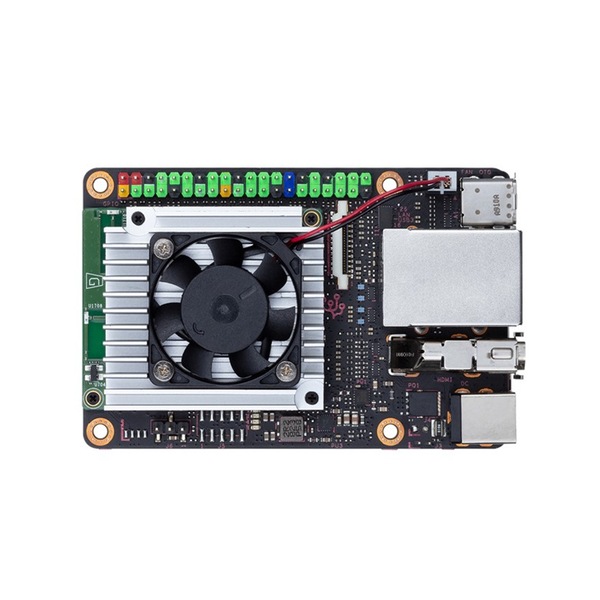

Heatsink included

Tinker Edge T includes an active heatsink, which helps improve heat dissipation under heavy loading or in hot ambient environments.

Neural network tools for users

ASUS provides a robust API and SDK that enables users to deploy machine learning models to Tinker Edge T easily for applications such as image classification and object detection.

OS flash tool*

Tinker Edge T comes with a cross-platform OS flash tool that enables easy OS image flashing to SD cards and USB drives, enabling you to get your system up and running quickly.*The feature will be ready from Jan, 2020

Enhanced OS interface*

An intuitive software interface offers makes it easy to navigate the features of Tinker Edge T, and shortcuts provide quick, convenient access to commonly user functions.*The feature will be ready from Jan, 2020

SoC
NXP i.MX 8M
CPU
Quad-Core Arm Cortex-A53 @ 1.5GHz, Coretex-M4
GPU
GC7000 Lite
NN Processor
Google Edge TPU ML accelerator coprocessor
Memory
Dual-CH LPDDR4 1GB
Storage
8GB eMMC
1 x Micro SD (TF) card slot (pull & push)
Display
1 x HDMI with CEC hardware ready
1 x 22-pin MIPI DSI
USB
2 x USB3.2 Gen 1 Type-A ports
1 x USB3.2 Gen1 Type-C OTG port
Camera interface
2 x 24-pin MIPI CSI-2
Internet
RTL821F-CG Gbit Lan
802.11 b/g/n/ac & Bluetooth 4.1
Internal I/O
1 x 40-pin headers includes
- up to 28 x GPIO pins
- up to 1 x SPI Bus
- up to 2 x 12C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/12S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
- 1 x Boot mode switch
- 1 x 2-pin reset header
- 1 x 2-pin DC Fan header
Power Requirements
12-19V DC input
Operation Temperature
0~50C
Non-Operation Temperature
-40~85C
Relative Humidity
0%~85%
Operating System Support
Mendel
Form factor
3.37" x 2.125"
