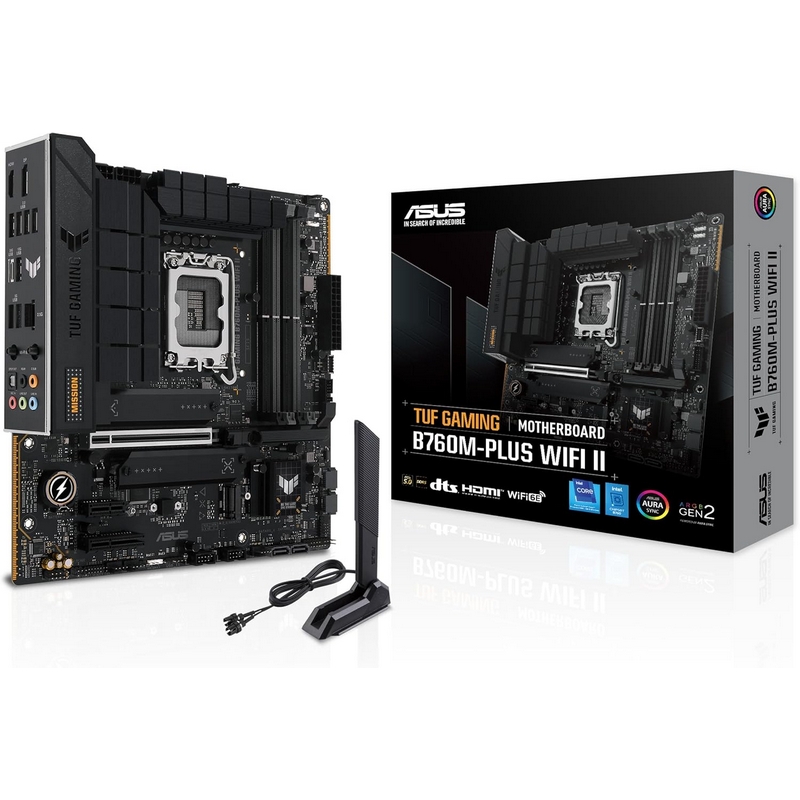

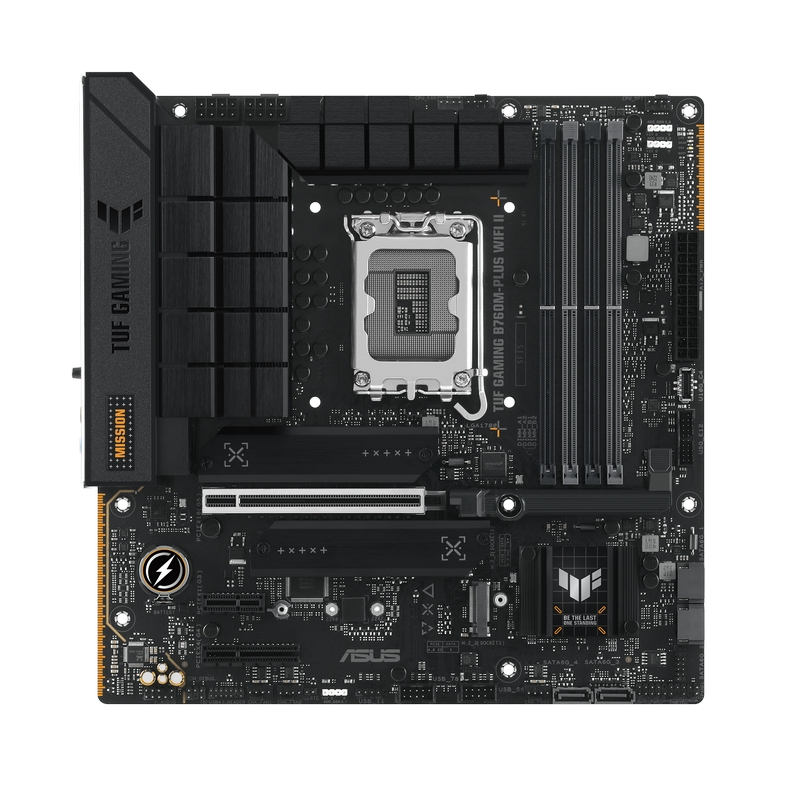

Asus TUF GAMING B760M-PLUS WIFI II Motherboard, DDR5, LGA1700, Micro-ATX MB

1 Review

Image 1
Image 2
Image 3
Best Price in the Last 14 Days
Limited Stock
$312.85
You save $34.28Was $347.13

Collect 312 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Features:
  • 12(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
  • PCIe® 5.0 for graphics cards
  • DDR5 memory module support
  • USB 20Gbps Type-C® and a front-panel USB 10Gbps Type-C®header
  • 2.5 Gb Ethernet
  • PCIe Q-Release
  • WiFi 6E with Q-Antenna
  • Two-Way AI Noise Cancelation
Specifications:
  • Model :TUF GAMING B760M-PLUS WIFI II
  • News & Updates :2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of
    Intel Core 13th and 14th Gen desktop processors is now available. Please visit
    support site for the latest BIOS updates.
  • CPU :Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer toAsus official sitefor CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset :Intel® B760 Chipset
  • Memory :4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/
    6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary de
    pending on the CPU and memory configuration, for more information please refer t
    o CPU/Memory Support under the Support tab or visithttps:// Asus official site/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x DisplayPort**
    1 x HDMI™port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    ***Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots :Intel® CoreTM Processors (14th & 13th & 12th Gen)*
    1 x PCIe 5.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 4.0 x4 slot
    1 x PCIe 3.0 x1 slot
    - To ensure compatibility of the device installed, please refer to https:// Asus official site/support/ for the list of supported peripherals.
  • Storage :Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® CoreTM Processors (14th & 13th & 12th Gen)
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • Ethernet :1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
  • Wireless & Bluetooth :Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth® v5.3**
    * Wi-Fi 6GHz frequency band regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 8 ports)
    1 x USB 20Gbps port (1 x USB Type-C®)
    1 x USB 10Gbps port (1 x Type-A)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 8 ports)
    1 x USB 10Gbps connector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    3 x USB 2.0 headers support 5 additional USB 2.0 ports
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Dedicated audio PCB layers

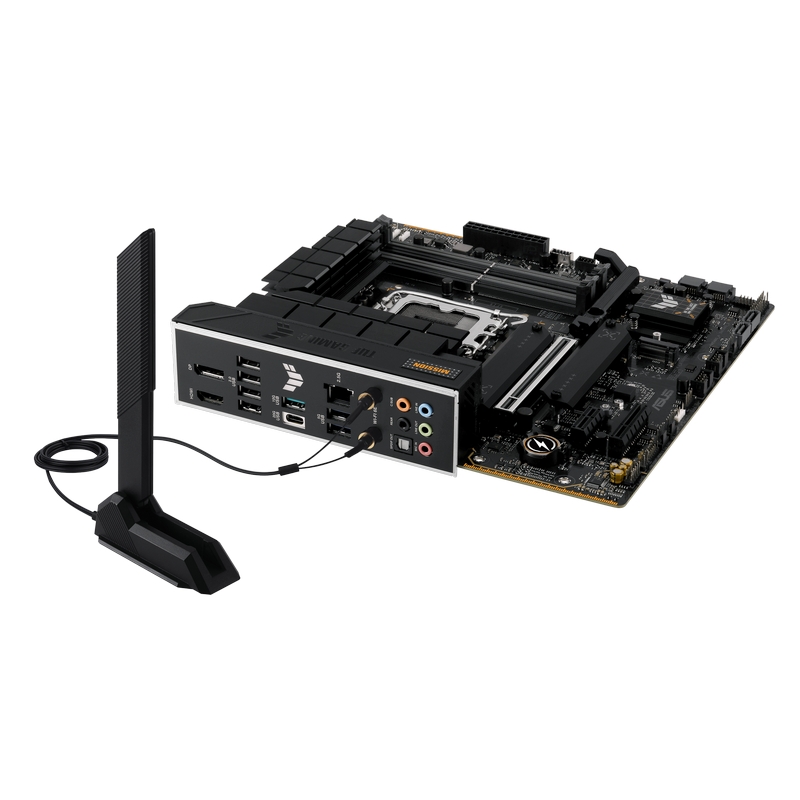

  • Back Panel I/O Ports :1 x USB 20Gbps port (1 x USB Type-C®)
    1 x USB 10Gbps port (1 x Type-A)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI™ port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
  • Internal I/O Connectors :I/O Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connectors
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 10Gbps connector (supports USB Type-C® )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    3 x USB 2.0 headers support 5 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
  • Special Features :ASUS TUF PROTECTION
    - DIGI+ VRM (- Digital power design with DrMOS)
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - PCIe Slot Q-Release
    - Q-Antenna
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    ASUS Thermal Solution
    - M.2 heatsinks
    - VRM heatsink design
    ASUS EZ DIY
    - CPU Socket lever protector
    - ProCool
    - Pre-mounted I/O shield
    - SafeDIMM
    AURA Sync
    - Addressable Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - AURA Creator
    - AURA Sync
    - Fan Xpert 2+
    - Power Saving
    - Two-Way AI Noise Cancelation
    AI Suite 3
    - DIGI+ VRM
    - PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyASUS
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • BIOS :128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE
  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Q-Antenna
    1 x M.2 Rubber Package
    1 x TUF Gaming sticker
    2 x Screw packages for M.2 SSD
    Documentation
    1 x TUF Certification card
    1 x User guide
  • Operating System :Windows® 11, Windows® 10 64-bit
  • Form Factor :mATX Form Factor
    9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

SKU: MB-ASU-B760MPW2
