Atem Power 12V 200W Solar Panel Kit Mono Shingled Caravan Camping Power Charging

Atem Power 12V 200W Solar Panel Kit Mono Shingled Caravan Camping Power Charging

Hurry! 19 items left!

$209.95

Collect 209 Everyday Rewards points

Sold & shipped by Sunyee

Secure ways to pay at checkout

(0)

DESCRIPTION
Solar panels provide a way to capture the sun’s energy and put it to power your batteries. But ATEM POWER has taken a step further by integrating the newest shingled solar cell technology into its shingled solar panels/shingled panel with the key advantages: more power, improved reliability and more aesthetic. This 200W shingled solar panel avoids the use of ribbons, busbars, and soldering processes, the cells are cut into 5 or 6 strips then joined together using electrically conductive adhesives (ECA). So there is nothing but pure cell, and you’ll get 15~20% output than traditional RV solar panel since it is designed to capture more solar energy per square meter. For conventional solar panels, a shaded part can have a significant effect on power output, whereas the cells of this shingled panel are wired in parallel that significantly reduce the losses and hot spot effect caused by shade. IP-68 rating helps it defy harsh conditions, and no visible circuitry gives it a sleek look.

FEATURES

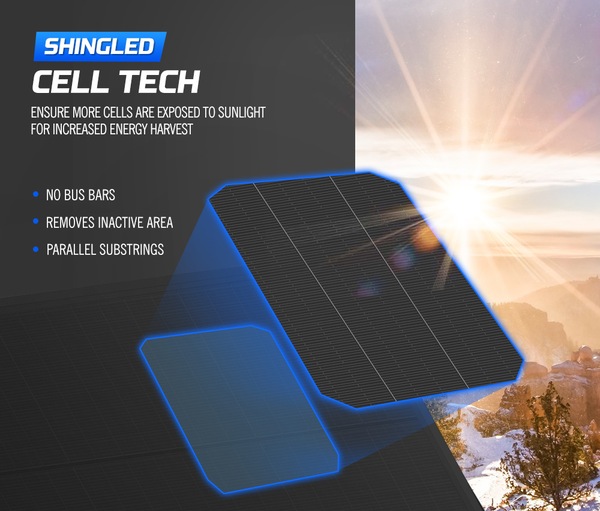

Shingled Cell Tech: This tech avoids the use of ribbons, busbars but creates a string of strips, so more cells are exposed to sunlight for increased energy harvest.

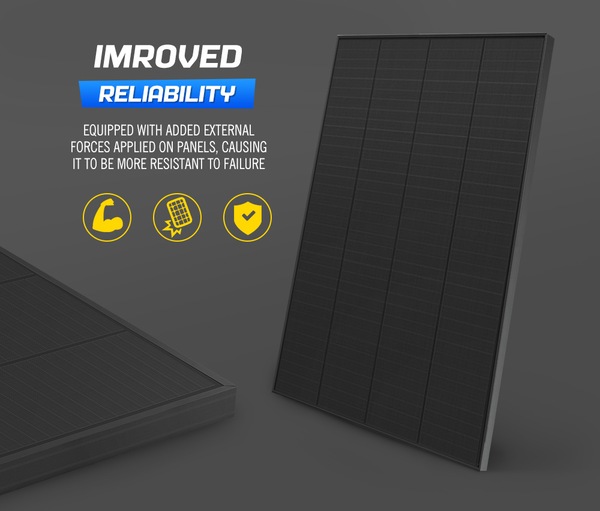

Improved Reliability: Shingled solar panel is more resistant to failure caused by external forces applied to the panel when compared to conventional solar panels.

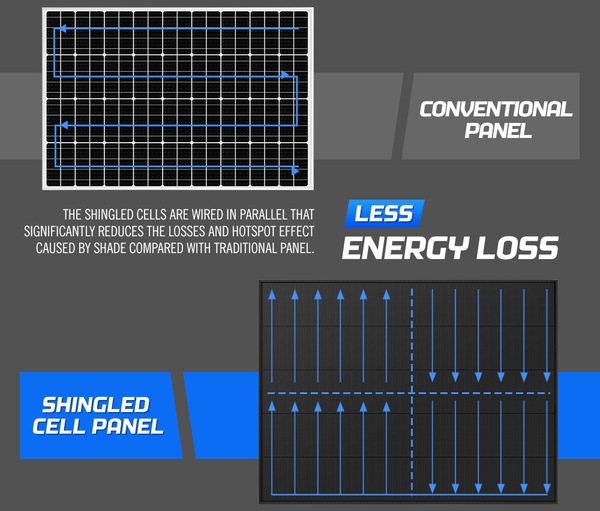

Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel.

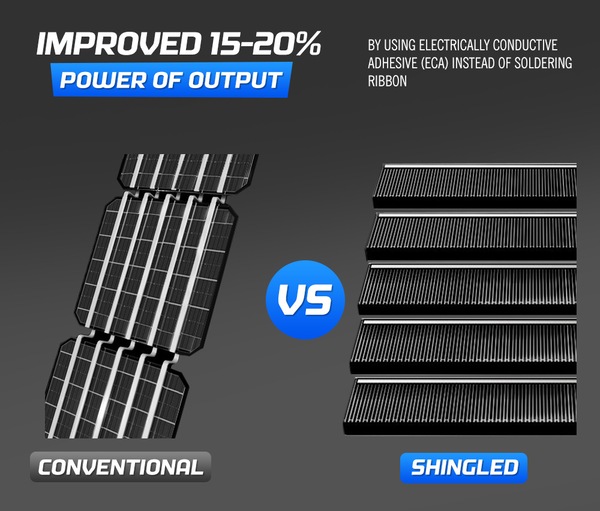

Greater Output: Jointed together by using electrically conductive adhesive (ECA) instead of busbars, you’ll get improved 15~20% output than traditional panel.
Unbeatable Rigidity: Built with a tough aluminium frame and a thick tempered glass, this shingled solar panel is designed to stand up to harsh conditions.
All Weatherproof: This shingled panel has an IP68 waterproof rating, so no worries about the rainy days. It will be with you to keep your electronics running.
Suitable for Most Batteries: This 200W shingled solar panel is compatible with lead acid, AGM, GEL, Flooded, lithium-ion and LiFePO4 batteries

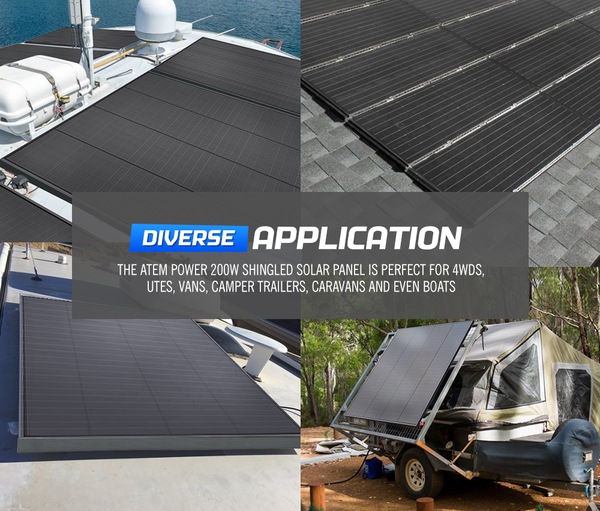

Diverse Application: The ATEM POWER 200W shingled solar panel is perfect for 4WDs, utes, vans, camper trailers, caravans and even boats!
More Aesthetic: This shingled solar panels has no visible circuitry which gives it clean, simple and sleek look while providing superior appeal.

SPECIFICATIONS
Material:Shingled Cells
Maximum Power:200W
Open-Circuit Voltage (VOC):24.8V
Short-Circuit Current (ISC):10.8A
Maximum Power Voltage (VMP):19.8V
Maximum Power Current (IMP):10.1A
Maximum System Voltage:1000V
Max. System Fuse Rating:15A
Temperature Range:-40C~ 85C
Power Tolerance: 5%
Color:Black

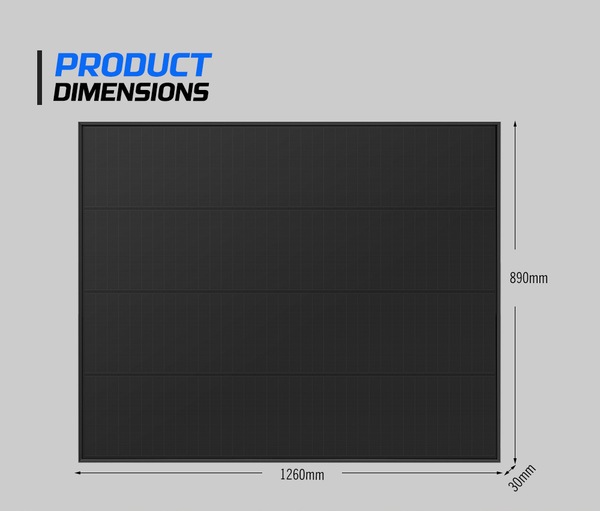

Product Size:126x89x3cm
Package Size:129x93.5x5.5cm(LxWxH)
Gross Weight:14kg

PACKAGE INCLUDES
1 x ATEM POWER 200W Shingled Solar Panel

WARRANTY
5 Year Warranty

Warranty Policy

Unless otherwise stated, Sunyee Trading offers a 12 month warranty on all products from the date of purchase. It cannot be excluded under the Australian Consumer Law. The warranty period for commercial use is 3 months.

You are entitled to a replacement or a full refund for a major failure of our product. You are also entitled to have goods repaired or replaced if the goods fail to be of acceptable quality.

Our warranty cover does not include damage caused by normal wear and tear, accidents, misuse, neglect, and lack of maintenance, use of incorrect voltage, power surges, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories, natural disaster, or other external causes; to damage caused by operating the equipment in a manner outside that described in the instructions.

30 Day Change of Mind Guarantee

If for any reason you’ve changed your mind about your purchase within 30days, please contact us so they can be returned under change of mind for store credit note. A refund is not available for change of mind. Please do not return or post items before obtaining instructions from us first. If you do, there is a risk that your returned item may not be identifiable and accepted. This change of mind return policy does not affect your rights under the Australian Consumer Law including any rights you may have in respect of faulty items.

Returned items must be in resalable condition and returned in their original packaging with all accessories. You will need to send the product back on your own cost and there will be an applicable freight fee deducted from the store credit for the return. This also applies to orders canceled when the item has already been dispatched from our warehouse. The item must be in a re-saleable condition to qualify for a change of mind return. Under no circumstances will we issue a credit note before we have received your product back to our premises and checked it as being in the original unopened and undamaged packaging.

*update as of 23rd February 2022.

GTIN: 0761152123428

Estimated Delivery Time Frame:3-8 business days
