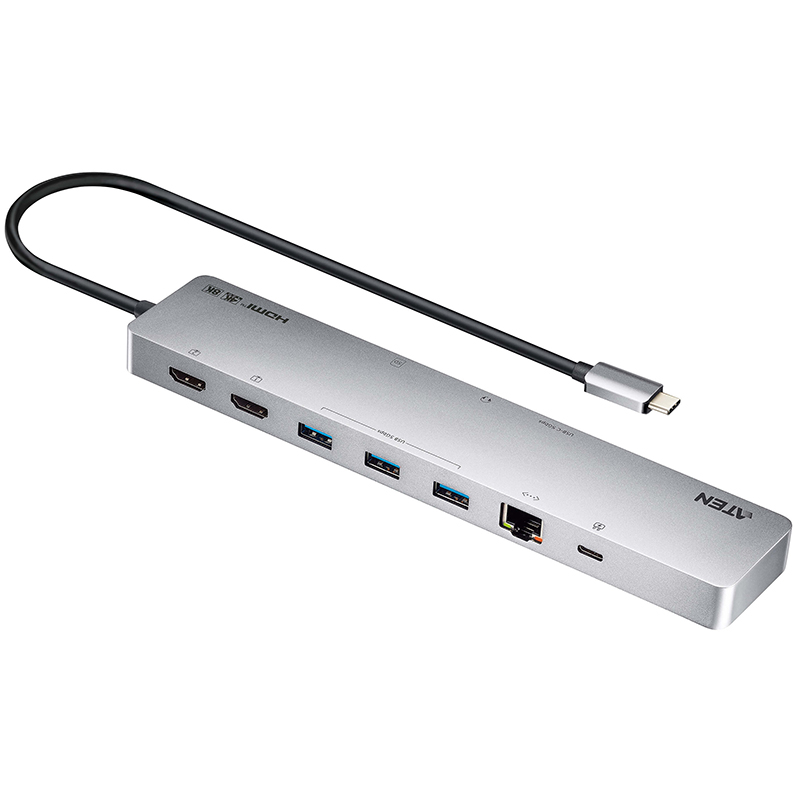

Aten 11-in-1 USB-C Multiport Dock with Power Pass-Through (UH3240-AT)

Image 1
Hurry! 5 items left!
$170.20

Collect 170 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout





SPECIFICATIONS:

GENERAL

Computer Connections

1

Cable Length

40cm

CONNECTORS

Computer

1 x USB-C 3.2 Gen 1 Male Cable

Device

3 x USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W for each)*
1 x USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)*

Note:
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter.
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered).

Video Output

2 x HDMI Female

LAN Ports

1 x Gigabit Ethernet Female

Audio

1 x 3.5mm stereo 4-pole microphone and headphone jack

Power

1 x USB Type-C Female*

Note:
*Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V.
*The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W.
*A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed.

PERFORMANCE

Flash Memory

1 x SD Card Slot (SD/SDHC/SDXC up to 2TB)
1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 2TB)

Video Resolution

Single View:
7680 x 4320;
3840 x 2160 @ 120 Hz
Dual View:
3840 x 2160 @ 60 Hz

Note:
*The max. resolution supported for only HDMI 2 is 4K @ 120 Hz.
*We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to   achieve 8K resolution.
*To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation.
*For extend mode to work, a computer’s graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors.
*For MST (Extend Mode) – supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) – supports up to 4K 3840 x 2160 @ 60 Hz.

Power Consumption

DC5V:18WBTU/h

Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

System Requirements

Windows 10 or above, USB-C enabled   computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

macOS 10.12 or later, USB-C enabled computer

Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode

iPadOS 13.1 or later, iPad (USB-C)*
*iPad only supports single view in mirror mode.

iOS 17.0 or later, iPhone (USB-C)*
*iPhone only supports single view in mirror mode.

ENVIRONMENTAL

Operating Temperature

0 – 40C

Storage Temperature

-20 – 60C

Humidity

0 – 80% RH, Non-condensing

PHYSICAL PROPERTIES

Housing

Aluminum

Weight

0.18 kg ( 0.41 lb )

Dimensions (L x W x H)

22.00 x 4.30 x 1.60 cm
  (8.66 x 1.69 x 0.63 in.)




SKU: 84974
