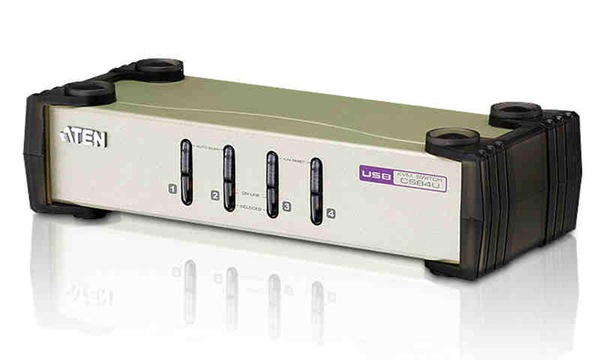

ATEN 4-PORT USB-PS/2 VGA KVM SWITCH - CABLES INCLUDED
The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms.
FEATURES
One PS/2-USB VGA console controls four VGA interface computers.
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Computer selection via front panel pushbuttons, hotkeys, and mouse
Multiplatform support - Windows, Linux, Mac, and Sun
Superior video quality - 2048 x 1536; DDC2B
Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping - supports English, Japanese, and French keyboards
Gaming keyboard support
Auto Scan Mode for monitoring all computers
Firmware upgradable
Non-powered
Note:
PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own computers
SPECIFICATIONS
Computer Connections: 4
Port Selection: Front Panel Pushbuttons; Hotkey, USB Mouse
Connectors:
Console Ports:
Keyboard:
1 x USB Type A Female (Black)
1 x 6-pin Mini-DIN Female (Purple)
Video: 1 x HDB-15 Female (Blue)
Mouse:
1 x USB Type A Female (Black),
1 x 6-pin Mini-DIN Female (Green)
KVM Ports: 4 x SPHD-18 Female (Yellow)
Power: 1 x DC Jack
Switches
Selected: 4 x Pushbutton
LEDs:
On Line: 4 (Orange)
Selected: 4 (Green)
Emulation
Keyboard/Mouse: PS/2, USB
Video: 2048 x 1536 @ 60 Hz; DDC2B
Scan Interval: 3, 5, 10, 20 secs. (5 secs. default)
Power Consumption: DC 5V, 1.2W
Environment:
Operating Temp.: 0 ~ 50 °C
Storage Temp.: -20 ~ 60 °C
Humidity: 0 ~ 80% RH, Non-condensing
Physical Properties:
Housing: Metal
Weight: 0.77 kg
Dimensions (LxWxH): 21.00 x 8.70 x 5.50cm
PACKAGE CONTENTS
1 x Aten 4-Port USB-PS/2 VGA KVM Switch
4 x Custom KVM Cable Sets
1 x User Instructions
