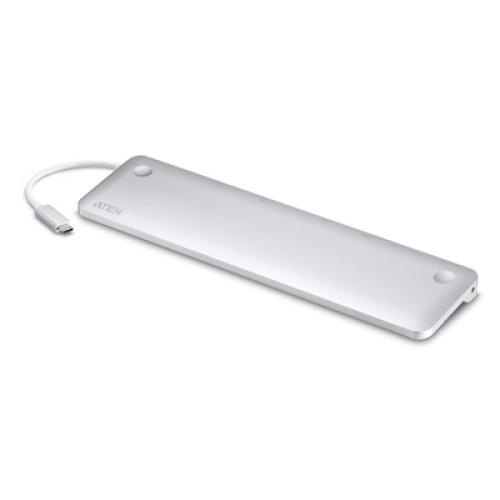

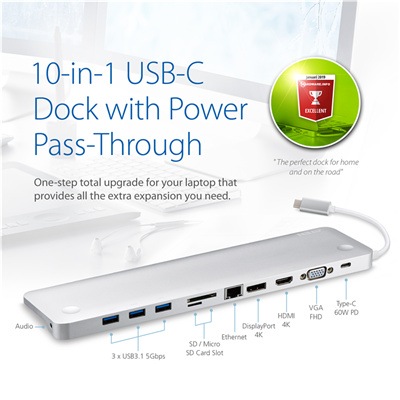

Aten UH3234 10-in-1 USB-C Multiport Docking Station with 60W Power Delivery


The ultra-sleek ATEN USB-C Multiport Dock with Power Pass-Through is a one-step total upgrade for your laptop that provides all the extra expansion you need. Simply use one cable to add up to 10 devices with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB3.1 Gen1, SD/MMC/MicroSD, Ethernet and audio connections.

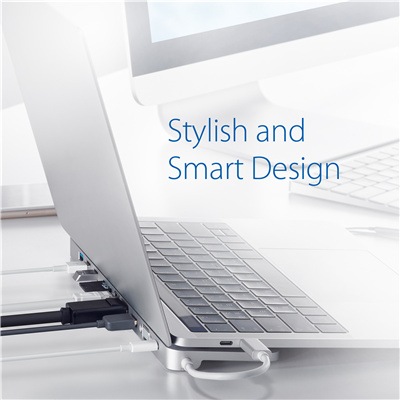

Stylish and Smart Design

With a sleek, ergonomic design, the docking station's aluminum enclosure makes it lightweight yet rugged, meaning you can place your laptop directly on top of the docking station to save space, type comfortably and keep your laptop cool.

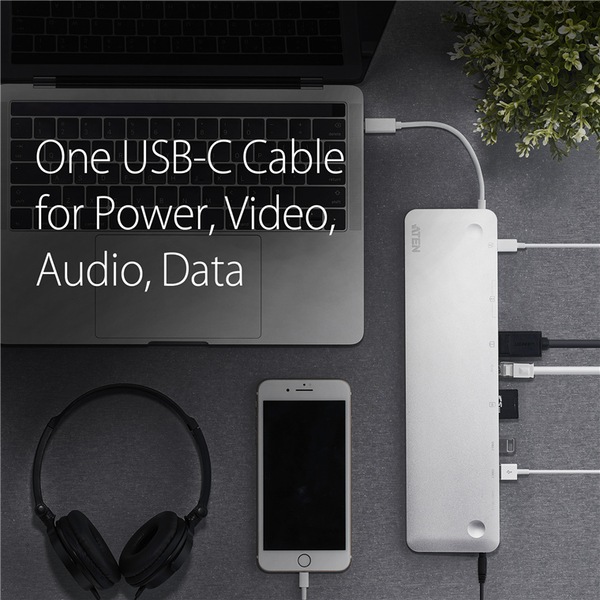

One Cable for Power, Video, Audio, Data
Use the single USB-C cable to charge, transfer data and expand your workstation with up to 10 ports. The docking station not only offers the flexibility of three video interface options (HDMI, DisplayPort and VGA), but also it is equipped with readers for SD/MMC/MicroSD memory cards. You can connect a headset/microphone or an array of USB Type-A peripherals, such as external hard drives, or a full-sized keyboard and mouse, to complete your workstation.

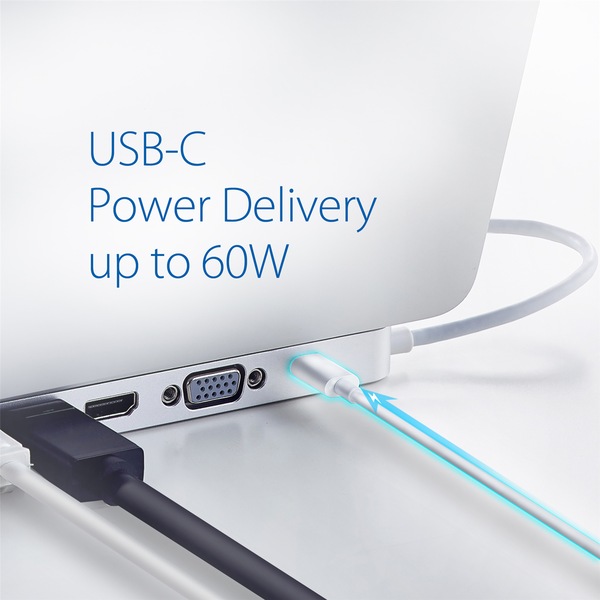

To keep charging all your power-hungry devices and peripherals while working, the dock provides 60W of power delivery pass-through via your laptop's USB-C AC power adapter.

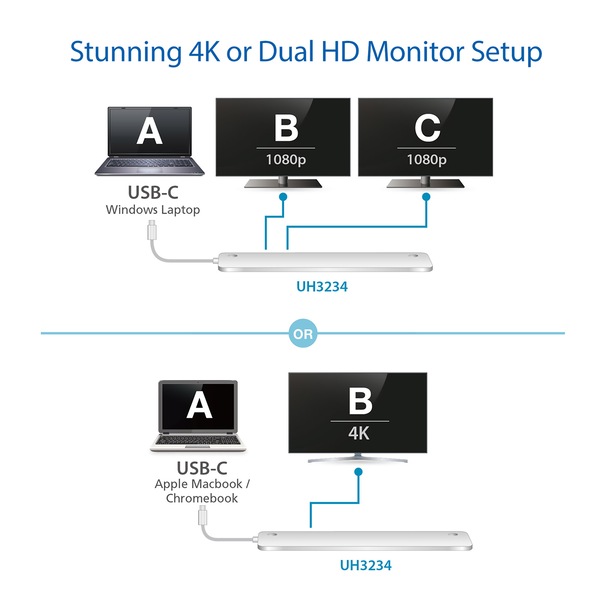

Stunning 4K or Dual HD Monitor Setup

This versatile dock allows to extend your MacBook or Chromebook to an additional monitor and enjoy an ultra high-definition visual experience. You can also mirror or extend your Windows USB-C laptop to two monitors and improve your productivity and get more things done.

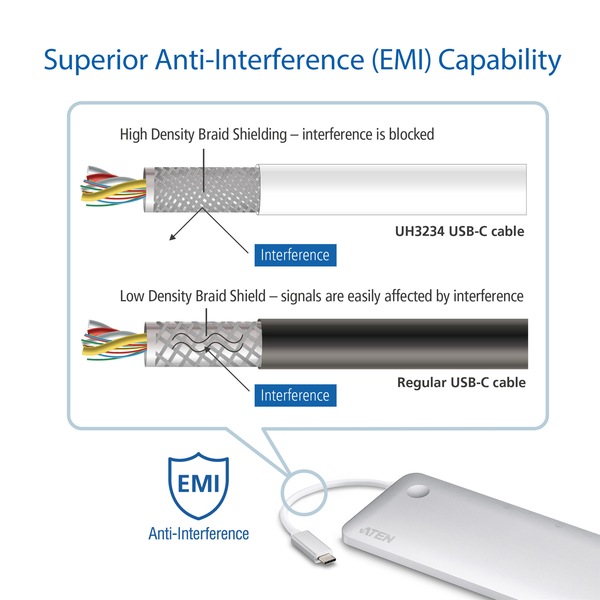

Superior Anti-Interference (EMI) Capability

Increase cable braid shielding density by 85% to ensure reliable and secured connectivity and operation from signal interference by other devices.

Package Contents
1 x UH3234 USB-C Multiport Dock with Power Pass-Through
1 x User Instructions
Computer Connections
1
Computer Connector
1 x USB-C Male
Device Connectors
3 x USB3.1 Gen1 Type A Female*
*1 port supports BC1.2, 7.5W (5V/1.5A)
*2 ports share 5W (5V/1A)
*The total output of 3 x USB3.1 Gen1 Type A Female is 10W(5V@2A)
Video Output
1 x Displayport Female
1 x HDMI Female
1 x VGA Female
LAN Ports
1 x Gigabit Ethernet Female
Audio Inputs
3.5 mm Line-In (Shared)
Audio Outputs
3.5 mm Line-In (Shared)
Power
1 x USB-C Female
PD Pass-Through up to 60W*
*Supports Power Profiles include : 5V/3A?9V/3A?12V/3A?20V/3A.
*USB-C AC Adapter from laptop is needed for Power Delivery Pass-Through Function.
Flash Memory
SD/SDHC/SDXC*
Micro SD/SDHC/SDXC (up to 128 GB)*
*SD and Micro SD Card cannot be used at the same time. They would work in accordance with the order of the insert.
Video Resolution
Single View:
DisplayPort - 3840*2160@30*
HDMI - 3840x2160 @30 or VGA - 1920x1200@60
Dual View:**
DisplayPort - 1920*1200@60
HDMI/VGA - 1920x1200@60
*For video output to work through a USB-C port, it must support DP Alt Mode.
** For Dual-View to work, a computer's graphics card must support MST technology.
Power Consumption
TBD
Operating Temperature
0°C to 40°C (32°F to 122°F)
Storage Temperature
-10°C to 70°C (-4°F to 158°F)
Humidity
10% to 90% RH, Non-condensing
Housing
Metal
Weight
0.32 kg ( 0.7 lb )
Dimensions (L x W x H)
28.00 x 7.50 x 1.45 cm
(11.02 x 2.95 x 0.57 in.)
- MPN: UH3234

GTIN: 672792009310

Reference ID: 5614126
