Aten UH3240 11-in-1 USB-C Dual 4K Docking Station with 100W Power Pass Through [UH3240]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 12 items left!
$149.68

Collect 149 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Aten UH3240 11-in-1 USB-C Dual 4K Docking Station with 100W Power Pass Through


11-in-1 USB-C Multiport Dock with Power Pass-Through

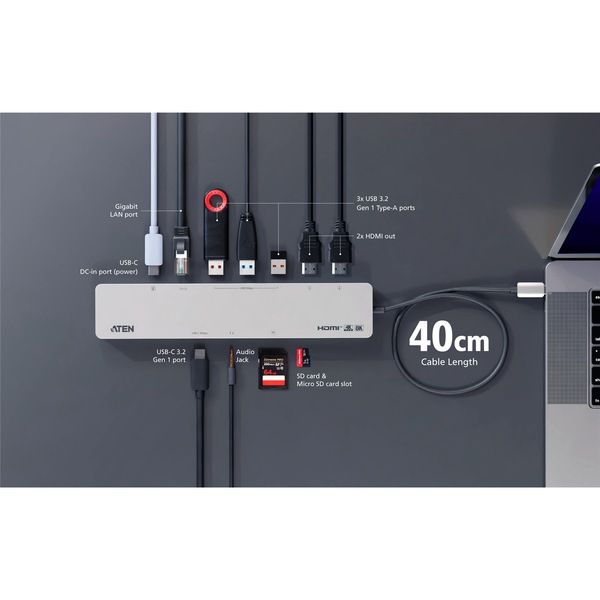

- A multiport dock with 11 essential ports – 2x HDMI, 2x USB-C (1 for power delivery & 1 for data transmission), 3x USB Type-A, 1x SD, 1x Micro SD,1x Ethernet, and 1x audio jack
- Supports up to 8K 7680 x 4320 for single video output or 4K for dual video outputs
- Supports up to 4K @ 120 Hz high refresh rates
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter – supports PD profile specifications of 5V, 9V, 12V, 15V, and 20V

Transform your laptop into the ultimate workstation with unparalleled productivity.
The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.

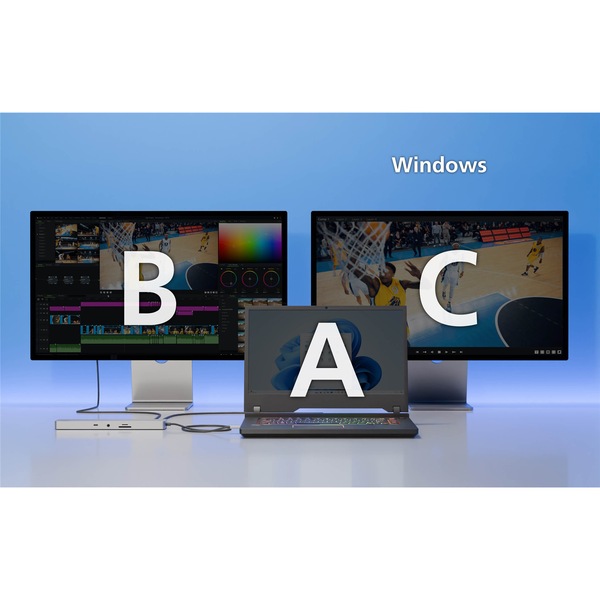

Dual 4K Display
Extend to two 4K Display with Multi-Stream Transport (MST)

Enjoy Impeccable Visual Quality
Optimize your screen resolution to befit the task at hand

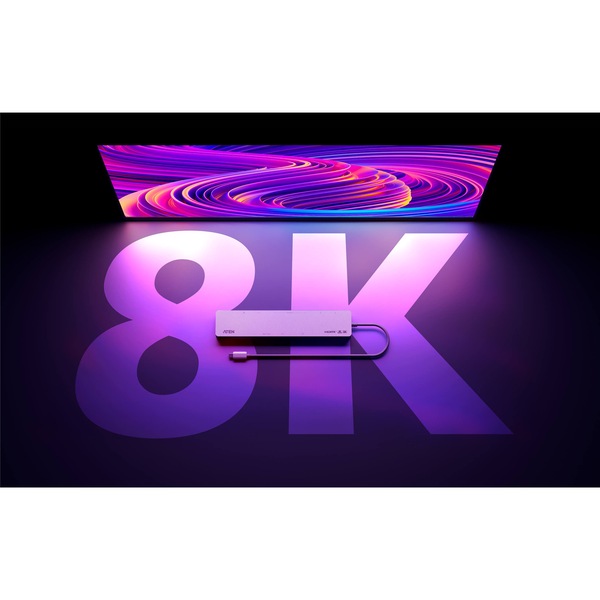

Vivid & Sharp 8K Display
Enthralling visual indulgence of entertainment apex

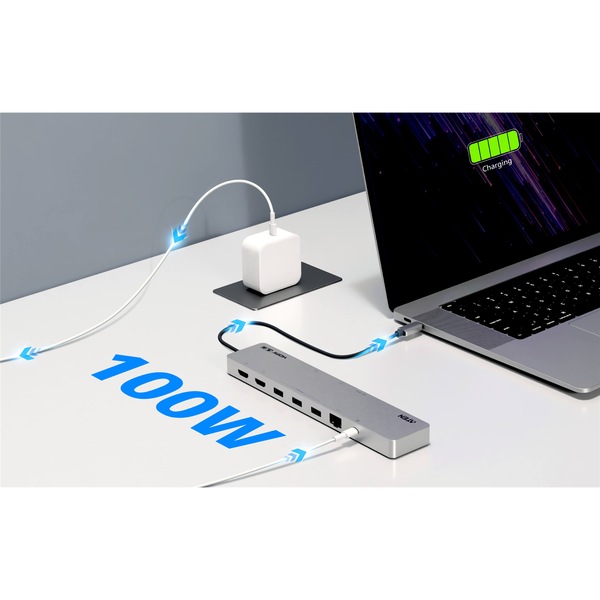

100W Power Delivery with PD 3.0
Power on your devices for your multitasking needs

Note: A self-supplied (original USB-C PD power adapter and cable from the source device is highly recommended) USB-C PD power adapter is needed.
11-in-1 USB-C Dock with Power Pass-through

Multiplatform Support
*Relevant compatible devices must be USB-C enabled

Computer Connections
1
Cable Length
40cm
Connectors
Computer
1 x USB-C 3.2 Gen 1 Male Cable
Device
3 x USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W for each)*
1 x USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)*
Note:
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter.
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered).
Video Output
2 x HDMI Female
LAN Ports
1 x Gigabit Ethernet Female
Audio
1 x 3.5mm stereo 4-pole microphone and headphone jack
Power
1 x USB Type-C Female*
Note:
*Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V.
*The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W.
*A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed.
Performance
Flash Memory
1 x SD Card Slot (SD/SDHC/SDXC up to 2TB)
1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 2TB)
Video Resolution
Single View: 7680 x 4320; 3840 x 2160 @ 120 Hz
Dual View: 3840 x 2160 @ 60 Hz
Note:
*The max. resolution supported for only HDMI 2 is 4K @ 120 Hz.
*We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to achieve 8K resolution.
*To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation.

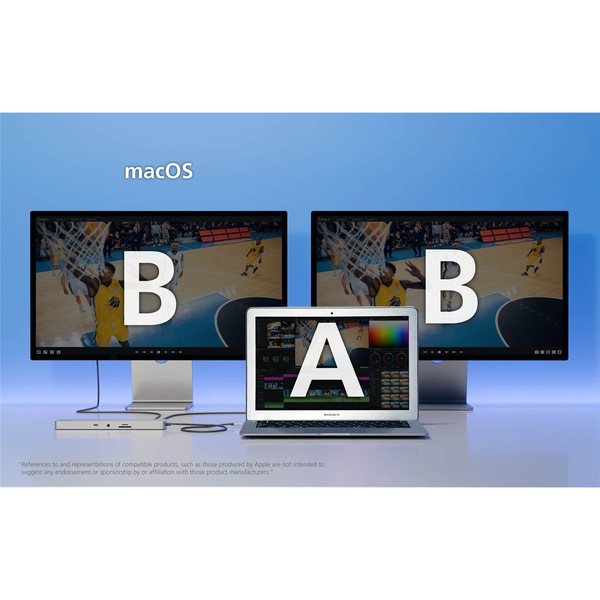

*For extend mode to work, a computer’s graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors.
*For MST (Extend Mode) – supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) – supports up to 4K 3840 x 2160 @ 60 Hz.
Power Consumption
DC5V:18WBTU/h
Note:
- The measurement in Watts indicates the typical power consumption of the device with no external loading.
- The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
System Requirements
Windows 10 or above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
macOS 10.12 or later, USB-C enabled computer
Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode
iPadOS 13.1 or later, iPad (USB-C)*
*iPad only supports single view in mirror mode.
iOS 17.0 or later, iPhone (USB-C)*
*iPhone only supports single view in mirror mode.
Environmental
Operating Temperature
0 – 40°C
Storage Temperature
-20 – 60°C
Humidity
0 – 80% RH, Non-condensing
Physical Properties
Housing
Aluminum
Weight
0.18 kg ( 0.41 lb )
Dimensions (L x W x H)
22.00 x 4.30 x 1.60 cm
(8.66 x 1.69 x 0.63 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- MPN: UH3240

GTIN: 672792015007
