Aten VE800A HDMI Extender Over Single networking cable to Transmit HDMI Signal up to 60m [VE800A]

Image 1
Image 2
Image 3
Image 4
Hurry! 2 items left!
$104.94

Collect 104 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Aten VE800A HDMI Extender Over Single networking cable to Transmit HDMI Signal up to 60m

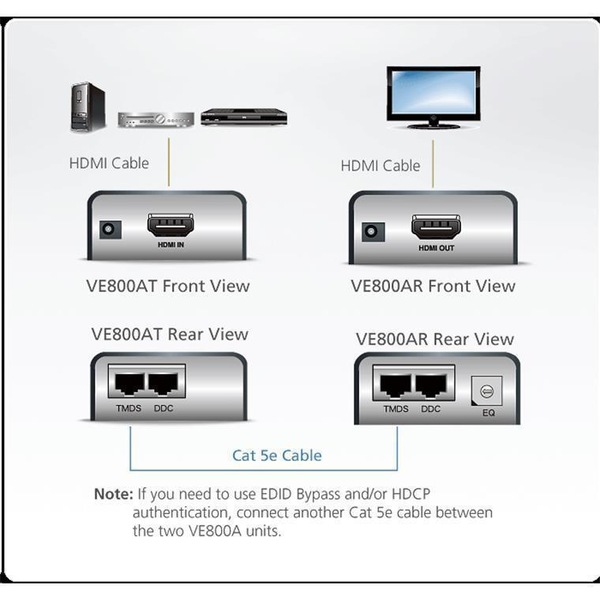

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
- Extends the distance between HDMI source and HDMI display
- Uses Cat 5e cable to connect the local and remote units
- Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality - 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Package Contents
- 1x VE800AT HDMI Extender
- 1x VE800AR HDMI Extender
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions

FunctionVE800ARVE800AT
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 N/A
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP CompatibleHDMI (3D, Deep Color)
HDCP Compatible
Max. Resolutions / DistanceUp to 1080p@40m; 1080i@60mUp to 1080p@40m; 1080i@60m
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Power
Connectors1 x DC Jack1 x DC Jack
Consumption5 VDC, 0.75W5 VDC, 1W
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.16 kg ( 0.35 lb )0.16 kg ( 0.35 lb )
Dimensions (L x W x H)9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)
- MPN: VE800A

GTIN: 672792005749
