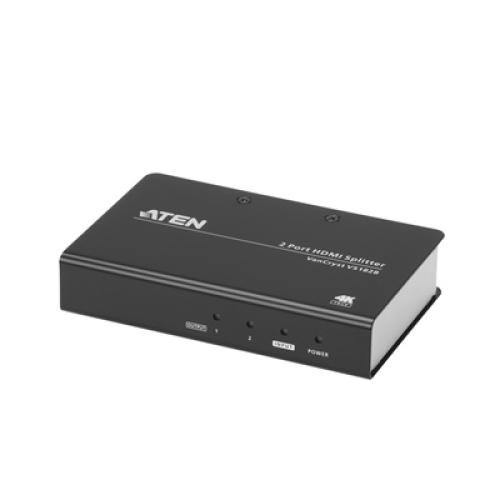

Aten VS182B 2 Port True 4K HDMI Splitter

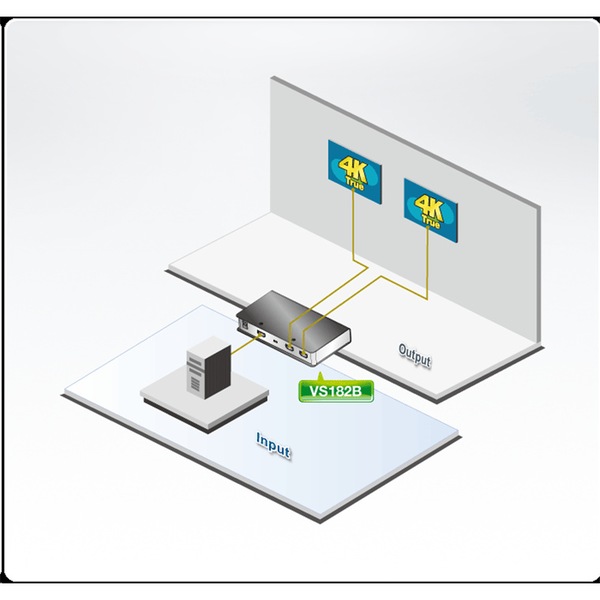

The VS182 HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182 HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Features
- Connects one HDMI A/V source to two HDMI displays at the same time
- Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920x1200)
- Cascade distance: Source to Device -1.8m, Device to Device-15m,Device to Display-20m
- HDMI (Deep color)
- Supports Dolby True HD and DTS HD Master Audio
- Cascadable to 3 levels - provides up to 8 HDMI signals
- Long distance transmission - 20 m (24 AWG)
- DDC compatible
- HDCP 1.1 compatible
- Signaling rates up to 2.25Gbits in support of 1080p display
- All-metal casing
- LED indication of display devices
- Plug-and-play - no software installation required
- Easy and affordable way to take your home theater system to the next level, or upgrade presentations, training, and video broadcasts in a corporate, educational, or commercial setting

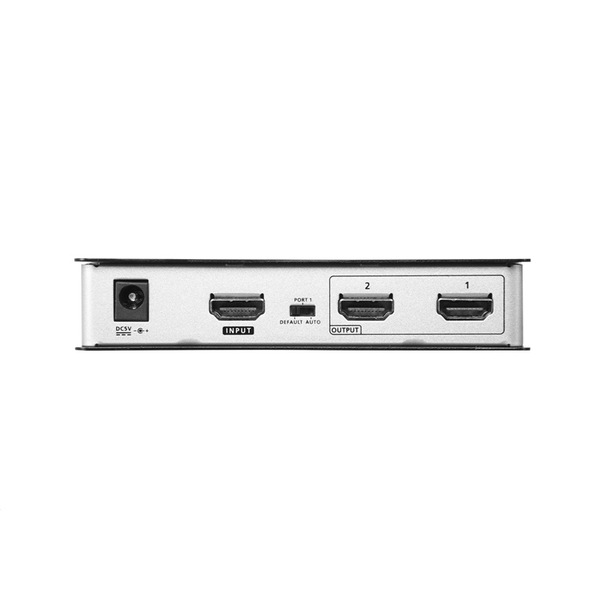

Connectors
HDMI In
1 x HDMI Type A Female (Black)
HDMI Out
2 x HDMI Type A Female (Black)
Power Jack
1 x DC Jack

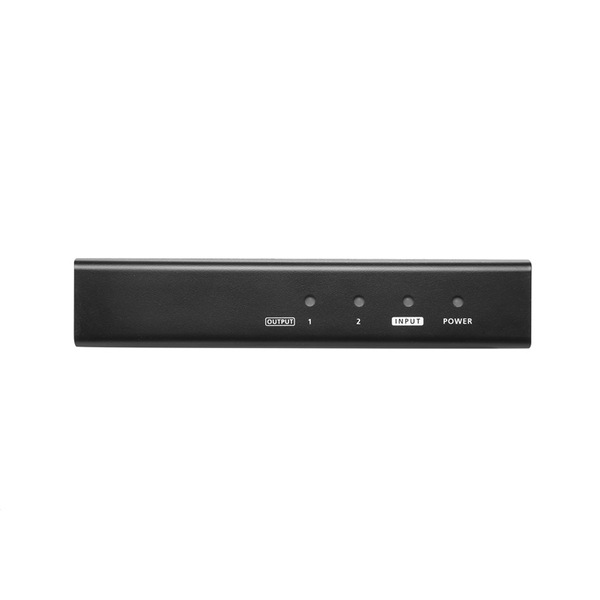

LEDs
Power
1 (Orange)
Input
1 (Green)
Output 1
1 (Green)
Output 2
1 (Green)
HDMI Resolution
HDTV resolutions up to 1080p, computer resolutions up to WUXGA(1920x1200)
Power Consumption
DC5.3V, 2.0W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0-80% RH, Non-condensing

Physical Properties
Housing
Metal
Weight
0.31 kg
Dimensions (L x W x H)
12.50 x 8.15 x 2.50 cm
- MPN: VS182B

GTIN: 672792007316

Reference ID: 14944546
