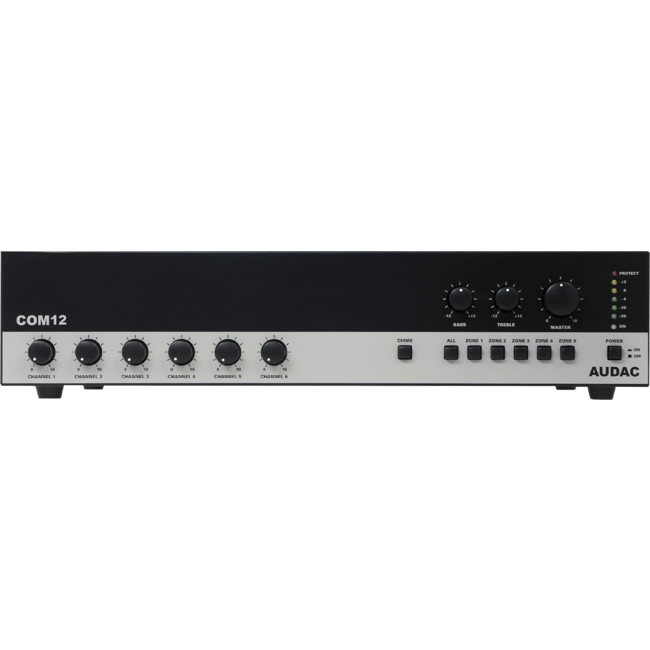

AUDAC COM12MK2 120W 100V Mixer Amp 5 Zones - 100V

AUDAC COM12MK2 120W 100V Mixer Amp 5 Zones - 100V

Hurry! 1 items left!

$1417

Collect 1417 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Audac COM12 PUBLIC ADDRESS AMPLIFIER 120W - 100V

The COM series public address mixing amplifiers are providing an ideal solution for small to medium size commercial sound systems.

Different configurations in terms of output power and connectivity provide an enormous flexibility for numerous applications.

The COM12 is capable of delivering an output power of 120Watt to 100 Volt constant voltage systems or 4 Ohm low impedance loads.

Six input channels with individual level control allow connectivity and mixing to a wide variation of music sources.

Four balanced microphone inputs (XLR) containing phantom power (15 V) and two priority allow connection for almost any (dynamic or condenser) microphone.

Two inputs selectable between stereo balanced line (RCA) and microphone (6.3 mm Jack) allow connection for any sourcesuch as CD-player, computer or portable device, or enable toexpand the total microphone count to 6.

The remote microphone and tele-paging inputs allow expansion of the system with a paging station (with chime tones) or couple the system with your business telecom system (or any other priority line source).

Using the priority mute contact, coupling and muting can be done through an external fire alarm system.

The output level can be adjusted using a master volume control accompanied with 2-band tone regulation.

The level is indicated with a 5-segment VU-bar while output selection is made possible using an integrated 5-zonespeaker switcher.

Both table-top installation or 19" (2HE) equipment rack mounting is made possible using the included adapters.

_

5-Zone output selector
Master volume with 2-band tone control
Individual input volume / mixing control
Included rack ears for 19" rack mounting
Terminal block output connections for 5 zone outputs (Hi-Z)
Terminal block 4? output connection
Mic / line inputs with priority (2x) & Phantom (4x)
Mic / line inputs

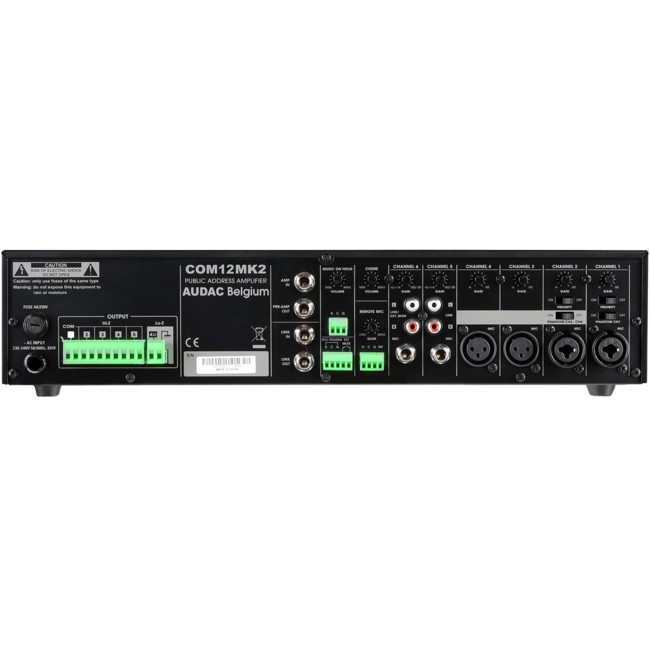

Remote inputs, chime & mute contacts
Link in- & outputs

_

SYSTEM SPECIFICATIONS
RMS Power	120 W
Signal / Noise	> 90 dB
THD+N (@ 1 kHz)	< 0.5%
Crosstalk (@ 1 kHz)	> 70 dB
Technology	Class A/B
Common mode rejection ratio	70 dB
Protection	DC Short circuit
	Over heating
	Over load
	Signal limiting
Cooling	Convection cooled
Operating temperature	0° ~ 40° @ 95% Humidity
Frequency	Response (± 3 dB)	20 Hz - 20 kHz
Power	Supply	Transformer
	Source	230 ~ 240 V AC / 50 ~ 60 Hz
Inputs	Other	Remote mic (Priority mic + chime)
		Tele-paging (Priority line)
		Priority mute contact
Outputs	Connector	2-pin Euro Terminal Block (Pitch - 5.08 mm)
		10-pin Euro Terminal Block (Pitch - 5.08 mm)
	Voltage / Impedance	100 V / 4 ?
Inputs	Balanced Microphone 1 - 4	Type	4 x Balanced Mic./Line (-6 dB / -50 dB)
		Connector	2 x XLR/Jack Combo & 2 x XLR
		Other	4 x 15 V DC Phantom & 2 x Priority
	Balanced Microphone 5	Type	1 x Balanced Mic./Line (-6 dB / -50 dB)
		Connector	6.3 mm Jack
	Unbalanced Stereo	Type	1 x Stereo Unbalanced Line (+14 dB / -30 dB)
		Connector	RCA

PRODUCT FEATURES
Dimensions	420 x 88 x 320 mm (W x H x D)
Weight	9.700 kg
Mounting	19" / 2 HE or tabletop
Construction	Steel
Colours	Black
Accessories	Included	19" Rackmount adapter
