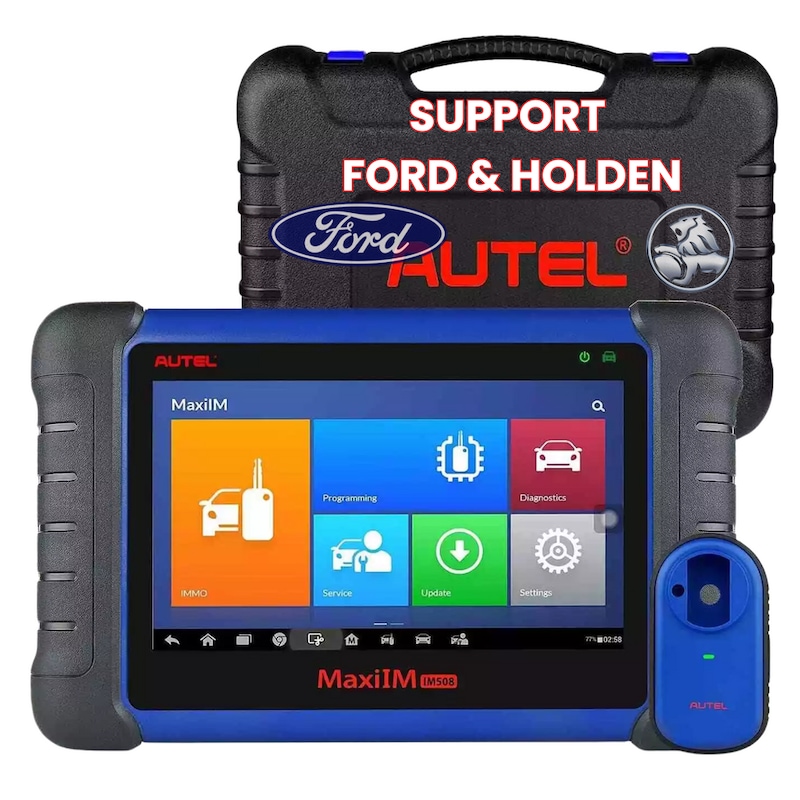

Autel MaxiIM IM508 – IMMO Programming & Diagnostic Tool

The Autel MaxiIM IM508 is a professional tool for immobilizer programming and diagnostics, offering advanced IMMO services, full-system diagnostics, and reset functions for over 80 vehicle brands.

Key Features

XP200 IMMO Programmer: Advanced immobilizer and key programming.
Comprehensive IMMO Services: Professional IMMO system functions for various vehicles.
Full-System Diagnostics: Reads/clears DTCs across all modules, comparable to MX808/MK808BT.
Special Functions: Includes Oil Reset, EPB, SAS Calibration, BMS, DPF Regeneration, IMMO Key Programming.

Main Features

Advanced IMMO Programming
PIN/CS Reading (Full Lost)
IMMO Generation & Programming
Command Introduction
Backup/Repair IMMO Data
IMMO ECU Reset/Adaptation
IMMO ECU Regeneration/Coding
BMW FEM/BDC IMMO
VW/Audi MQB IMMO Programming, 48 Transponder Key Copy
1-Year Free Online Updates

Multi-Language Support

English, Portuguese, German, Japanese, French, Spanish

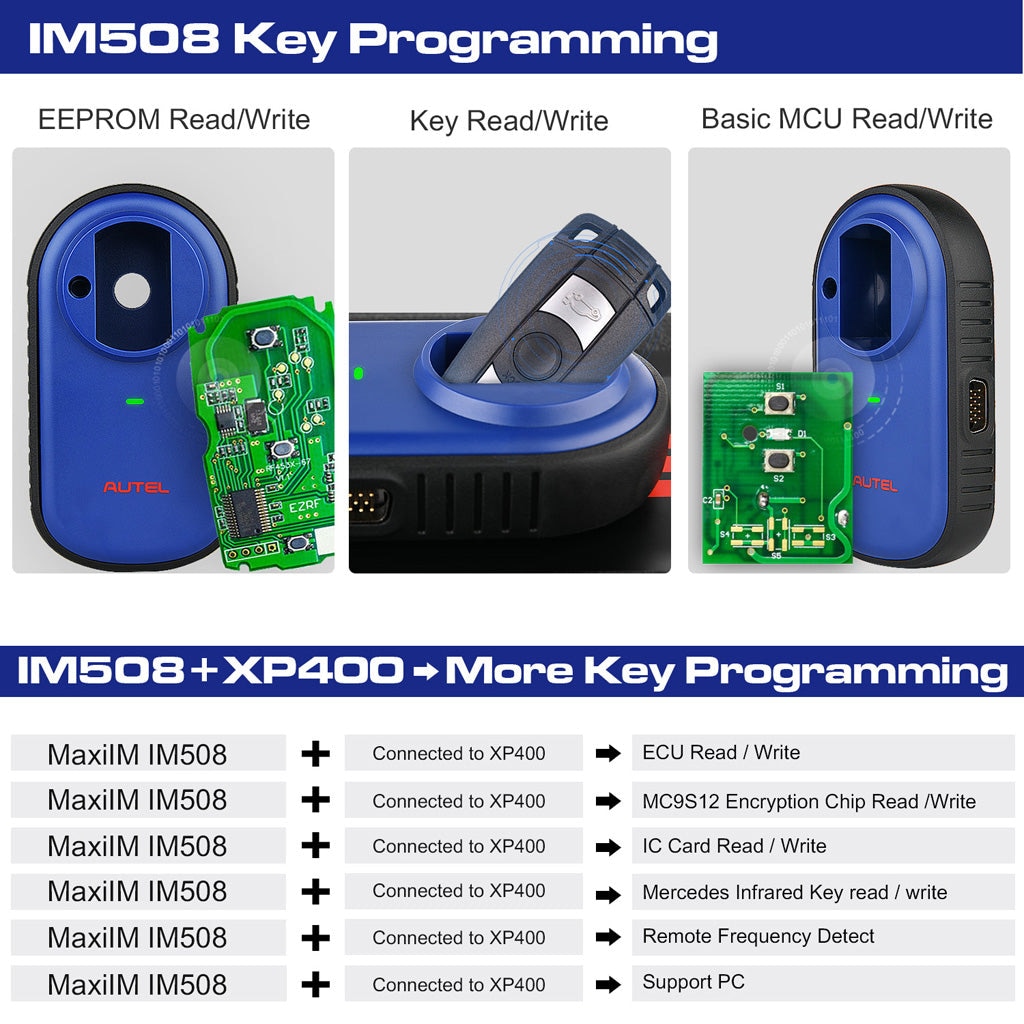

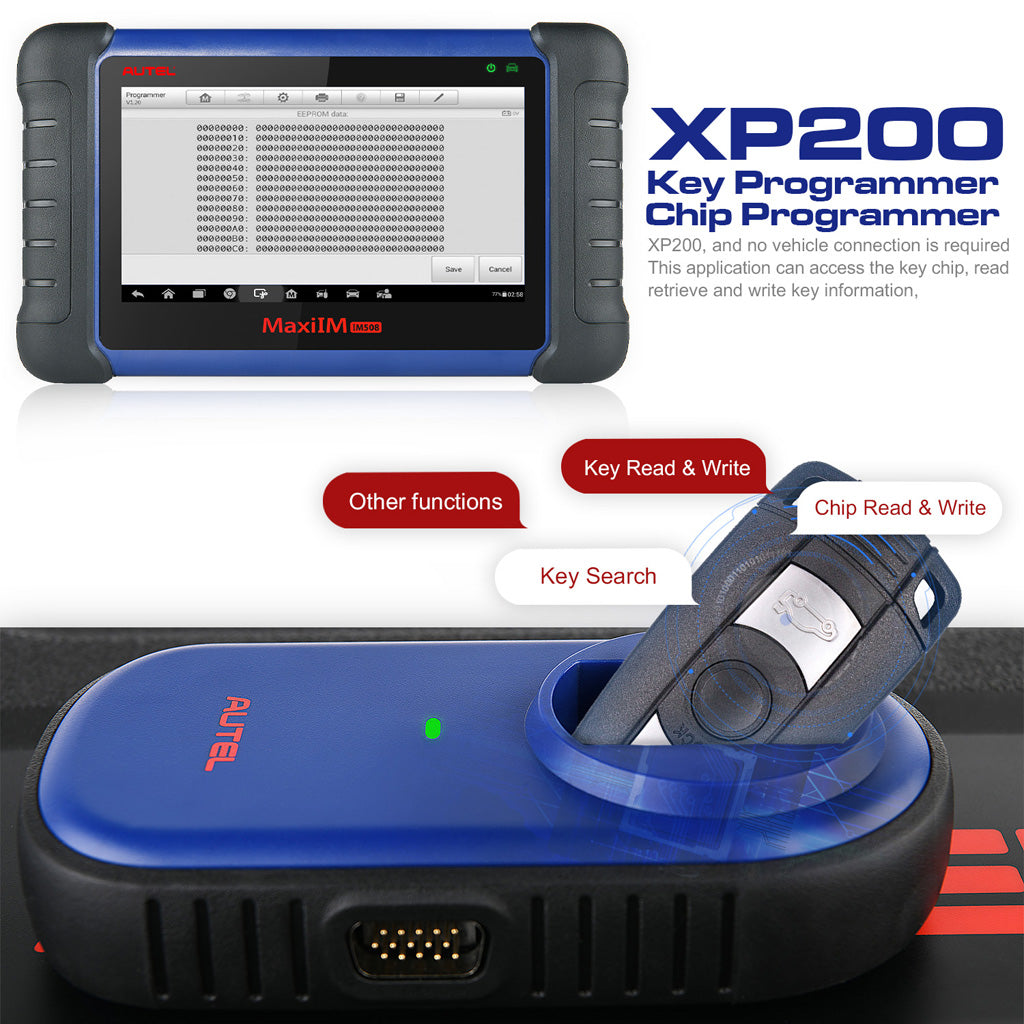

XP200 IMMO & Chip Programmer

IMMO Reading/Writing
EEPROM/MCU Read/Write

Advanced Diagnostics

All-System Diagnostics
Auto Search/VIN Finding
Read/Delete Error Codes
View Live Data Stream
View Failure History Records
Store and Data Manager Applications

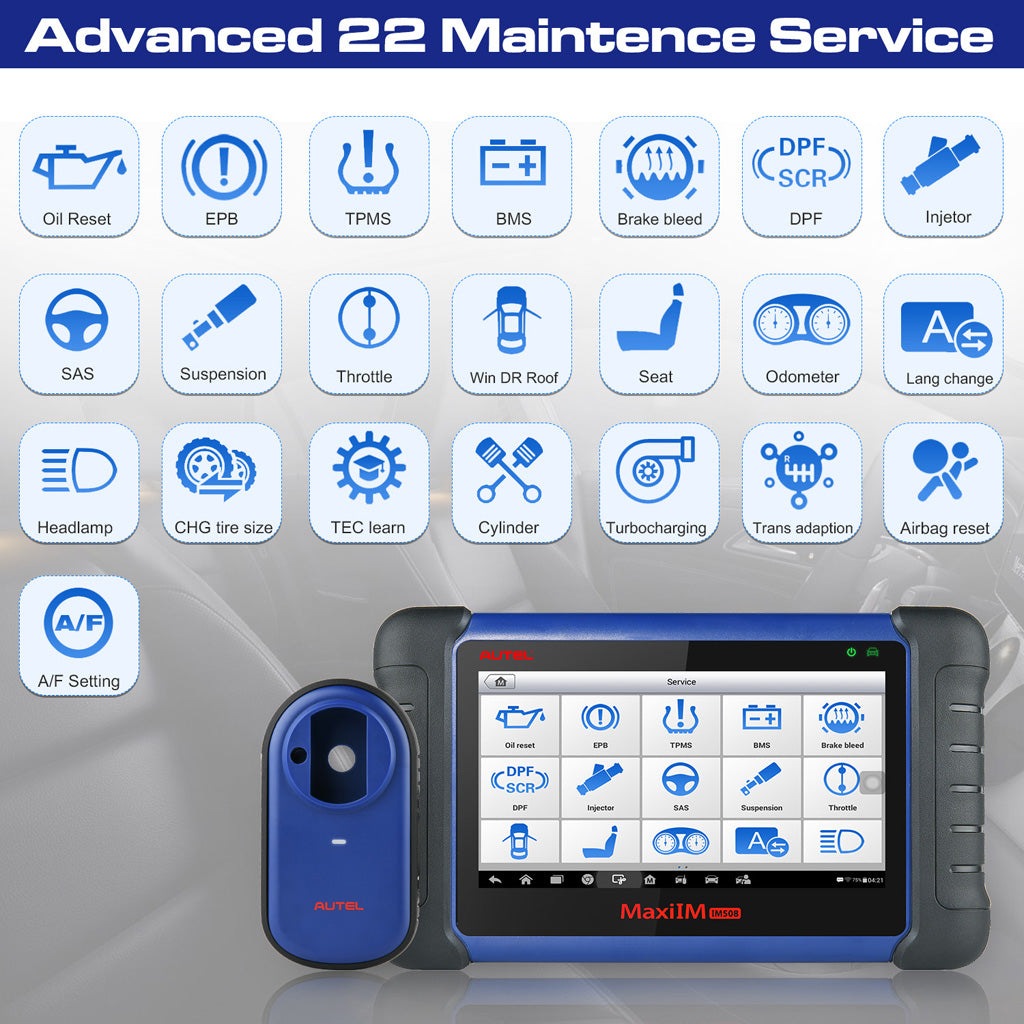

Reset Services

Oil Reset: Resets engine oil life system post-oil change.
EPB Service: Manages electronic parking brake (on/off, pad replacement, fluid control).
SAS Calibration: Sets steering wheel’s straight-ahead position.
TPMS Service: Reads/tests/replaces tire sensor IDs.
BMS Service: Monitors battery health, registers new batteries, resets system.
DPF Service: Manages DPF regeneration and resets post-replacement.

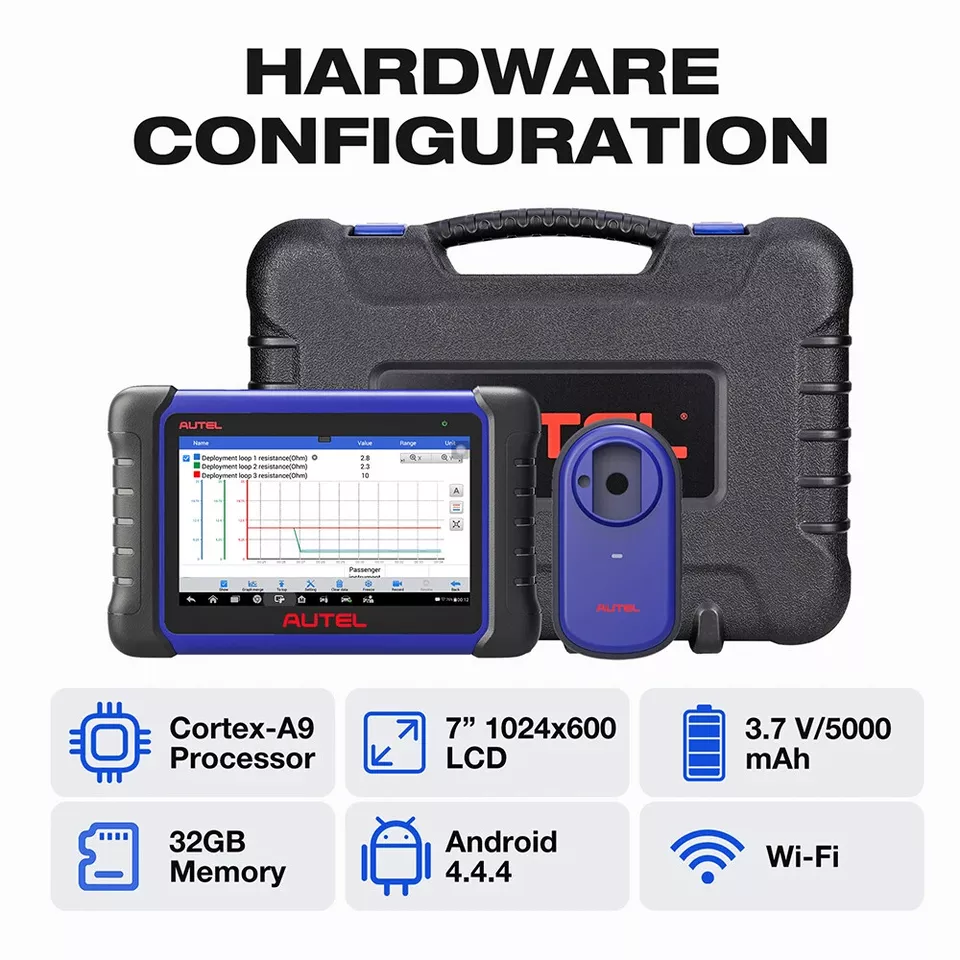

Technical Specifications

Category	Details
Operating System	Android™ 4.4.4, KitKat
Processor	Cortex-A9 (1.6 GHz)
Memory	32GB
Display	7-inch LCD, 1024x600 resolution
Connectivity	Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD (up to 32GB)
Sensors	Ambient light sensor
Power and Battery	3.7V/5000mAh Li-Polymer, 5VDC charging
Tested Battery Life	~4.5 hours continuous use
Battery Charging Input	5V/1.5A
Power Consumption	500mA (LCD on, default brightness, Wi-Fi on) @3.7V
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5%-95% non-condensing
Net Weight	885g (2.31 lb)
Supported Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, Honda Diag-H, TP2.0, TP1.6

Specifications:

Package Contents

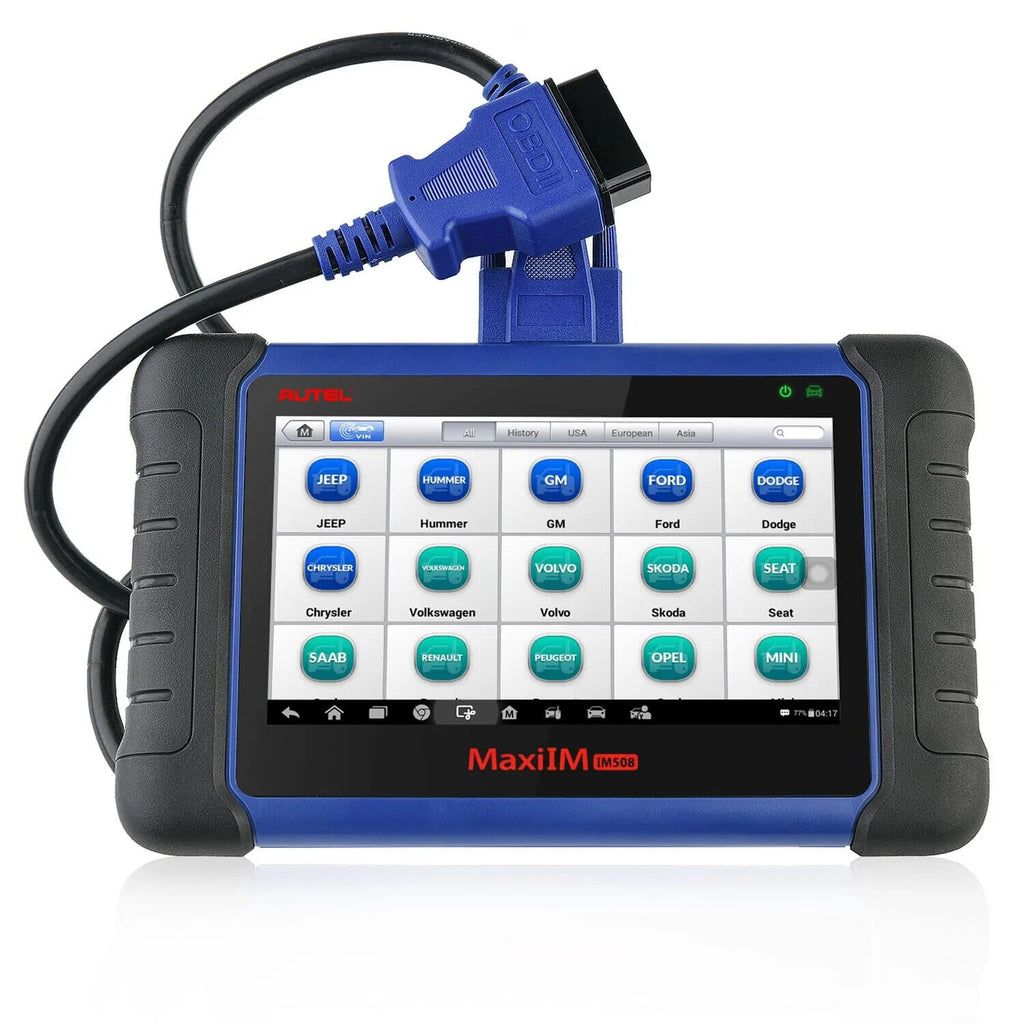

Autel MaxiIM IM508 Diagnostic Tool (Main Unit)
XP200 IMMO Programmer

SKU: 120
